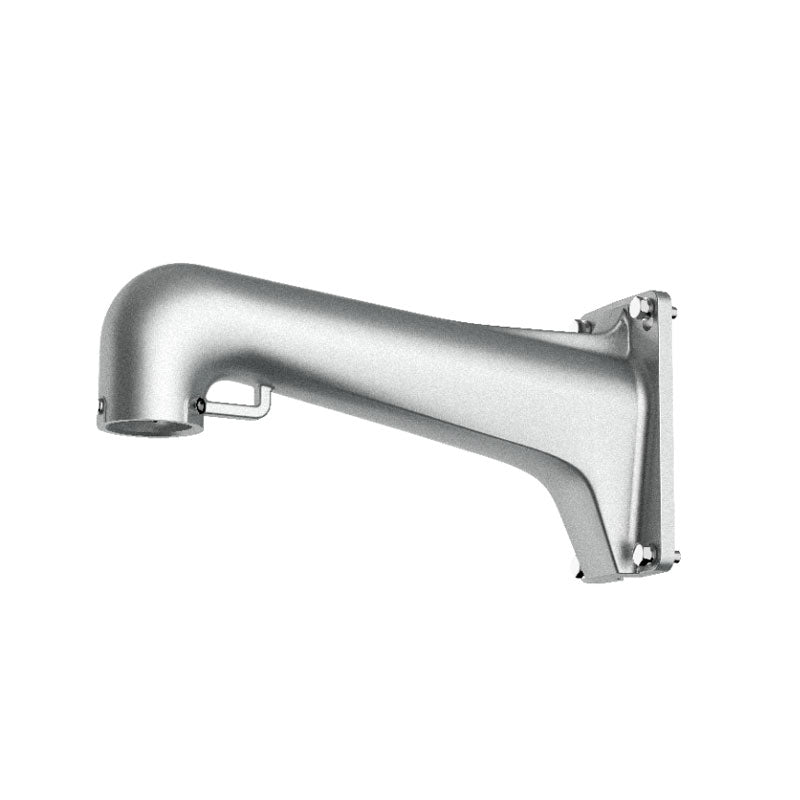

Hikvision DS-1603ZJ-P Wall Mount Bracket to suit PanoVu Series Cameras, Grey

Model: HIK-1603ZJ-P

Who This Is For

When getting the mounting position right is the priority, the Hikvision DS-1603ZJ-P wall mount bracket gives installers a purpose-built solution for PanoVu series panoramic cameras. PanoVu cameras are large, heavy units that demand a bracket rated for the load - this one handles up to 20kg, which comfortably accommodates the full PanoVu range. At 364.1 x 182mm, the bracket provides a stable footprint against a wall surface, positioning the camera clear of the structure for an unobstructed 180 or 360 degree field of view. Built from aluminium alloy, it suits external walls, fascias, and concrete surfaces where the camera needs to project outward. Installers specifying multi-imager panoramic systems for car parks, warehouses, retail centres, or open yards will need a bracket that matches the camera's size and weight class - the DS-1603ZJ-P is built for exactly that application.

What This Bracket Actually Does

Who Buys This Model

• Security installers completing PanoVu deployments: Contractors who have already specified a Hikvision PanoVu camera and need the correct OEM wall bracket to complete the installation to manufacturer specifications.
• Commercial facility managers: Sites such as warehouses, distribution centres, and car parks where a single panoramic camera position needs to be wall-mounted with a bracket rated to handle the camera's weight long-term.
• Systems integrators replacing damaged hardware: Integrators maintaining an existing PanoVu installation where the original bracket has corroded, been impacted, or needs to be relocated to a different wall surface.
• Installers mounting to rendered masonry or concrete: The aluminium alloy construction and 364.1 x 182mm footprint make this suitable for external wall surfaces common in Australian commercial construction.

Honest Assessment

The DS-1603ZJ-P does one thing well: it provides a correctly sized, adequately rated wall mount for Hikvision PanoVu cameras. The 20kg load capacity, aluminium alloy material, and purpose-built compatibility mean installers are not improvising with a generic bracket that may not align with the camera's mounting pattern or safely handle its weight. For any PanoVu wall installation, this is the straightforward answer. What it will not do is suit any other camera family - it is not a universal bracket and should not be used with non-PanoVu cameras. It also does not offer adjustable tilt or rotation beyond what the camera head itself provides, so camera positioning relies on the mounting surface choice. If you need a ceiling or pole mount for a PanoVu camera, a different bracket model is required. Available through Security Australia, this bracket is best treated as a required component of a PanoVu installation rather than an optional add-on.

Before You Buy

Quick Fit Check

• Good match if: You are installing a compatible Hikvision PanoVu series camera onto an external or internal wall and need a bracket rated to 20kg that aligns with the camera's OEM mounting pattern.
• Good match if: The installation surface is masonry, concrete, or timber framing where the 364.1 x 182mm footprint can be anchored across multiple fixing points for a stable, long-term mount.
• You may need a different model if: You need to mount a PanoVu camera to a ceiling, pole, or corner surface - different bracket types are available to suit those mounting positions and will provide a more appropriate installation angle for panoramic coverage.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are mounting a compatible PanoVu series camera to a wall surface and need a bracket with a confirmed 20kg load rating and OEM fit - no universal bracket guesswork.
• You may need a different model if: Your installation requires ceiling mounting, corner mounting, or pole mounting - different Hikvision bracket types exist for each of those configurations and will deliver a more appropriate camera angle for panoramic coverage.
• Pairs well with: Hikvision PanoVu series multi-imager panoramic cameras, combined with a compatible PoE switch or NVR to complete the installation.

Common Questions

1. Will this bracket fit all Hikvision PanoVu cameras?

   Not necessarily all models. The DS-1603ZJ-P is designed for the PanoVu series, but Hikvision's PanoVu range includes multiple camera bodies with different sizes and mounting footprints. Before ordering, cross-reference the bracket's specifications against your specific PanoVu camera model's datasheet to confirm the mounting pattern matches. Using a bracket that is not confirmed compatible for your model risks an insecure installation.

2. Does the 20kg load capacity include the weight of the bracket itself?

   The 20kg figure refers to the maximum load the bracket can support - meaning the camera and any additional hardware mounted to it. The bracket itself weighs 1.4kg and is supported by the wall anchors, not counted against its own load rating. In practice, PanoVu cameras are well within the 20kg capacity, giving adequate structural margin for a permanent installation.

3. Is this bracket suitable for outdoor use?

   Yes. The aluminium alloy construction is suited to outdoor environments where the bracket will be exposed to rain, humidity, and temperature variation. Aluminium alloy does not rust and maintains structural integrity in conditions that would degrade uncoated steel brackets over time. It is used by installers across Australian commercial and industrial outdoor applications.

4. Does this bracket allow the camera to be tilted or aimed after installation?

   No independent tilt adjustment is built into this wall mount bracket. Camera positioning is determined by where the bracket is fixed on the wall surface. If your installation requires angled coverage - for example, tilting the camera downward from a high wall position - you will need to account for that in where you fix the bracket, or select a bracket model that includes a tilt mechanism.

5. What wall types is the DS-1603ZJ-P suitable for?

   The bracket can be fixed to any wall surface that can accept anchors rated to support the combined camera and bracket weight. Solid masonry, concrete, and timber stud framing are all suitable provided the correct anchor type is used for the substrate. Hollow-core block or lightweight cladding requires specific hollow-wall anchors rated to the load - this is an installer responsibility and is not dependent on the bracket specification itself.

6. Where can I find the datasheet for this bracket?

   The HIK-1603ZJ-P datasheet is available through Security Australia's product listing. It contains the full dimensional drawing, fixing hole pattern, and load specification needed for installation planning. Confirming the fixing hole layout before drilling is recommended, particularly where cable conduit or structural elements need to be avoided behind the wall surface.

Downloads & Resources

• HIK-1603ZJ-P Datasheet
