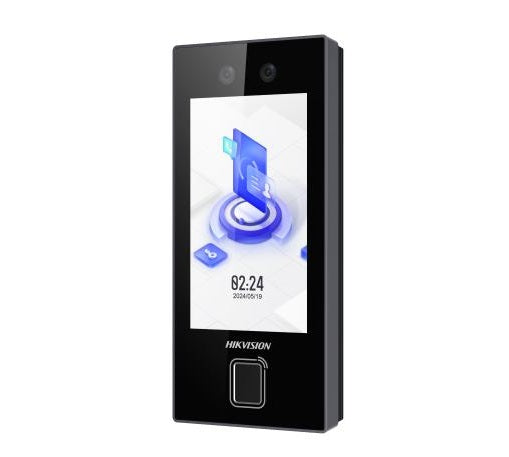

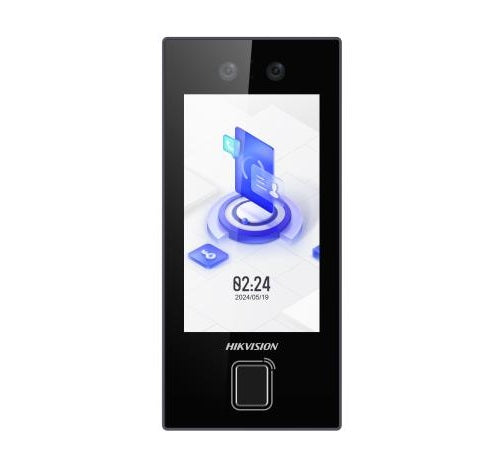

Hikvision Value Series DS-K1T344MFX-E1 Face Recognition Terminal with Fingerprint, M1 Card Reader, 4.3-inch Touchscreen & PoE

Model: DS-K1T344MFX-E1

Who This Is For

For facility managers and security installers who need a multi-credential entry point without running a separate power circuit to the door. The Hikvision DS-K1T344MFX-E1 combines face recognition, fingerprint scanning, and M1 card reading into a single PoE-powered terminal, which simplifies installation at offices, strata buildings, childcare centres, and light commercial premises. The 4.3-inch touchscreen gives users a clear interface for presenting credentials or entering PIN combinations, while the Value Series positioning keeps the total cost of a multi-door deployment manageable. Installers specifying a site where card-only access is considered insufficient - whether for hygiene, security grading, or accountability - will find the three-mode credential flexibility covers most day-to-day access scenarios without requiring separate readers at each door.

What This Terminal Actually Does

Who Buys This Model

• Office and Commercial Fit-Out Installers: Specifying multi-door access control where biometric accountability is required and running a separate power feed to each door is impractical or costly.
• Strata and Building Managers: Deploying controlled entry at basement carparks, lift lobbies, or gym and amenity rooms where residents already hold M1 cards for other building systems.
• Childcare and Healthcare Operators: Sites where touchless face recognition at entry points is preferred for hygiene compliance, with fingerprint as a backup credential for staff who need an alternative.
• Light Industrial and Warehouse Sites: Controlling access to server rooms, parts stores, or secure stock areas where a card alone is insufficient and a biometric record of who entered is operationally important.

Honest Assessment

The DS-K1T344MFX-E1 delivers three credential types - face, fingerprint, and M1 card - in a single PoE-powered terminal at a Value Series price point. That combination makes it genuinely practical for multi-door commercial deployments where biometric access is specified but budget is a constraint. The 4.3-inch touchscreen is a meaningful step up from basic keypad-style terminals and makes enrolment and configuration less cumbersome on-site. Where this terminal is less suited: it is not designed for high-throughput entry points such as turnstiles at large venues, nor does it replace a full enterprise access controller for sites requiring complex time-attendance reporting, elevator control integration, or very large user databases. For straightforward commercial and light industrial door control, the DS-K1T344MFX-E1 available through Security Australia covers the majority of installer and facility manager requirements without unnecessary complexity.

Before You Buy

Quick Fit Check

• Good match if: You are fitting out an office or commercial premises with multiple controlled doors and need biometric plus card credentials delivered over a single Cat6 run per door, without a local power supply at each door frame.
• Good match if: Your site already uses M1 (Mifare) cards for other building systems and you want to extend access control to additional doors without reissuing all credentials.
• You may need a different model if: Your application involves high-volume pedestrian throughput, turnstile integration, or enterprise-grade time-attendance with payroll export - a more advanced access controller or a dedicated enterprise terminal series will be a better fit for those requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site needs face recognition, fingerprint, and M1 card in a single PoE-powered terminal at a Value Series price point, without requiring a separate power supply at each door position.
• You may need a different model if: Your application involves high-throughput entry lanes, turnstile integration, or enterprise time-attendance with payroll system export - a Pro Series or enterprise-grade access terminal will handle those scenarios more effectively.
• Pairs well with: A compatible Hikvision PoE access controller or network access control panel, a PoE-capable managed switch, and an electric strike or magnetic lock at the door frame.

Common Questions

1. Does this terminal need a separate power supply at the door?

   No. The DS-K1T344MFX-E1 is powered via PoE, so a single Cat5e or Cat6 cable from a PoE-capable switch or injector carries both network data and power to the terminal. You do not need a local 12V adapter or additional mains wiring at the door frame, which significantly simplifies conduit and installation planning for multi-door deployments.

2. Will this terminal work with our existing Mifare access cards?

   Yes, in most cases. The terminal includes an M1 (Mifare) card reader, which is compatible with standard 13.56 MHz Mifare Classic and related M1-format credentials used widely in Australian commercial buildings. If your existing cards are a different format - such as 125 kHz EM or HID Prox - they will not be readable by this terminal, and you would need to reissue cards or select a different reader module.

3. Can users choose between face, fingerprint, or card, or do they have to use all three?

   Users can be enrolled with one or more credential types, and the system does not require all three to be used simultaneously. A staff member can be enrolled with face recognition only, card only, or any combination. Multi-factor authentication - requiring two credential types together - can be configured for higher-security doors where that is operationally required.

4. Does this terminal work as a standalone unit or does it need a separate access controller?

   The DS-K1T344MFX-E1 is designed to work within a Hikvision access control system and will typically connect to a compatible access controller or be managed via Hikvision's access control platform. Confirm your integration path - Wiegand output to an existing controller, or direct IP management - before installation, as this determines how door lock outputs and access schedules are managed. The stocked range at Security Australia includes compatible Hikvision access controllers if you need to pair the terminal with a new control panel.

5. How does face recognition perform in low light near an entry door?

   Face recognition terminals in the DS-K1T344 series use a built-in camera and IR illumination to support recognition in low-light conditions. However, performance at outdoor or semi-outdoor entries can be affected by strong direct sunlight or glare on the lens. For entries exposed to direct sun, consider a canopy or recess mount to shade the terminal face, which will improve recognition reliability across different times of day.

6. How long does it take to enrol users on this terminal?

   Individual enrolment at the terminal takes a few minutes per user - the touchscreen guides through face capture and fingerprint scan steps. For sites with more than 15-20 users, batch enrolment via a connected Hikvision access management platform is considerably faster than enrolling each person at the door. Plan your commissioning schedule accordingly, particularly for staged rollouts across multiple doors.

Cabling Considerations

• Cable Type: Cat5e minimum, Cat6 recommended for all terminal runs.
• Max Cable Run: Up to 100 m from PoE switch to terminal per standard Ethernet specification. Runs beyond 90 m should be tested before finalising conduit routes.
• PoE Notes: Each terminal requires a dedicated PoE port at the switch. Confirm your switch has sufficient PoE budget across all connected devices - terminals, cameras, and VoIP equipment all draw from the same PoE wattage pool.
• Door Lock Wiring: A separate cable run is required from the terminal or access controller output to the electric strike or magnetic lock at the door. Factor this into conduit planning at rough-in stage - running the lock cable alongside the PoE cable from a different origin point is a common installation oversight.
• Wiring Tips: Run all cabling before wall and door frame linings are finished. The terminal mounts to a surface backplate, so the Cat6 and any lock wiring should terminate inside or immediately behind the backplate position. Label all cable ends at the patch panel end during installation to simplify future servicing.

Downloads & Resources

No downloads available for this product.
