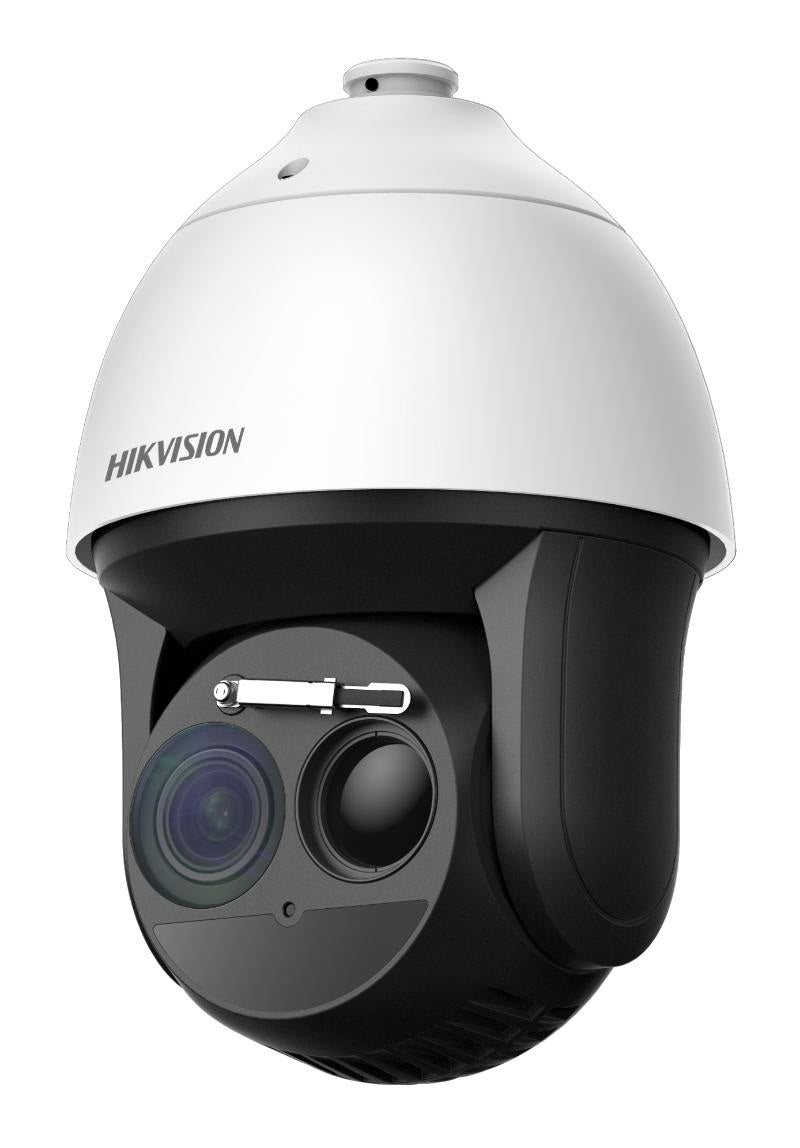

Hikvision Thermal & Optical DS-2TD4167T-25/W Bi-Spectrum Network Speed Dome Camera with Thermography, 25mm Lens, Perimeter Protection

Model: DS-2TD4167T-25/W

Who This Is For

When detecting intruders in total darkness, heavy fog, or across large unlit perimeters is the priority, a standard optical PTZ will consistently fall short. The Hikvision DS-2TD4167T-25/W is a bi-spectrum speed dome combining a thermal imaging channel with an optical PTZ channel in a single housing, backed by built-in thermography and AI-based Perimeter Protection. It is suited to critical infrastructure sites, large industrial facilities, data centres, correctional facilities, military installations, and high-value logistics yards where optical cameras alone cannot guarantee detection regardless of lighting or weather conditions. The 25mm thermal lens delivers focused coverage across medium-to-long approaches, and the speed dome form factor allows operators to steer the optical channel to any area of interest flagged by a thermal alarm - giving security teams both detection and identification capability from one camera position.

What This Camera Actually Does

Who Buys This Model

• Critical Infrastructure Security Teams: Utilities, water treatment facilities, and power substations where perimeter breach detection must function regardless of time of day, weather, or deliberate obscuration attempts.
• Industrial Fire Risk Managers: Waste processing, recycling yards, mining sites, and chemical storage facilities that need continuous temperature monitoring for hot spots and spontaneous combustion precursors in addition to intruder detection.
• High-Security Commercial and Government Sites: Data centres, defence installations, correctional facilities, and government compounds specifying camera positions that must detect, classify, and visually confirm threats from a single mounting point.
• Large Logistics and Port Operators: Container yards, freight terminals, and port facilities with extended unlit perimeters and long approach roads where thermal detection with optical PTZ follow-up is the only practical solution for overnight security without saturating the site with lighting infrastructure.
• Security Integrators on Enterprise Projects: System integrators designing video management platform integrations that require thermal alarm triggers to automate PTZ steering, generate VMS events, and feed into broader site security management workflows.

Honest Assessment

The DS-2TD4167T-25/W does two things particularly well. First, it provides genuine all-condition detection - the thermal channel is unaffected by lighting, glare, or most weather conditions that make optical cameras unreliable. Second, having both channels in one speed dome housing significantly simplifies installation at each camera position compared to pairing separate thermal and optical units. The AI Perimeter Protection classification on the thermal channel meaningfully reduces nuisance alarms, which matters on large perimeters where fatigue from false alerts is a real operational problem. The thermography function adds industrial process monitoring value beyond pure security. Where this product is not the right fit: it is a complex, high-cost device requiring careful configuration, VMS compatibility planning, and experienced commissioning. Sites needing wide-area panoramic thermal coverage across a full compound would be better served by a shorter focal length or fisheye thermal variant. The DS-2TD4167T-25/W is available through Security Australia and is best suited to projects with defined technical requirements and professional installation resources.

Before You Buy

Quick Fit Check

• Good match if: You need to monitor a defined approach corridor, fence line, or access road in conditions where lighting cannot be guaranteed - the 25mm thermal lens and Perimeter Protection AI combination is built for exactly this scenario.
• Good match if: Your site has both a perimeter security requirement and an industrial fire or equipment overheating risk - the thermography channel handles both functions from the same camera position without additional hardware.
• You may need a different model if: Your primary requirement is wide-area panoramic thermal coverage across a broad open space from a single point - a thermal fisheye or multi-sensor panoramic thermal camera will give you better field-of-view coverage than a 25mm speed dome in that scenario.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need thermal detection and optical PTZ identification combined in a single speed dome housing, with thermography temperature alarming and AI Perimeter Protection - particularly across defined corridors and approach routes where the 25mm lens delivers focused medium-to-long range coverage.
• You may need a different model if: Your requirement is wide-area thermal coverage across an entire compound from a single elevated point - a thermal fisheye or multi-sensor panoramic thermal camera will provide a much wider field of view than a 25mm speed dome can deliver from one position.
• Pairs well with: A compatible enterprise NVR or VMS platform with bi-spectrum device support, thermal alarm management, and PTZ auto-tracking integration - this camera generates event data that needs to be captured and actioned by appropriate recording and monitoring infrastructure.

Common Questions

1. Will this camera detect intruders in complete darkness with no IR illumination?

   Yes. The thermal channel operates entirely independently of light and does not require IR illumination. It detects the heat signature emitted by a person or vehicle against the background temperature of the scene. This means complete darkness, power outages affecting site lighting, or deliberate obscuration of visible-light cameras will not affect thermal detection performance on the DS-2TD4167T-25/W.

2. Does the Perimeter Protection AI work on the thermal channel or the optical channel?

   Perimeter Protection on the DS-2TD4167T-25/W operates on the thermal channel, which is where the primary detection function sits. The AI classifies detected targets as human or vehicle rather than generating alarms on every temperature difference in the scene. This is the key advantage over basic motion-based thermal detection - animals, wind-blown vegetation, and passing vehicle headlight wash are filtered out, reducing the false alarm rate significantly on large outdoor perimeters.

3. What does the 25mm thermal lens mean in practical terms for detection range?

   A 25mm focal length on the thermal channel produces a narrower field of view compared to shorter focal length variants such as 7mm or 13mm. This means the camera covers a more defined corridor or sector at longer range rather than a wide panoramic area. It is suited to monitoring specific approach roads, fence lines, or gate approaches where the target area is defined and at distance. For wide-area compound coverage, a shorter focal length thermal lens would be the more appropriate choice.

4. Can the thermography function be used for industrial fire prevention, not just security?

   Yes. The thermography capability on the DS-2TD4167T-25/W allows operators to define temperature zones within the thermal image and set alarm thresholds. When a surface temperature in a monitored zone exceeds the defined threshold, the system generates an alert. This is used in applications including monitoring waste and recycling stockpiles for spontaneous combustion precursors, identifying overheating electrical switchgear and transformers, and tracking temperature anomalies in industrial processing areas - all independently of the security and intruder detection functions.

5. Does this camera require PoE+ or a higher power supply than a standard IP camera?

   Yes. As a bi-spectrum speed dome with both thermal and optical channels plus motorised pan/tilt drive, the DS-2TD4167T-25/W requires more power than a standard PoE camera. Standard IEEE 802.3af PoE (15.4W maximum) is unlikely to be sufficient. PoE+ (IEEE 802.3at, up to 30W) is the minimum to confirm before installation, and some deployments may require a local power supply depending on the specific configuration and cable run length. Confirm your switch port or injector specification before finalising your installation design.

6. Will the optical PTZ channel automatically steer to a thermal detection alarm?

   Yes, this is a core function of the bi-spectrum speed dome design. When the thermal channel generates a Perimeter Protection alarm, the system can be configured to automatically steer the optical PTZ channel to the alarm position, giving operators a visible-light view of the detected target for identification. This auto-tracking or alarm-linked PTZ steering behaviour is configured through the camera's settings and your VMS platform, and the specific behaviour depends on how the integration is set up during commissioning. Security Australia can advise on compatible VMS platforms that support this workflow.

7. How accurate is the thermography temperature measurement and what factors affect it?

   Thermography accuracy on thermal cameras is affected by several environmental and installation factors: the distance from the camera to the target surface, the angle of incidence (measuring a surface at an acute angle reduces accuracy), ambient temperature conditions, and the emissivity of the material being measured. Thermography on the DS-2TD4167T-25/W is intended for relative temperature monitoring and threshold alarming rather than certified laboratory-grade precision measurement. For installations where temperature measurement accuracy is critical - such as compliance monitoring or medical-adjacent applications - the camera must be installed, aimed, and calibrated according to Hikvision's commissioning guidelines by a qualified technician.
