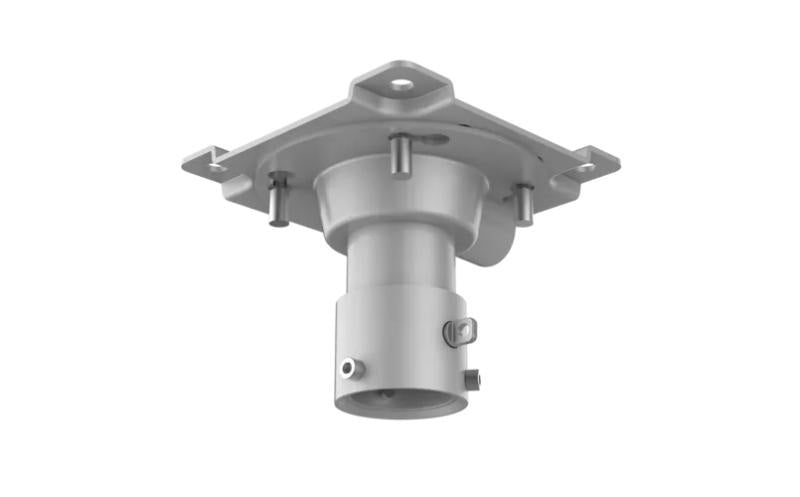

Hikvision SUS316L DS-4610ZJ-GSAC Anti-Corrosion Pendant Mount Bracket with Stainless Steel Build, PTZ Camera Support, Outdoor Installation

Model: DS-4610ZJ-GSAC

Who This Is For

Property managers specifying outdoor PTZ installations in corrosive environments will recognise the problem immediately: standard aluminium brackets oxidise, fasteners seize, and housings degrade within a few seasons of coastal or industrial exposure. The Hikvision DS-4610ZJ-GSAC is a pendant mount bracket built from SUS316L marine-grade stainless steel specifically to address that failure point. It is designed to support PTZ cameras in outdoor environments where salt air, chemical vapour, or sustained moisture would compromise a standard mount. Installers working on marina facilities, waterfront properties, food processing sites, chemical plants, or coastal infrastructure will find this bracket suited to those demands. The pendant configuration positions the PTZ camera below the mounting point, giving the camera unobstructed pan and tilt movement while keeping the bracket itself clean and serviceable. This is a purpose-built accessory for long-life installations where the bracket is expected to match the camera's operational lifespan.

What This Bracket Actually Does

Who Buys This Model

• Marina and Port Operators: Installing PTZ cameras over wharves, berths, or boat ramps where salt spray is constant and standard bracket coatings fail within 2-3 seasons.
• Food Processing Facility Managers: Mounting PTZ cameras in wash-down areas where high-pressure cleaning and chemical sanitisers attack conventional bracket materials over time.
• Coastal Infrastructure Owners: Water treatment facilities, coastal substations, and foreshore installations where the bracket needs to last the full service life of the camera without rusting out.
• Industrial Site Installers: Chemical plants, refineries, or processing facilities where airborne corrosive compounds make SUS316L the minimum acceptable material specification.
• Specifying Engineers: Professionals writing material specifications for government, defence, or infrastructure projects that mandate marine-grade stainless steel for all external metalwork.

Honest Assessment

The DS-4610ZJ-GSAC does one specific thing well: it provides a structurally sound, corrosion-resistant pendant mount for PTZ cameras in environments where standard mounts will not last. The SUS316L steel specification is a genuine material advantage over aluminium or 304-grade stainless in chloride-rich or chemically aggressive settings. For installers who have replaced corroded brackets on coastal sites, the material choice here is the entire value proposition. What this bracket will not do is broaden camera coverage, improve image quality, or add any electronic function - it is a passive mounting accessory. If the installation site is a standard inland suburban or commercial location without corrosive exposure, a less expensive aluminium pendant bracket will perform equivalently at lower cost. The DS-4610ZJ-GSAC is available through Security Australia and is best specified when the environment genuinely warrants marine-grade material - not as a universal upgrade.

Before You Buy

Quick Fit Check

• Good match if: You are mounting a Hikvision PTZ camera at a coastal, marine, or chemically exposed outdoor site where SUS316L stainless steel is required to meet the service life expectation of the installation.
• Good match if: Your specification requires a pendant configuration that gives the PTZ camera unobstructed pan and tilt movement without the bracket body entering the camera's field of travel.
• You may need a different model if: The installation is at an inland or sheltered site with no corrosive exposure - a standard aluminium pendant bracket will be more cost-effective, and Security Australia stocks several options suited to those environments.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: The installation site has genuine corrosive exposure - coastal salt air, chemical vapour, or wash-down environments - where SUS316L stainless steel is the appropriate material to match the expected service life of the PTZ camera.
• You may need a different model if: The PTZ camera is going into a standard inland outdoor location without corrosive exposure - a powder-coated aluminium pendant bracket is lighter, easier to handle on site, and more cost-effective for that type of environment.
• Pairs well with: Hikvision outdoor PTZ cameras with matching anti-corrosion or IP66-rated housings, ensuring the camera body and bracket have equivalent environmental resistance at the installation point.

Common Questions

1. Why is SUS316L used instead of standard stainless steel?

   SUS316L contains molybdenum and has a lower carbon content than 304-grade stainless, making it significantly more resistant to pitting and crevice corrosion in chloride environments. In practice, standard 304 stainless will show surface rust and joint degradation within a few years in coastal or marine locations. SUS316L is the accepted material for outdoor metalwork in those conditions and is specified by marine engineers and infrastructure project managers for that reason.

2. Will this bracket suit any Hikvision PTZ camera?

   Compatibility depends on the specific PTZ model's base diameter, mounting interface, and weight. The DS-4610ZJ-GSAC is designed for Hikvision PTZ cameras, but not all PTZ models share the same base specification. Confirm your PTZ camera's mounting requirements against this bracket before ordering - if you need help matching the bracket to a specific camera model, the team at Security Australia can assist with compatibility confirmation.

3. Does the pendant configuration affect the PTZ camera's pan and tilt range?

   No - that is the key advantage of the pendant design. By suspending the camera below the bracket arm, the mounting hardware sits above and behind the camera body. This means the bracket does not physically interrupt the camera's 360-degree pan travel or vertical tilt range. A side-arm or wall-arm mount can block portions of the pan arc; a pendant configuration avoids that limitation entirely.

4. Does bracket rigidity actually affect PTZ auto-tracking performance?

   Yes, directly. PTZ auto-tracking relies on the camera body holding a stable orientation while the motor drives pan and tilt movements. If the bracket has flex or resonates during movement - particularly at high pan speeds - the camera's actual position deviates from the commanded position. This causes the tracking algorithm to lose the subject or generate positional errors in preset recall. A rigid stainless steel bracket minimises that mechanical compliance, which is relevant on sites exposed to wind load or vibration from nearby plant equipment.

5. Does this bracket handle cable routing for PoE+ PTZ cameras?

   The bracket is designed for outdoor PTZ installations, which typically involve PoE+ or 24V AC-powered cameras with Cat6 or direct power cabling. Whether the bracket includes integrated cable management channels depends on the specific bracket configuration - review the installation documentation supplied with the unit for cable routing guidance. For PoE+ PTZ cameras specifically, ensure the bracket installation maintains the cable's bend radius and keeps connections protected from the same corrosive exposure the bracket itself is designed to handle.

6. Is this bracket suitable for a DIY installation?

   Not typically. Pendant PTZ brackets require secure structural anchorage to a surface rated for the combined load of the bracket and camera. In corrosive environments, selecting appropriate anchor bolts, applying correct torque, and waterproofing cable entry points all require installer experience. An incorrectly anchored PTZ bracket in a coastal or industrial location is a maintenance and liability problem. This product is generally purchased by security installers or electrical contractors specifying a complete PTZ installation rather than end users working independently.
