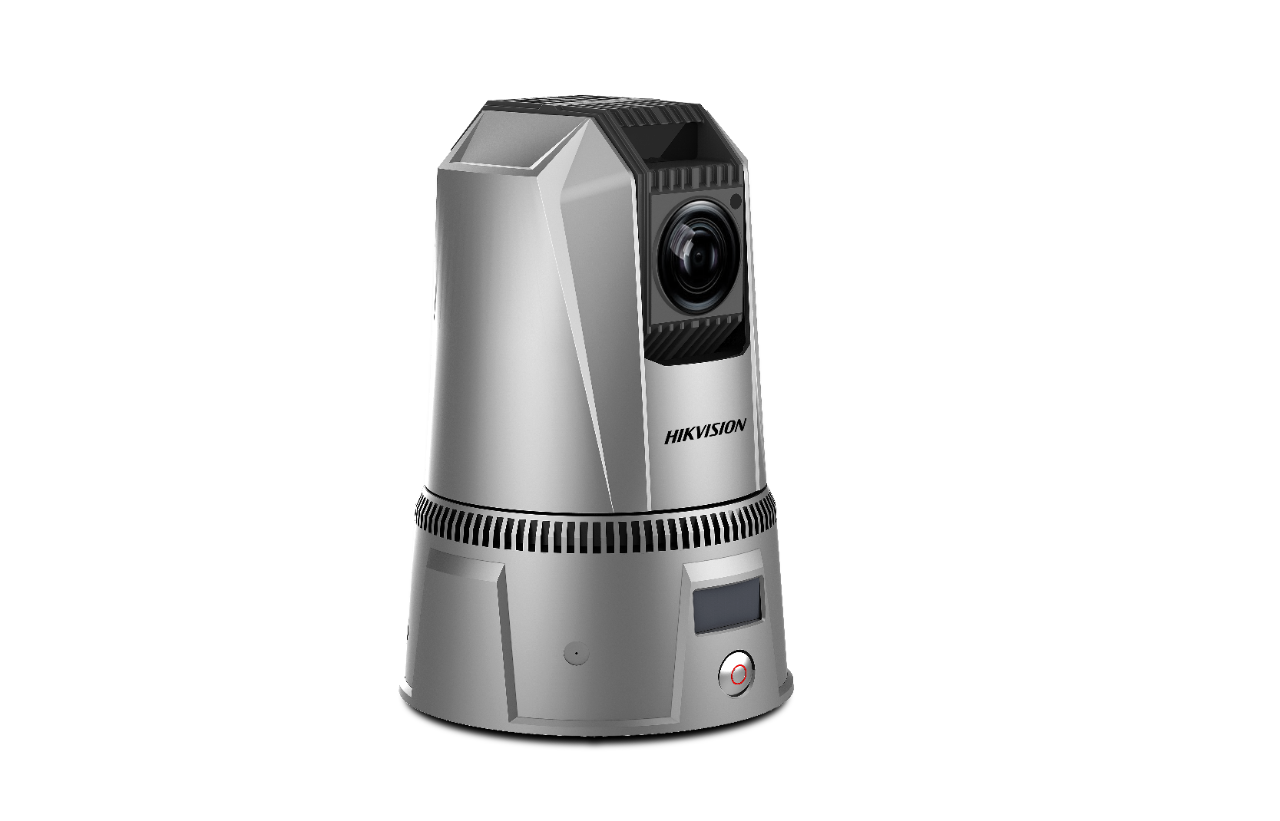

Hikvision iDS-MCD202-B PTZ 2 MP Network Portable IR Speed Dome 4G

Model: iDS-MCD202-BS

Who This Is For

For security teams and event operators who need full PTZ coverage in locations where no fixed infrastructure exists, the Hikvision iDS-MCD202-B is built specifically for that challenge. Temporary construction sites, outdoor events, remote utility assets, emergency response staging areas, and mobile patrol deployments all share the same problem: there is no power outlet, no network cable, and no permanent mounting point. This camera solves all three at once. The pluggable battery runs for up to 9 hours continuously, the built-in 4G module connects directly to mobile networks, and the magnetic base combined with a tripod bracket means setup takes minutes rather than hours. With 30x optical zoom and 100 m IR range, operators can monitor approaches and perimeters in detail from a single repositionable unit - then pack it down and move it to the next location when the job is done.

What This Camera Actually Does

Who Buys This Model

• Construction Site Security Teams: Deployed to monitor site entrances and equipment laydown areas during active works, then relocated when the project moves to the next stage - no cabling or power points needed.
• Event Security Coordinators: Positioned at festival entry points, outdoor markets, or sporting events where temporary coverage is required and the 4G connection keeps the control room informed in real time.
• Emergency Services and Incident Command Units: Deployed at bushfire staging areas, flood response zones, or search and rescue operations where situational awareness is critical and infrastructure does not exist.
• Remote Asset Protection: Placed at rural pump stations, mining exploration sites, or agricultural machinery compounds where there is no grid power and mobile coverage is the only network available.
• Mobile Patrol Operators: Carried between patrol stops to provide temporary fixed-point coverage at a client site before being collected and redeployed - the GPS log confirms where the unit was active.

Honest Assessment

The iDS-MCD202-B genuinely delivers something most PTZ cameras cannot - full pan, tilt, and zoom capability in a location that has no power, no cabling, and no fixed structure. The 30x optical zoom is a serious monitoring tool, the 100 m IR range holds up at night, and the dual TF card slots mean local recording continues even when the 4G signal drops. The embedded status display is a practical detail that matters in the field: operators can verify the unit is functioning before leaving a remote deployment. Where this camera has limits: the 9-hour battery suits a single shift but not continuous multi-day unattended deployment without a swap battery or supplementary power. The 2 MP sensor is standard Full HD - it captures clear detail at zoom but does not offer the resolution step-up of 4K PTZ models. For permanent outdoor installations with access to mains power and network cabling, a fixed-infrastructure PTZ will deliver more processing headroom. This unit is available through Security Australia as part of a broader range of Hikvision PTZ and portable surveillance products.

Before You Buy

Quick Fit Check

• Good match if: You need to monitor a temporary site - construction compound, event perimeter, or remote asset - where there is no mains power and no network cabling, and 4G coverage is available at the location.
• Good match if: You need PTZ control and 30x optical zoom for operator-driven tracking and identification from a single repositionable unit that can be deployed by one person in minutes using the magnetic base or tripod.
• You may need a different model if: The installation is permanent with access to mains power and structured cabling - a fixed-infrastructure PTZ with PoE+ or 24VAC power will offer greater processing capability, higher resolution options, and continuous operation without battery management.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your deployment location has no fixed power or network infrastructure, and you need genuine PTZ capability with 30x optical zoom, 4G streaming, and battery operation in the one portable unit.
• You may need a different model if: The installation is permanent with mains power and cabling available - a fixed-infrastructure PTZ with PoE+ or 24VAC power will provide higher resolution, greater processing power for onboard AI analytics, and continuous operation without battery management.
• Pairs well with: A mobile surveillance trailer or solar-powered pole mount for extended multi-day deployments, or a 4G NVR for centralised multi-camera recording across several portable units on the same site.

Common Questions

1. Does this camera work without any fixed power or network connection?

   Yes. The iDS-MCD202-B is specifically built for infrastructure-free deployment. The pluggable battery provides up to 9 hours of continuous operation, the onboard 4G module connects directly to a mobile network using a data SIM, and the dual TF card slots record locally even when the cellular connection drops. No NVR, no switch, no power outlet, and no cable run are required.

2. What is the actual pan and tilt range, and does the image flip when tilting past vertical?

   The camera supports 360-degree endless pan with no physical stop and a tilt range of -20 to +90 degrees. Auto-flip is built in, which means the image automatically corrects orientation as the camera tilts through the full range. There is no blind spot caused by the tilt limit - the -20-degree downward angle covers ground-level approaches directly beneath the unit when mounted at height.

3. How does the 30x optical zoom perform for identification at distance?

   At 30x optical zoom, the camera can resolve significant facial and licence plate detail at ranges well beyond what a standard fixed lens delivers. The 1920 x 1080 resolution is maintained throughout the zoom range - optical zoom preserves full sensor resolution, unlike digital zoom which interpolates. The additional 16x digital zoom extends reach further but at reduced image quality. For a portable battery-powered unit, 30x optical is the same zoom ratio found in full-size fixed PTZ models.

4. Will this camera work on any 4G network, and does a SIM card come included?

   No SIM card is included. The camera accepts a standard data SIM in the onboard 4G module. The unit supports 4G LTE connectivity and is compatible with Australian mobile networks - confirm your carrier's coverage at the intended deployment location before relying on remote viewing. The camera also supports Wi-Fi 802.11 b/g/n/ac as a secondary connection option, with a built-in Wi-Fi AP mode for direct device pairing during setup or on-site control.

5. Does the camera keep recording if the 4G connection drops?

   Yes. Local recording to the TF card slots continues independently of the 4G connection. With dual slots supporting up to 256 GB each, up to 512 GB of total local storage is available. This means footage captured during a cellular outage is stored onsite and can be reviewed when the connection is restored or when the unit is physically collected after deployment.

6. How is the camera controlled remotely - does it need dedicated software?

   Remote PTZ control and live viewing are available via Hikvision's dedicated mobile application and client software, as well as through an IE browser web interface. The Wi-Fi AP function allows direct connection from a mobile device on-site without requiring a router or network infrastructure. For remote sites, all PTZ commands are sent over the 4G link. The embedded status display on the unit itself provides a physical confirmation of connectivity and recording status without needing to access the app.

7. What does the GPS function actually do - does it track the camera's movement in real time?

   The GPS module logs the camera's geographic position. This is particularly useful for operators managing multiple portable units across different sites, as deployment locations can be confirmed and documented. Whether the GPS provides continuous real-time tracking or logs a fixed position on deployment depends on configuration - the unit is described as providing GPS positioning for operational records and status display. It is not intended as a vehicle-tracking GPS system. The GPS status is visible on the embedded screen alongside battery, 4G, and storage indicators. The iDS-MCD202-B is stocked by Security Australia as part of a broader range of Hikvision portable and PTZ surveillance products.

8. Does the H.265 compression setting reduce how much storage the camera uses?

   Yes. H.265 encoding roughly halves the file size of H.264 at the same resolution and quality level. For a portable deployment where all storage is carried on the TF cards, this is a meaningful difference - H.265 at 1080p will extend how many hours of footage fit on each 256 GB card compared to recording in H.264. The camera supports H.265, H.264, and MJPEG, allowing the compression format to be configured based on the balance between storage efficiency and compatibility with the playback or review software used at the monitoring end.

Downloads & Resources

No downloads available for this product.
