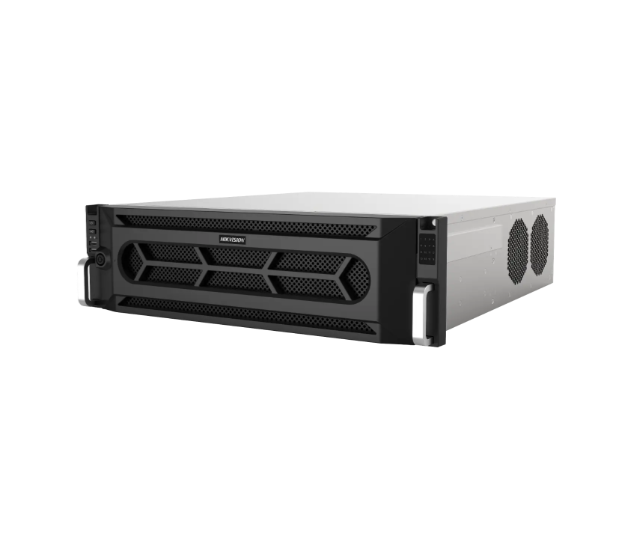

Hikvision iDS-96064NXI-I16 64-ch 3U 4K DeepinMind Super NVR

Model: iDS-96064NXI-I16

Who This Is For

For security integrators and enterprise IT managers who need a single NVR chassis capable of handling a large camera estate with on-board AI analytics - without routing all that processing through a separate server. The Hikvision iDS-96064NXI-I16 is a 64-channel DeepinMind Super NVR built for large-format installations: transport hubs, multi-building campuses, warehousing precincts, and major retail facilities where camera counts are high and the need to search footage intelligently is just as important as recording it. With 400 Mbps incoming bandwidth, 16 SATA bays supporting up to 10 TB each, and dual 4K HDMI outputs, this unit suits control room environments where multiple operators need simultaneous access to high-resolution feeds. The DeepinMind platform moves AI processing onto the NVR itself, which matters when you are managing dozens of cameras and need fast, structured forensic search rather than manually scrubbing through recordings.

What This NVR Actually Does

Who Buys This Model

• Security Integrators on Large Commercial Projects: Deploying 40-64 cameras across a single facility and needing a single rackmount unit that records, processes AI analytics, and serves multiple operator displays simultaneously.
• Transport and Logistics Operators: Managing depots, loading docks, or terminals where AI-assisted perimeter detection and rapid forensic search are operationally critical, and where a 160 TB storage ceiling reduces how frequently footage must be archived or overwritten.
• Campus Security Managers: Universities, hospitals, or government facilities running mixed camera estates at up to 12 MP, where centralising AI processing in the NVR reduces per-camera hardware costs while maintaining intelligent detection across the full camera count.
• Retail Loss Prevention Teams: Large format retail environments requiring people counting and zone-based analytics across dozens of cameras, with structured search capability to investigate incidents without reviewing hours of untagged footage.
• IT and Physical Security Converged Teams: Organisations that need a rack-mounted unit with IPv4/IPv6 support, HTTPS/SSL, tiered access control, and DDNS compatibility to fit within an existing enterprise network security framework.

Honest Assessment

The iDS-96064NXI-I16 handles the core challenge of large-scale AI surveillance well: it centralises deep learning processing so you are not locked into buying AI-capable cameras for every single channel. The 400 Mbps bidirectional bandwidth and 16-bay storage architecture are appropriately sized for the 64-channel input, and the dual 4K HDMI outputs suit genuine control room setups. This is a unit that earns its place in rack-mounted enterprise deployments where structured forensic search and high-channel-count recording need to coexist in one appliance. What it will not do is function as a video management software platform - installations requiring advanced multi-site federation, deep customisation of analytics rules, or integration with third-party access control systems at scale will need an VMS layer on top of or instead of this unit. It is also a rackmount-only device; there is no compact or desktop form factor option. Available through Security Australia with confirmed 64-channel capacity and DeepinMind AI.

Before You Buy

Quick Fit Check

• Good match if: You are specifying a 40-64 camera system in a single facility and need AI-assisted forensic search without purchasing AI-capable cameras for every channel - the DeepinMind engine processes analytics centrally for up to 16 channels simultaneously.
• Good match if: Your control room runs dual large-format displays and operators need independent live or playback layouts - the dual 4K HDMI outputs support 2 simultaneous high-resolution monitoring feeds from the one chassis.
• You may need a different model if: Your installation has fewer than 32 cameras - a lower-channel NVR will deliver the same recording and AI capability at a lower cost and with a smaller rack footprint; Security Australia stocks NVR options across a range of channel counts.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 40-64 channels with on-board AI deep learning analytics and up to 160 TB of internal storage in a single 3U rackmount unit - particularly where structured forensic search needs to operate without a separate analytics server.
• You may need a different model if: Your deployment spans multiple sites requiring centralised management and cross-site analytics correlation - a dedicated Video Management Software platform rather than a standalone NVR will give you the multi-site federation and customisation that the iDS-96064NXI-I16 does not provide on its own.
• Pairs well with: High-resolution IP cameras (8 MP or 12 MP) for maximum use of the 400 Mbps bandwidth allocation, and enterprise-grade surveillance HDDs rated for 24/7 operation across all 16 SATA bays.

Common Questions

1. Does this NVR run AI analytics on all 64 channels at the same time?

   No. The iDS-96064NXI-I16 supports 16 concurrent deep learning AI channels, indicated by the "I16" suffix in the model number. All 64 channels record normally at their assigned resolutions, but DeepinMind AI tasks - object classification, perimeter detection, structured search indexing - run simultaneously on a maximum of 16 designated channels. When planning the installation, assign the AI channel slots to your highest-priority camera positions such as entry points, loading docks, or perimeter zones.

2. What is the maximum storage this NVR can hold?

   160 TB raw. The unit has 16 SATA interfaces each supporting drives up to 10 TB. Actual usable capacity depends on whether you configure RAID - RAID 5 or RAID 6 will reduce usable storage in exchange for drive-failure redundancy. If you are running straight JBOD without RAID, all 160 TB is available for recording. Always confirm your retention calculation - days required, number of channels, average bitrate per channel, and compression standard - before finalising drive selection.

3. Will this NVR work with cameras from brands other than Hikvision?

   Yes, with limitations. The NVR accepts ONVIF-compatible IP cameras from third-party brands for standard recording. However, DeepinMind AI analytics, structured forensic search, and certain intelligent event functions are optimised for Hikvision cameras and may not activate fully or at all on non-Hikvision streams. If AI analytics across all assigned channels is a core requirement, Hikvision cameras are the confirmed-compatible choice.

4. Does this NVR support RAID, and which RAID types are available?

   Yes. The iDS-96064NXI-I16 supports RAID configuration across its 16 SATA bays. RAID provides drive-failure protection so that if one disk fails, recorded footage is not lost. Common configurations include RAID 5 (requires minimum 3 drives, one drive worth of capacity used for parity) and RAID 6 (tolerates 2 simultaneous drive failures). Choosing RAID reduces raw storage below the 160 TB ceiling, so factor the parity overhead into your storage planning before populating the bays.

5. How does DeepinMind's structured search actually work in practice?

   As footage is written to disk, the DeepinMind engine analyses the AI-assigned channels and tags each detection with metadata - object type (person, vehicle), zone crossed, behaviour type. When an operator performs a forensic search after an incident, they filter by those tags rather than scrubbing through video. For example, searching "all person detections at Entry Zone 3 between 11pm and 2am" returns only the relevant clips across that channel's archive. The key operational difference from standard motion search is that DeepinMind classifies what triggered the event, not just that motion occurred - which substantially reduces the volume of clips an operator needs to review.

6. Can multiple operators access live feeds and playback simultaneously without affecting recording performance?

   Yes. The 400 Mbps outgoing bandwidth is separate from the 400 Mbps incoming recording bandwidth, so simultaneous operator access - whether via the dual HDMI outputs locally or via remote clients over the network - does not degrade the recording pipeline. The NVR is designed for control room environments where multiple users need concurrent access. Very high numbers of simultaneous remote high-bitrate streams could approach the outgoing bandwidth ceiling in extreme cases, so factor client count and stream resolution into network infrastructure planning for large control room deployments. The iDS-96064NXI-I16 is stocked by Security Australia with full local support for enterprise deployment queries.

7. Does the 400 Mbps incoming bandwidth support all 64 channels recording at maximum resolution simultaneously?

   In most practical deployments, yes. At 12 MP with H.265+ compression, a typical bitrate per channel falls well under the per-channel average that 400 Mbps supports across 64 streams. The constraint becomes more relevant if you are mixing high-bitrate streams - such as 12 MP cameras on high-motion scenes with compression set to high quality - across a large proportion of channels simultaneously. For the majority of installations running a mix of 2 MP, 4 MP, and 8 MP cameras with H.265+ enabled, the 400 Mbps incoming bandwidth is sufficient for all 64 channels recording concurrently.
