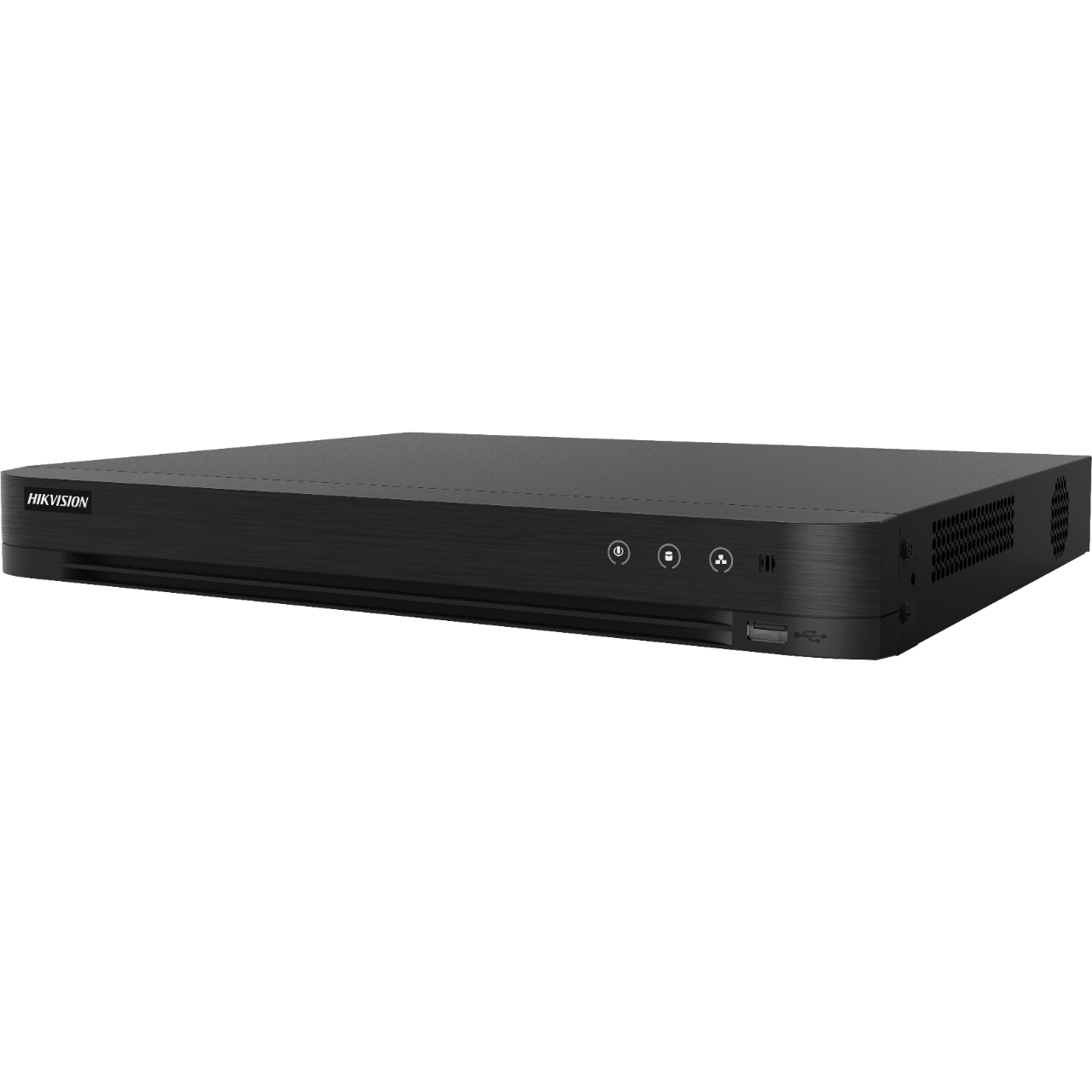

Hikvision iDS-7316HUHI-M4/S 16-Channel 5MP 1.5U H.265 AcuSense DVR

Model: IDS-7316HUHI-M4-S

Who This Is For

For installers and integrators who need to upgrade an existing coaxial-cabled site to AcuSense AI detection without pulling new cable, the Hikvision iDS-7316HUHI-M4/S is a 16-channel hybrid DVR that supports HD-TVI cameras up to 8MP alongside IP channels on the same recorder. The 1.5U chassis accommodates up to 4 hard drives and runs H.265+ compression across all channels, making it well suited to commercial and light-industrial sites where 16 cameras, genuine human and vehicle classification, and long-term storage efficiency are the core requirements. If you are specifying a recording platform for a warehouse, school, retail chain, or aged care facility that already has coaxial infrastructure in the walls, this recorder lets you retain that cabling while stepping up to modern AI-driven event filtering and high-resolution image capture at the head end.

What This NVR Actually Does

Who Buys This Model

• Security Integrators Upgrading Legacy Sites: Sites with coaxial cable already run through walls and ceilings can be brought to AcuSense AI detection and 5MP-8MP resolution without recabling - the hybrid input structure handles both old and new camera types simultaneously.
• Commercial Property Managers: Retail centres, office buildings, and industrial estates running 16 cameras across a single head-end recorder benefit from the AI event filtering to reduce false alarm fatigue on guard stations or remote monitoring services.
• School and Aged Care Facility Operators: Facilities requiring documented retention periods across multiple zones use the 4-bay HDD capacity and H.265+ efficiency to achieve longer continuous recording windows within a controlled equipment room rack.
• Warehouse and Logistics Site Managers: Operations covering loading docks, yards, and internal aisles with 16 or fewer camera positions, where human and vehicle classification helps separate genuine intrusion alerts from routine vehicle movement during off-hours.

Honest Assessment

The iDS-7316HUHI-M4/S does the job of a 16-channel hybrid recorder well. The AcuSense classification at the DVR level is a meaningful operational improvement over basic motion detection, and the support for HD-TVI 4.0 cameras at up to 8MP means the recorder does not become the bottleneck when pairing it with higher-resolution coaxial cameras. H.265+ compression makes 4-bay storage stretch further than it would on an older platform, which matters for sites with retention compliance requirements. The 1.5U rack format is practical for equipment room installs. Where this recorder is not the right fit: if the site has no existing coaxial infrastructure and the project is new-build from scratch, a purpose-built NVR with full PoE switching will typically offer more IP channel flexibility and simplified cabling. The iDS-7316HUHI-M4/S is available through Security Australia and is aimed squarely at hybrid upgrade projects, not greenfield all-IP deployments.

Before You Buy

Quick Fit Check

• Good match if: You are upgrading an existing site with coaxial cabling already installed and need to add AcuSense AI event detection and higher-resolution recording without replacing cable runs.
• Good match if: The project requires 16 channels of recording in a rack-mount enclosure with 4-bay HDD capacity and H.265+ compression for extended retention at commercial resolution.
• You may need a different model if: The installation is a new-build with no existing coaxial infrastructure - a PoE NVR designed specifically for all-IP deployments will give you greater channel flexibility, simpler cabling, and broader camera compatibility. Browse the NVR range on securityaustralia.com.au for suitable alternatives.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: The site has existing coaxial infrastructure and you need AcuSense AI classification, H.265+ compression, and up to 8MP HD-TVI recording across 16 channels from a single 1.5U rack-mount head end.
• You may need a different model if: The project is a new-build with no coaxial in place - a purpose-built PoE NVR will give you simpler all-IP cabling, broader camera selection, and potentially more IP channel capacity without the hybrid overhead. Browse the NVR range on securityaustralia.com.au for direct comparisons.
• Pairs well with: AcuSense-compatible HD-TVI bullet or turret cameras with built-in strobe and audio alarm output, allowing the DVR's AI classification to trigger active deterrence responses at the camera level when a human or vehicle target is confirmed.

Common Questions

1. Does AcuSense work with any HD-TVI camera connected to this DVR?

   No. AcuSense human and vehicle classification on the iDS-7316HUHI-M4/S requires AcuSense-compatible cameras on the coaxial inputs. Standard HD-TVI cameras without AcuSense firmware will record at full resolution but the DVR cannot apply AI target classification to their footage. Check camera compatibility before specifying the system if AI event filtering is a project requirement.

2. Will this DVR record IP cameras as well as coaxial cameras?

   Yes. The HUHI hybrid architecture supports both coaxial signal types (HD-TVI, AHD, HDCVI, CVBS) and IP cameras simultaneously. This makes the iDS-7316HUHI-M4/S suitable for staged upgrades where coaxial cameras are progressively replaced with IP models over time without changing the recording platform.

3. What is the maximum resolution this DVR can record over coaxial cable?

   Up to 8MP via HD-TVI 4.0. This requires HD-TVI 4.0 cameras at 8MP - cameras running older TVI standards will record at their native resolution, which may be 5MP, 4MP, or 1080p depending on the camera model. The DVR does not upscale lower-resolution inputs.

4. How many hard drives does the iDS-7316HUHI-M4/S support and how much storage do I need?

   The recorder supports 4 internal SATA hard drives. How much capacity you need depends on channel count, resolution, frame rate, and required retention period. At 5MP across 16 channels on continuous recording, storage consumption is substantial even with H.265+ compression. Use Hikvision's online storage calculator and factor in your minimum retention requirement before purchasing drives. Surveillance-rated drives are strongly recommended over desktop drives for this application.

5. Does the /S suffix mean this model has audio support?

   Yes. The /S designation in the iDS-7316HUHI-M4/S model number indicates audio input and output capability. This allows the recorder to capture audio from cameras or external microphones connected to the audio inputs and play back audio alongside recorded video. Confirm the number of audio channels supported against your specific site requirements. The full specification sheet is available from Security Australia.

6. Can I access this DVR remotely from a phone or PC?

   Yes. The iDS-7316HUHI-M4/S supports remote access via the Hik-Connect mobile app and iVMS-4200 desktop client over a network connection. Web browser access is also supported. Remote playback, live view across all 16 channels, and AI event notifications can all be managed remotely once the recorder is connected to a network with appropriate port forwarding or Hik-Connect cloud relay configured.

7. Does H.265+ actually make a meaningful difference to storage on a 16-channel system?

   Yes, meaningfully so. H.265+ applies scene-aware compression that goes beyond standard H.265 by analysing background regions and reducing bitrate on static areas. On a 16-channel system running continuous recording, the cumulative difference in HDD consumption compared to H.264 can extend retention by weeks on the same storage capacity - or reduce the number of drives required to hit a target retention window. The benefit is most pronounced on cameras covering low-movement scenes such as corridors and storage areas.
