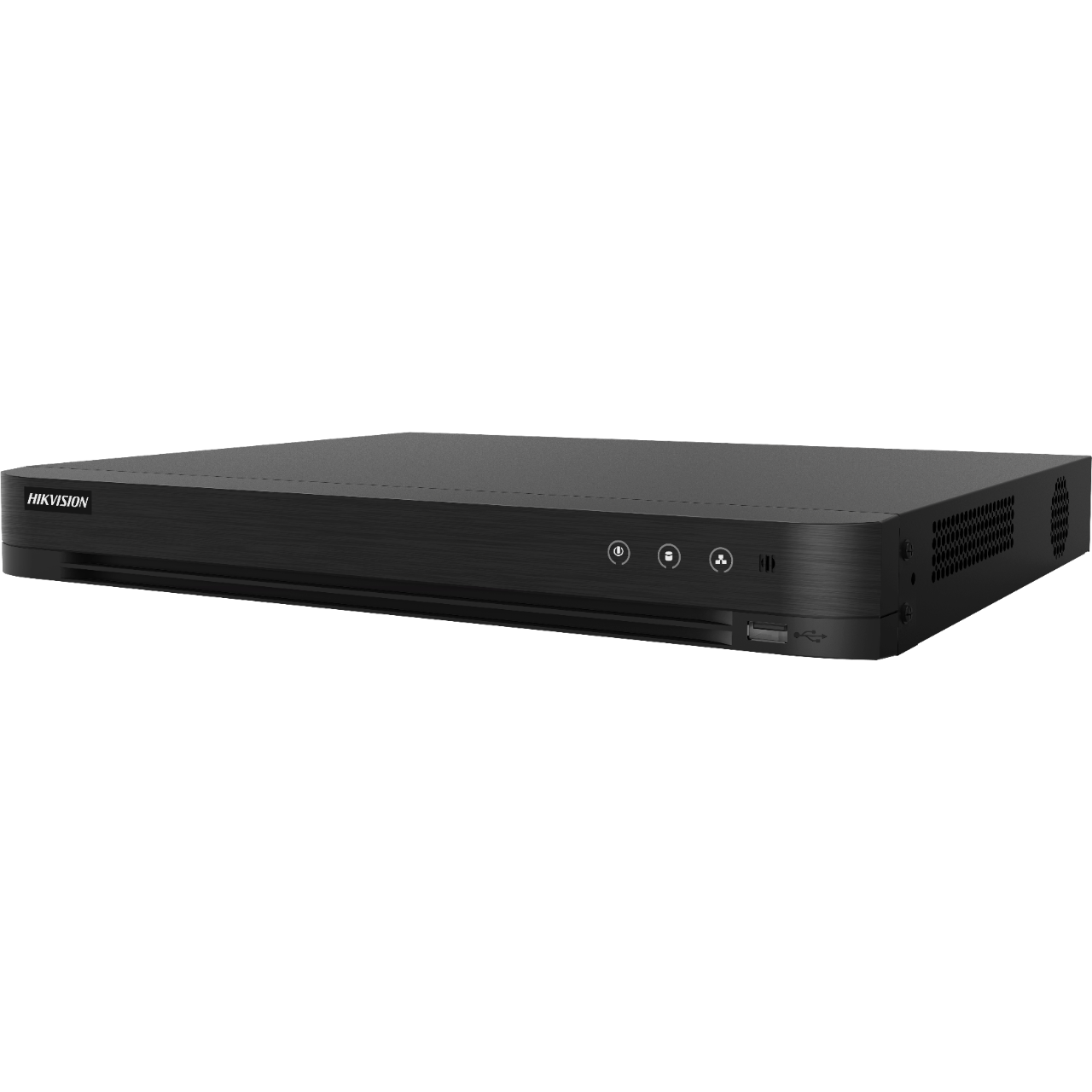

Hikvision iDS-7216HUHI-M2/XT 16 Channel 4K 8MP AcuSense DVR - No HDD

Model: iDS-7216HUHI-M2/XT

Who This Is For

Property managers specifying upgrades for sites that already have coaxial cable runs will find the iDS-7216HUHI-M2/XT a practical way to step up to 4K and AcuSense AI without pulling new cabling. This is a 16-channel hybrid DVR that accepts HD-TVI cameras up to 8MP over existing coax while also accommodating IP cameras on the same platform. It suits warehouses, large retail tenancies, industrial yards, and multi-building commercial properties where coaxial infrastructure is already in place and replacing it with Cat6 is cost-prohibitive. The AcuSense engine built into the recorder filters motion events by person and vehicle classification, which dramatically reduces the volume of false alerts a monitoring operator or site manager has to review. With 2 SATA bays and no HDD included, storage configuration is left to the installer to match site retention requirements. This is a recorder-only unit - cameras are sourced separately.

What This NVR Actually Does

Who Buys This Model

• Commercial Upgrade Installers: Sites running older HD-TVI camera systems that need a recorder capable of 8MP/4K without requiring new cabling or camera replacement across the entire site.
• Industrial and Warehouse Operators: Large single-floor facilities with multiple coax runs already in place, where 16 channels and AI-filtered alerts are needed to manage a high camera count without excessive false alarm fatigue.
• Retail Chain Site Managers: Multi-camera retail environments that need person and vehicle classification at the DVR level to support loss prevention workflows and incident review without relying on camera-side AI.
• Security Integrators Running Staged Projects: Installers delivering a hybrid system where some cameras are existing TVI units and new IP cameras are being added, all managed through a single recorder interface.

Honest Assessment

The iDS-7216HUHI-M2/XT performs well in its specific use case: upgrading an existing coaxial camera installation to 4K recording and AI-assisted event filtering without a full infrastructure replacement. The AcuSense classification engine at the recorder level is a genuine operational benefit, reducing alert noise across a 16-channel site. The hybrid architecture is also a real advantage for staged projects where TVI and IP cameras need to coexist. What this unit will not do is replace a purpose-built NVR for an all-IP, high-bandwidth camera deployment - if a site has no coaxial infrastructure and is starting fresh, an IP-native NVR is a more appropriate path. Storage capacity planning is entirely the installer's responsibility as no HDD is included, and two bays sets a ceiling on internal storage that high-resolution, multi-channel continuous recording will reach quickly. Available through Security Australia as a recorder-only unit.

Before You Buy

Quick Fit Check

• Good match if: You are upgrading an existing coaxial camera site to 4K recording and need AcuSense AI event filtering at the recorder level without replacing cable runs.
• Good match if: You are managing a 16-camera commercial or industrial site that runs a mix of HD-TVI and IP cameras and needs both handled by a single hybrid recorder.
• You may need a different model if: Your site has no existing coaxial infrastructure and all cameras are IP - a purpose-built PoE NVR will give you more channel bandwidth, more HDD bays, and better throughput for an all-IP deployment.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site has existing HD-TVI coaxial camera infrastructure and you need to upgrade to 4K recording with AcuSense AI filtering without replacing cable runs or cameras.
• You may need a different model if: Your installation is all-IP with no coaxial cameras - a PoE NVR with more HDD bays will handle higher bandwidth, more channels, and greater internal storage capacity more efficiently.
• Pairs well with: Hikvision HD-TVI AcuSense-compatible bullet or turret cameras rated for 8MP, and surveillance-grade SATA hard drives sized for the site retention requirement.

Common Questions

1. Will this DVR work with my existing HD-TVI cameras?

   Yes, provided your cameras are HD-TVI protocol. The iDS-7216HUHI-M2/XT supports HD-TVI cameras up to 8MP across all 16 channels. It is not designed for AHD or HDCVI cameras - those use separate analogue HD protocols and will not deliver full resolution or AcuSense classification on this recorder. If you are unsure of the protocol on your existing cameras, check the camera model datasheet before purchasing.

2. Does this DVR support IP cameras as well as TVI cameras?

   Yes. The M2/XT is a hybrid DVR that accepts both HD-TVI cameras on BNC inputs and IP cameras via the network interface. This allows a mixed installation to be managed from a single recorder, which is particularly useful during staged upgrades where existing TVI cameras remain in service while new IP cameras are added progressively.

3. How does AcuSense work on this recorder - does the camera need to support it too?

   The AcuSense engine runs on the DVR itself, so basic person and vehicle classification is available even with standard HD-TVI cameras that do not have built-in AI. The recorder analyses the video stream directly. However, using AcuSense-capable TVI cameras alongside this DVR can improve detection accuracy, as camera-side pre-processing supplements the recorder-level classification.

4. How much storage do I need for 16 cameras at 4K?

   Storage requirements depend on resolution, frame rate, compression, and whether recording is continuous or motion-triggered. At 8MP continuous recording across all 16 channels, even two large-capacity drives will typically deliver between 7 and 21 days of retention. For longer retention periods within the 2-bay limit, configure motion-triggered or scheduled recording profiles, or use the highest available drive capacities. A storage calculator based on your actual frame rate and bitrate settings will give a more precise figure for your site.

5. Is a hard drive included with this unit?

   No. The iDS-7216HUHI-M2/XT is supplied without a hard drive. The 2 internal SATA bays accept standard surveillance-grade hard drives, which are purchased separately. Security Australia stocks compatible surveillance HDD options if you need to source drives at the same time as the recorder.

6. Can I remotely access live and recorded footage from this DVR?

   Yes. The iDS-7216HUHI-M2/XT supports remote access via the Hik-Connect platform and iVMS-4200 software, allowing live view and recorded footage playback from a smartphone or PC. Remote access requires the recorder to be connected to the internet via its network port and configured with appropriate port forwarding or the Hik-Connect cloud relay service.

7. Will this unit record all 16 channels simultaneously at 4K?

   The HUHI chipset is rated for 8MP recording across all channels, but actual simultaneous recording capacity at maximum resolution across all 16 channels simultaneously should be confirmed against the full datasheet specifications for this model, as decoding and recording throughput limits can affect multi-channel 4K performance. For critical multi-camera deployments, verify the total recording bandwidth against your camera count and resolution before finalising the specification.

Downloads & Resources

No downloads available for this product.
