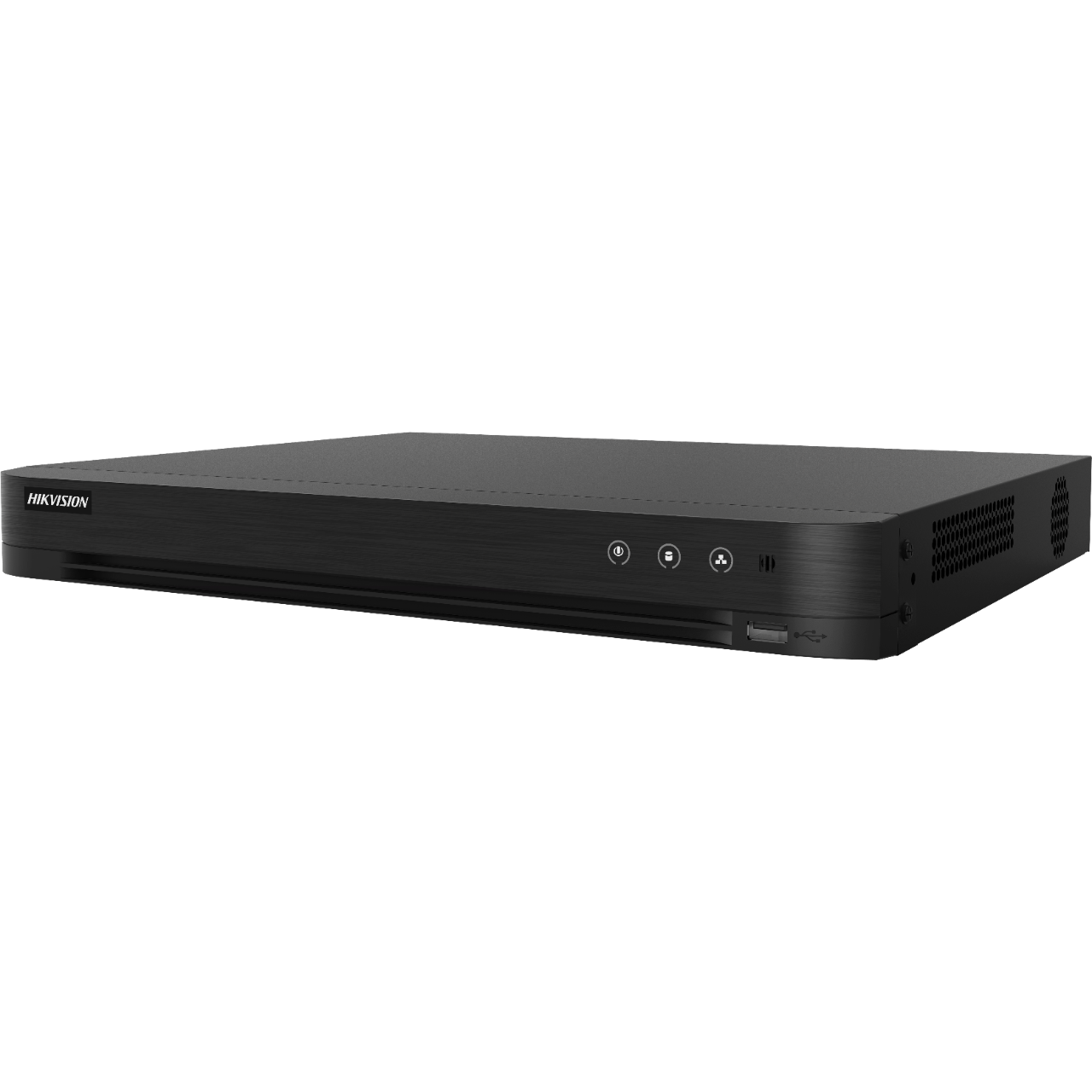

Hikvision iDS-7216HUHI-M2/X 16 Channel AcuSense Turbo HD DVR with 4TB HDD Installed

Model: iDS-7216HUHI-M2/X

Who This Is For

For installers and business owners who need to add intelligent detection to an existing coaxial camera infrastructure without pulling new cable, the Hikvision iDS-7216HUHI-M2/X 16 Channel AcuSense Turbo HD DVR is a practical upgrade path. This recorder accepts HD-TVI, AHD, CVI, and CVBS analog cameras across 16 channels, making it compatible with the bulk of legacy coax installations still found in Australian warehouses, retail strips, and commercial properties. The AcuSense engine classifies detected targets as human or vehicle, filtering out pet movement, blowing foliage, and passing headlights before triggering an alert. A 4TB hard drive is already installed, so the unit is ready to record from the moment it is connected. It suits site managers who want AI-assisted filtering without committing to a full IP camera replacement project.

What This NVR Actually Does

Who Buys This Model

• Retail and Commercial Site Managers: Operators with an existing 16-channel coaxial system who want AcuSense-filtered alerts without replacing cameras or cabling.
• Security Installers Doing Recorder Upgrades: Technicians replacing an aged DVR on a functioning coax run who need broad analog format compatibility and a ready-to-record HDD included.
• Warehouse and Industrial Site Owners: Facilities with long cable runs already in conduit who want higher-resolution TVI 4.0 cameras without a full infrastructure overhaul.
• Multi-Stage Upgrade Planners: Buyers who want to introduce IP cameras gradually over time - the hybrid /X capability means the DVR does not become a bottleneck when the first network cameras are added to the site.

Honest Assessment

The iDS-7216HUHI-M2/X does a specific job well: it brings AcuSense human and vehicle classification to analog coaxial camera systems that would otherwise have no AI filtering at all. The broad format support across HD-TVI, AHD, CVI, and CVBS makes it genuinely flexible for mixed or legacy camera inventories, and the pre-installed 4TB drive removes one common delay on installation day. The hybrid /X input also means this recorder can grow alongside a site's needs rather than being replaced at the first IP camera addition. Where this unit will not serve you well is on a greenfield installation where there is no existing coax - in that scenario, a dedicated PoE NVR system built around IP cameras from the outset will deliver higher channel density, more AI features per camera, and greater long-term flexibility. Available through Security Australia, this DVR is best positioned as an upgrade or retention tool rather than a ground-up build recorder.

Before You Buy

Quick Fit Check

• Good match if: You have an existing 16-channel coaxial installation and want to swap in a recorder that adds AcuSense human and vehicle filtering without touching the camera or cable infrastructure.
• Good match if: You are planning to introduce IP cameras to a currently all-analog site in stages - the hybrid /X input supports that transition without forcing a recorder replacement.
• You may need a different model if: Your site has no existing coaxial cabling and you are starting fresh - a PoE NVR system built around IP cameras from the outset will offer more AI capability per channel and a more scalable long-term architecture. The full NVR range on securityaustralia.com.au covers options at this channel count.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You have existing coaxial cabling and cameras you want to keep, and you need a recorder that adds AcuSense human and vehicle filtering at the DVR level without a full system replacement.
• You may need a different model if: Your site is a new build with no coaxial infrastructure - a PoE NVR system will deliver greater per-channel AI capability, easier cabling, and a more scalable architecture for a greenfield project.
• Pairs well with: Hikvision AcuSense-compatible HD-TVI cameras at 5MP or 8MP resolution, and a second SATA surveillance drive in Bay 2 for extended retention on higher-resolution channels.

Common Questions

1. Will this DVR work with my existing analog cameras?

   Yes, in most cases. The iDS-7216HUHI-M2/X accepts HD-TVI, AHD, CVI, and CVBS formats across all 16 channels. If your existing cameras use any of these signal types - which covers the large majority of analog cameras installed in Australia over the past decade - they will connect and record without any modification to the camera or cabling.

2. Does AcuSense work with any camera, or only Hikvision cameras?

   AcuSense filtering on this DVR operates at the recorder level, so it applies to connected cameras regardless of brand, provided the camera signal format is supported. Pairing with Hikvision AcuSense-compatible TVI cameras improves classification accuracy, but the DVR-level filtering will still reduce false alerts compared to a standard motion-detection-only recorder when used with third-party cameras.

3. Can I add IP cameras to this DVR later?

   Yes. The /X designation specifically indicates hybrid capability, meaning IP cameras can be added alongside the 16 analog channels. This is particularly useful for sites that want to introduce network cameras in new areas without a full recorder replacement - the DVR supports a staged transition rather than forcing an all-at-once upgrade decision.

4. How much recording time does the 4TB drive provide across 16 channels?

   It depends heavily on camera resolution and recording mode. At 8MP continuous recording across all 16 channels, 4TB will be consumed faster than at 1080p - continuous high-resolution recording across a full 16-channel load may deliver under 7 days of retention. Switching to motion-triggered or scheduled recording, or recording some channels at lower resolution, significantly extends that figure. The second HDD bay allows a second drive to be added without any other hardware changes if more storage is needed. Security Australia supplies compatible surveillance-grade drives separately if required.

5. Does this DVR support 8MP cameras over standard RG59 coaxial cable?

   Yes. TVI 4.0 at 8MP is transmitted over existing RG59 or RG6 coaxial cable, which is the standard installed in most Australian commercial properties. You do not need to replace existing coax to benefit from the higher resolution - the signal travels over the same cable infrastructure that carried 1080p cameras previously, subject to the cable being in reasonable condition and within the supported run length.

6. Will this DVR work for a new installation with no existing coaxial cabling?

   It will function, but it is not the most efficient choice. For a greenfield installation where no coaxial infrastructure exists, a PoE NVR system built around IP cameras offers simpler single-cable runs per camera, higher per-channel AI capability, and a more scalable long-term architecture. The iDS-7216HUHI-M2/X is most cost-effective where existing coax cabling can be retained and reused.
