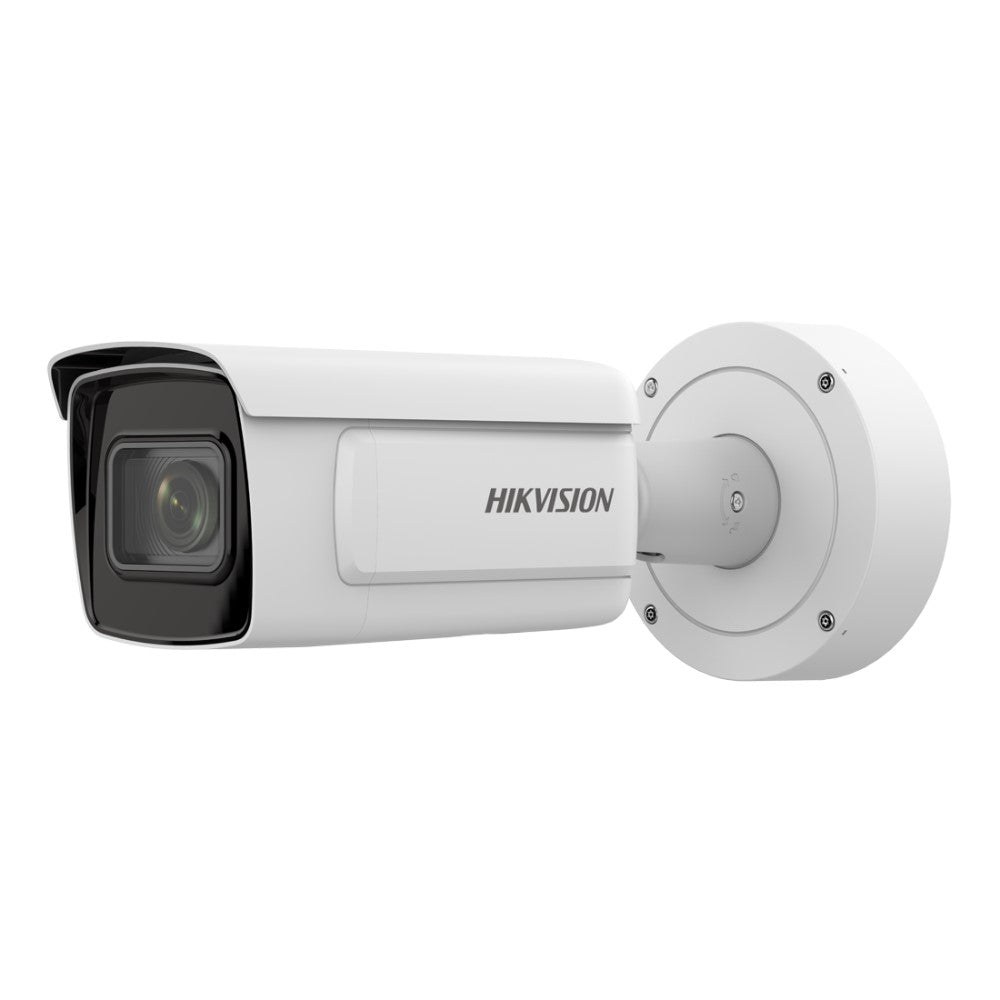

Hikvision iDS-2CD7A46G0/P-IZHS(Y) 4MP ANPR Bullet Camera, Wiegand Output, 26bit, H.265+, IP67, IK10, 2.8-12mm

Model: iDS-2CD7A46G0/P-IZHS(Y)

Who This Is For

For installers and security managers who need automatic number plate recognition built directly into the camera - without relying on a separate ANPR server or third-party software - the Hikvision iDS-2CD7A46G0/P-IZHS(Y) is a purpose-built solution. This 4MP bullet camera is designed for fixed entry and exit points: car parks, gated facilities, loading docks, industrial estates, and controlled access driveways where vehicle identification is a daily operational requirement. The 2.8-12mm motorised varifocal lens lets installers dial in the exact framing needed to capture plates cleanly across a range of lane widths and approach distances. The 26-bit Wiegand output allows direct integration with access control panels, so a matched plate can trigger a barrier gate or door release without additional middleware. IP67 and IK10 ratings make this a camera you can mount at exposed entry points without compromise.

What This Camera Actually Does

Who Buys This Model

• Car Park Operators: Facilities running permit or whitelist-based access use the Wiegand output to tie plate reads directly to barrier arm controllers, eliminating ticketing or fob-based systems at entry and exit lanes.
• Industrial Estate and Logistics Managers: Sites with a defined list of authorised vehicles - delivery trucks, contractors, staff - use this camera to log entry times and flag unknown vehicles without manual gatehouse checking.
• Security Integrators Building Access Control Systems: Installers who need a camera that outputs Wiegand 26-bit natively, removing the need for a separate ANPR appliance or software licence to integrate with an existing access control head-end.
• Residential Estate and Gated Community Managers: Body corporates managing single-lane entry points where automated resident vehicle recognition is needed and a low-footprint, camera-only ANPR solution is more practical than a full server-based deployment.

Honest Assessment

The iDS-2CD7A46G0/P-IZHS(Y) does the hard work at the camera level. On-board ANPR, a Wiegand output, 140dB WDR, and the Darkfighter sensor combine into a camera that handles the two biggest challenges in plate capture: high-contrast entry lighting and nighttime reads. The motorised varifocal lens makes commissioning straightforward, and IP67/IK10 ratings mean it holds up in exposed outdoor locations. For single-lane, fixed-approach installations at controlled access points, this camera handles the full workflow from capture to access trigger without additional hardware. Where this camera has clear limits: it is designed for fixed, low-speed single-lane approaches. Multi-lane open car parks, high-speed road environments, or sites needing free-flow ANPR across multiple lanes will require a server-based ANPR platform and purpose-built roadside cameras. If face recognition or broader video analytics beyond plate reading are a priority, other models in the range may be more appropriate. The iDS-2CD7A46G0/P-IZHS(Y) is available through Security Australia.

Before You Buy

Quick Fit Check

• Good match if: You need ANPR with direct access control integration at a single-lane entry or exit point and want the Wiegand 26-bit output to trigger a barrier without additional hardware.
• Good match if: Your site has challenging entry lighting - strong backlight, mixed day/night conditions - and you need 140dB WDR and Darkfighter performance to maintain plate legibility across all hours.
• You may need a different model if: Your application involves multiple simultaneous lanes, free-flow traffic at road speed, or a requirement for server-based ANPR with advanced analytics - a dedicated ANPR appliance paired with high-speed capture cameras would be more suitable. Browse the full range at securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need on-camera ANPR with a native 26-bit Wiegand output for direct access control integration at a fixed, single-lane, low-speed entry or exit point - with no additional ANPR server or software licence required.
• You may need a different model if: Your application requires multi-lane ANPR, free-flow capture at vehicle speed, or a centralised ANPR platform managing multiple sites - a server-based ANPR appliance with dedicated capture cameras would be the more appropriate product type.
• Pairs well with: A PoE 802.3at managed switch with sufficient per-port power budget, a Wiegand-compatible access control panel or barrier controller, and a compatible NVR with ANPR event search capability for plate-based footage retrieval.

Common Questions

1. Does this camera need a separate ANPR server or software licence to read plates?

   No. Licence plate recognition runs as an embedded on-camera function in the iDS-2CD7A46G0/P-IZHS(Y). The camera processes plate reads locally and can output results via the Wiegand interface or transmit data to a compatible VMS directly. For basic single-lane access control deployments, no additional ANPR server or licence is required - though advanced multi-site management or reporting platforms would still require compatible software.

2. What Wiegand format does this camera output, and will it work with my access control panel?

   This camera outputs 26-bit Wiegand - the most widely adopted format in commercial access control. Most barriers, gate controllers, and door access panels accept 26-bit Wiegand input natively. Before installation, confirm your panel accepts Wiegand input rather than OSDP or RS-485 only, and that the Wiegand data cable run from the camera to the panel stays within your controller's supported distance - typically up to 150m.

3. Will this camera read plates at night without external lighting?

   Yes, to a practical extent. The Darkfighter sensor and built-in supplement light provide usable plate captures up to 50m in low ambient light. In complete darkness with no site lighting, the camera relies on its own illuminator. In mixed or partial lighting conditions - such as a gated driveway with a single overhead light - the Darkfighter sensor performs significantly better than a standard 1/2.8" sensor at maintaining plate character detail.

4. What PoE class does this camera require - will a standard PoE switch work?

   No - a standard 802.3af (Class 0-3) switch will not be sufficient. This camera requires PoE 802.3at Class 4, which delivers up to 30W. Confirm your PoE switch or injector is rated 802.3at per-port before ordering. Using an underpowered PoE source may result in the camera failing to boot, dropping connection intermittently, or disabling certain functions to reduce power draw.

5. What approach angle and vehicle speed does on-camera ANPR work at?

   On-camera ANPR on this fixed-lens bullet camera is designed for controlled, low-speed approaches - vehicles slowing to enter or stop at a boom gate or access point. A horizontal camera angle of no more than approximately 30 degrees from the lane centreline is recommended to maintain character legibility. For moving vehicles at road speed (above approximately 30km/h without a defined stop point), on-camera ANPR accuracy decreases significantly and a server-based free-flow ANPR system with purpose-built cameras is the appropriate solution.

6. Does the 2.8-12mm lens adjust motorised or manually?

   Motorised. The varifocal lens is motorised, meaning zoom and focus can be adjusted via the camera's web interface or through a compatible VMS during commissioning - no physical access to the lens is required. This is a significant practical advantage for ANPR installs where precise plate framing is needed and the camera is mounted at height on a wall or entry pillar.

7. Can plate read events be searched and retrieved from NVR recordings?

   Yes, on compatible Hikvision NVRs with ANPR event search capability. Plate reads are tagged as metadata events, allowing operators to search recordings by plate number or time range rather than scrubbing through footage manually. The 256GB microSD slot also stores plate captures locally on the camera as a backup or standalone record, independent of the NVR. The iDS-2CD7A46G0/P-IZHS(Y) is stocked by Security Australia - check compatibility with your NVR model before purchasing.

8. How does 140dB WDR improve plate capture at entry and exit points specifically?

   Entry and exit lanes consistently produce one of the most difficult imaging scenarios: bright sky or open space directly behind the vehicle, and a dark or shaded plate surface facing the camera. Standard cameras expose for one or the other, washing out the sky or silhouetting the plate. The 140dB WDR sensor processes multiple exposures simultaneously across the full dynamic range, retaining plate character detail in the foreground while keeping the background from overexposing - both within a single frame. This is particularly relevant for morning and late-afternoon entry lanes where sun angle creates maximum contrast.
