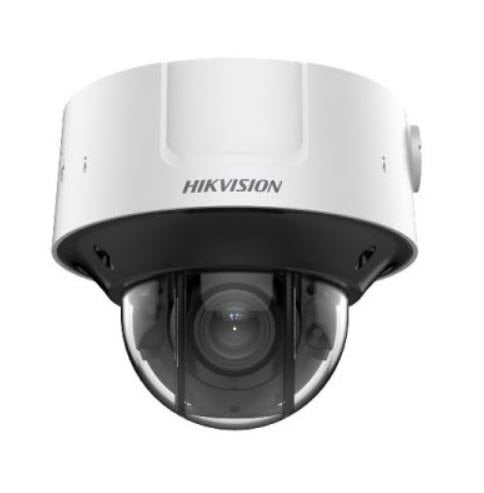

Hikvision iDS-2CD7546G0/S-IZHS(Y) 4MP Outdoor Motorised DeepInView VF Dome Camera 2.8 to 12 mm

$1,512.00 AUD
$1,510.00 AUD
 per
Tax included.
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING

Free shipping - Enjoy free shipping when your order exceeds $100!

All orders are despatched within the next business day!

Best local support in Aus! We back all products with a 3 year manufacturer warranty.

Hikvision DS-2CD7546G0/S-IZHS(Y) 4MP Outdoor Motorised DeepInView VF Dome Camera 2.8 to 12 mm

Experience high-quality imaging with the Hikvision iDS-2CD7546G0/S-IZHS(Y) DeepinView Dome Camera. This advanced 4 MP camera delivers clear visuals with efficient H.265+ compression technology, ensuring optimal storage and bandwidth usage.

The camera excels in challenging lighting conditions with its 140 dB WDR technology, providing clear imaging against strong backlight. It focuses on precise human and vehicle classification through deep learning algorithms, enhancing overall security management.

Key Features:

  • High Quality Imaging: 4 MP resolution for sharp and detailed video footage.
  • Difficult Lighting Performance: 0.0005 Lux @ (F1.0, AGC ON) for clear night-time surveillance.
  • Zoom Capability: 2.8 to 12 mm motorized varifocal lens for flexible field of view.
  • Video Content Analysis: Enhanced detection with intelligent algorithms for accurate classification.
  • Weatherproof Design: IP67 rated for durability in outdoor conditions.
  • Audio Support: Built-in microphone for audio capture (if applicable).

Code/SKU: DS-2CD7546G0/S-IZHS(Y)
Quick Specs:

  • Max. Resolution: 2688 × 1520
  • Lens Options: 2.8 to 12 mm
  • Infrared Range: Up to 40 m with supplemental light

Addons

Hikvision DS-1471...
$76.00 $77.00
Hikvision Wall Mo...
$104.00

Specifications

Camera 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Blue glass module to reduce ghost phenomenon
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens Aperture 2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73
Iris Type P-iris
Focal Length & FOV 2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
Focus Auto, Semi-auto, Manual
DORI Wide 2.8 to 12 mm: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m
8 to 32 mm: D (Detect): 150.3 m, O (Observe): 59.7 m, R (Recognize): 30.1 m, I (Identify): 15 m
DORI Tele 2.8 to 12 mm: D (Detect): 149 m, O (Observe): 59.1 m, R (Recognize): 29.8 m, I (Identify): 14.9 m
8 to 32 mm: D (Detect): 400 m, O (Observe): 158.7 m, R (Recognize): 80 m, I (Identify): 40 m
Illuminator Supplement Light Range 2.8 to 12 mm: 30 m
8 to 32 mm: 50 m
Supplement Light Type IR
Smart Supplement Light Yes
IR Wavelength 850 nm
AI Open Platform Up to 4 models
Model type: detection model, classification model, mixed model (detection model and classification model)
Video Main Stream 50 Hz:
25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
50 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Video Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Video Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Video Fourth Stream 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Video Fifth Stream 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Fourth stream: H.265/H.264/MJPEG
Fifth stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 4 fixed regions for each stream
Target Cropping Yes
e-PTZ Support Patrol and Auto Tracking settings
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
Simultaneous Live View Up to 20 channels
API Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), ISAPI, SDK, ISUP
User/Host Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule, Alarm Trigger
Wide Dynamic Range (WDR) 140 dB
Image Enhancement BLC, HLC, 3D DNR, Distortion Correction, Defog
SNR ≥ 52 dB
Privacy Mask 8 programmable polygon privacy masks
Image Stabilization EIS
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Audio 1 input (line in), 1 output (line out), 3.5 mm connector
Built-in Microphone Yes, 2 built-in microphones
Alarm 1 input, 1 output (max. 24 VDC, 1 A)
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Power Output 12 VDC, max. 100 mA
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error), video quality diagnosis, vibration detection
Smart Event Scene change detection, audio exception detection, defocus detection
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
Deep Learning Function Perimeter Protection:
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Support combined event alarm triggering

Queue Management:
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: regional people queuing-up, waiting time detection
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
Supports real-time data uploading and scheduled data uploading
Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold
Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

Heat Map:
A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.
Two report types are available, space heat map and time heat map line chart.

Hard Hat Detection:
Detects up to 30 human targets simultaneously
Supports up to 4 shield regions

Metadata:
Intrusion detection, line crossing detection, region entrance detection, region exiting detection

Regional People Counting:
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection
Supports parameter settings: alarm times per exception, alarm interval, first alarm delay
Supports searching real-time number of people
People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading
Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)
Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)

On/Off Duty Detection:
Supports up to 8 detection regions, and independent arming schedule and linkage method
Supports 2 detection modes: absence detection, on/off duty detection
Supports parameter settings: person on duty, absence duration
Power With –Y:
12 VDC ± 20%, three-core terminal block, 1.23 A, max. 14.7 W;
24 VAC ± 20%, three-core terminal block, 0.91 A, max. 13.7 W;
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.27 A to 0.36 A, max. 15.0 W

Without –Y:
12 VDC ± 20%, two-core terminal block, 1.23 A, max. 14.7 W;
24 VAC ± 20%, two-core terminal block, 0.91 A, max. 13.7 W;
PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.27 A to 0.36 A, max. 15.0 W
Weight Without -Y: approx. 1490 g (3.28 lb.)
With -Y: approx. 1565 g (3.45 lb.)
With Package Weight Without -Y: approx. 2435 g (5.37 lb.)
With -Y: approx. 2295 g (5.06 lb.)
Material Aluminum alloy body
Dimension Ø162 mm × 141.8 mm (Ø6.4" × 5.6")
Package Dimension 251 mm × 215 mm × 189 mm (9.9" × 8.5" × 7.4")
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Heartbeat, mirror, password protection, one-key reset
Heater Yes
Device Management Supports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
Approval EMC:
FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015

Safety:
UL: UL 62368-1
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
LOA: IEC/EN 60950-1

Environment:
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006

Protection:
IP67: IEC 60529-2013, IK10: IEC 62262:2002

Automotive and Railway:
EN50121-4

Anti-Corrosion Protection:
-Y: NEMA 4X (NEMA 250-2018)

Other:
PVC FREE

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hikvision iDS-2CD7546G0/S-IZHS(Y) 4MP Outdoor Motorised DeepInView VF Dome Camera 2.8 to 12 mm

$1,512.00 AUD
$1,510.00 AUD
 per

Introducing the Hikvision DS-2CD7546G0/S-IZHS(Y) 4MP Outdoor Motorised DeepInView VF Dome Camera

The Hikvision DS-2CD7546G0/S-IZHS(Y) is a powerful outdoor motorized dome camera designed for high-performance surveillance. Featuring advanced imaging technology, it captures clear 4MP video quality for effective security monitoring.

This camera utilizes a motorized varifocal lens ranging from 2.8 to 12 mm, allowing for easy adjustment of focal length and field of view to suit various monitoring applications.

Features:

  • High-Quality 4 MP Imaging: Captures detailed and high-resolution images, providing clarity essential for effective monitoring applications across different environments and conditions.
  • Motorized Varifocal Lens: Adjustable focal lengths from 2.8 to 12 mm enable users to customize the camera’s field of view to meet specific surveillance requirements easily.
  • DarkFighter Technology: Enables excellent low-light performance, ensuring vivid color imaging in very low light conditions, responsibly capturing critical footage during nighttime.
  • 130 dB Wide Dynamic Range: Balances lighting conditions, allowing for enhanced image quality in scenes with bright and dark areas, ensuring critical details are retained effectively.
  • Weatherproof Design: IP67 rating protects against dust and heavy rain, ensuring reliable operation in harsh outdoor conditions while maintaining excellent performance over time.
  • Advanced Video Analytics: Integrated intelligent features for human and vehicle classification significantly decrease false alarms and improve overall monitoring efficiency and accuracy for security personnel.
  • Two-Way Audio Capability: Supports real-time audio monitoring with built-in microphone and speaker, enhancing security management through direct communication in the monitored area.
  • Seamless Integration: Compatible with Hikvision's range of video management software and systems, providing a cohesive solution to enhance security monitoring and analytics.

Functions:

Intelligent VCA Functions:
The camera incorporates advanced algorithms for line crossing and intrusion detection, enabling rapid alerting and improving security responses to significant events captured in view.

Remote Monitoring Access:
Users can easily access live viewing and recording management via mobile applications, enhancing user flexibility and oversight for effective security operations.

Automated Alerts and Notifications:
Sends real-time notifications for detected movements or events, ensuring that security personnel can respond promptly to potential threats based on user-defined parameters.

Efficient Video Compression:
Utilizes H.265 and H.264 for optimized storage and bandwidth management, allowing for efficient long-term recording without compromising image quality.

Scheduled Tasks and Patrols:
Users can configure automatic patrol routes and scheduled monitoring tasks to enhance efficiency in surveillance operations while ensuring coverage of key areas.

High Storage Capacity:
Supports various storage methods, including local and network storage options, enabling long-term retention of recorded footage for review and analysis.

Enhanced Security Features:
Incorporates robust password protection and encryption to safeguard recorded video, ensuring the integrity and confidentiality of surveillance data are maintained.

Simple Setup and Configuration:
Designed for easy installation, the camera comes with intuitive configuration options that make it accessible for users with varying levels of technical knowledge.

Technical Specifications

Model iDS-2CD7546G0/S-IZHS(Y)
Camera Sensor 1/1.8" Progressive Scan CMOS
Max Resolution 2688 × 1520 pixels
Lens Type Varifocal, 2.8 to 12 mm
Min Illumination Color: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Wide Dynamic Range (WDR) 140 dB
IR Illumination Range Up to 30 meters
Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Iris Type P-iris
Compression Technology H.265+/H.265/H.264+/H.264
Video Main Stream 50 Hz: 25 fps (2688 × 1520, various resolutions); 60 Hz: 30 fps (2688 × 1520, various resolutions)
Video Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
Field of View (FOV) Horizontal FOV: 114.5° to 41.8°; Vertical FOV: 59.3° to 23.6°
Protection Rating IP67 (water and dust resistant), IK10 (vandal-proof)
Smart Features Deep learning-based face recognition, multi-target-type recognition, perimeter protection
Power Supply PoE (Power over Ethernet)

Videos

Recently viewed products

SECURITY AUSTRALIA - YOUR TRUSTED SOURCE FOR SECURITY EQUIPMENT

Discover our wide range of security equipment designed to keep you safe and secure.

We offer competitive prices to trades and commercial projects. Speak to one of our experienced consultants if you require a custom quote on larger orders.
