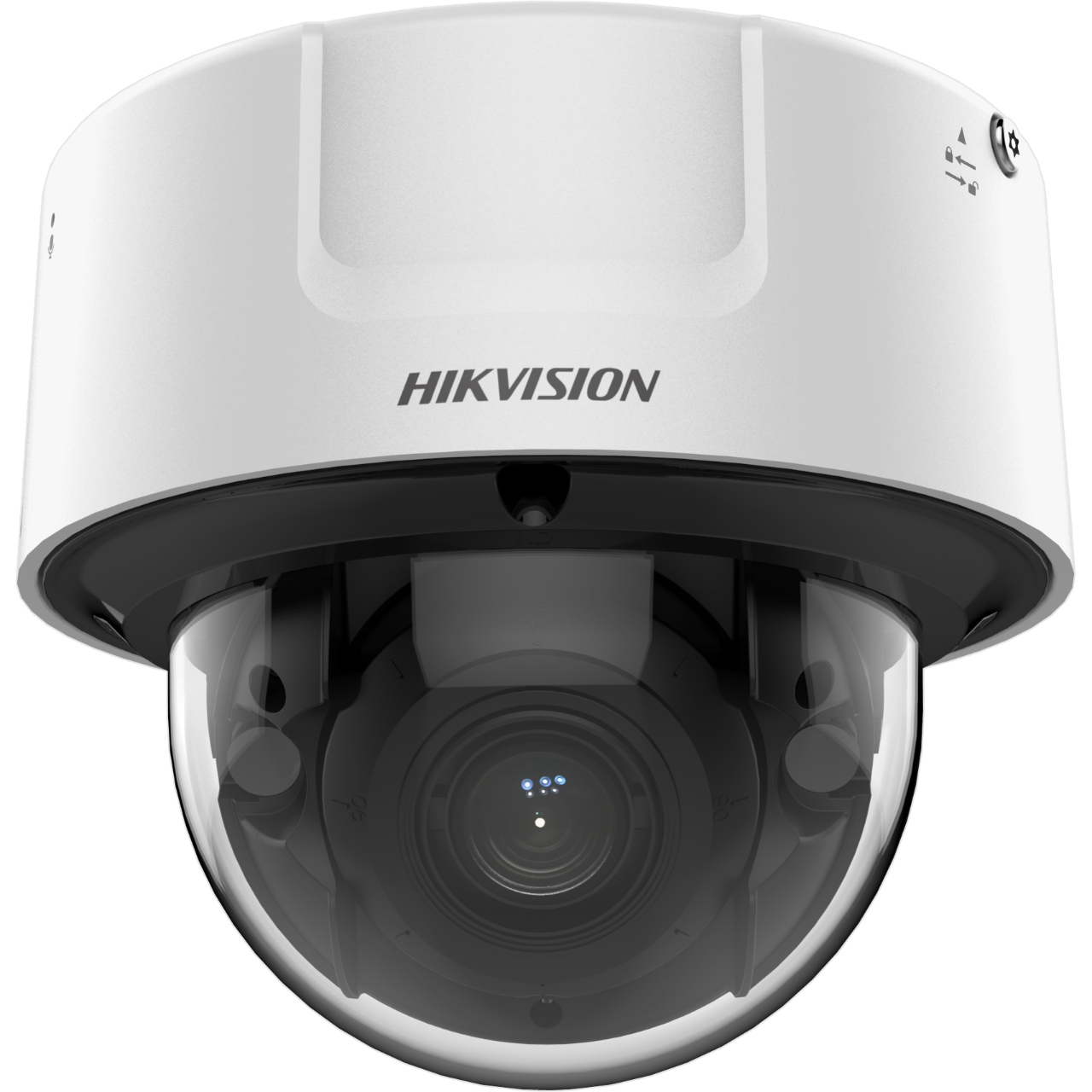

Hikvision IDS-2CD7146G0-IZS 4MP DeepinView Moto Varifocal Dome Camera

Model: IDS-2CD7146G0-IZS

Who This Is For

Specifying cameras for high-value indoor and outdoor positions where focal length flexibility and AI-driven analytics cannot be compromises - the Hikvision IDS-2CD7146G0-IZS DeepinView Moto Varifocal Dome is built for exactly that brief. This is a camera for installers and security managers who need to lock down a scene post-installation without climbing back to the ceiling: the motorised varifocal lens adjusts remotely from 2.8 mm to 12 mm (or 8 mm to 32 mm in the long-range variant), letting you dial in the field of view from a laptop or NVR interface. The DeepinView engine adds line crossing, intrusion detection, and object abandonment analytics on-board, reducing false alerts caused by trees, animals, and lighting shifts. With IP67 weatherproofing, IK10 vandal resistance, and a minimum illumination of 0.0005 Lux in colour mode, this dome performs across car parks, building entries, retail floors, and perimeter corridors where conditions change constantly.

What This Camera Actually Does

Who Buys This Model

• Security Integrators on Commercial Fitouts: The motorised varifocal lens allows final scene composition after cabling is complete, reducing rework on jobs where the ideal mounting position is fixed by ceiling structure rather than coverage requirements.
• Retail and Shopping Centre Managers: DeepinView intrusion detection and line crossing analytics flag after-hours activity in stockrooms and loading areas without generating constant false alerts from HVAC movement or light changes.
• Property and Facilities Managers on Mixed Indoor/Outdoor Sites: IP67 and IK10 ratings mean a single camera model handles covered car parks, internal corridors, and external building entries - simplifying procurement and spare parts management.
• Education and Healthcare Security Teams: The 4 MP resolution at 2560x1440 provides the subject detail required for incident review in busy corridors, while the 120 dB WDR manages the backlight common in hospital foyers and school reception areas.
• Installers Upgrading Analogue Systems to IP: PoE 802.3af support means existing Cat5e or Cat6 cable runs can carry both power and data, eliminating the need to re-run power cabling during a camera upgrade.

Honest Assessment

The IDS-2CD7146G0-IZS earns its position in a system spec when the combination of remote lens adjustment, on-board AI analytics, and IK10 vandalism resistance is genuinely required. The 1/1.8" sensor with F1.2 aperture is a meaningful hardware advantage over entry-level domes, and the 120 dB WDR handles backlit entry scenes that produce silhouettes on lesser cameras. DeepinView analytics processing at the edge reduces server-side load and delivers faster alert response than cloud-dependent solutions.

Where this camera is not the right tool: the 30 m IR range is modest for open outdoor perimeter work - a bullet or turret with longer IR reach will serve exposed approaches better. This camera also has no built-in microphone, so audio-verified events require an external audio device. Buyers who do not need DeepinView analytics or motorised zoom should consider a fixed lens dome at a lower price point. The range is available through Security Australia with compatible Hikvision NVRs that unlock the full analytics event management.

Before You Buy

Quick Fit Check

• Good match if: Your installation position is fixed by ceiling structure and you need to finalise the surveillance angle remotely after mounting - the motorised varifocal lens adjusts from 2.8 mm to 12 mm (or 8 to 32 mm) without requiring physical access to the camera head.
• Good match if: The site has mixed lighting conditions - backlit entries, partially daylit corridors, or covered outdoor areas - where the 120 dB WDR and 0.0005 Lux minimum illumination need to work together across a single camera position.
• You may need a different model if: Your primary requirement is wide-area outdoor perimeter coverage at 50 m or more - a long-range IR bullet or PTZ camera will deliver better subject detail at that distance than the 30 m IR range on this dome.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need on-board AI analytics (line crossing, intrusion, object abandonment), a motorised varifocal lens for remote scene adjustment, and a housing rated to both IP67 and IK10 - all in a single dome unit.
• You may need a different model if: Your primary use case is long-range outdoor perimeter coverage at 50 m or beyond - a fixed or varifocal bullet camera with extended IR range will deliver better subject detail at those distances than the 30 m IR on this dome.
• Pairs well with: A Hikvision DeepinView-compatible NVR with sufficient channel licences to receive and action AI analytics events - the on-camera processing handles detection, but event management and search require a compatible recorder.

Common Questions

1. Does this camera work with a standard PoE switch or NVR PoE port?

   Yes. The IDS-2CD7146G0-IZS supports IEEE 802.3af PoE, which is the standard delivered by most managed PoE switches and Hikvision NVR PoE ports. A single Cat5e or Cat6 cable carries both power and data to the camera. No separate power supply is required, though 12 VDC input is available as an alternative if your installation uses a centralised power distribution setup.

2. Will this camera work outdoors?

   Yes. The IP67 rating confirms full dust ingress protection and resistance to sustained water jets, making this camera suitable for covered outdoor positions including soffits, external corridors, and building entries. The IK10 rating adds impact resistance for locations where the camera is accessible. It is not designed for direct exposure to driving rain without overhead shelter at very exposed sites.

3. How does the motorised varifocal lens work in practice - do I need to physically adjust it?

   No physical adjustment is needed after initial mounting. The focal length is set remotely via the NVR interface or web browser once the camera is installed and connected. For the 2.8-12 mm variant, you can range from a 114.5° wide-angle view down to a 41.8° narrower frame. For the 8-32 mm variant, the range is 42.5° down to 15.1°. This remote adjustment capability is particularly useful when the camera is ceiling-mounted at height and physical re-access would require a ladder or scaffold.

4. What does DeepinView analytics actually detect - and how is it different from standard motion detection?

   DeepinView processes confirmed event types - line crossing, intrusion detection, and object abandonment - using on-board AI that classifies objects rather than responding to any pixel-level change. Standard motion detection triggers on shadows, lighting shifts, insects near the lens, and HVAC movement. DeepinView filters these out by requiring the detected object to meet classification criteria before generating an alert. The analytics run entirely on the camera processor with no cloud dependency, and alert events are logged and searchable on a compatible Hikvision NVR. The false alert volume on a correctly configured DeepinView camera is substantially lower than standard motion detection on the same scene.

5. What is the minimum light level this camera can record in colour before switching to IR?

   The minimum illumination in colour mode is 0.0005 Lux at F1.2 with AGC on - this is the specification for the 2.8-12 mm lens variant. In monochrome mode it reaches 0.0001 Lux before IR takes over, and the IR illuminator covers 0 Lux conditions to 30 m. In practical terms, this camera will hold colour imaging in very dim corridors and car parks where standard 2 MP cameras have already switched to greyscale, which can be relevant for incident identification where clothing or vehicle colour is needed from the footage.

6. Does the IDS-2CD7146G0-IZS have built-in audio?

   No. The confirmed specification for this model lists no built-in microphone. Audio capture requires an external microphone connected to the camera's audio input, if that input is present on the hardware. This camera is not suitable for two-way audio applications without additional hardware. Buyers requiring on-camera audio should confirm audio input/output availability with Security Australia before specifying this model for audio-dependent installations.

7. What is the difference between the 2.8-12 mm and 8-32 mm lens variants of this camera?

   These are 2 separate hardware variants with different physical lens assemblies - they cannot be switched between. The 2.8-12 mm variant (F1.2 aperture) provides a wide starting field of view at 114.5° horizontal, suited to general indoor coverage, building entries, and positions where broad scene capture is needed. The 8-32 mm variant (F1.7-1.73 aperture) starts at a narrower 42.5° and zooms to 15.1°, suited to long corridors, car park aisles, and external approaches where subject detail at greater distance is the priority. The narrower aperture on the 8-32 mm means it will not match the low-light colour sensitivity of the 2.8-12 mm variant in very dark conditions.
