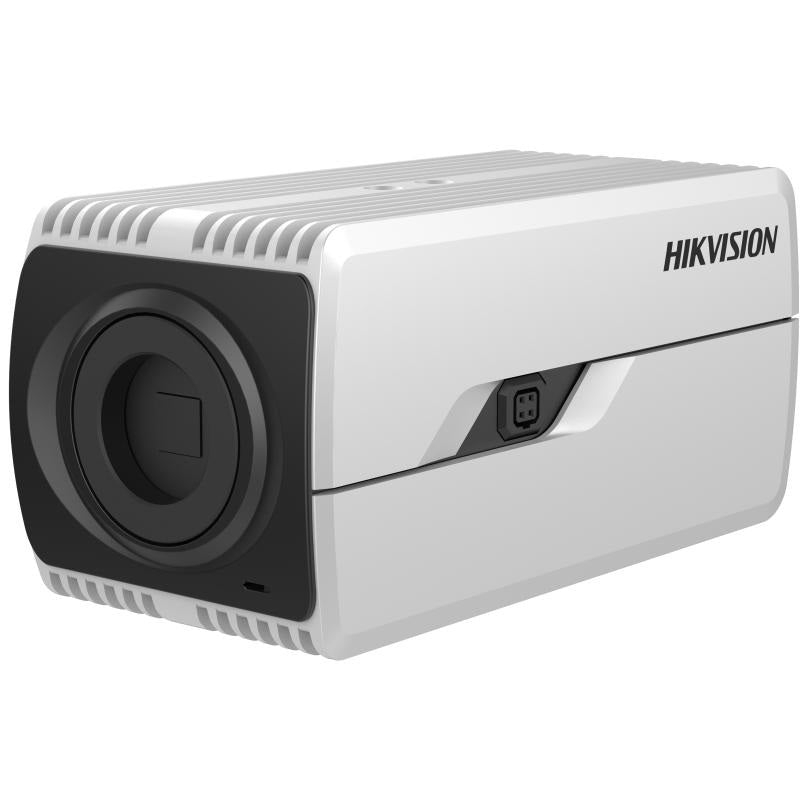

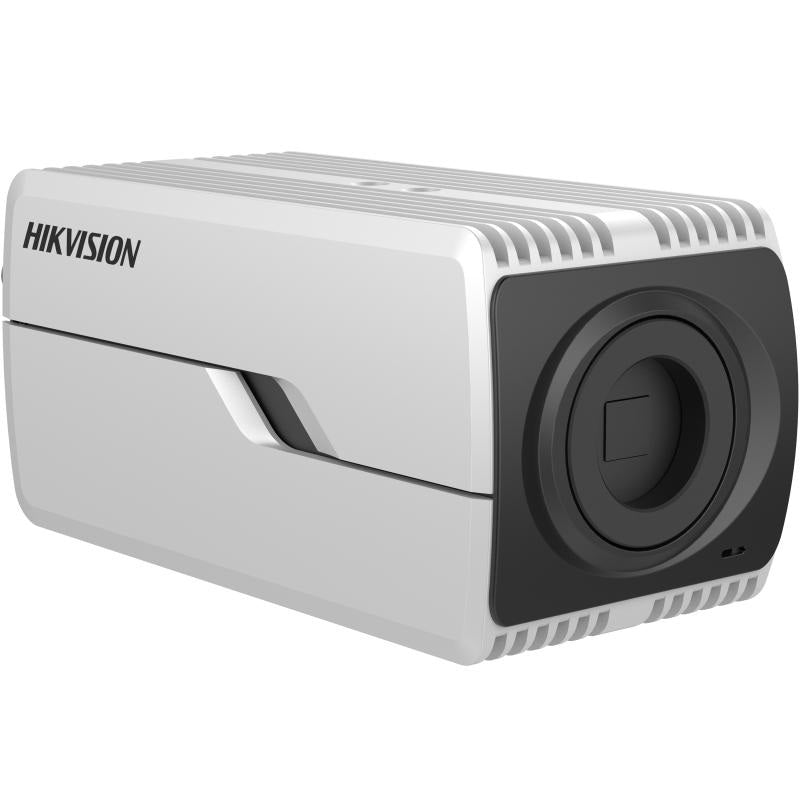

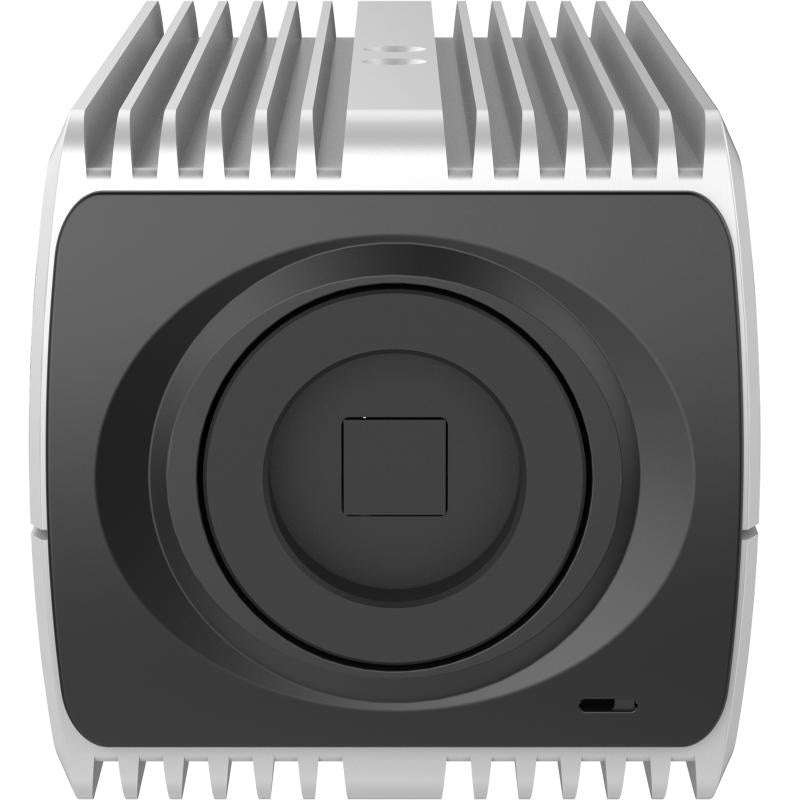

Hikvision iDS-2CD7026G0/AP 2MP DeepinView Box Network Camera with Deep Learning Analytics, Audio & Alarm Interface

Model: iDS-2CD7026G0/AP

Who This Is For

Property managers specifying surveillance for sites where generic motion detection simply generates too many false alerts - think logistics yards, casino floors, aged care corridors, or retail loss prevention points - will find the Hikvision iDS-2CD7026G0/AP built around a completely different approach. This is a 2MP DeepinView box camera with on-board deep learning analytics, meaning it classifies what it sees at the edge rather than just reacting to pixel change. The box form factor means lens selection is separate, which suits integrators who need precise field-of-view control for a specific choke point or entry lane. The built-in audio and alarm interfaces extend its role beyond pure imaging, allowing it to connect directly into broader access and alert systems without additional hardware. It is targeted at professional installers and system integrators building site-specific, analytics-driven installations rather than plug-and-play deployments.

What This Camera Actually Does

Who Buys This Model

• Security integrators and system designers: Professionals specifying analytics-driven installations where lens selection needs to match a precise coverage angle - lobby counters, server room doors, vehicle entry lanes - rather than accepting a fixed focal length.
• Retail loss prevention teams: Operations running high-shrinkage environments where perimeter zone and line-crossing rules can be tuned to specific aisles or stockroom entry points without needing a separate analytics server licence.
• Industrial and logistics site managers: Facilities with low ambient lighting in loading zones or internal yards where DarkFighter low-light performance keeps analytics running accurately during night operations.
• Aged care and healthcare facility operators: Sites that need behaviour-based alerting - such as detecting when a resident enters a restricted area - connected to an existing alarm or nurse call system via the alarm I/O interface.

Honest Assessment

The iDS-2CD7026G0/AP is a strong choice for installations where the camera itself needs to do the analytical work. The on-board deep learning engine genuinely reduces false alarm rates compared to standard video analytics, the DarkFighter sensor gives the classifier enough visual data to work with in low-light conditions, and the alarm I/O interface makes on-site response integration straightforward. The lens-agnostic box body is a practical advantage when field-of-view requirements are fixed by a specific opening or lane width that no standard varifocal dome would precisely match. What it will not do is cover a wide area from a single mount point - this camera resolves a defined, specific zone, not a broad scene. If wide-area or multi-direction coverage from a single position is the priority, a panoramic or PTZ model available through Security Australia would serve that need better. This is a specialist tool for defined problems, not a general-purpose outdoor camera.

Before You Buy

Quick Fit Check

• Good match if: You are installing at a defined choke point - an entry door, vehicle gate, or counter - and need to select a specific focal length lens so the DeepinView analytics classify subjects accurately within that fixed zone.
• Good match if: Your site has an existing alarm or relay system and you need the camera's detection outputs to drive an on-site response directly via the alarm I/O interface without adding an intermediate controller.
• You may need a different model if: You need weather-rated outdoor installation straight out of the box without a separate housing purchase - a turret or bullet-form camera with a built-in IP67 rating would be a more practical and cost-effective path for exposed outdoor positions.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation requires precise lens selection for a defined coverage zone and on-board deep learning analytics that classify persons and vehicles without a separate server-side AI licence.
• You may need a different model if: You need wide-area coverage from a single mounting point - a multi-sensor panoramic or PTZ camera type would deliver far broader scene coverage with fewer camera positions and cabling runs.
• Pairs well with: A compatible Hikvision NVR with DeepinView decoding support, which allows analytics search, event filtering, and structured data retrieval from recordings without relying solely on live alerts.

Common Questions

1. Does this camera work without a lens - does one come in the box?

   No. The iDS-2CD7026G0/AP ships as a body only with no lens included. You will need to purchase a compatible CS-mount or C-mount lens separately before the camera can produce an image. Focal length choice should be driven by the width of your coverage zone and your mounting distance - an integrator specifying this camera should calculate field of view requirements before selecting glass.

2. What does "DeepinView" deep learning analytics actually mean in practice?

   It means the camera runs a neural network directly on its own processor to classify detected objects as people or vehicles before triggering an alert. Unlike standard motion detection that reacts to any pixel change, the DeepinView engine applies a trained classification model at the edge. The practical result is significantly fewer false alarms from lighting changes, shadows, and non-human movement - without requiring any server-side analytics software or additional licence.

3. Will this camera work outdoors?

   Not by itself. The bare box body is not weather-rated for exposed outdoor installation. To deploy this camera outdoors, a compatible weatherproof housing with an appropriate IP rating must be added. The housing also needs to accommodate the specific lens barrel diameter you are using, so confirm housing clearance with your lens selection before ordering.

4. Does this camera support PoE - can I run a single cable from my switch?

   Yes. The iDS-2CD7026G0/AP supports IEEE 802.3af PoE, so a single Cat5e or Cat6 cable from a compatible PoE switch or NVR carries both data and power to the camera. Standard 802.3af PoE (up to 15.4W) is sufficient - no PoE+ switch is required. Alternatively, 12V DC power can be used if PoE infrastructure is not available at the mounting position.

5. How do the alarm I/O terminals work - what can they connect to?

   The alarm interface provides physical input and output terminals on the camera body. Alarm inputs can receive dry contact signals from door contacts, PIR sensors, or push buttons. Alarm outputs are relay-style and can drive external devices such as sirens, strobe lights, or relay boards. When a DeepinView analytics rule triggers - for example, a person detected crossing a defined line - the camera can activate the alarm output immediately, enabling direct on-site response without routing through a VMS or NVR first.

6. What is the difference between line crossing detection and intrusion detection on this camera - when would I use each?

   Line crossing detection triggers when a classified subject crosses a defined virtual line in a specified direction - useful for entries, exits, or perimeter fence lines where directional movement is the event of interest. Intrusion detection triggers when a classified subject enters and remains within a defined polygon zone - better suited to open areas, compound interiors, or rooms where presence within a boundary is the trigger rather than a specific crossing event. Both analytics run on the DeepinView engine and classify subjects as people or vehicles before generating the alert, which is what separates them from standard virtual line or zone tools in conventional cameras. Security Australia stocks compatible Hikvision NVRs that can record and search these structured analytics events across multiple cameras from a single interface.

7. Does this camera have two-way audio - can it broadcast a voice warning when analytics trigger?

   Not independently. The iDS-2CD7026G0/AP has an audio interface, but this is an I/O interface for connecting external audio devices - not a built-in speaker and microphone combination. Two-way audio capability requires external speakers or microphones connected to the audio terminals. If you need the camera to broadcast a voice warning on analytics trigger, an external active speaker connected to the audio output terminal will achieve that, but it must be factored into your installation design and cabling.
