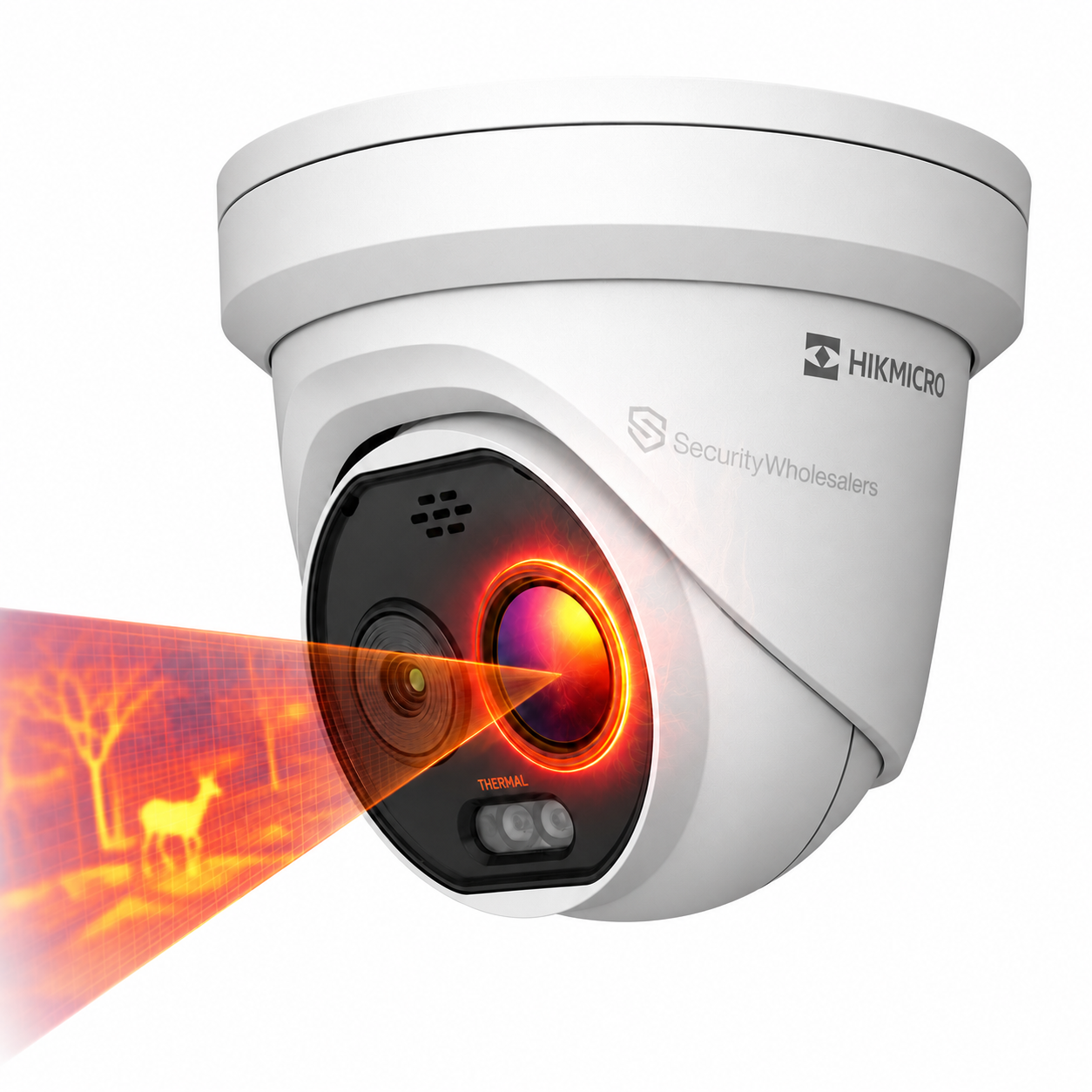

Hikvision HM-TD1218-2/G0/T1A HeatPro Thermal & Optical Bi-Spectrum Turret Camera 2mm Focal

Model: HM-TD1218-2/G0/T1A

Who This Is For

For security managers and installers who need perimeter detection that holds up when visible-light cameras fail - in complete darkness, heavy fog, smoke, or glare - the Hikvision HeatPro HM-TD1218-2/G0/T1A delivers. This bi-spectrum turret mounts a thermal sensor alongside an optical imager in a single compact housing, so operators get the thermal layer for detection and the optical layer for identification, without running two separate camera heads. The 2mm thermal lens suits closer-range perimeter applications: fence lines at warehouses, outer boundaries of substations, building rooftops, and industrial compounds where intruders need to be caught before they reach the structure. Sites that have struggled with traditional motion detection triggering on animals, shadows, or lighting changes will find the thermal sensor's human-heat signature approach significantly reduces false alarms. This is a fixed-mount turret, making it straightforward to integrate into an NVR-based system already running Hikvision infrastructure.

What This Camera Actually Does

Who Buys This Model

• Industrial Site Security Managers: Warehouses, depots, and manufacturing compounds that need perimeter detection at night or in dusty, smoky conditions where standard IR cameras underperform.
• Critical Infrastructure Operators: Substations, water treatment facilities, and telecommunications sites where any perimeter breach requires reliable detection and operators cannot tolerate high false alarm volumes from wind or wildlife.
• Security Integrators Upgrading Existing Systems: Installers replacing underperforming motion-triggered cameras on difficult perimeters, adding a thermal detection layer while retaining optical footage for incident review.
• Rural and Agricultural Property Operators: Large properties with unlit fence lines where camera systems need to detect intruders without any external lighting infrastructure in place.
• Construction Site Managers: Active sites with heavy equipment movement, dust, and no permanent lighting - where thermal helps separate people from machinery and environmental noise at night.

Honest Assessment

The HeatPro HM-TD1218-2/G0/T1A does something genuinely useful: it puts thermal detection and optical imaging into a single fixed-mount turret at a form factor that fits standard junction boxes. For perimeter detection in low or zero-light environments, and in conditions where dust, haze, or smoke reduces optical camera effectiveness, the thermal sensor provides a detection capability that no standard camera - regardless of its IR range or resolution - can replicate. The 2mm lens gives wide coverage for near-perimeter and fence-line segments specifically. What this camera will not do is provide high-resolution identification footage at distance. Thermal imagery is inherently lower resolution than optical; it tells you something is there and gives you a heat shape, while the optical sensor handles visual detail at closer ranges. It is also a fixed camera - it will not pan, tilt, or zoom to track a moving subject across a large area. For wide-area active tracking, a PTZ thermal platform would be more appropriate. This model is available through Security Australia as part of the Hikvision HeatPro range.

Before You Buy

Quick Fit Check

• Good match if: You are covering a fence line, gate approach, or building perimeter at close-to-medium range in an environment with no external lighting - the thermal sensor detects human heat signatures without any illumination infrastructure.
• Good match if: Your site has a high false alarm problem with existing motion detection cameras due to animals, vegetation movement, or lighting changes - the bi-spectrum thermal detection approach is substantially less susceptible to these triggers.
• You may need a different model if: Your requirement is to actively track movement across a wide area or follow subjects as they move - a PTZ thermal camera with auto-tracking capability is a more appropriate product type for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your priority is reliable perimeter detection in darkness, fog, or dust with significantly fewer false alarms than a standard motion-detection camera - and you need both a detection layer and an optical channel in one fixed-mount housing.
• You may need a different model if: Your application requires active tracking across a wide area as targets move - a PTZ thermal camera with auto-tracking is a more appropriate product type than a fixed turret for that use case.
• Pairs well with: A Hikvision-compatible NVR with sufficient decoding capacity to handle dual-stream bi-spectrum inputs, plus a standalone siren or strobe on an alarm output for immediate perimeter deterrence when thermal detection triggers.

Common Questions

1. Does this camera work in complete darkness with no external lighting?

   Yes. The thermal sensor on the HM-TD1218-2/G0/T1A detects infrared heat energy radiated by people and objects - it does not rely on any visible light or IR illumination to produce an image. A completely dark, unlit perimeter is not a limitation for the thermal channel. The optical channel will be limited in low light as with any visible-light camera, but the thermal layer continues to operate and trigger detection regardless of ambient lighting conditions.

2. Will this camera detect through fog or smoke?

   Partially - and significantly better than standard optical cameras. Thermal imaging operates in the 8-14 μm spectral range, which passes through light fog, dust, and smoke that blocks visible-spectrum and near-infrared imaging. In heavy, dense fog the thermal image may also degrade, but in the typical haze, morning mist, or light smoke conditions that defeat standard cameras, the thermal sensor continues to produce a usable detection image. It is not a radar system - it requires line of sight.

3. What does the NETD rating of ≤40mK actually mean for detection performance?

   NETD (Noise Equivalent Temperature Difference) measures the smallest temperature difference the sensor can distinguish from background noise. A ≤40mK rating means the thermal sensor can resolve objects with a temperature difference as small as 0.04°C from their surroundings. In practical perimeter detection terms, this translates to the camera being able to detect a person against a cool background even when they are not generating a strong heat contrast - important in mild Australian climates where the temperature difference between a person and ambient air is smaller than in colder regions.

4. Does this camera measure surface temperatures, and how accurate is it?

   Yes. The HM-TD1218-2/G0/T1A includes temperature measurement capability with a range of -20°C to +150°C. Accuracy is ±8°C or ±5% (whichever is greater). This level of accuracy is appropriate for detecting abnormal heat sources - overheating electrical equipment, fire risk areas, or elevated surface temperatures on machinery - but is not suitable for precise scientific or medical-grade temperature measurement. For perimeter intrusion detection, temperature measurement accuracy is secondary to detection sensitivity, which the ≤40mK NETD specification governs.

5. Will animals trigger false alarms on the thermal detection?

   They can, but far less frequently than with standard motion detection cameras. The thermal sensor detects heat, so large warm-blooded animals (dogs, kangaroos, cattle) will appear on thermal. The HeatPro series uses AI-based classification to distinguish human body shape from animal heat signatures where this feature is active. Smaller animals - reptiles and cold-blooded creatures - produce very little thermal contrast and are unlikely to trigger detection. If wildlife false alarms are a confirmed concern on your site, confirming the specific perimeter protection AI behaviour in the camera settings will help reduce animal-triggered events further.

6. What is the detection distance on the 2mm thermal lens, and how is that calculated?

   Detection distance for a thermal camera is calculated using the Johnson Criteria applied to the sensor resolution and pixel pitch, combined with the lens focal length and field of view. With a 160x120 sensor and 2mm focal length, the detection distance (where a person can be confirmed as a human-sized heat source, not necessarily identified) is typically in the range of 50-80 metres depending on environmental conditions and the specific DORI standard applied. The 2mm lens is intentionally selected for wider, shorter-range perimeter coverage - it covers a broader arc of view at the cost of reach. If your perimeter segment requires detection beyond approximately 80 metres, a longer focal length variant (6mm or above) in the HeatPro range is more appropriate. Contact Security Australia if you need assistance matching focal length to site geometry.

7. Does this camera use PoE, and does it need PoE+ or standard PoE?

   Yes, it supports standard PoE (IEEE 802.3af) as well as 12V DC power. Standard 802.3af PoE (up to 15.4W) is sufficient - this camera does not require the higher-power PoE+ (802.3at) standard. A single Cat5e or Cat6 cable can carry both power and data, simplifying cable runs to perimeter locations. Confirm your PoE switch or NVR PoE port is 802.3af compliant and that your cable run does not exceed 100 metres, which is the standard Ethernet distance limit for PoE.

8. Will this camera integrate with a Hikvision NVR already on site?

   Yes, in most cases. The HM-TD1218-2/G0/T1A is a Hikvision device and integrates natively with Hikvision NVRs via ONVIF and Hikvision's private protocol. Ensure your NVR firmware is current - older NVR firmware versions may not support HeatPro bi-spectrum camera registration or may not correctly decode and display both the thermal and optical streams simultaneously. Check the NVR's supported device list on the Hikvision website before installation, particularly if your NVR is more than 2-3 years old and has not had a firmware update.
