Kit Includes:
Overview:
This HiLook CCTV kit provides a high-resolution surveillance solution, suitable for residential or commercial applications. It features four 8MP AcuSense turret cameras, offering excellent image quality and advanced analytics, paired with an 8-channel NVR for reliable video recording.
Key Features:
Technical Details:
Suitable For:
This kit is perfect for users requiring advanced surveillance features and high-resolution monitoring with flexible camera positioning and outdoor durability.
Camera | Image Sensor 1/2.7" Progressive Scan CMOSMax. Resolution 3840 × 2160 |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
Shutter Time | 1/3 s to 1/100,000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
Lens | Lens Type Fixed focal lens, 2.8 and 4 mm optionalFocal Length & FOV 2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134°4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108° |
Lens Mount | M12 |
Iris Type | Fixed |
Aperture | F1.6 |
DORI | 2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m 4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m |
Illuminator | Supplement Light Type IRSupplement Light Range Up to 30 mSmart Supplement Light YesIR Wavelength 850 nm |
Video | Main Stream 50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) Sub-Stream 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360) |
Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 16 Mbps |
H.264 Type | Baseline Profile, Main Profile, High Profile |
H.265 Type | Main Profile |
Bit Rate Control | CBR, VBR |
Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Region of Interest (ROI) | 1 fixed region for main stream |
Audio | Audio Type Mono soundEnvironment Noise Filtering YesAudio Sampling Rate 8 kHz/16 kHzAudio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LCAudio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
Network | Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)Simultaneous Live View Up to 6 channelsAPI Open Network Video Interface (Profile S, Profile T), ISAPI, SDKProtocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
User/Host | Up to 32 users, 3 user levels: administrator, operator, and user |
Client | iVMS-4200, HiLookVision |
Web Browser | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Image | Wide Dynamic Range (WDR) 120 dBSNR ≥ 52 dBDay/Night Switch Day, Night, Auto, ScheduleImage Enhancement BLC, HLC, 3D DNRImage Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browserPrivacy Mask 4 programmable polygon privacy masks |
Interface | Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet portBuilt-in Microphone YesReset Key Yes |
Event | Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exceptionSmart Event Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)) |
Linkage | Upload to FTP, send email, notify surveillance center, trigger capture |
General | Power 12 VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 WMaterial MetalDimension Ø127.3 mm × 95.9 mm (Ø5.0" × 3.8")Package Dimension 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")Weight Approx. 600 g (1.3 lb.)With Package Weight Approx. 909 g (2.0 lb.) |
Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
Language | English, Ukrainian |
General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
Approval | EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-32:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006Protection IP67: IEC 60529-2013 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

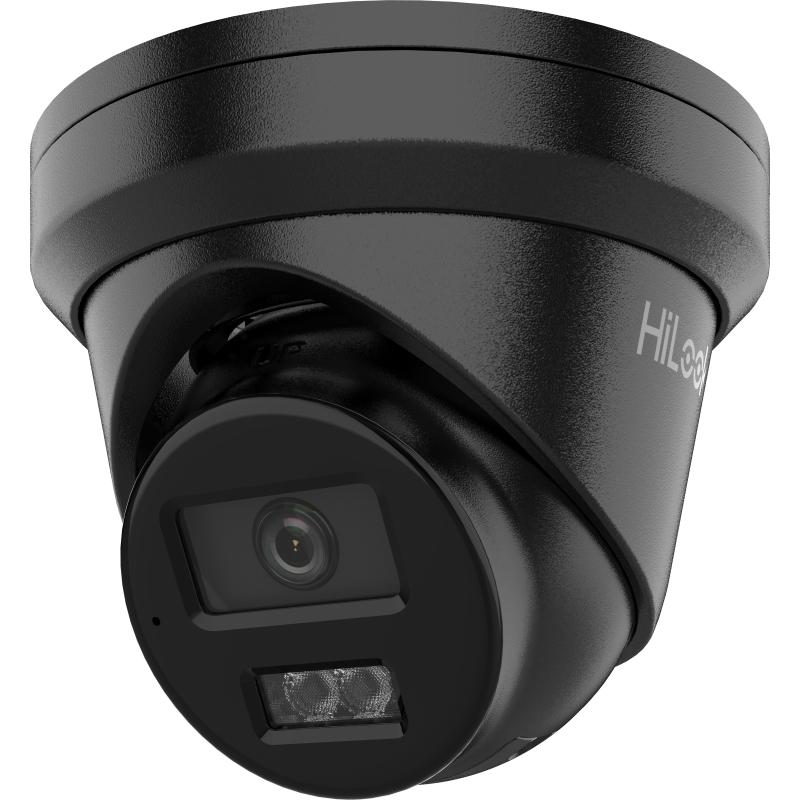

Hikvision Hilook 8MP IPC-T282H-MU Acusense 4 x Camera 8CH NVR Turret CCTV Kit BLACK
Experience cutting-edge security with the HiLook 8MP AcuSense Camera System, a robust solution designed for residential and commercial surveillance. This kit features four 8MP cameras equipped with advanced AcuSense technology, ensuring high-definition imaging while reducing false alarms. Whether it's day or night, the cameras deliver exceptional video clarity thanks to their 30m infrared (EXIR) capabilities and 120 dB Wide Dynamic Range (WDR). With efficient H.265+ compression, this system minimizes bandwidth and storage usage without compromising video quality, making it perfect for continuous monitoring. The cameras are designed for outdoor use, featuring IP67-rated protection against water and dust, making them highly durable in harsh weather conditions. Paired with an 8-channel NVR supporting 4K HDMI output, this system offers reliable and comprehensive surveillance for any property, ensuring peace of mind 24/7.
Resolution | 8MP (4K) |
---|---|
Lens | 2.8mm fixed lens, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° |
Wide Dynamic Range | 120 dB true WDR |
Night Vision | 30m EXIR infrared range |
Compression | H.265+ technology |
Audio | Built-in microphone |
Protection | IP67 rated, weatherproof |
NVR | 8-channel NVR, H.265+/H.265/H.264+ support |
This system does not include a hard drive. Add a compatible drive if continuous recording is needed.
