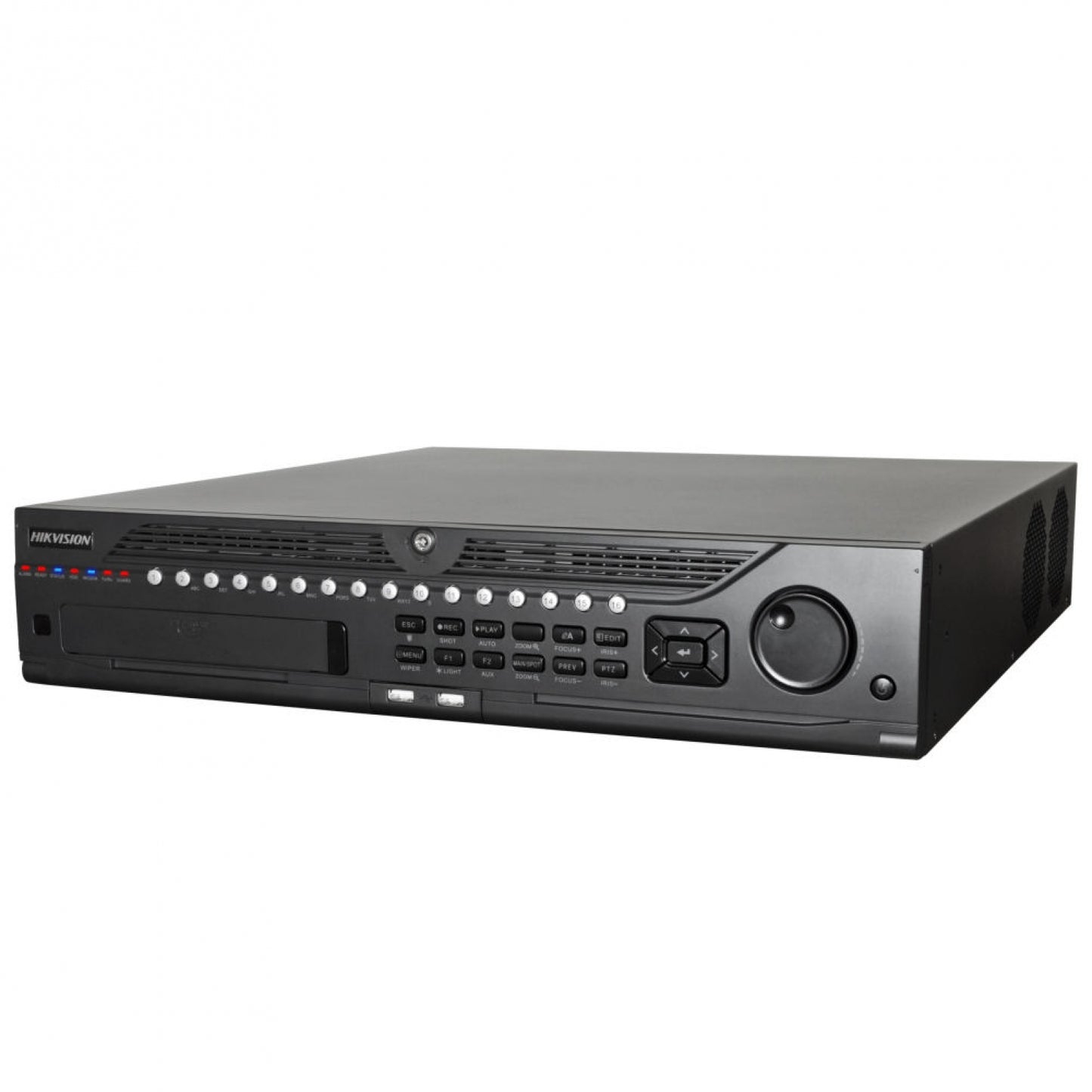

Hikvision DS-9664NI-I8 64ch NVR, 320Mbps (200Mbps w RAID enabled) 4K, 2RU, 8 Bay + 3TB

$3,469.00 AUD
$3,211.00 AUD
 per
In stock!
Spend $100.00 to FREE SHIPPING

64-ch 2U 4K NVR

With space for up to 8 hard drives, the DS-9664NI-I8 provides substantial storage for continuous video recording, while RAID support enhances data redundancy and security. The NVR supports H.265+ compression technology, reducing bandwidth and storage needs without compromising video quality. This makes it ideal for businesses or environments with high-resolution video requirements.

Key Features

  • Up to 64 channel IP cameras can be connected
  • Up to 12 MP high-definition live view, storage and playback
  • Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
  • 2 HDMI (different source) and 2 VGA (different source) interfaces
  • 8 HDD can be used for continuous video recording
  • Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
  • Advanced streaming technology enables smooth live view in poor network conditions
  • Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

Code/SKU: DS-9664NI-I8
Quick Specs:

  • Dimensions: 445 × 465 × 92 mm (17.5"× 18.3" × 3.6")
  • Weight: ≤ 10 kg (22 lb)

Specifications

Video and Audio
IP Video Input 64-ch
Up to 12 MP resolution
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 256 Mbps
Incoming Bandwidth (RAID Mode) 200 Mbps
Outgoing Bandwidth (RAID mode) 200 Mbps
HDMI 1 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 1 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output 2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format H.265+/H.265/H.264+/H.264/MPEG4
Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Synchronous playback 16-ch
Decoding Capability 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)
Dual-Stream Recording Support
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Network
Remote Connection 128
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID
RAID Type RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)
Auxiliary Interface
Serial Interface 1 RS-485 (full-duplex), 1 RS-232, 1 keyboard
SATA 8 SATA interfaces supporting hot-plug
eSATA 1 eSATA interface
Capacity Up to 10TB capacity for each disk
Alarm In/Out 16/4
USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 30 W
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10% to 90%
Chassis 3U chassis
Dimension (W × D × H) 445 × 465 × 92 mm ( 17.5"× 18.3" × 3.6")
Weight ≤ 10 kg (22 lb)
Certification
  • FCC: Part 15 Subpart B, ANSI C63.4-2014
  • CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hikvision DS-9664NI-I8 64ch NVR, 320Mbps (200Mbps w RAID enabled) 4K, 2RU, 8 Bay + 3TB

$3,469.00 AUD
$3,211.00 AUD
 per

The Hikvision DS-9664NI-I8 is a high-performance 64-channel network video recorder (NVR) designed for large-scale surveillance systems. It supports up to 64 IP cameras and offers ultra-high definition video with support for up to 12 MP resolution for live view, recording, and playback. Its impressive incoming bandwidth of up to 320 Mbps (or 200 Mbps when RAID is enabled) ensures smooth video capture from multiple cameras simultaneously. The device also features dual HDMI and VGA outputs, allowing for different video sources to be displayed on separate monitors.

With space for up to 8 hard drives, it provides substantial storage for continuous video recording, while RAID support enhances data redundancy and security. The NVR supports H.265+ compression technology, reducing bandwidth and storage needs without compromising video quality. This makes it ideal for businesses or environments with high-resolution video requirements.

Its 2U rack-mounted chassis is designed for easy integration into server environments. Additionally, the DS-9664NI-I8 offers advanced video analytics and multiple recording modes, further enhancing its versatility in various surveillance applications.

Features

Professional and Reliable

  • New logical and visualized GUI design
  • Dual-OS design to ensure high reliability of system running
  • ANR technology to enhance the storage reliability when the network is disconnected
  • HDD hot swap with RAID0, RAID1, RAID5, RAID6, and RAID10 storage scheme configurable
  • Configurable normal or hot spare working mode to constitute an N+1 hot spare system

Video Input and Transmission

  • Up to 64-ch 12 MP IP cameras can be connected
  • Connectable to third-party network cameras

Compression and Recording

  • H.265+ compression effectively reduces the storage space by up to 75%
  • Full channel recording at up to 12MP resolution

HD Video Output

  • HDMI1/VGA1 and HDMI2/VGA2 outputs provided
  • HDMI1 Video output at up to 4K (3840 × 2160) resolution

Storage and Playback

  • Up to 8 SATA interfaces and 1 eSATA interface for HDD connection
  • 10TB capacity for each HDD
  • Smart search for efficient playback
  • 8/16-ch synchronous playback at up to 1080p resolution
  • Normal/Important/Custom video playback
  • Important files management
  • HDD health monitoring

Smart & POS Function

  • Supports multiple VCA (Video Content Analytics) events
  • Smart search for the selected area in the video; and smart playback to improve the playback efficiency
  • Supports VCA search for fire/ship/temperature/temperature difference detection triggered video files
  • POS information overlay on live view and playback
  • POS triggered recording and alarm

Network & Ethernet Access

  • Hik-Connect for easy network management
  • 2 Gigabit Ethernet network interfaces
Technical Specifications
Video and Audio
IP Video Input 64-ch
Up to 12 MP resolution
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 256 Mbps
Incoming Bandwidth (RAID Mode) 200 Mbps
Outgoing Bandwidth (RAID mode) 200 Mbps
HDMI 1 Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 1 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA 2 Output 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output Mode HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output 2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format H.265+/H.265/H.264+/H.264/MPEG4
Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Synchronous playback 16-ch
Decoding Capability 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)
Dual-Stream Recording Support
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
