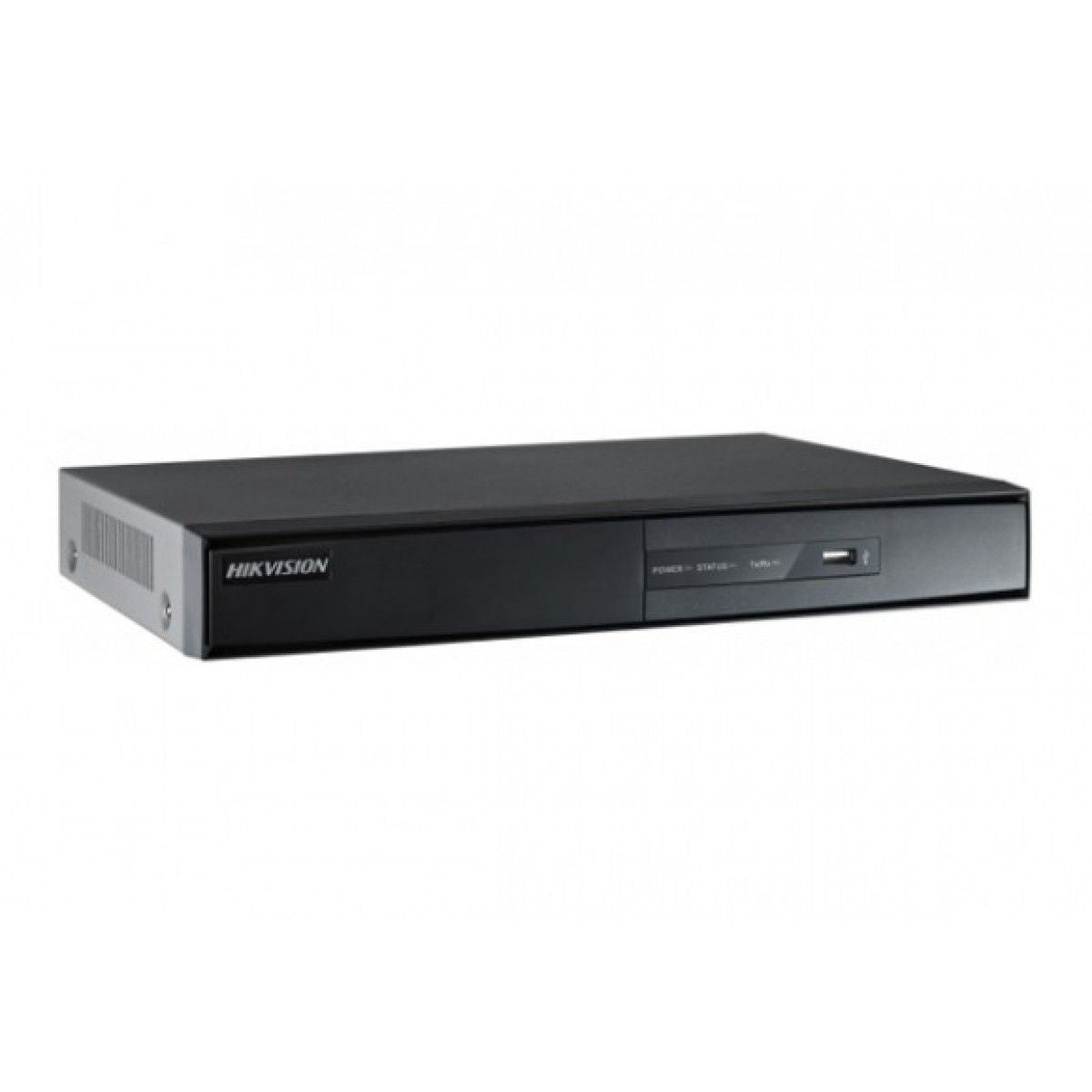

Hikvision HIK-7616HI-ST 32CH Hybrid DVR, WD1 Capable
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
- H.264 video compression
- Third-party network cameras supported
- Up to 5 Megapixels resolution recording
- HDMI and VGA output at up to 1920?1080P resolution
- HDD quota and group management
| Video/Audio Input | ||
|---|---|---|
| Video Compression: | | | H.264 |
| Analog Video Input: | | | 16-ch, BNC(1.0Vp-p, 75Ω), PAL/NTSC adaptive |
| IP Video Input: | | | Up to 32-ch |
| Composite Video Input: | | | Up to 32-ch (Analog video + IP video ) |
| Audio Compression: | | | OggVorbis |
| Audio Input: | | | 4-ch, RCA (2.0 Vp-p, 1 KΩ) |
| Two-way Audio: | | | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (Using audio input) |
| Video/Audio Output | ||
| HDMI / VGA output: | | | 1920 × 1080 / 60 Hz (1080P), 1600 × 1200 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| CVBS Output: | | | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Playback Resolution: | | | 5MP/3MP/1080p/UXGA/720P/WD1/4CIF/VGA/DCIF/2CIF/CIF/QCIF |
| Recording Resolution: | | | Main stream: WD1 / 4CIF / 2CIF / CIF / QCIF Sub-stream: CIF / QCIF |
| Frame Rate: | | | Main stream: 25 fps (P) / 30 fps (N) Sub-stream: 25 fps (P) / 30 fps (N) |
| Video Bit Rate: | | | 32 Kbps ~ 3 Mbps |
| Audio Output: | | | 1-ch, RCA (Linear, 1 KΩ) |
| Audio Bit Rate: | | | 64 Kbps |
| Synchronous Playback: | | | 16-ch |
| Dual Stream: | | | Support |
| Hard Disk Driver | ||
| Interface Type: | | | 2 SATA interfaces |
| Capacity: | | | Up to 4 TB capacity for each disk |
| External Interface | ||
| Network Interface: | | | 1, 10M/100/1000M self-adaptive Ethernet interface |
| Serial Interface: | | | 1 RS-485 interface, half-duplex |
| USB Interface: | | | 2, USB2.0 |
| Alarm in/out: | | | Optional |
| General | ||
| Power Supply: | | | 12V DC |
| Consumption: | | | Max. 10W |
| Working Temperature: | | | -10°C~+55°C(14°F~131°F) |
| Working Humidity: | | | 10%~90% |
| Chassis: | | | 19-inch rack-mounted 1U chassis |
| Dimensions: | | | 445 × 290 × 45 mm |
| Weight(Without HDD): | | | Approx. 2 kg / 4.4 lb (without hard disk) |
