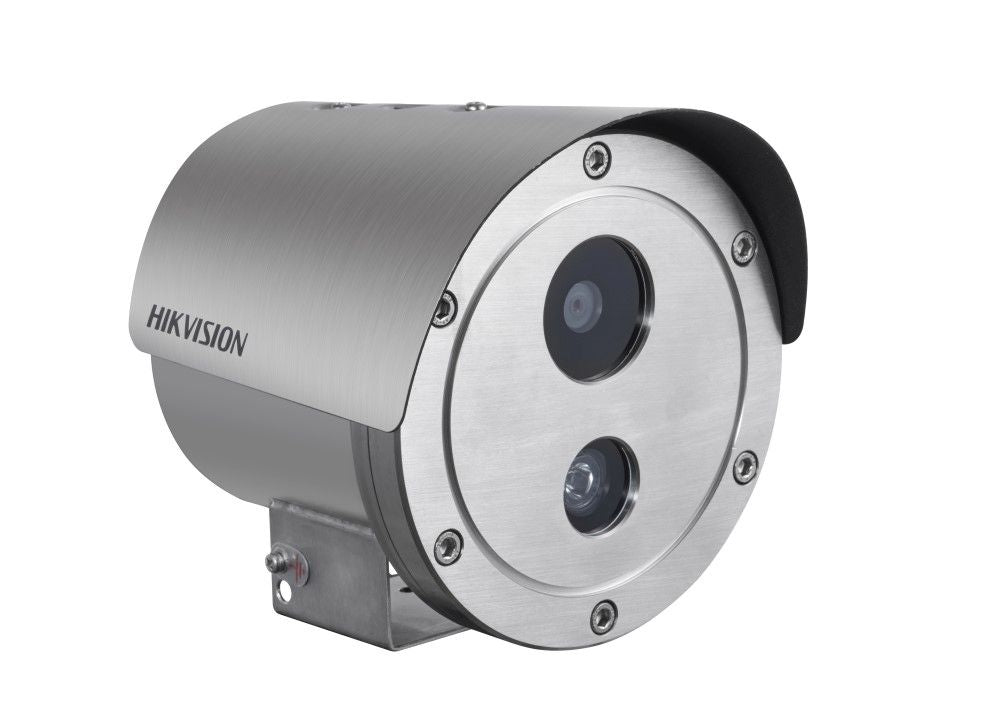

Hikvision HIK-2XE6242FIS4 4MP Explosion Proof Bullet Camera, 120dB WDR, 30m IR, IP68, 4mm

Model: HIK-2XE6242FIS4

Who This Is For

When hazardous area compliance is the priority, the Hikvision HIK-2XE6242FIS4 is the camera to specify. Built for environments where a standard IP66 or IK10 rating simply is not enough, this 4MP explosion-proof bullet is engineered for oil and gas processing plants, petrochemical facilities, deep mines, offshore marine platforms, and chemical storage sites where combustible gases, vapours, or dusts are present. The 304 and 316L stainless steel housing resists both explosive pressure and aggressive chemical corrosion, while ATEX and IECEx certification confirms it meets internationally recognised hazardous location standards. Installers specifying CCTV for Zone 1 or Zone 2 classified areas, or anyone responding to a WHS requirement for intrinsically safe or explosion-protected equipment, will find this camera addresses those compliance obligations directly. The 4mm fixed lens and 30m IR range suit approach monitoring, access points, and process area coverage at typical industrial standoff distances.

What This Camera Actually Does

Who Buys This Model

• Oil, Gas, and Petrochemical Facilities: Site engineers and safety managers specifying CCTV within classified hazardous zones require ATEX/IECEx-certified equipment. This camera satisfies those certification requirements for perimeter access points, valve manifolds, and tank bund monitoring.
• Chemical Processing Plants: Environments with corrosive atmospheres demand more than standard aluminium housings. The 316L stainless steel construction resists chloride and acid exposure that would compromise conventional camera enclosures within months.
• Underground and Deep Mining Operations: Mine surveillance in methane-risk or coal dust environments requires explosion-protected equipment. IECEx certification is the relevant scheme for Australian mining applications under the relevant AS/NZS and state mining regulations.
• Marine and Offshore Platform Operators: Vessel engine rooms, tank decks, and offshore production platforms combine salt spray, washdown, and potential flammable atmosphere risk. The IP68 rating combined with ATEX/IECEx certification addresses all three conditions simultaneously.

Honest Assessment

The HIK-2XE6242FIS4 does one thing that no standard IP camera can do: it is certified safe for deployment inside classified hazardous areas. ATEX and IECEx certification, 316L stainless steel construction, and IP68 sealing make this a genuine engineering-grade product for environments where a wrong specification decision creates a safety and liability problem. DarkFighter imaging and 120dB WDR add real imaging performance to what is already a specialist compliance product, so operators are not trading image quality for safety rating. The 4mm fixed lens is appropriate for access monitoring and general area coverage at typical industrial standoff distances. What this camera will not do is provide variable field of view - if long-range identification at distance or wide-area panoramic coverage is needed, a PTZ or motorised zoom variant would be more suitable. This is also a specialist product with a corresponding price point; for standard outdoor industrial sites without a hazardous area classification, a conventional IP67 stainless bullet would deliver the same image results at lower cost. Available through Security Australia for projects requiring certified hazardous area surveillance equipment.

Before You Buy

Quick Fit Check

• Good match if: Your installation site carries an ATEX or IECEx hazardous area classification and you need a camera that is certified compliant for that zone - this is one of very few cameras that satisfies that requirement with a 4MP sensor and DarkFighter low-light performance built in.
• Good match if: You are installing in a marine or offshore environment where salt spray, submersion risk, and washdown are combined - the IP68 sealing and 316L stainless steel housing are specified for exactly this combination of environmental stressors.
• You may need a different model if: Your site does not carry a formal hazardous area classification - a standard IP67 or IP68 stainless bullet camera will deliver equivalent or better imaging performance at significantly lower cost, and Security Australia stocks several options suited to tough outdoor industrial applications without the explosion-proof price premium.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation site carries a formal ATEX or IECEx hazardous area classification and you need a camera whose certification markings can be matched against the zone classification in the site's area classification documentation - no standard industrial camera satisfies this requirement.
• You may need a different model if: You need variable field of view, long-range optical zoom, or wide-area pan-tilt coverage in a hazardous zone - a PTZ with explosion-proof certification would be more appropriate, and Security Australia's range includes options for extended coverage requirements in classified environments.
• Pairs well with: An IECEx-rated or suitably rated network switch or PoE injector installed in a safe area with appropriately rated conduit and Ex cable glands used for the hazardous zone cable runs - the camera's certification chain is only intact when the entire installation method meets the applicable hazardous area wiring standard.

Common Questions

1. What does ATEX and IECEx certified actually mean for this camera?

   It means the camera has been independently assessed and certified as safe for use in environments where explosive atmospheres - gas, vapour, mist, or dust - may be present. ATEX is the European scheme and IECEx is the international scheme; both are recognised in Australian hazardous area installations. The certification defines specific gas groups and temperature classes the camera is rated for. You match those markings against your site's area classification documents before installation - the certification does not automatically mean the camera suits every hazardous zone type.

2. Why does this camera use 304 and 316L stainless steel rather than aluminium?

   316L stainless steel offers substantially superior resistance to chloride and acid corrosion compared to standard aluminium die-cast housings. In marine environments, chemical plants, or any site with corrosive atmospheric exposure, aluminium enclosures will pit and degrade - sometimes within a single wet season. The 316L alloy maintains structural and sealing integrity in these conditions over a significantly longer service life, which matters for a camera that cannot simply be swapped out without following hazardous area maintenance procedures.

3. Will this camera work in an Australian underground coal mine?

   Yes, subject to confirming the specific IECEx certification markings match your mine's classified zone requirements. IECEx is the internationally recognised scheme applicable to Australian mining environments, and this camera carries IECEx certification. Underground coal mines in Australia operate under state-specific mining legislation that references Australian and international standards for explosion-protected equipment - your site's engineering team or safety officer will confirm the applicable gas group and temperature class for your specific headings before installation.

4. Does the 120dB WDR make a practical difference in industrial lighting conditions?

   Yes. Standard cameras typically achieve 60-90dB WDR. At 120dB, the sensor can simultaneously manage scenes that are roughly 1,000,000:1 in luminance ratio - handling the transition from a bright floodlit process area directly into deep shadow in a single frame without either end of the scene becoming unreadable. In industrial sites where floodlighting, open sky, and shadowed equipment bays all appear in the same camera view, this is a meaningful imaging advantage rather than a specification number.

5. Does the IP68 rating mean this camera can be permanently submerged?

   Yes, IP68 confirms protection against continuous submersion beyond the 1m depth used for IP67 testing - the specific depth and duration are defined by the manufacturer's test parameters. In practice, this means the camera maintains its sealing integrity in flooding scenarios, bilge or deck areas on vessels, and applications where water ingress would be a normal operational risk rather than an exceptional event. IP68 is a step above the IP66 or IP67 rating found on most outdoor cameras, not a marginal improvement.

6. What storage and bandwidth savings does H.265 deliver at 4MP resolution?

   H.265 encoding reduces storage consumption by approximately 50% compared to H.264 at the same image quality and resolution. For a 4MP camera running 24 hours a day, this is a substantial practical reduction in NVR hard drive usage - roughly halving the storage required per camera compared to an equivalent H.264 stream. In multi-camera industrial installations where NVR storage capacity and network bandwidth both need to be controlled, H.265 encoding is a meaningful operational factor rather than a background technical detail. The team at Security Australia can assist with storage calculations for your specific camera count and retention requirements.
