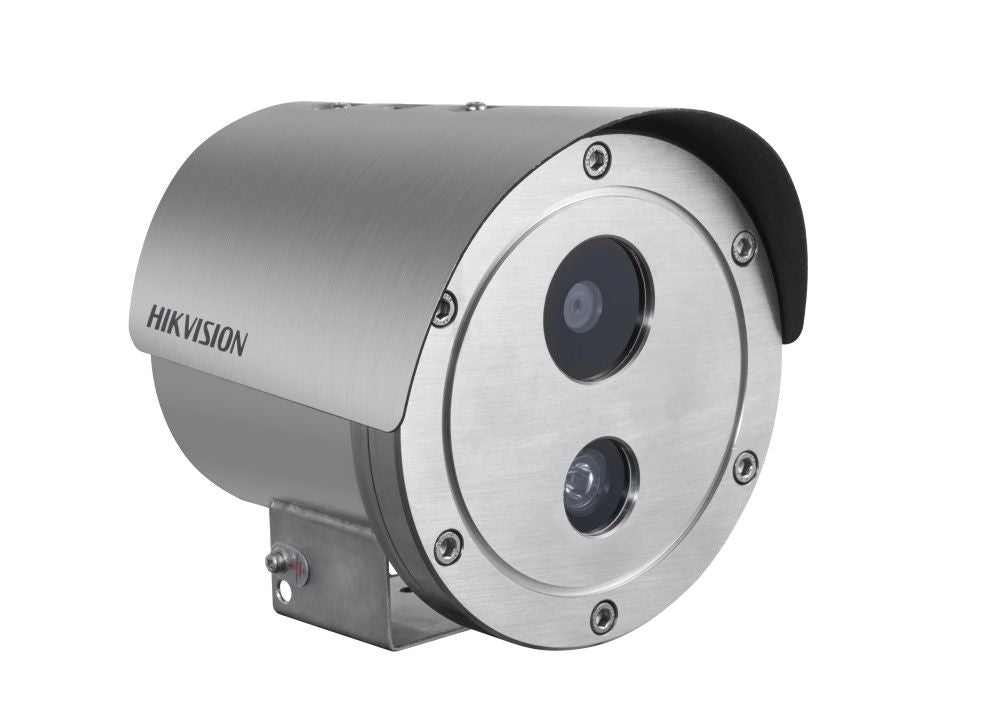

Hikvision HIK-2XE6222FIS4 2MP Explosion Proof Bullet Camera, 120dB WDR, 30m IR, IP68, 4mm

Model: HIK-2XE6222FIS4

Who This Is For

For engineers and safety managers who need video surveillance in classified hazardous zones where standard IP cameras are simply not permitted. The Hikvision HIK-2XE6222FIS4 is an ATEX and IECEx certified 2MP explosion-proof bullet camera built for environments where combustible gases, vapours, or dust are present - think oil and gas processing plants, chemical storage facilities, offshore marine platforms, and deep mine operations. Its 304 and 316L stainless steel housing is built to survive both the corrosive atmosphere and the regulatory requirements of Zone 1 and Zone 2 hazardous area classifications. With 120dB WDR and DarkFighter low-light imaging, it handles the high-contrast and poorly lit conditions common in these environments. If your project involves a hazardous area compliance requirement, this is the camera that meets the certification brief.

What This Camera Actually Does

Who Buys This Model

• Oil and Gas Site Safety Teams: Specifying cameras for wellheads, processing skids, and storage areas where ATEX/IECEx certification is a non-negotiable site entry requirement for any electrical equipment.
• Chemical Plant Engineers: Replacing or deploying cameras inside classified Zone 1 or Zone 2 areas where combustible vapours may be present and standard IP cameras are prohibited under site safety rules.
• Marine and Offshore Project Managers: Installing surveillance on vessel decks, offshore platforms, or port facilities where 316L stainless steel and IP68 protection are required to withstand saltwater corrosion and washdown procedures.
• Mining Operations and EPC Contractors: Covering underground mine drives, crusher areas, and explosive storage zones where both the explosion-proof classification and the DarkFighter low-light sensor address the dark, dusty, high-contrast conditions typical of deep mining environments.

Honest Assessment

The HIK-2XE6222FIS4 does one specific thing that no standard IP camera can: it is certified to operate safely inside classified explosive atmospheres. The ATEX and IECEx certifications, combined with 304/316L stainless steel and IP68 sealing, make this the correct answer when site safety documentation requires hazardous area rated equipment. The 120dB WDR and DarkFighter sensor add genuine imaging capability rather than just compliance box-ticking, and 30m IR with H.265 keeps infrastructure and storage costs reasonable across multi-point installations. Available through Security Australia, this camera is aimed at a specific regulatory and engineering brief. It will not serve you well as a general-purpose outdoor camera - the cost and weight are well above what a standard bullet camera requires. If your installation is outside a classified hazardous area, a standard industrial IP67 bullet or turret camera will deliver equivalent imaging performance at a fraction of the price.

Before You Buy

Quick Fit Check

• Good match if: Your project involves a formally classified hazardous area (Zone 1 or Zone 2) and site safety documentation requires ATEX or IECEx certified equipment for all electrical installations in that zone.
• Good match if: The installation environment is corrosive, subject to constant washdown, or located in a marine or offshore setting where 316L stainless steel and IP68 sealing are specified in the project's materials standard.
• You may need a different model if: Your site is a standard industrial or outdoor environment without a formal hazardous area classification - a heavy-duty IP67 industrial bullet camera will meet your imaging requirements at significantly lower cost and with easier mounting options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation is in a formally classified explosive atmosphere zone (Zone 1 or Zone 2) and all electrical equipment must carry ATEX or IECEx certification - this is the only camera type that satisfies that requirement.
• You may need a different model if: Your site is a non-classified industrial or outdoor environment - a standard IP66/IP67 rated heavy-duty industrial bullet camera will provide equivalent or superior imaging flexibility at substantially lower cost and without the additional compliance infrastructure this camera type requires.
• Pairs well with: ATEX-rated network switches, Ex-rated cable glands and conduit fittings, and hazardous area approved enclosures housing standard NVR or IP recording equipment located in a safe area outside the classified zone.

Common Questions

1. What does ATEX and IECEx certified actually mean for this camera?

   It means the camera has been independently tested and certified as safe for use in classified explosive atmospheres. ATEX is the European certification scheme and IECEx is the international equivalent - both confirm the camera's construction prevents it from becoming an ignition source in areas where flammable gases, vapours, mists, or dusts may be present. On Australian industrial sites, the IECEx certification is the scheme most commonly referenced in hazardous area compliance documentation and site safety cases.

2. Why is 316L stainless steel specified instead of standard stainless steel or aluminium?

   316L is the marine and chemical industry standard for corrosion resistance. The "L" designation refers to low carbon content, which reduces sensitisation and corrosion at weld points - important for a machined and sealed housing. Standard 304 stainless steel is also used in the housing where direct chemical or saltwater exposure is lower. Standard aluminium camera housings oxidise, pit, and fail rapidly in marine and chemical plant atmospheres where this camera is designed to perform.

3. Does this camera work in underground mine environments?

   Yes, provided the mine's hazardous area classification matches the camera's certified ratings. Deep mines with combustible dust or methane gas present require explosion-proof rated equipment, and the HIK-2XE6222FIS4's certifications cover these applications. The 30m IR and DarkFighter sensor address the low-light challenge common in underground drives and tunnels, and the IP68 sealing handles the moisture and fine dust common in mining environments.

4. Will this camera connect to a standard Hikvision NVR?

   Yes. The HIK-2XE6222FIS4 uses standard IP network connectivity with H.265 compression and is compatible with Hikvision NVR systems. The camera itself is the explosion-proof component - the NVR can be a standard unit located in a safe area outside the classified hazardous zone. Cable routing from the camera into the safe area must use appropriate Ex-rated cable glands and conduit to maintain the zone barrier integrity.

5. What does 120dB WDR do in a hazardous area installation context?

   120dB WDR handles scenes where the brightest and darkest areas of the image need to be exposed simultaneously. In oil, gas, and chemical environments this means the camera can capture usable detail in areas lit by process flares or bright overhead industrial lighting while still maintaining detail in shaded equipment bays or access paths in the same frame. Standard cameras with lower WDR ratings either blow out the highlights or lose detail in shadows, making personnel identification difficult in these high-contrast industrial scenes.

6. Do I need special cable glands for this camera?

   Yes. Cable entry points into any explosion-proof enclosure in a classified zone must use Ex-rated cable glands that match the zone classification. Standard weatherproof cable glands are not compliant for use in ATEX or IECEx classified zones. The cable gland selection must account for the cable type, diameter, and the specific gas group and temperature class of the installation. This is a site-specific selection - consult your project's hazardous area engineering documentation. The team at Security Australia can help direct your enquiry to the appropriate technical resources.

7. Is the 4mm fixed lens the right choice for my application?

   It depends on your mounting distance and coverage requirement. A 4mm lens on a 2MP sensor provides a wide field of view suitable for monitoring access points, equipment areas, and walkways at close to medium distances - typically up to 10-15m for useful detail. If your application requires monitoring a long approach corridor, vehicle gate, or extended plant area from a fixed mounting point, a longer focal length would deliver better identification detail. Verify your required coverage distance against the camera's field of view before confirming the lens selection.
