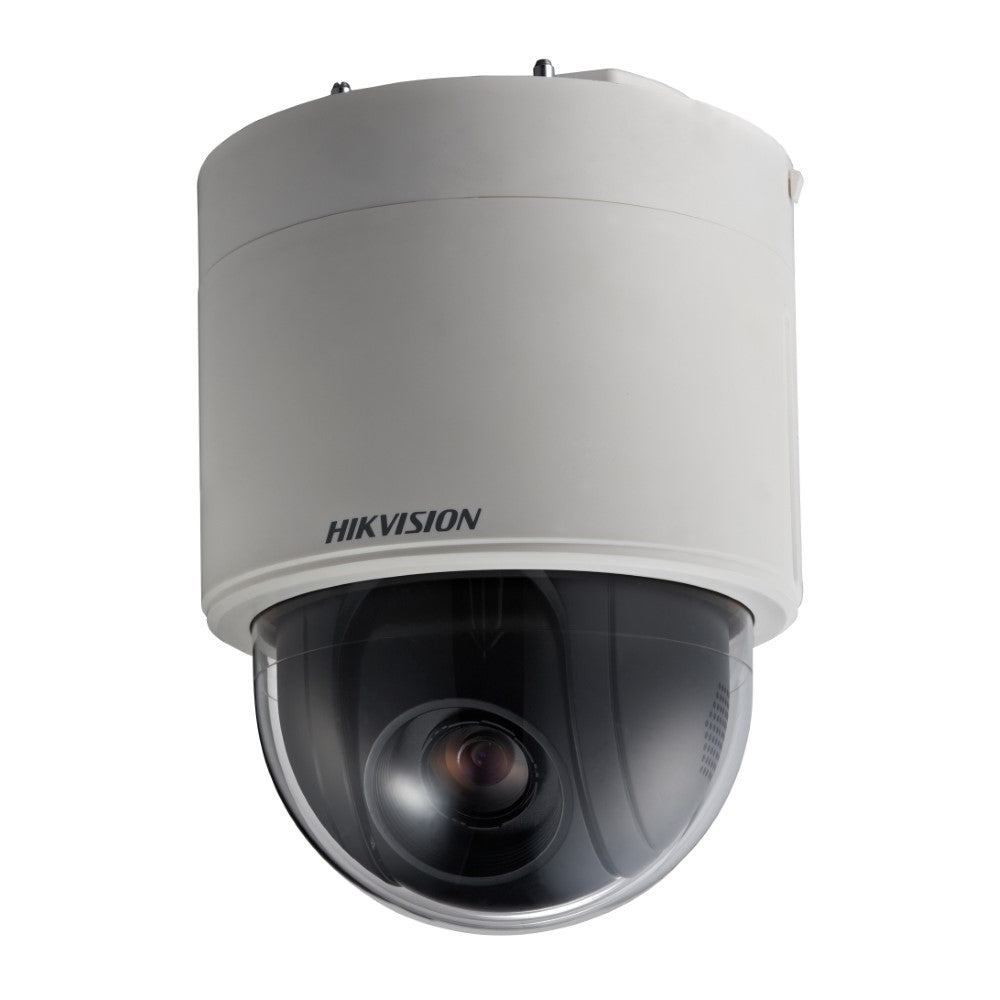

Hikvision HIK-2DF5284-AE3 2MP Indoor PTZ Camera Surface/Recessed Mount, HiPoE

Model: HIK-2DF5284-AE3

Who This Is For

For security integrators and facility managers who need active PTZ coverage inside a building without breaking the ceiling aesthetic, the Hikvision HIK-2DF5284-AE3 is a 2MP indoor speed dome built specifically for internal environments. The dual-mount design - surface or recessed - means it suits both new construction where a recessed fit-out is planned and retrofit projects where only a surface mount is practical. HiPoE delivery keeps cabling clean: a single Cat5e or Cat6 cable carries both data and the higher power the PTZ motor demands. Retail floors, hotel lobbies, large open-plan offices, and sports halls are all environments where operators want the ability to pan to a specific area, zoom in on an incident, and hold that view without repositioning a fixed camera. This model targets that need without requiring an outdoor-rated housing.

What This Camera Actually Does

Who Buys This Model

• Retail Loss Prevention Teams: Need to actively direct coverage toward a shopfloor event without walking to reposition a fixed camera - PTZ control from the back office handles this.
• Hotel and Hospitality Operators: Lobby, reception, and function room installs where a flush recessed dome suits the fit-out standard and the manager wants remote zoom capability for incident review.
• Commercial Building Managers: Large open-plan floors, atriums, or reception areas where covering the full space with fixed cameras would require many more mounting points than a single PTZ position.
• Security Integrators on Refurbishment Projects: Where conduit runs are already in place and a surface-mount PTZ gives the client active coverage without recutting the ceiling for a fixed multi-camera array.

Honest Assessment

The HIK-2DF5284-AE3 genuinely earns its place in commercial indoor installations where operators want the ability to actively direct a camera rather than rely entirely on fixed wide-angle coverage. The dual surface and recessed mount option is a practical advantage on projects where ceiling construction varies across zones. HiPoE simplifies the install by eliminating a separate power feed at the ceiling, which matters on large floor plates where every additional cable run adds cost and time. Where this camera is not the right tool is any outdoor or semi-outdoor application - it carries no weatherproofing rating and should not be exposed to moisture or temperature extremes. If wide-area coverage is the goal but active operator control is not required, a fixed multi-sensor panoramic camera available through Security Australia may deliver more consistent coverage with less complexity. This is an operator-directed tool, not a set-and-forget perimeter device.

Before You Buy

Quick Fit Check

• Good match if: You are covering a large indoor open area - retail floor, hotel lobby, atrium - where operator-directed zoom and pan to a specific point of interest during an event is the core requirement.
• Good match if: Your installation has a HiPoE switch already in the rack or budget, and ceiling aesthetics matter enough to warrant the recessed mount option for a clean finish.
• You may need a different model if: The installation is outdoors or in a semi-covered area exposed to weather - an outdoor-rated PTZ or weatherproof turret/bullet camera would be the appropriate product type for those environments.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need active operator-directed PTZ control indoors with a dual surface/recessed mount option and want HiPoE to keep cabling to a single run.
• You may need a different model if: The location is outdoors or partially exposed to weather - an outdoor-rated PTZ camera with an IP66 or IP67 weatherproof rating is the correct product type for those environments.
• Pairs well with: A HiPoE-capable managed network switch and a Hikvision NVR or VMS platform that supports PTZ control, preset programming, and patrol scheduling.

Common Questions

1. Will this camera work with a standard PoE or PoE+ switch?

   No. The HIK-2DF5284-AE3 requires HiPoE, which delivers significantly more wattage than standard IEEE 802.3af PoE (15.4W) or 802.3at PoE+ (30W). PTZ motors draw higher power than fixed cameras, and insufficient power will cause unreliable pan and tilt operation or the camera will simply fail to function. You need a HiPoE-capable switch or a dedicated HiPoE injector rated for this camera before installation.

2. Does this camera support preset positions and automated patrol routes?

   Yes. As a Hikvision PTZ speed dome, the HIK-2DF5284-AE3 supports programmable preset positions and automated patrol (guard tour) functionality. You define the positions you want - entry point, counter, stockroom door - through the camera's web interface or your VMS, and the camera can cycle through them on a schedule or be called to a specific preset instantly by an operator.

3. Can I install this camera recessed into a suspended tile ceiling?

   Yes, provided there is adequate ceiling void depth above the tile. The recessed mount option is designed for suspended ceilings in commercial environments, but you must confirm the void clearance above the intended mounting point is sufficient for the camera body before specifying this configuration. On sites where void depth varies - particularly where HVAC ducts or electrical services run overhead - surface mount is the lower-risk option and avoids recutting ceiling tiles if the first location is unsuitable.

4. Does this camera work for outdoor installation?

   No. The HIK-2DF5284-AE3 is rated for indoor use only and does not carry an IP weatherproof rating suitable for outdoor or semi-exposed environments. Moisture, condensation, and temperature extremes outside a controlled indoor setting will damage the unit. If outdoor PTZ coverage is needed, a Hikvision outdoor PTZ with IP66 weatherproofing is the appropriate product type - the full Hikvision outdoor PTZ range is stocked by Security Australia.

5. What is the difference between pan/tilt range and how far can this PTZ physically rotate?

   PTZ speed domes in this Hikvision series typically offer 360-degree continuous pan rotation and a tilt range from 0 to 90 degrees (or beyond, depending on model variant). This means the camera can cover any horizontal direction from its ceiling mount point without a dead zone, and tilt downward to cover the floor area beneath. Confirm exact pan/tilt range figures in the Hikvision datasheet for this specific variant, as ceiling-mount indoor speed domes may have a different tilt floor than wall-mount models.

6. Will this camera integrate with non-Hikvision NVR or VMS platforms?

   Yes, in most cases. The HIK-2DF5284-AE3 supports ONVIF, which is an industry-standard protocol supported by most modern NVR and VMS platforms from other manufacturers. However, PTZ control functionality - particularly advanced features like preset recall and patrol scheduling - works most reliably when paired with a Hikvision NVR or the iVMS-4200 VMS, where full ISAPI and SDK integration is available. Verify PTZ control compatibility with your chosen VMS before committing to the platform pairing.

7. Does the 2MP resolution provide enough detail for identification when the camera is zoomed in?

   Yes, when the camera is actively directed and optically zoomed toward a subject. At 1080p Full HD, the 2MP sensor delivers adequate pixel density for face-level identification at close to mid-range distances when the PTZ is zoomed in on a target. The optical zoom increases pixel density on the subject rather than simply enlarging a digitally cropped image, which is why optical zoom on a PTZ produces usable identification detail that digital zoom on a fixed camera cannot replicate. Wide-area patrol shots at full field of view will carry less detail per subject, which is normal for any camera covering a large space.

Downloads & Resources

No downloads available for this product.
