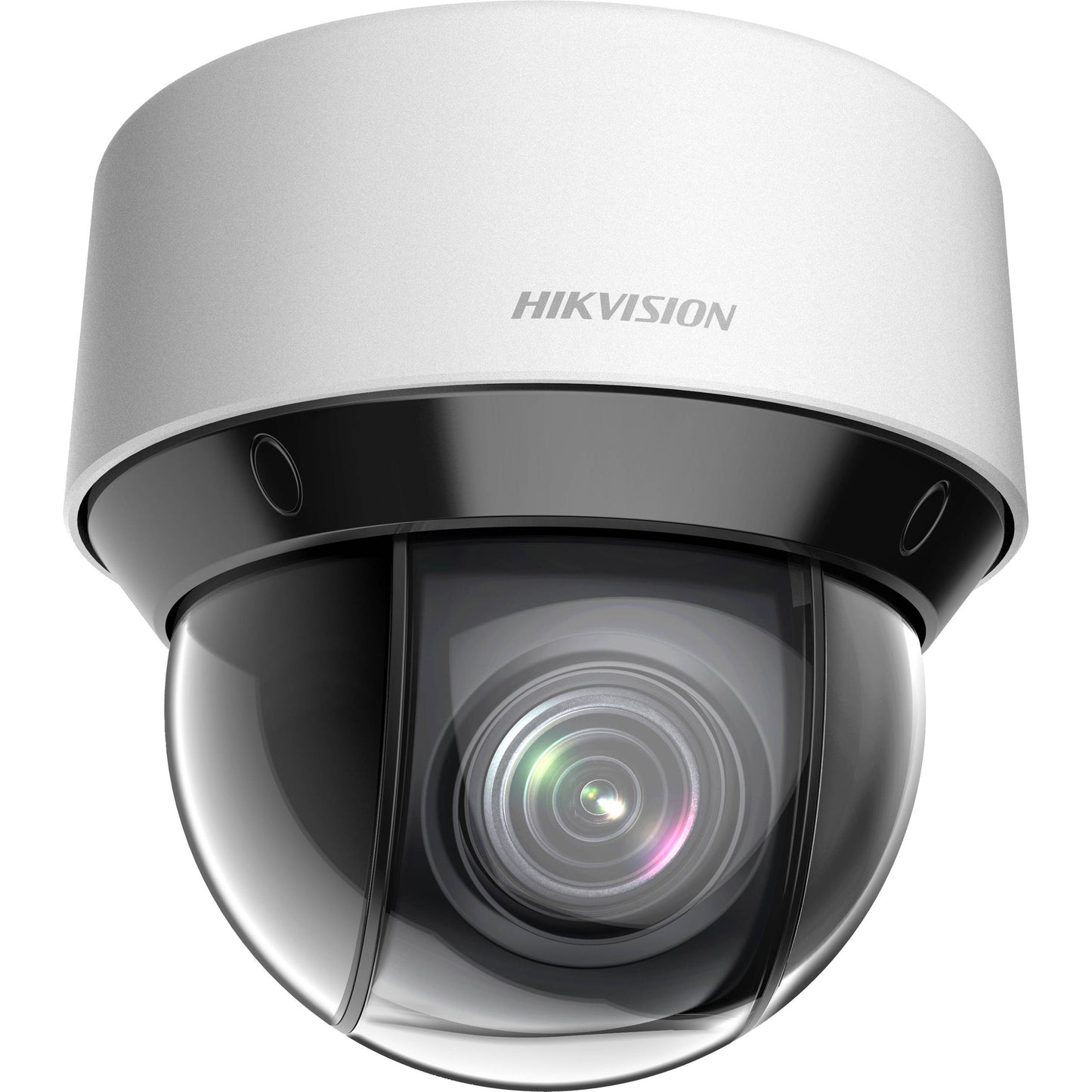

Hikvision DS-2DE4A204IWDE 2MP Darkfighter IR PTZ Camera, 4x Optical Zoom,50m IR, 2.8-12mm

$1,007.00 AUD
 per
Shipping calculated at checkout.
In stock!
Spend $100.00 to FREE SHIPPING
Hikvision's HIK-2DE4A204IWDE (2.8-12mm) Darkfighter network IR PTZ camera adopts a 1/1.9" progressive scan CMOS chip. Along with the 4× optical zoom lens, the camera offers more details over expansive areas. This series of cameras can be widely used for wide ranges of high-definition applications such as to monitor rivers, forests, roads, railways, airports, ports, squares, parks, large venues and more.

Specifications

Camera
Effective Pixels:1920(H)x1080(V)
Signal System:PAL/NTSC
Minimum Illumination:Color: 0.002 Lux @(F1.6, AGC ON)B/W: 0.0002Lux @(F1.6, AGC ON)0 Lux with IR
White Balance:Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:Auto/Manual
BLC:ON/OFF
HLC:Support
WDR:DWDR
Shutter Time:1/1 to 1/30,000s
Day& Night:ICR
Digital Zoom:16×
Privacy Mask:8 programmable privacy masks
Auto Focus:Auto / Semi-automatic / Manual
Lens
Focal Length:2.8 mm to 12 mm
Zoom Speed:Approx. 2.2 s (optical lens, wide-tele)
Field of View:90.1° to 31° (wide-tele)
Minimum Working Distance:10 to 1500mm (wide-tele)
Aperture Range:F1.5 to F2.8
Pan & Tilt
Pan Range:360°endless
Pan Speed:Configurable, from 0.1°/s to 300°/sPreset Speed: 350°/s
Tilt Range:-5°~90° (Auto Flip )
Tilt Speed:Configurable, from 0.1°/s to 160°/sPreset Speed: 200°/s
Proportional Zoom:Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:300
Patrol:8 patrols, up to 32 presets for each patrol
Pattern:4 pattern scans, record time over 10 minutes for each scan
Power-off Memory:Support
Park Action:Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display:ON/OFF
Infrared
IR Distance:50m
IR irradiation angle:Adjustable by zoom
Alarm
Alarm Input:2
Alarm Output:2
Alarm Linkage:Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Input & Output
Audio Input:Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10%
Audio Output:1 Audio output interfaceLine level, impedance: 600Ω
Network
Ethernet:10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:1920×1080
Main Stream:50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ;60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)
Sub Stream:50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream:50Hz: 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)60Hz: 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288)
Video Compression:H.265/H.264/MJPEG
Audio Compression:G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Simultaneous Live View:Up to 20 channels
Three-Stream:Support
Storage:Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
Security Measures:User authentication (ID and PW),Host authentication (MAC address)IP address filtering
Client GUI
Client:Support iVMS-4200
General
Power Consumption:12 VDC, 3.33A and PoE (802.3at), 42.5 to 57 VDC, 0.6A, Class4Max.18 W, including Max. 5W for IR
Working Temperature/Humidity:Outdoor: -30°C to 65°C (-22°F to 149°F)Humidity:≤ 90%
Protection Level:IP66 standard (outdoor dome)TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting:Variable installation methods optional, including ceiling mounting (default), in-ceiling mounting, junction box installation and wall mounting
Dimensions:Φ169.39mm ×161mm (Φ6.67"×6.34")
Weight (approx.):Approx. 2.45kg (5.40lb)

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
