Mobile Outdoor Dome Network Camera
The Mobile Outdoor Dome Network Camera DS-2XM6522G0-I(D)(M)(/ND) from Hikvision is designed for versatile outdoor surveillance applications. It features a compact and robust dome design, making it ideal for installation in various environments. With its high-resolution imaging capabilities, the camera delivers clear and detailed video footage, ensuring reliable monitoring. The integrated mobile functionality allows for seamless connectivity and remote access, enhancing operational flexibility. Its weather-resistant housing ensures durability against harsh weather conditions, making it suitable for year-round use.
Key Features
Code/SKU: DS-2XM6522G0-I(D)(M)(/ND)
Quick Specs:
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | ICR Cut |
| Angle Adjustment | 2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90% 4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90% |
| Lens Focal Length & FOV | 2.8 mm: horizontal FOV 104°, vertical FOV 56°, diagonal FOV 121° 4 mm: horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91° 6 mm: horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59° |
| Lens Mount | M12 |
| Aperture | 2.8 mm/4 mm: F2.0; 6 mm: F1.6 |
| Illuminator Supplement Light Type | IR |
| Supplement Light Range | Up to 10 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 30 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240) |
| Video Compression | Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.265 and H.264 support |
| Region of Interest (ROI) | 4 fixed regions for each stream, and dynamic face tracking |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Smooth Streaming | Yes |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0-51 |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120dB |
| SNR | > 50dB |
| Image Enhancement | BLC, HLC, 3D DNR, Defog, EIS |
| Privacy Mask | 4 regions of privacy mask |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| Video Output | No |
| Ethernet Interface | Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port -M: 1 four-core M12 aviation plug |
| On-Board Storage | No |
| Audio | No |
| Reset Key | Yes |
| Smart Event | Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, defocus detection |
| Linkage | Upload to FTP/NAS, notify surveillance center, send email |
| Power | -I/ND: RJ45 interface PoE: 802.3af, Class 0, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.8 W -ID: 24 VDC ± 25%, 0.36 A, max. 8.6 W, Ø5.5 mm coaxial power plug, two-core terminal block, reverse polarity protection -IDM: 24 VDC ± 25%, 0.36 A, max. 8.6 W, two-core Molex connector, two-core terminal block, reverse polarity protection -IM/ND: four-core M12 aviation plug |
| Dimension | 163.7 × 122.6 × 65.1 mm (6.4" × 4.8" × 2.6") |
| Package Dimension | 252 × 190 × 108 mm (9.9" × 7.5" × 4.3") |
| Weight | 850 g (1.9 lb.) |
| With Package Weight | 1200 g (2.6 lb.) |
| Storage Conditions | -40 °C to 70 °C (-40 °F to 158 °F), Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Embedded Open Platform | No |
| General Function | Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter |
| Web Client Language | 32 languages including English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Approval | EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (2014/30/EC, EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4); RCM (AS/NZS CISPR 32); IC (ICES-003); KC (KN 32: 2015, KN 35, K 60950-1); E-MARK (ECE R10.05); FCC Safety: UL (UL 60950-1); CB (IEC 60950-1); CE-LVD (2014/35/EU or 2001/95/EC, EN60950-1); LOA; UL (UL) Environment: CE-ROHS (2011/65/EU IEC 62321); REACH (Regulation (EC) No 1907/2006); WEEE (2012/19/EU); |
| Protection | IP68 (IEC 60529-2013), IK10 (IEC 62262:2002) |
| Automotive and Railway | EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

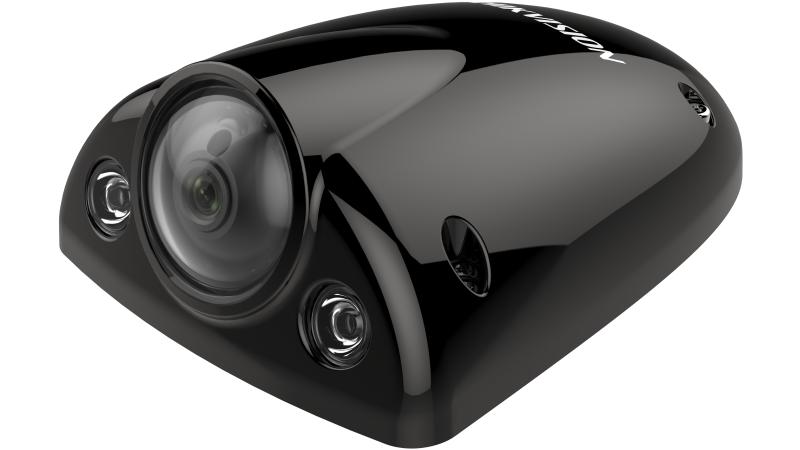

Hikvision DS-2XM6522G0-IM/ND 2MP Outer Vehicle Mobile Camera, 30m IR
The Mobile Outdoor Dome Network Camera DS-2XM6522G0-I(D)(M)(/ND) from Hikvision is a versatile surveillance solution designed for various outdoor environments. This camera features a compact dome design that makes it easy to install in different locations, ensuring unobtrusive monitoring. It offers high-definition video resolution, providing clear and detailed imagery even in low-light conditions. With advanced image processing technologies, it enhances video quality while reducing noise and distortion. The camera is equipped with multiple connectivity options, including Wi-Fi and Ethernet, enabling seamless integration into existing network systems. It also supports intelligent analytics, allowing for real-time alerts and enhanced security monitoring. Its robust construction ensures durability against harsh weather conditions, making it suitable for outdoor use. Additionally, the camera features built-in IR illumination for effective night vision capabilities. Users can manage and access footage easily through Hikvision's user-friendly software interfaces.
Features
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | ICR Cut |
| Angle Adjustment | 2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90% 4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90% |
| Lens Focal Length & FOV | 2.8 mm: horizontal FOV 104°, vertical FOV 56°, diagonal FOV 121° 4 mm: horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91° 6 mm: horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59° |
| Lens Mount | M12 |
| Aperture | 2.8 mm/4 mm: F2.0; 6 mm: F1.6 |
| Illuminator Supplement Light Type | IR |
| Supplement Light Range | Up to 10 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 30 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240) |
| Video Compression | Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.265 and H.264 support |
| Region of Interest (ROI) | 4 fixed regions for each stream, and dynamic face tracking |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
