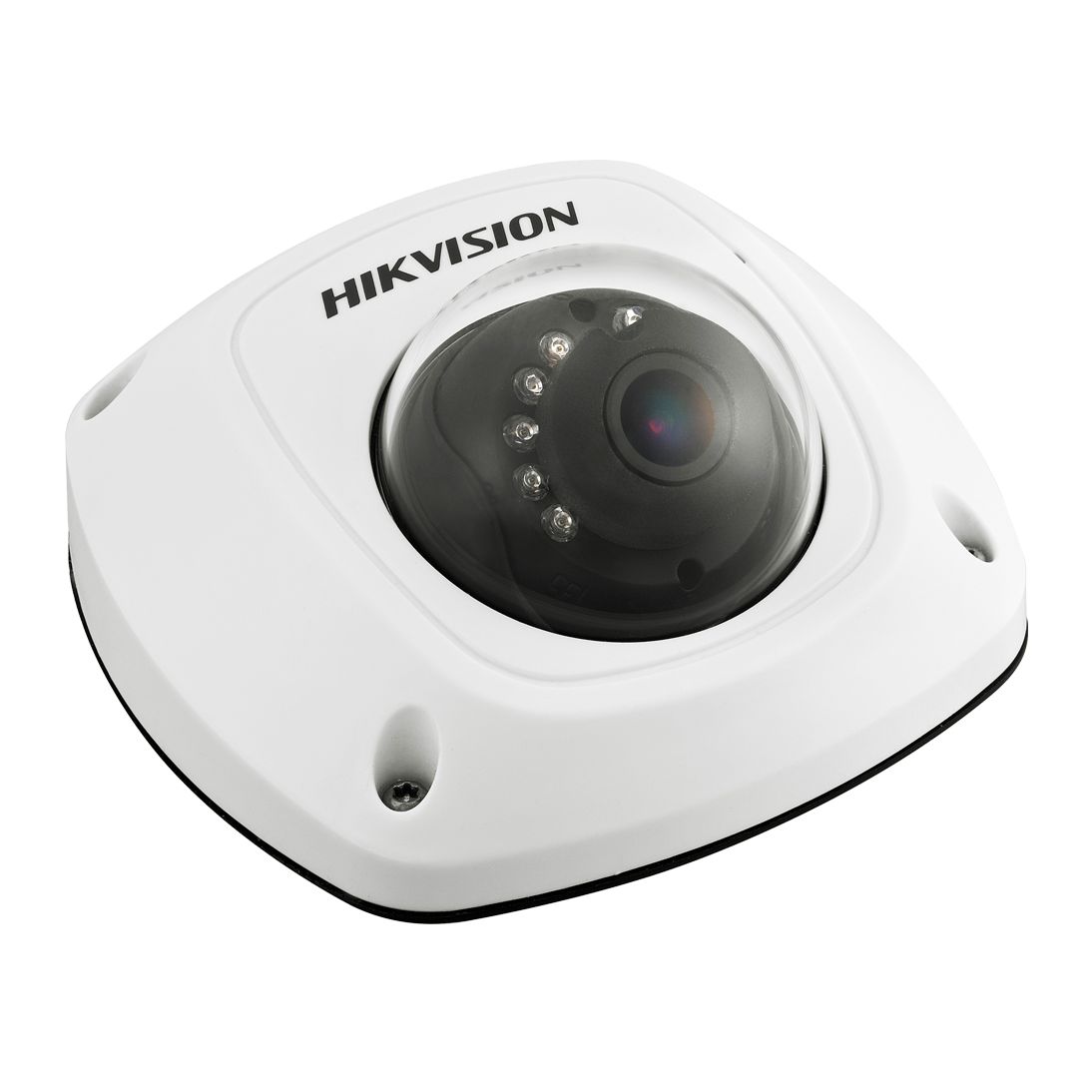

2MP 1/3” CMOS Mini Dome
The DS-2CD6520D-I (O) includes infrared night vision capabilities, enabling it to capture clear images in complete darkness. This model is also equipped with H.265+ compression technology, optimizing storage space without compromising image quality. Its durable housing is weatherproof, making it ideal for outdoor environments. The camera supports multiple network protocols, facilitating easy integration into existing security systems. With features like motion detection and smart analytics, it offers users enhanced monitoring options.
Key Features
Code/SKU: DS-2CD6520D-I (O)
Quick Specs:
| Image Sensor | 1/3” Progressive Scan CMOS |
| Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3s~1/100,000s |
| Lens | 4mm, horizontal view angle 63°(2.8mm/6mm/8mm optional) |
| Angle of Adjustment | H: -30°~30°, V: 0°~80°, R: 0°~360° |
| Lens Mount | M12 |
| Day & Night | ICR |
| DNR | 3D Digital Noise Reduction |
| DWDR | Digital Wide Dynamic Range |
| Compression Standard Video Compression | H.264/ MJPEG |
| H.264 Type | Base Line Profile/Main Profile |
| Video Bit Rate | 32Kbps~8Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/32-128Kbps(MP2L2) |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | 50Hz: 25fps (1920*1080,1280 × 960,1280 × 720) 60Hz: 30fps (1920*1080,1280 × 960,1280 × 720) |
| Image Setting | Rotate mode, Saturation, Brightness, Contrast, etc. are adjusted via client or web-browser |
| BLC | Yes, zone optional |
| ROI | Support |
| Storage | Micro SD/SDHC/SDXC card (up to 128G) ANR, NAS |
| Intelligent Alarm | Intrusion detection, Line crossing detection, Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage error |
| Protocol Supportable | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Interface Protocol | ONVIF, PSIA, CGI, ISAPI |
| General | Flickerless, dual stream, heartbeat, mirror, password protection, video masking, watermark |
| Network Communication | - IO Model: 1-ch RJ45 10M / 100M self-adaptive Ethernet port - I Model: 1-ch M12 10M / 100M self-adaptive Ethernet port |
| Video | 1Vp-p Composite Output(75Ω/BNC) |
| Audio Input | 1 built-in mic |
| Model | DS-2CD6520D-I (O) 2MP 1/3” CMOS Mini Dome Camera |
| Working Temperature and Humidity | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply | DC12V/PoE(802.3af) |
| Power | 5.5W MAX |
| Protect Level | IP66 |
| Impact Protection | IK08 |
| IR Distance | 10m |
| Dimensions | 99.3x96.7x52.8mm (3.91” × 3.81” × 2.08”) |
| Weight | 600g (1.32lb) |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision HIK-2CD6520D-I-4 2MP Inner Vehicle Mini Dome Camera, DWDR, IR, M12 port, 4mm
The 2MP 1/3” CMOS Mini Dome DS-2CD6520D-I (O) is a compact surveillance camera designed for various indoor and outdoor applications. With its 2MP resolution, it delivers clear and detailed images, making it suitable for monitoring small to medium-sized areas. The camera features advanced CMOS sensor technology, which enhances low-light performance, allowing for effective surveillance even in dim conditions. Its mini dome design ensures a discreet installation while providing a wide field of view. Additionally, the DS-2CD6520D-I (O) includes infrared night vision capabilities, enabling it to capture clear images in complete darkness. This model is also equipped with H.265+ compression technology, optimizing storage space without compromising image quality. Its durable housing is weatherproof, making it ideal for outdoor environments. The camera supports multiple network protocols, facilitating easy integration into existing security systems. With features like motion detection and smart analytics, it offers users enhanced monitoring options.
Features
| Image Sensor | 1/3” Progressive Scan CMOS |
| Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3s~1/100,000s |
| Lens | 4mm, horizontal view angle 63°(2.8mm/6mm/8mm optional) |
| Angle of Adjustment | H: -30°~30°, V: 0°~80°, R: 0°~360° |
| Lens Mount | M12 |
| Day & Night | ICR |
| DNR | 3D Digital Noise Reduction |
| DWDR | Digital Wide Dynamic Range |
| Compression Standard Video Compression | H.264/ MJPEG |
| H.264 Type | Base Line Profile/Main Profile |
| Video Bit Rate | 32Kbps~8Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/32-128Kbps(MP2L2) |
| Max. Resolution | 1920 × 1080 |
| Frame Rate | 50Hz: 25fps (1920*1080,1280 × 960,1280 × 720) 60Hz: 30fps (1920*1080,1280 × 960,1280 × 720) |
| Image Setting | Rotate mode, Saturation, Brightness, Contrast, etc. are adjusted via client or web-browser |
| BLC | Yes, zone optional |
| ROI | Support |
| Storage | Micro SD/SDHC/SDXC card (up to 128G) ANR, NAS |
| Intelligent Alarm | Intrusion detection, Line crossing detection, Motion detection, Tampering alarm, Network disconnect, IP address conflict, Storage error |
| Protocol Supportable | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Interface Protocol | ONVIF, PSIA, CGI, ISAPI |
| General | Flickerless, dual stream, heartbeat, mirror, password protection, video masking, watermark |
| Network Communication | - IO Model: 1-ch RJ45 10M / 100M self-adaptive Ethernet port - I Model: 1-ch M12 10M / 100M self-adaptive Ethernet port |
| Video | 1Vp-p Composite Output(75Ω/BNC) |
| Audio Input | 1 built-in mic |
| Model | DS-2CD6520D-I (O) 2MP 1/3” CMOS Mini Dome Camera |
