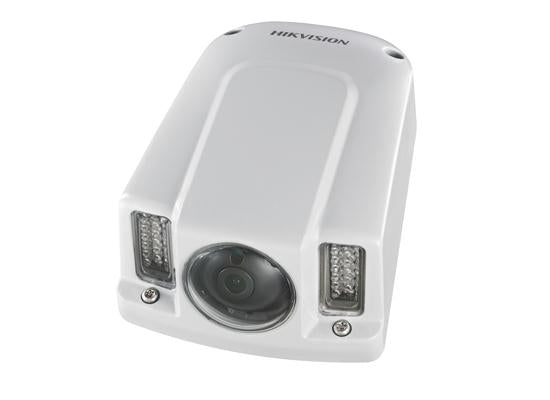

1.3MP Outer-vehicle Network Camera
The Hikvision DS-2CD6510-I(O) is a 1.3 MP outer-vehicle network camera designed for mobile surveillance. It captures high-quality video with features like wide dynamic range (DWDR) and 3D digital noise reduction (DNR) for clear images even in challenging light conditions. Equipped with infrared (IR) technology, it offers up to 30 meters of visibility in total darkness, making it ideal for night-time monitoring. The camera is rugged, with an IP68 rating for dust and water resistance and an IK10 rating for vandal protection, ensuring durability in harsh environments. It supports Power over Ethernet (PoE), simplifying installation, and has multiple network protocols for secure data transmission. Additionally, the camera features ROI (Region of Interest) to focus on key areas, and H.264/MJPEG compression for efficient video storage.
Key Features
Code/SKU: DS-2CD6510-I(O)
Quick Specs:
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @(F1.2,AGC ON), 0 Lux with IR 0.028Lux @(F2.0,AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 4mm@ F2.0, angle of view: 73.1° (6mm, 46°; 8mm, 35.5°; 12mm, 22° optional) |
| Lens Mount | M12 |
| Day & Night | IR cut filter with auto switch |
| DNR | 3D Digital Noise Reduction |
| Angle of Adjustment (Universal) | H: -15°~15°, V: 0°~30°, R: -90°~90° |
| WDR | Digital WDR |
| Compression | Standard Video Compression: H.264 / MJPEG H.264 Type: Baseline Profile / Main Profile / High Profile |
| Video Bit Rate | 32 Kbps – 8Mbps |
| Max. Resolution | 1280 × 960 |
| Frame Rate | 50Hz: 25fps (1280 × 960), 25fps (1280 × 720) 60Hz: 30fps (1280 × 960), 30fps (1280 × 720) |
| Image Setting | Rotate mode, Saturation, Brightness, Contrast and sharpness adjustable by client software or web browser |
| Backlight Compensation | Yes, zone optional |
| ROI Support | Yes |
| Network Storage | NAS (Support NFS, SMB/CIFS) |
| Alarm Trigger | Motion detection, Tampering alarm, Network disconnect, IP address conflict |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| General Function | Flickerless, dual stream, heartbeat, mirror, password protection, video cover, watermark |
| Communication | -IO model: 1 RJ45 10M/100M Ethernet interface -I model: 1 M12 10M/100M Ethernet interface |
| Video Output | 1 Vp-p composite output (75 Ω/BNC) |
| Model | DS-2CD6510-I(O) 1.3MP Outer-vehicle Network Camera |
| Operating Conditions | -40 °C – 70 °C |
| Humidity | 95% or less (non-condensing) |
| Power Supply | DC12V±10% / PoE(802.3af) |
| Power Consumption | DC12V: 7.5W MAX PoE: 9W MAX |
| IR Range | 20-30 m |
| Ingress Protection | IP68 |
| Impact Protection | IK10 |
| Dimensions (mm) | Φ155.17 × 110.9 × 60.8mm |
| Weight | 846g |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision HIK-2CD6510-IO-4 1.3MP Outer Vehicle Mobile Camera, DWDR, 30m IR, RJ45, IK10, IP68 2.8mm
The Hikvision DS-2CD6510-I(O) is a 1.3MP outer-vehicle network camera designed for reliable and robust surveillance. It features a progressive scan CMOS sensor that provides clear and sharp images with a resolution of 1280x960 pixels. The camera is built to withstand harsh outdoor conditions, operating in temperatures ranging from -30°C to 60°C, and its rugged design is IP67-rated for water and dust resistance. With infrared (IR) capabilities, it can capture images in low-light or complete darkness, making it suitable for 24/7 monitoring. Additionally, the camera supports Power over Ethernet (PoE), simplifying installation by combining power and data into a single cable. It is also equipped with a built-in microSD card slot for local storage, offering redundancy in case of network failure. The DS-2CD6510-I(O) is part of Hikvision's commitment to providing high-performance security solutions for vehicle monitoring and other outdoor surveillance needs.
Features
| Model | DS-2CD6510-I(O) 1.3MP Outer-vehicle Network Camera |
| Operating Conditions | -40 °C – 70 °C |
| Humidity | 95% or less (non-condensing) |
| Power Supply | DC12V±10% / PoE(802.3af) |
| Power Consumption | DC12V: 7.5W MAX PoE: 9W MAX |
| IR Range | 20-30 m |
| Ingress Protection | IP68 |
| Impact Protection | IK10 |
| Dimensions (mm) | Φ155.17 × 110.9 × 60.8mm |
| Weight | 846g |
