| Camera | ||
|---|---|---|
| Image Sensor: | 1/2.7” Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR；0.028 Lux @(F2.0,AGC ON), 0 Lux with IR | |
| Shutter time: | 1s ~ 1/100,000s | |
| Slow shutter: | Support | |
| Lens: | L10/L20/10/20: 3.7mm @F2.5, angle of view: 78.5°L30/30: 2.8mm@F2.0, angle of view: 109.4°/ 4mm @F2.2, angle of view: 90°/ 6 mm @F2.0, angle of view: 53.9° (Ingress Protection: IP66)L40: 2.8mm@F2.0, angle of view: 109.4°/ 4mm @F2.2, angle of view: 90°/ 6 mm @F2.0, angle of view: 53.9°/ Fisheye: 1.39mm@F2.0, angle of view: 180° (Ingress Protection: IP66) | |
| Lens Mount: | M12 | |
| Lens Cable Length: | Optional 2m or 8m | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264/MJPEG | |
| H.264 code profile: | Main Profile / High Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2/PCM | |
| Audio bit rate: | 64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32 to 160Kbps (MP2L2) | |
| Dual Stream: | Yes | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 1920 x 1080 | |
| Frame Rate: | 50Hz: 25fps (1920×1080, 1280 × 960, 1280 × 720)60Hz: 30fps (1920×1080, 1280 × 960, 1280 × 720) | |
| Third Stream: | Only single channel camera supports third stream, which is independent with main stream, up to 50Hz: 10fps (1280 × 960); 60Hz: 10fps (1280 × 960) | |
| Image Enhancement: | BLC/3D DNR/ROI/Defog | |
| Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser | |
| BLC: | Support | |
| Smart Defog: | Support | |
| 3D DNR: | support | |
| ROI: | Up to 4 fixed areas in each stream | |
| Picture Overlay: | Support 128 × 128 size BMP with 24-bit depth image overlay, zone optional | |
| Day/Night Switch: | Auto / Timing / Alarm trigger | |
| Network | ||
|---|---|---|
| Network Storage: | NAS (Support NFS,SMB/CIFS) | |
| Alarm Trigger: | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General Function: | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark | |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Interface | ||
|---|---|---|
| Communication Interface: | 1 RJ45 10M/100M Ethernet interface | |
| Audio: | 1 input, 1 output | |
| Audio Input: | 1-ch 3.5 mm audio interface, MIC IN/LINE IN | |
| Audio Output: | 1-ch 3.5mm audio interface | |
| Alarm: | 1-ch alarm input and 1-ch alarm output | |
| Alarm Input: | 1 | |
| Alarm Output: | 1 | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Smart Feature-set | ||
|---|---|---|
| Recognition: | Face Detection | |
| General | ||
|---|---|---|
| Operation Condition: | Temperature :-30 °C to 60 °C (-22 °F to 140 °F)Humidity 95% or less (non-condensing) | |
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) | |
| Power Consumption: | Max. 6.5 W | |
| Dimensions: | 78×105×32 mm (3.07” × 4.13” × 1.26”) | |
| Weight: | Main body: 210gCylindrical lens: 113g (2m), 233g (8m)Block-shaped lens: 99g (2m), 220g (8m)Fixed focal lens: 129g (2m), 242g (8m)Ball-shaped lens: 120g (2m), 268.4g (8m)Package + accessories: 224g | |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

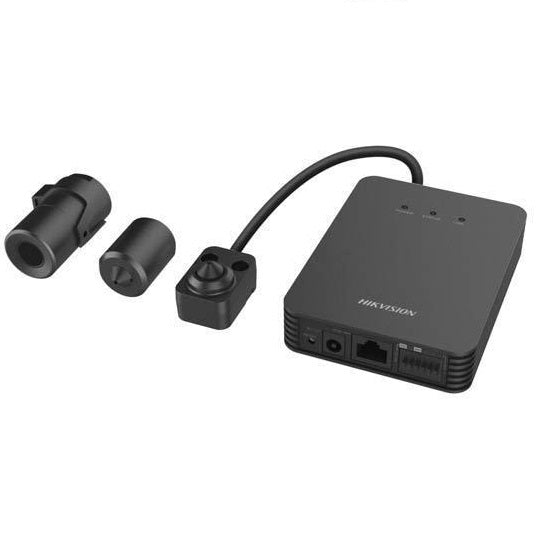

Hikvision DS-2CD6424FWD 202 2MP Indoor Covert L-Shape Pinhole Camera, 120dB WDR, 2m Cable, 3DDNR, 3.7mm
