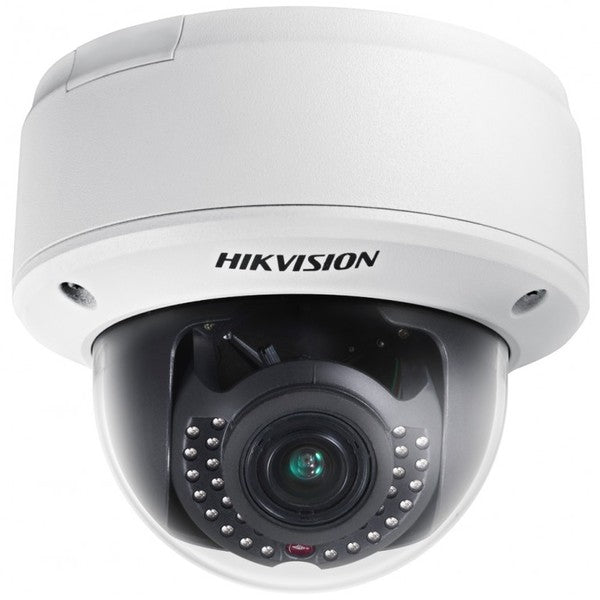

Hikvision DS-2CD4126FWD-IZ Darkfighter 2MP Indoor Dome Camera, 50fps, 2.8-12 Zoom Lens, 30m IR
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Camera | ||
|---|---|---|
| Image Sensor: | 1/1.8" SONY Progressive Scan CCD | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | 0.002 Lux @ (F1.2, AGC ON),0.0027 Lux @ (F1.4, AGC ON),0 Lux with IR | |
| Shutter time: | 1s ~ 1/100,000s | |
| Slow shutter: | Support | |
| Lens: | 2.8~12mm @ F1.4, angle of view: 92°~32° | |
| Lens Mount: | φ14 | |
| Adjustment Range: | Pan: 0°~355°, tilt: 0°~75°, rotation: 0°~355° | |
| Day& Night: | IR cut filter with auto switch | |
| Wide Dynamic Range: | 120 dB | |
| Digital noise reduction: | 3D DNR | |
| Compression Standard | ||
|---|---|---|
| Video Compression: | H.264+/H.264/MPEG4/MJPEG | |
| H.264 code profile: | Baseline Profile / Main Profile / High Profile | |
| Video bit rate: | 32Kbps~16Mbps | |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2 | |
| Audio bit rate: | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) | |
| Triple Streams: | Yes | |
| Image | ||
|---|---|---|
| Max. Image Resolution: | 1920 x 1080 | |
| Frame Rate: | 50Hz: 50fps(1920 × 1080, 1280 × 960, 1280 × 720)60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Third Stream: | Independent with Main Stream and Sub Stream, up to50Hz: 25fps(1920 × 1080); 60Hz: 30fps (1920 × 1080) | |
| Image Enhancement: | BLC/3D DNR/ROI/Defog/EIS | |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser | |
| Distortion Correction: | Support | |
| Target Cropping: | Support | |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In | |
| Network | ||
|---|---|---|
| Network Storage: | NAS (Support NFS,SMB/CIFS), ANR | |
| Alarm Trigger: | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception | |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour | |
| General Function: | User Authentication, Watermark, IP address filtering | |
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
| Interface | ||
|---|---|---|
| Audio: | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface | |
| Audio Input: | 1-ch 3.5 mm audio interface, MIC IN/LINE IN | |
| Audio Output: | 1-ch 3.5mm audio interface | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface and 1 RS-485 interface | |
| Alarm: | 1 input, 1 output (up to DC24V 1A or AC110V 500mA) | |
| Video Output: | 1Vp-p Composite Output (75 Ω, BNC) | |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB | |
| Reset Button: | Yes | |
| Audio | ||
|---|---|---|
| Environment Noise Filtering: | Support | |
| Audio I/O: | Support dual audio track, stereo | |
| Audio Sampling Rate: | 16kHz / 32kHz / 44.1kHz / 48kHz | |
| Smart Feature-set | ||
|---|---|---|
| Behavior Analysis: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal | |
| Line Crossing Detection: | Cross a pre-defined virtual line | |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region | |
| Region Entrance: | Enter a pre-defined virtual region from the outside place | |
| Region Exiting: | Exit from a pre-defined virtual region | |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials | |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. | |
| Exception Detections: | Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection | |
| Recognition: | Face detection recognition | |
| Statistics: | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) | |
| General | ||
|---|---|---|
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F)Humidity 95% or less (non-condensing) | |
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) | |
| Power Consumption: | Max. 13.5 W | |
| Impact Protection: | IK10 | |
| Dimensions: | Φ140×121.8 mm (Φ5.51” × 4.80”) | |
| Weight: | 1400 g (3.09 lbs) | |
