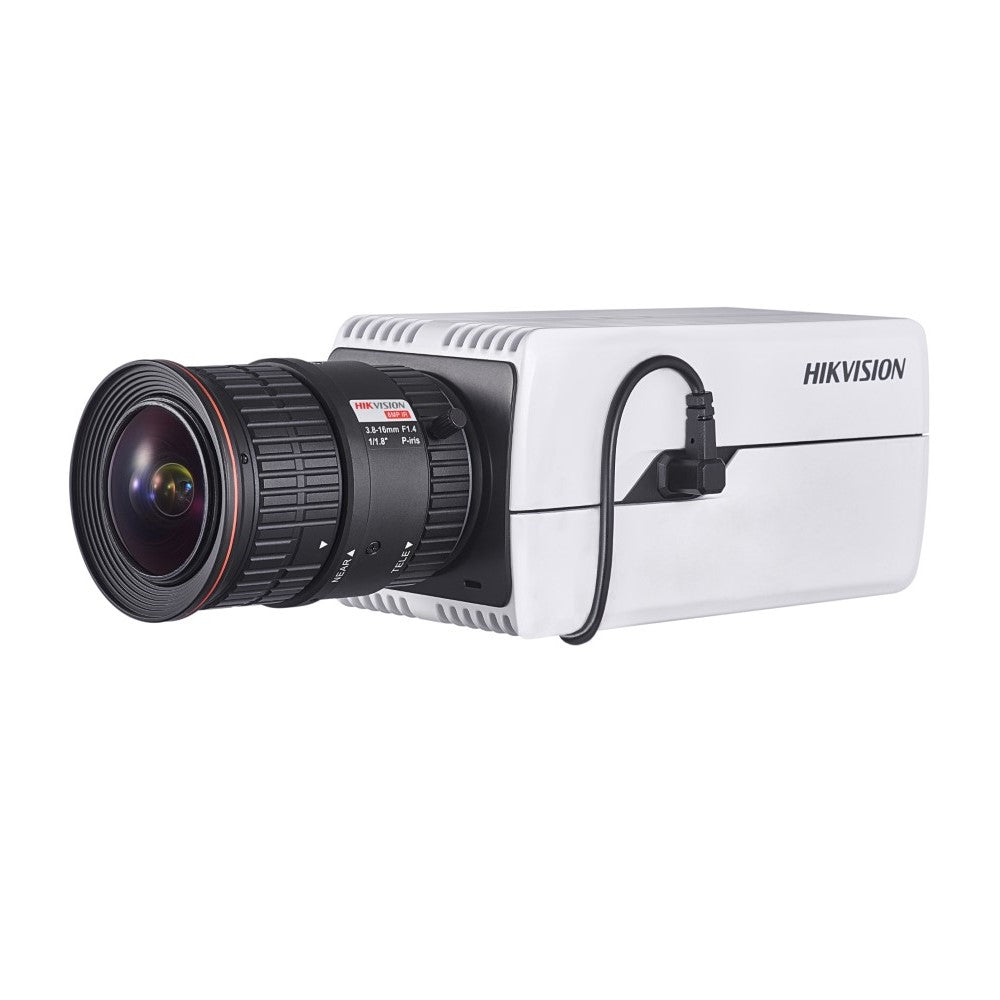

12MP Box Network Camera
The DS-2CD50C5G0-(AP) integrates seamlessly with other Hikvision security systems, allowing for a cohesive surveillance setup. It supports multiple streaming formats, providing flexibility for different monitoring needs. With advanced motion detection and alerting features, it enhances security by notifying users of potential intrusions. The camera's user-friendly interface simplifies setup and configuration, making it accessible for both novice and experienced users.
Key Features
Code/SKU: DS-2CD50C5G0-(AP)
Quick Specs:
| Camera | |
|---|---|
| Image Sensor | 1/1.7″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008 Lux @ (F1.2, AGC ON), B/W: 0.0008 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s - 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | Digital WDR |
| Day & Night | IR Cut Filter |
| Lens | |
| Focus | -A: Support ABF |
| FOV | 11 to 40 mm, horizontal FOV 37.8° to 12°, vertical FOV 27.6° to 9.1°, diagonal FOV 48.5° to 15.3° |
| Lens Mount | CS mount |
| Auto-Iris | P-iris |
| Video | |
| Max. Resolution | 4000 × 3000 |
| Main Stream | 50Hz: 20fps (4000 × 3000), 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720), 60Hz: 20fps (4000 × 3000), 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480), 60Hz: 30fps (704 × 480, 640 × 480) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480), 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480), 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fifth Stream | 50Hz: 25fps (704 × 576, 640 × 480), 60Hz: 30fps (704 × 480, 640 × 480) |
| Custom Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480), 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480), Up to 5 custom streams are supported |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32-192Kbps (MP2L2) |
| Network | |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF |
| Network Storage | Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, iVMS-5200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox 30.0-51, Safari 8.0+; Plug-in free live view: Chrome 45+, Mozilla Firefox 52+ |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Image | |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In |
| Target Cropping | Yes |
| DNR | 3D DNR |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| Image Enhancement | BLC, HLC, defog, 3D DNR, EIS |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Interface | |
| Audio | 1 input (line in), 1 output (line out), mono |
| Alarm | 2 inputs, 2 outputs (up to 12 VDC 1A or 10 VAC 500 mA) |
| Video Output | 1Vp-p composite output (75 Ω/CVBS) |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface |
| Power Output | 12 VDC, max. 200mA (supported by all power supply types) |
| Event | |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Counting | Face Detection |
| Exception Detection | Scene change detection, audio exception detection, defocus detection |
| General | |
| Firmware Version | 5.5.80 |
| General Function | One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| Power Supply | Recommended DC input 12 V, voltage range of 10 to 48 VDC allowed; recommended AC input 24 V, voltage range of 15 to 36 VAC allowed; two-core terminal block, PoE (802.3af, class 3) |
| Power Consumption and Current | With extra load: 12 VDC, 0.8 A, max. 10 W; 24 VAC, 0.7 A, max. 10 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3; Without extra load: 12 VDC, 0.6 A, max. 7 W; 24 VAC, 0.55 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3; “With extra load” means that an extra device is connected to and powered by the camera. |
| Camera Dimension | 142.6 × 69.8 × 68 mm (5.61″ × 2.75″ × 2.68″); With package: 315 × 140 × 140 mm (12.4″ × 5.51″ × 5.51″) |
| Camera Weight | Approx. 690 g (1.52 lb.), 975 g (2.15 lb.) with package; -AP: Approx. 730 g (1.61 lb.), 1020 g (2.25 lb.) with package |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2CD50C5G0-(AP) 12MP Full Body Camera, H.264+, DWDR, 15fps, ABF, No Lens, P-Iris
The 12MP Box Network Camera DS-2CD50C5G0-(AP) by Hikvision is a high-resolution surveillance solution designed for detailed and clear video capture. It boasts a 12-megapixel sensor, ensuring exceptional image quality and sharpness. The camera's box design allows for flexible installation and positioning, making it suitable for various indoor environments. Equipped with advanced network capabilities, the DS-2CD50C5G0-(AP) supports remote monitoring and management via IP networks. It features robust video compression technologies, such as H.265+, to optimize storage efficiency without compromising on image quality. The camera includes built-in infrared LEDs for enhanced low-light performance, enabling clear footage even in complete darkness. Its weather-resistant construction ensures reliable operation in challenging conditions. The DS-2CD50C5G0-(AP) integrates seamlessly with other Hikvision security systems, allowing for a cohesive surveillance setup. It supports multiple streaming formats, providing flexibility for different monitoring needs. With advanced motion detection and alerting features, it enhances security by notifying users of potential intrusions. The camera's user-friendly interface simplifies setup and configuration, making it accessible for both novice and experienced users. Additionally, the DS-2CD50C5G0-(AP) supports PoE (Power over Ethernet), reducing the need for additional power supplies and streamlining installation. Its wide dynamic range (WDR) capability ensures balanced and clear images in challenging lighting conditions. Overall, the DS-2CD50C5G0-(AP) offers a versatile and high-performance solution for detailed and reliable video surveillance.
Features
| Video | |
|---|---|
| Max. Resolution | 4000 × 3000 |
| Main Stream | 50Hz: 20fps (4000 × 3000), 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720), 60Hz: 20fps (4000 × 3000), 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480), 60Hz: 30fps (704 × 480, 640 × 480) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480), 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480), 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fifth Stream | 50Hz: 25fps (704 × 576, 640 × 480), 60Hz: 30fps (704 × 480, 640 × 480) |
| Custom Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480), 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480), Up to 5 custom streams are supported |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps (G.711)/16Kbps (G.722.1)/16Kbps (G.726)/32-192Kbps (MP2L2) |
