4K Box Network Camera
With its wide dynamic range (WDR) capability, the DS-2CD5085G0-(AP) performs well in challenging lighting conditions, providing clear images even in high-contrast environments. Its integrated IR LEDs enable effective night vision, allowing for reliable monitoring around the clock. The camera supports multiple streaming options and has built-in analytics, such as line crossing and intrusion detection, to enhance security measures. Its robust construction and weatherproof design make it suitable for both indoor and outdoor installations.
Key Features
Code/SKU: DS-2CD5085G0-(AP)
Quick Specs:
| Camera | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.007 Lux @ (F1.2, AGC ON) |
| Shutter Speed | 1 s - 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Focus | With –A model: support ABF (auto back focus) |
| Lens Mount | CS mount |
| Auto-Iris | P-iris |
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50Hz: 25fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720), 60Hz: 30fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480), 60Hz: 30fps (704 × 480, 640 × 480) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480), 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fourth Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480), 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Fifth Stream | 50Hz: 25fps (704 × 576, 640 × 480), 60Hz: 30fps (704 × 480, 640 × 480) |
| Custom Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480), 60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480), Up to 5 custom streams are supported |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM) |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF |
| Network Storage | Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, iVMS-5200, Hik-Central |
| Web Browser | Plug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox30.0-51, Safari8.0+, Plug-in free live view: Chrome 45+, Mozilla Firefox52+ |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In |
| Target Cropping | Yes |
| DNR | 3D DNR |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format |
| Image Enhancement | BLC, HLC, defog, 3D DNR, EIS |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
| Audio | 1 input (line in), 1 output (line out), mono |
| Alarm | 2 inputs, 2 outputs (up to 24 VDC, 1A or 110 VAC, 500 mA) |
| Video Output | CVBS analog output (4CIF resolution), 1Vp-p composite output (75 Ω/CVBS) |
| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port, 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Power Output | 12 VDC, max. 200mA (supported by 12 VDC, 24 VAC and PoE) |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
| Counting | Counting |
| Face Detection | Yes |
| Exception Detection | Scene change detection, audio exception detection, defocus detection |
| Firmware Version | 5.5.80 |
| General Function | One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| Power Supply | Recommended DC input 12 V, voltage range of 10 to 48 VDC allowed; recommended AC input 24 V, voltage range of 15 to 36 VAC allowed; two-core terminal block, PoE (802.3af, class 3) |
| Power Consumption and Current | With extra load: 12 VDC, 0.8 A, max. 10 W; 24 VAC, 0.7 A, max. 10 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3; Without extra load: 12 VDC, 0.6 A, max. 7 W; 24 VAC, 0.55 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3, “with extra load” means that an extra device is connected to and powered by the camera. |
| Camera Dimension | 142.6 × 69.8 × 68 mm (5.61″ × 2.75″ × 2.68″), With package: 315 × 140 × 140 mm (12.4″ × 5.51″ × 5.51″) |
| Camera Weight | -AP: approx. 730 g (1.61 lb.), 1020 g (2.25 lb.) with package, Non-AP: approx. 690 g (1.52 lb.), 975 g (2.15 lb.) with package |
| EMC | IC: IC-VoC(ICES-003 Issue 7:2020), FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B), KC: KN32:2015,KN35:2015, CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013), RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015 |
| Safety | CB: IEC 60950-1, UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014, LOA: SANS IEC60950-1, BIS: IS 13252(Part 1)2010+A1:2013+A2:2015, CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013) |
| Environment | CE: CE-RoHS(RoHS Directive 2011/65/EU, 2012/19/EU), REACH SVHC: Regulation (EC) No 1907/2006 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

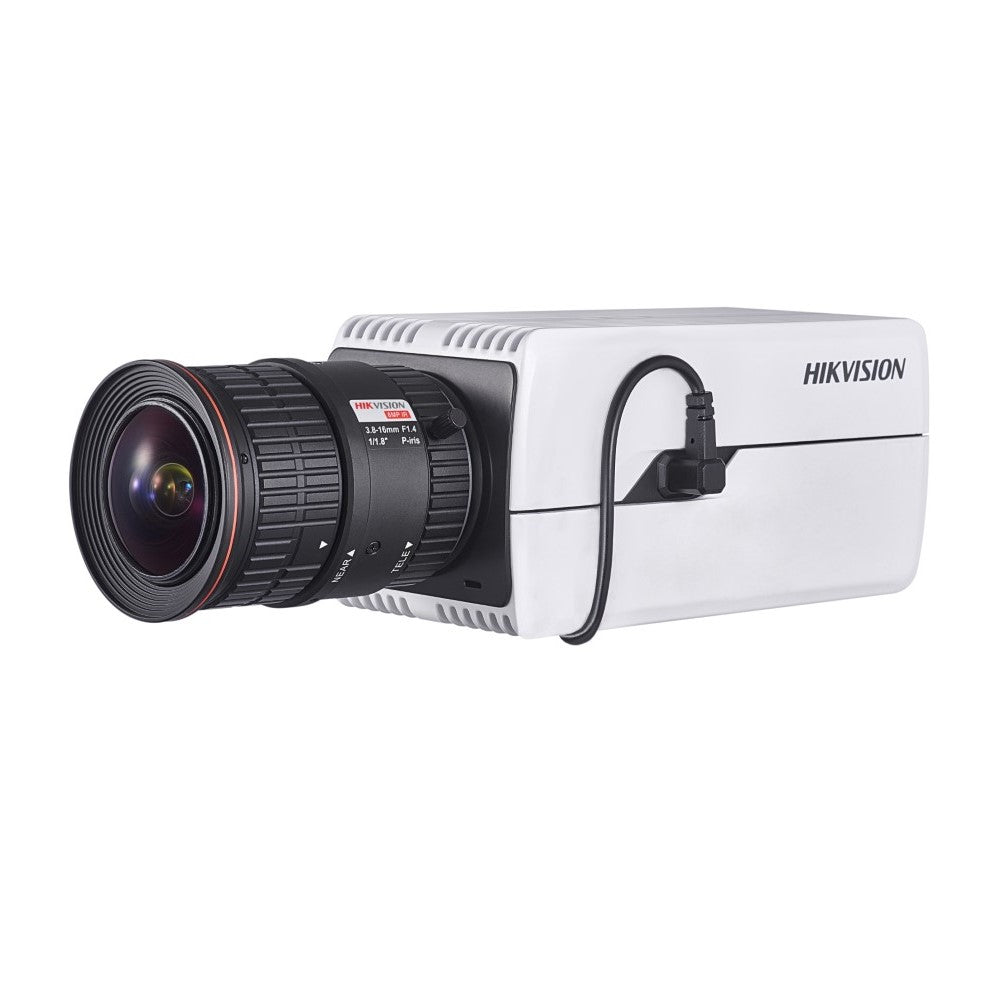

Hikvision 8MP HIK-2CD5085G0-AP Indoor Darkfighter Full Body Camera WDR, VCA, ABF, P-Iris, No Lens
The 4K Box Network Camera DS-2CD5085G0-(AP) by Hikvision offers exceptional image clarity with its 8 MP resolution, ensuring that every detail is captured with precision. Designed for professional surveillance applications, this camera features advanced H.265+ compression technology to reduce bandwidth and storage requirements while maintaining high video quality. With its wide dynamic range (WDR) capability, the DS-2CD5085G0-(AP) performs well in challenging lighting conditions, providing clear images even in high-contrast environments. Its integrated IR LEDs enable effective night vision, allowing for reliable monitoring around the clock. The camera supports multiple streaming options and has built-in analytics, such as line crossing and intrusion detection, to enhance security measures. Its robust construction and weatherproof design make it suitable for both indoor and outdoor installations.
The DS-2CD5085G0-(AP) also features a motorized varifocal lens for flexible and precise field-of-view adjustments. Its Power over Ethernet (PoE) capability simplifies installation by allowing a single cable to handle both power and data transmission. The camera’s advanced image processing algorithms contribute to reducing noise and improving overall video quality. It supports remote access and control via Hikvision’s software, enabling users to monitor footage from anywhere. Additionally, the camera is compatible with a range of third-party VMS platforms, providing versatility in system integration. The DS-2CD5085G0-(AP) is designed to offer reliable performance and high-definition video surveillance for various security applications.
Features
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG |
|---|---|
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM) |
| Simultaneous Live View | Up to 20 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF |
