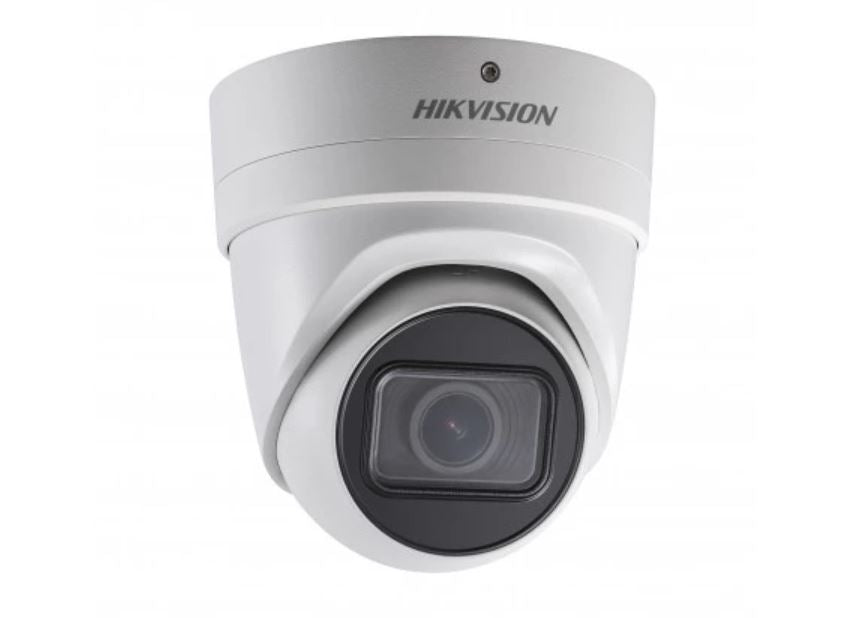

Hikvision DS-2CD2H85FWD-IZS 8MP Outdoor Motorised VF Turret CCTV Camera IR 2.8-12mm

Model: DS-2CD2H85FWD-IZS

Who This Is For

When getting the field of view right during installation matters as much as image quality, the DS-2CD2H85FWD-IZS makes a strong case for itself. The 2.8-12mm motorised varifocal lens means installers can dial in the zoom level from the NVR or a laptop rather than climbing back up a ladder to manually reposition the lens - a real advantage on eave, soffit, and wall mounts at height. The 8MP 4K sensor captures wide coverage without losing the detail needed to identify faces or read plates at closer range. IK10 impact resistance and IP67 weatherproofing make it a practical choice for exposed outdoor positions at small commercial sites, warehouses, schools, or residential properties where both image quality and physical durability are requirements. The 120dB WDR handles mixed lighting at entrances and car parks, and the EXIR 2.0 IR reaches 30m for after-dark coverage without supplementary lighting.

What This Camera Actually Does

Who Buys This Model

• Security installers on commercial fit-outs: The motorised varifocal lens allows remote zoom adjustment after mounting, cutting return visits when a client asks to tighten or widen the field of view post-installation.
• Warehouse and logistics facility managers: The combination of 8MP resolution and 30m IR covers large loading dock approaches and yard areas with fewer camera positions, reducing both hardware and cabling costs.
• School and childcare facility operators: IK10 vandal resistance paired with IP67 weatherproofing suits exposed external mounting positions where camera tampering is a realistic risk.
• Property managers specifying entrance monitoring: 120dB WDR handles the common problem of bright outdoor light versus shaded covered entry points, keeping faces identifiable across the full frame throughout the day.

Honest Assessment

The DS-2CD2H85FWD-IZS does the fundamentals well at 8MP: the motorised varifocal lens is a genuine time-saver on installations where getting the framing exact matters, and the combination of 120dB WDR with EXIR 2.0 IR means lighting conditions - whether mid-afternoon sun or a completely unlit carpark at night - rarely produce an unusable image. H.265+ compression keeps storage requirements manageable for a 4K stream. IK10 and IP67 ratings are confirmed and appropriate for the outdoor positions this camera is typically specified for. What it will not do: the 30m IR range is adequate for most residential and light commercial scenarios but will fall short on long approaches, wide perimeter lines, or large open yards where a bullet-format camera with longer IR reach or a PTZ with optical zoom would serve better. If active deterrence - white light and audio alerts triggered by AI detection - is a priority, a TiOC-class camera is a more suitable product type. Available through Security Australia with full Hikvision warranty support.

Before You Buy

Quick Fit Check

• Good match if: You are mounting at eave or wall height on a commercial building and need to dial in the exact coverage zone after installation without sending a technician back up a ladder - the motorised 2.8-12mm lens is designed for exactly this scenario.
• Good match if: Your site has mixed lighting at entrances, driveways, or carpark access points where high-contrast scenes are common - the confirmed 120dB true WDR and 0.008 Lux low-light sensitivity handle both extremes on a single camera.
• You may need a different model if: Your monitoring distance exceeds 30m, or you need active deterrence with audible and visual alerts on detection - in those cases a long-range IR bullet camera or a TiOC-capable turret would be a more suitable product type to consider on securityaustralia.com.au.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need 8MP resolution in a vandal-resistant turret housing with the practical benefit of a motorised varifocal lens that lets you lock in coverage zones remotely after the camera is physically installed.
• You may need a different model if: Your coverage distance extends well beyond 30m, you need 360-degree or wide-area panoramic coverage from a single point, or active deterrence with built-in strobe and audio warnings is a project requirement - in those cases a long-range IR bullet, fisheye, or TiOC-category camera on securityaustralia.com.au would be a better fit.
• Pairs well with: A Hikvision PoE NVR with H.265+ recording support and adequate per-port PoE budget, which unlocks remote lens control, H.265+ storage savings, and on-NVR smart event management for this camera's line crossing and intrusion detection outputs.

Common Questions

1. Does this camera work with a standard PoE switch or NVR, or does it need PoE+?

   Standard IEEE 802.3af PoE is sufficient. This camera does not require PoE+ (802.3at). A standard 802.3af port delivers up to 15.4W, which covers this camera's power draw including the motorised lens motor during focus adjustments. Any 802.3af-compliant switch, injector, or PoE NVR port will power it correctly over a standard Cat5e or Cat6 cable run.

2. Will this camera work in extreme outdoor temperatures - coastal or industrial sites?

   Yes. The confirmed operating range is -40°C to +60°C, which covers the temperature extremes found across Australian climates including hot northern summers and cold southern winters. IP67 ingress protection keeps salt air and dust out of the housing, making it suitable for coastal and industrial outdoor positions.

3. How do I adjust the zoom on the DS-2CD2H85FWD-IZS after it's mounted?

   Remotely, via the camera's built-in web interface or a compatible Hikvision NVR. The motorised varifocal lens accepts zoom and focus commands over the network connection - no physical access to the camera is needed once it is cabled and powered. On a Hikvision NVR, this is typically accessed through the camera management or image configuration menu. If using a third-party VMS, check that the platform supports lens control commands for this model before installation.

4. Does the 8MP resolution affect how much storage this camera uses, and will H.265+ help?

   Yes, 8MP streams are significantly larger than 2MP or 4MP, and H.265+ makes a measurable difference. Compared to H.264, H.265+ can reduce storage consumption substantially - especially on scenes with limited movement, where the codec's background suppression is most effective. For accurate storage planning at your specific retention period and channel count, use a bitrate calculator with the camera's H.265+ figures before sizing your NVR hard drive. Stocked by Security Australia, this camera is designed to pair with Hikvision NVRs that have native H.265+ support built in.

5. Does this camera have two-way audio?

   No. The DS-2CD2H85FWD-IZS supports audio and alarm I/O connections, but it does not have a built-in speaker or built-in microphone. Two-way audio requires both a built-in mic and a built-in speaker to be confirmed. This camera's audio capability is via external connection - an externally connected mic can capture audio, but the camera itself cannot broadcast audio warnings without an external speaker wired to the alarm output.

6. What smart detection events does this camera support?

   Line crossing detection, intrusion detection, and face detection are confirmed for this model. Line crossing triggers an alert when an object crosses a defined virtual line in the scene. Intrusion detection flags objects entering or lingering within a defined zone. These events can be used to trigger alarm outputs or push notifications rather than relying on basic pixel-change motion detection, which reduces nuisance alerts from lighting changes or foliage movement.

7. Is the IK10 rating on this turret housing genuine, and does it matter for outdoor commercial sites?

   Yes, IK10 is the confirmed impact resistance rating on this camera. IK10 is the highest level in the IEC 62262 standard and indicates the housing can withstand 20 joules of impact - roughly equivalent to a 5kg mass dropped from 40cm. For exposed wall or eave mounts at commercial sites, schools, or public-facing locations where deliberate interference with cameras is a realistic concern, an IK10-rated turret offers meaningful physical protection beyond a standard unrated housing.

Downloads & Resources

No downloads available for this product.
