  • Sku: HIK-2CD2F42FIWS2
  • Vendor: SecurityAustralia

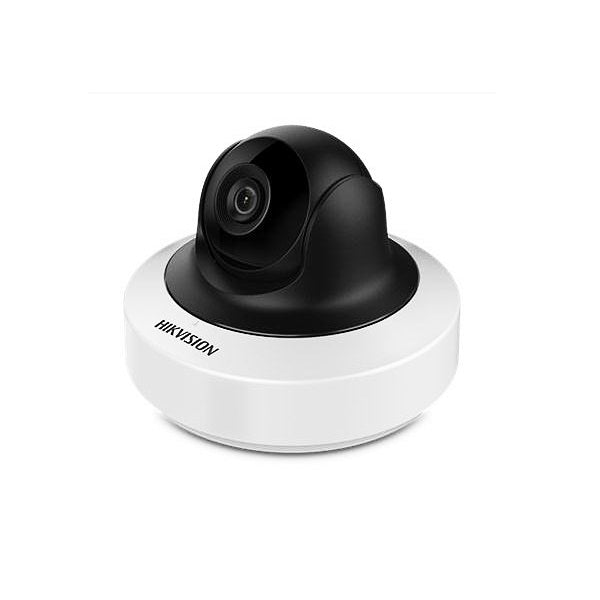

Hikvision DS-2CD2F42FWD-IS2 4MP Indoor Mini PT CCTV Camera, 10m IR, WDR WiFi, Audio I/O, 2.8mm

$300.00 AUD
 per
Spend $100.00 to FREE SHIPPING
Part of Hikvision's 2-Line range of cameras, the HIK-2CD2F42FIWS2 is an indoor mini PT network camera that produces an exceptional 4MP high resolution video. Providing an ideal combination of features and affordability, this camera includes 120dB true wide dynamic range and supports H.264+ intelligent compression which allows output of an incredibly well balanced image and reduces bandwidth/storage requirements by up to 50%. With inbuilt IR providing up to 10m visibility at night, a 2.8mm fixed lens, WiFi and with remote panning/tilting capabilities, this camera offers great flexibility. Rigorously tested, Hikvision's 2-Line generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.

Specifications

Image Sensor:1/3" Progressive Scan CMOS
Min. Illumination:0.01Lux @ F1.2, AGC ON , 0.028Lux @ F2.0, AGC ON, 0 Lux with IR
Shutter time:1/3 s to 1/100,000 s
Lens:2.8mm, 4mm, 6mm @ F2.0 angle of view: 106°(2.8mm), 83°(4mm), 55.4°(6mm)
Lens Mount:M12
Adjustment Range:Pan: -90° ~ 90°, Tilt: 0° ~ 75°
Day& Night:IR cut filter with auto switch
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Compression Standard
Video Compression:H.264/MJPEG/H.264+
H.264 code profile:Main Profile
Video bit rate:32Kbps~16Mbps
Dual Stream:Yes
Max. Image Resolution:2688 × 1520
Frame Rate:50Hz: 20fps (2688 x 1520), 25fps (1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)60Hz: 20fps (2688 x 1520), 30fps (1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)
Image Settings:Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
BLC:Yes, zone configurable
ROI:Support
Network
Network Storage:NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger:Face Detection,Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols:TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacymask, Watermark, IP address filtering
System Compatibility:ONVIF (Profile S, Profile G),ISAPI
Interface
Audio:1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model)
Communication Interface:1 RJ45 10M / 100M Ethernet interface
Alarm:1x alarm I/O *only for –S models
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:Yes
Wi-Fi Specification (-W)
Wireless Standards:IEEE802.11b, 802.11g, 802.11n
Frequency Range:2.4 GHz ~ 2.4835 GHz
Channel Bandwidth:20/40MHz Support
Modulation Mode:802.11b: CCK, QPSK, BPSK802.11g/n: OFDM
Security:64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission Rate:11b: 11Mbps11g: 54Mbps11n: up to 150Mbps
Wireless Range:50m(depend on environment)
General
Operating Conditions:-10 °C ~ 40 °C (14 °F ~ 104 °F)Humidity 90% or less (non-condensing)
Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:Max. 5W (Max. 7 W with IR cut filter on, max. 9W with pan & tilt rotation)
IR Range:10 meters
Dimensions:Φ119.93 × 87.08mm
Weight:500g (1.1lbs)
NOTE::"-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t supportthe 802.1X protocol.

Documentation

3 Years Manufacturer Warranty

All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.

Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.

Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/

Trusted Brand Partner & Security Equipment Wholesaler

Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.

Free Delivery* & Despatch Time

*Just spend over $100 to activate Fast Free Shipping!

Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.

Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.

Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.

Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.

View full details

Hikvision DS-2CD2F42FWD-IS2 4MP Indoor Mini PT CCTV Camera, 10m IR, WDR WiFi, Audio I/O, 2.8mm

$300.00 AUD
 per

Part of Hikvision's 2-Line range of cameras, the HIK-2CD2F42FIWS2 is an indoor mini PT network camera that produces an exceptional 4MP high resolution video. Providing an ideal combination of features and affordability, this camera includes 120dB true wide dynamic range and supports H.264+ intelligent compression which allows output of an incredibly well balanced image and reduces bandwidth/storage requirements by up to 50%. With inbuilt IR providing up to 10m visibility at night, a 2.8mm fixed lens, WiFi and with remote panning/tilting capabilities, this camera offers great flexibility. Rigorously tested, Hikvision's 2-Line generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera. Features

  • Up to 4 megapixel resolution
  • Full HD 1080p real-time video
  • 6mm lens
  • 120db wide dynamic range
  • Supports 128GB microSD card
  • 12VDC and PoE powered
  • Up to 10m IR range
  • Supports H.264 and H.264+ technology
  • Pan: -90deg - 90deg, Tilt: 0deg - 75deg
  • Built-in WiFi
  • Audio/alarm I/O
