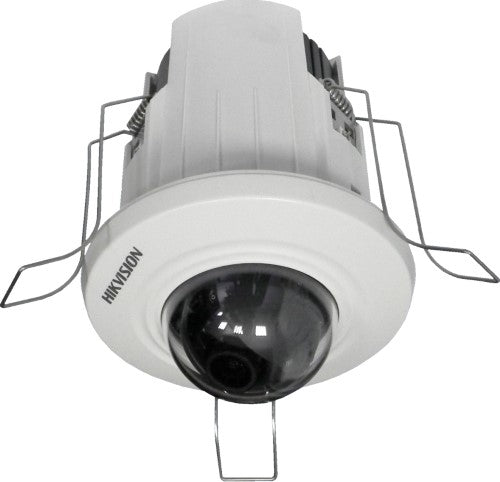

Hikvision DS-2CD2E20F 2MP Indoor Mini Dome Camera, Recessed Mount, D/N, 2.8mm Fixed Lens
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/3" Progressive Scan CMOS |
| Min. Illumination: | | | 0.01 Lux @ F1.2, AGC ON |
| Shutter time: | | | 1/3s ~ 1/100,000s |
| Lens: | | | 4mm fixed lens (2.8mm/6mm lens optional) Angle of view: 4mm: 85°, 2.8mm: 106°, 6mm: 52° |
| Lens Mount: | | | M12 |
| Day& Night: | | | Electronic |
| Wide Dynamic Range: | | | Digital WDR |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
| Video Compression: | | | H.264/MJPEG |
| H.264 code profile: | | | Baseline Profile / Main Profile |
| Video bit rate: | | | 32Kbps~8Mbps |
| Dual Stream: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 1920 x 1080 |
| Frame Rate: | | | 50Hz: 25fps (1920 x 1080, 1280 × 960,1280 × 720)60Hz: 30fps (1920 x 1080, 1280 × 960,1280 × 720) |
| Image Settings: | | | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC: | | | Yes, zone configurable |
| ROI: | | | Support |
| Day/Night Switch: | | | Auto/Schedule/Triggered by Alarm In |
| Network | ||
| Network Storage: | | | NAS (Support NFS,SMB/CIFS), ANR |
| Protocols: | | | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Security: | | | One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacymask, Watermark, IP address filtering, Anonymous access |
| System Compatibility: | | | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
| Interface | ||
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
| On-board storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Wi-Fi Specification (-W) | ||
| Wireless Standards: | | | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range: | | | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth: | | | 20/40MHz Support |
| Modulation Mode: | | | 802.11b: CCK, QPSK, BPSK802.11g/n: OFDM |
| Security: | | | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmit Power: | | | 11b: 17±1.5dBm @ 11Mbps11g: 14±1.5dBm @ 54Mbps11n: 12.5±1.5dBm |
| Receive Sensitivity: | | | 11b: -90dBm @ 11Mbps (Typical)11g: -75dBm @ 54Mpbs (Typical)11n: -74dBm (Typical) |
| Transmission Rate: | | | 11b: 11Mbps11g: 54Mbps11n: up to 150Mbps |
| Wireless Range: | | | 50m(depend on environment) |
| General | ||
| Operating Conditions: | | | -10 °C ~ 40 °C (14 °F ~ 104 °F)Humidity 90% or less (non-condensing) |
| Power Supply: | | | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | | | Max. 4.2W |
| Dimensions: | | | Φ93.9×121.6 |
| Weight: | | | 200g |
