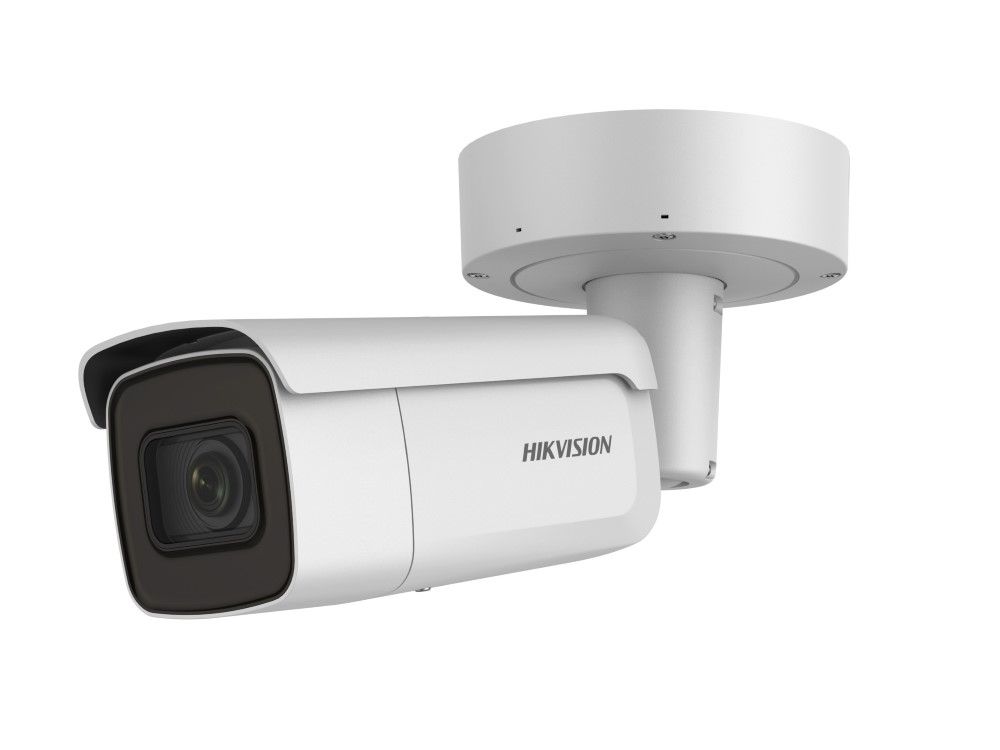

Hikvision DS-2CD2685FWD-IZS 8MP Outdoor Motorised VF Bullet 2.8-12mm
The 4K Varifocal Bullet Network Camera DS-2CD2685FWD-IZS from Hikvision is a cutting-edge surveillance solution that offers exceptional video clarity with its 8MP resolution, providing crisp and detailed images. This camera features a varifocal lens with a 2.8-12mm focal length, allowing for flexible zoom and focus adjustments to capture a wide range of views or detailed close-ups as needed. It supports advanced H.265+ video compression technology, which ensures high-quality footage while optimizing storage and bandwidth usage. The camera is equipped with a built-in infrared (IR) capability for night vision, delivering clear images even in complete darkness with an effective range of up to 100 meters. It boasts a rugged, weather-resistant design with an IP67 rating, making it suitable for outdoor use in various environmental conditions.
Key Features
Code/SKU: DS-2CD2685FWD-IZS
Quick Specs:
| Camera | |
|---|---|
| Image Sensor | 1/2.5" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR, Color: 0.014 Lux @ (F1.4, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120dB |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens Focus | Auto |
| Lens Type | 2.8 to 12 mm; Motorized |
| FOV | Horizontal field of view: 115° to 35°, Vertical field of view: 60° to 19°, Diagonal field of view: 146° to 38.5° |
| Aperture | F1.4 |
| Lens Mount | Φ14 |
| Illuminator IR Range | Up to 50 m |
| Wavelength | 850nm |
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720), 60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288), 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240) |
| Video Compression | Main stream: H.265/H.264, Sub stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Scalable Video Coding (SVC) | Support H.264 and H.265 encoding |
| Region of Interest (ROI) | Support 1 fixed region for main stream and sub stream |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8kHz/16kHz/32kHz/44.1kHZ/48kHz |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| User/Host | Up to 32 users, 3 levels: Administrator, Operator and User |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2 |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR |
| Client | iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 |
| Web Browser | Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11, Plug-in free live view: Chrome 45.0+, Firefox 52.0+ |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm output, Alarm input |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In |
| DNR | 3D DNR |
| Image Enhancement | BLC/3D DNR/HLC |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Audio Input | 1 input (line in, 3.5 mm) |
| Audio Output | 1 output (3.5 mm), mono sound |
| Alarm Input | 1 input |
| Alarm Output | 1 output (max. 12 VDC, 30 mA), terminal block |
| Video Output | 1Vp-p composite output (75 Ω/BNC) (For adjustment only) |
| On-board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Hardware Reset | Yes |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection |
| Face Detection | Yes |
| Exception Detection | Scene change detection |
| Linkage Method | Trigger recording: memory card, network storage, pre-record and post-record. Trigger captured pictures uploading: FTP, HTTP, NAS, Email. Trigger notification: HTTP, ISAPI, alarm output, Email |
| Firmware Version | V5.5.80 |
| Web Client Language | 32 languages including English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| General Function | Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening |
| Startup and Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, PoE (802.3at), Terminal block for DC input |
| Power Consumption and Current | 12 VDC, 1.5A, max. 17W, PoE (802.3at, 42.5V to 57V), 0.5A to 0.1A, max. 19W |
| Camera Dimension | Φ144.13×332.73 mm (Φ5.67"× 13.10") |
| Camera Weight | 1893 g (4.17 lb.) |
| Approval Protection | IK10, IP66 |
All IP cameras and recording devices (NVR’s/DVR’s) are covered by a 3 year back-to-base manufacturer warranty.
Our warranty is limited to the replacement of faulty items or parts and does not include damage due to incorrect fitting of parts or accessories, or damage due to mishandling the equipment once out of the box. All faults are sent to the manufacturer for inspection and diagnosis before a replacement is sent out.
Read more about the Terms & Conditions here – https://www.securityaustralia.com.au/terms-and-conditions/
*Just spend over $100 to activate Fast Free Shipping!
Despatch Times: Products are despatched on the same day if the order was placed before 11am on any weekday, Monday - Friday. All other orders are processed and despatched within 24 hours or next business day.
Order Confirmation: Once you place an order, you will receive a confirmation email. This indicates that your order has been received in our system and is now being processed for dispatch. If your item is back-ordered or unavailable, we will notify you via email, and if we do not receive a response, we will attempt to contact you by phone as soon as possible. We value your time and strive to be prompt. If your item(s) are available for immediate shipment (within 2 days), we will process the charges and prepare the order for shipping.
Shipping Times: General shipping times for StarTrack, TNT and Allied couriers are between 1-3 working days from despatch. Longer delivery times may be caused by your package being held at your local courier depot that is beyond our control. Please contact us or the local post depot for confirmation.
Tracking Numbers: all tracking numbers will be emailed to you by our warehouse processing team within the day, after your order is despatched to our local courier.
Hikvision DS-2CD2685FWD-IZS 8MP Outdoor Motorised VF Bullet 2.8-12mm
Elevate Your Security with the Hikvision DS-2CD2685FWD-IZS
Discover unmatched security with the Hikvision DS-2CD2685FWD-IZS, a top-tier addition to the Easy IP 3.0 series. This 8MP outdoor motorised varifocal bullet camera is engineered to deliver exceptional high-resolution video and boasts a host of advanced features designed to enhance your surveillance capabilities. Whether you're monitoring a commercial space or securing your home, this camera ensures that no detail is missed.
With cutting-edge image sensor technology and an ultra-high-definition chipset from Ambarella, the DS-2CD2685FWD-IZS supports H.265 and H.265+ video compression. This not only optimizes bandwidth but also significantly reduces storage requirements by up to 50% and 80% respectively. Its built-in EXIR 2.0 infrared technology ensures clear visibility even in complete darkness, with an impressive IR range of up to 30 meters.
Designed to withstand the elements, the camera features a rugged, vandal-proof IP67-rated casing and IK10 impact protection. Its 2.8-12mm motorised varifocal lens provides exceptional flexibility, allowing you to adjust the field of view to suit your specific needs. The 120dB true wide dynamic range (WDR) guarantees sharp and clear images, even in challenging lighting conditions.
Features:
Functions:
Comprehensive Surveillance System:
This camera integrates seamlessly into extensive security setups, providing high-quality monitoring across larger areas while maintaining superior data capture standards.
Efficient Video Management:
Supports various recording modes, enabling users to optimize storage efficiency and organize recorded footage for easy retrieval.
Real-Time Monitoring:
Live viewing capabilities ensure immediate access to surveillance feeds, allowing for quick responses to incidents as they occur.
Remote Access and Control:
Users can access the camera remotely via mobile apps or web browsers, facilitating real-time monitoring and management from any location.
Enhanced Security Features:
Incorporates advanced analytics for motion detection and alerts, improving response times and overall security effectiveness.
Flexible Installation Options:
The motorised lens allows for easy adjustments during installation, catering to diverse surveillance needs and environments.
Data Protection Mechanisms:
Equipped with features for data backup and failover, ensuring that recorded footage is secure and retrievable when necessary.
User-Friendly Interface:
The camera's setup and management interface simplifies configuration, making it accessible for users of all technical skill levels.
Technical Specifications
| Model | DS-2CD2685FWD-IZS |
| Resolution | 8MP (3840 x 2160) at 20fps |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Lens Type | 2.8-12mm motorised varifocal lens |
| Field of View | Horizontal: 115° to 35° (varies with zoom) |
| IR Distance | Up to 30m with EXIR 2.0 technology |
| Dynamic Range | 120dB true Wide Dynamic Range (WDR) |
| Video Compression | H.265, H.265+, H.264, H.264+ |
| Low Light Performance | 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON) |
| Weatherproof Rating | IP67 rated for water and dust resistance |
| Impact Resistance | IK10 rated for vandal-proof protection |
| Power Supply | 12V DC or PoE (802.3af) |
| Operating Temperature | -40°C to +60°C |
| Dimensions | Approx. 250 mm x 90 mm |
| Weight | Approx. 1.5 kg |
| Smart Features | Line crossing, intrusion detection, and face detection |
