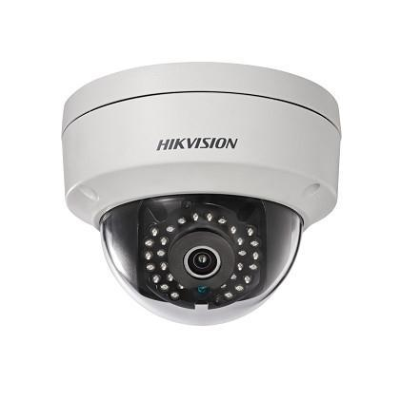

Hikvision DS-2CD2142FWD 4MP Outdoor Dome, H.264+, 30m IR, 3DDNR, 120dB WDR, IP67, IK10, PoE, 2.8mm

Model: HIK-2CD2142FWDI2

Who This Is For

Property managers specifying fixed outdoor dome cameras for entrances, car parks, and perimeter walls will find the Hikvision DS-2CD2142FWD a well-matched option for permanent, low-maintenance installations. With an IK10 vandal-resistant housing, IP67 weatherproofing, and a 120dB true wide dynamic range, this camera is built for situations where tamper risk and difficult lighting are ongoing concerns - think stairwells with external exposure, building entry points, or retail car parks that see both glaring sun and full darkness within the same day. The fixed 2.8mm lens gives a 100-degree horizontal field of view, suited to wide-angle coverage at close-to-mid range. At 4MP resolution with H.264+ compression, it delivers usable detail without punishing storage budgets, and IEEE 802.3af PoE means single-cable installation wherever a PoE switch or NVR port is available. A practical workhorse for body corporates, councils, and small commercial operators.

What This Camera Actually Does

Who Buys This Model

• Body Corporate and Strata Managers: Specifying cameras for shared building entrances, lift lobbies, and basement car parks where IK10 impact resistance and a tamper-resistant dome profile reduce ongoing replacement costs from vandalism.
• Retail and Hospitality Operators: Installing cameras above entry doors or in covered outdoor dining areas that face direct sun in the morning and complete darkness at night - the 120dB WDR and 30m IR handle both extremes without switching camera types.
• Council and Local Government Facilities: Deploying fixed surveillance at public amenities, skate parks, or council depots where weatherproofing, vandal resistance, and PoE compatibility with existing network infrastructure are all required simultaneously.
• Security Integrators on Multi-Camera Jobs: Using the DS-2CD2142FWD as a cost-effective perimeter dome alongside higher-end PTZ or analytics cameras - H.264+ keeps NVR storage load manageable across large channel counts.

Honest Assessment

The DS-2CD2142FWD does a solid job at what it is designed for: outdoor fixed coverage in a robust, weather-sealed housing. The 120dB true WDR is a genuine differentiator at this price tier - it is not a software-processed approximation, and it shows in high-contrast scenes at doorways and entry points. IK10 certification is confirmed and meaningful for public-facing locations. The H.264+ compression keeps multi-camera deployments manageable on storage, and PoE simplifies cabling on Hikvision NVR systems. Available through Security Australia as part of the Hikvision 2-Line range, it suits installs where reliability and durability matter more than advanced AI analytics. What it will not do: there is no built-in person or vehicle classification, no colour night vision, and the fixed 2.8mm lens cannot be adjusted post-installation. For long-distance approaches, loading docks, or sites requiring licence plate capture at more than 5 metres, a varifocal or bullet camera will serve better.

Before You Buy

Quick Fit Check

• Good match if: You are mounting on an external soffit or ceiling at 2.5-4 metres and the location is exposed to weather, tampering risk, or both - IP67 and IK10 are confirmed on this model and appropriate for that scenario.
• Good match if: Your site has challenging mixed lighting - covered car park entrances, glass lobby doors, or east-facing entry points - where the 120dB true WDR will prevent the overexposed or silhouetted images that standard cameras produce in those conditions.
• You may need a different model if: Your priority is monitoring long driveways, approaches, or perimeter fences beyond 15-20 metres - a bullet-style camera with a varifocal lens and extended IR range will deliver better subject detail at distance than a fixed wide-angle dome.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a confirmed IK10 and IP67 outdoor dome with true 120dB WDR at a mid-range price point and your installation environment favours a low-profile ceiling or soffit-mount over a protruding bullet housing.
• You may need a different model if: Your site involves long approaches, perimeter fences, or any distance monitoring beyond 20 metres - a varifocal bullet camera with extended IR range will produce more usable detail in those conditions than this fixed 2.8mm dome.
• Pairs well with: A Hikvision PoE NVR with built-in switch ports - single Cat5e or Cat6 runs from the NVR to each camera position, and Hikvision's SADP tool will automatically discover the DS-2CD2142FWD on the same network without manual IP configuration.

Common Questions

1. Does this camera work with a standard PoE switch, or does it need PoE+?

   Standard IEEE 802.3af PoE is sufficient - this camera does not require PoE+. It draws power from any 802.3af-compliant port, which includes most Hikvision NVRs with built-in PoE, standard unmanaged PoE switches, and managed switches set to 802.3af mode. A single Cat5e or Cat6 cable carries both power and video data to the camera, with a maximum recommended cable run of 100 metres.

2. Will the DS-2CD2142FWD record at 4MP resolution continuously at full frame rate?

   Yes, but with a qualification on frame rate. This camera outputs 4MP at up to 20fps, not 25fps. For most fixed surveillance applications that is not a practical limitation, but if smooth 25fps footage is a project requirement - for example, monitoring fast-moving machinery or high-traffic retail floors - note that the maximum is 20fps at full 2688 x 1520 resolution.

3. What does IK10 actually mean in practice for an outdoor installation?

   IK10 is the top rating in the IEC 62262 impact protection scale, certifying the housing can withstand a 20-joule impact - equivalent to a 5kg object dropped from 400mm. In practical terms this means the dome globe and camera body are resistant to deliberate kicks, thrown objects, and the kind of incidental impacts common in public-access locations. It does not make the camera indestructible, but it substantially reduces the risk of the housing cracking or the camera being knocked out of alignment from minor physical contact.

4. Does this camera support H.265 compression, or only H.264+?

   Yes, both H.265 and H.265+ are supported alongside H.264 and H.264+. If your NVR supports H.265 decoding - which most current Hikvision NVRs do - you can configure the camera to stream in H.265+ for even greater storage efficiency than H.264+. The compression format is selected in the camera's stream settings via the NVR interface or directly through a web browser. Confirm your NVR's decoding capability before switching, as older recorders may only decode H.264.

5. Does this camera produce colour footage at night, or only black-and-white IR images?

   No - this camera does not have colour night vision capability. In low or zero ambient light conditions, the built-in IR illuminators activate and the camera switches to monochrome IR mode, producing black-and-white footage out to approximately 30 metres. Colour footage at night requires either sufficient ambient lighting or a camera with a dedicated white-light or multi-spectrum illuminator. If full-colour night recording is a project requirement, a colour night vision model would be the appropriate alternative. Security Australia stocks Hikvision models with full-colour capability if that suits your site better.

6. Will line crossing detection work reliably without a Hikvision NVR?

   Yes, on-camera line crossing and intrusion detection processing runs on the DS-2CD2142FWD itself, not on the NVR. This means the analytics function regardless of which recorder or VMS you connect to, provided the NVR can receive the camera's alarm output. If you are integrating into a third-party VMS or a non-Hikvision NVR, confirm that the VMS supports Hikvision ONVIF event parsing, as the alarm trigger format can vary between platforms and may require additional configuration to surface alerts correctly.
