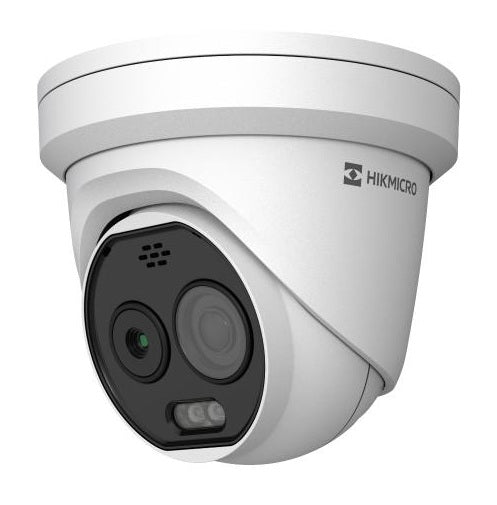

Hikvision HeatPro HM-TD1228T-2/G1-T3A Bi-Spectrum Thermal Turret Camera with Temperature Detection

Model: HM-TD1228T-2/G1-T3A

Who This Is For

When detecting a heat source - not just motion - is the operational requirement, the Hikvision HeatPro HM-TD1228T-2/G1-T3A delivers a purpose-built bi-spectrum solution in a compact turret housing. This camera combines a 256x192 thermal sensor with a 2MP optical imager, giving operators both heat-based detection and a visual reference channel from a single mounting point. It is built for sites where standard cameras fail after dark, in fog, smoke, or heavy rainfall - environments where a thermal sensor continues to detect by heat signature alone. Facilities managers overseeing industrial yards, perimeter fencing, electrical switch rooms, and critical infrastructure are the primary buyers. Temperature detection capability makes it equally relevant to data centres, battery storage rooms, and warehouse operations where thermal anomaly detection is a site safety or compliance requirement, not just a security function.

What This Camera Actually Does

Who Buys This Model

• Industrial Facility Managers: Monitoring electrical switchrooms, transformer yards, or generator bays where overheating equipment must be detected before failure or fire, using the temperature threshold alarm function.
• Critical Infrastructure Operators: Water treatment plants, substations, and telecommunications sites that require perimeter detection in low-light or heavily obscured conditions where standard optical cameras produce no usable image.
• Data Centre and Battery Storage Operators: Sites that carry a fire risk from lithium battery banks or server hardware, where early thermal anomaly detection supports safety compliance and insurance requirements.
• Security Integrators on High-Value Perimeter Projects: Installers specifying camera positions along fence lines, loading areas, or access roads where zero-light detection is non-negotiable and a second optical channel is needed to validate and document detections.
• Warehouse and Cold-Chain Operators: Facilities tracking temperature anomalies across refrigeration plant, roof voids, or goods storage areas where a product fault or refrigeration failure produces a detectable heat signature before a human inspection would catch it.

Honest Assessment

The HM-TD1228T-2/G1-T3A does two things well: it maintains detection capability in conditions that render optical cameras useless, and it adds a temperature measurement layer that most security cameras do not offer at all. The bi-spectrum design means you are not choosing between thermal detection and visual evidence - you get both from one cable run and one mounting position. The configurable alarm zones give operators genuine flexibility to define what constitutes a thermal event rather than relying on blanket motion detection. What this camera will not do is provide facial identification or fine detail capture from its thermal channel - thermal resolution is suited to detection, not identification. For sites that need licence plate recognition or detailed facial images, an optical camera alongside this unit is the right architecture. Available through Security Australia, this model suits applications where detection reliability and temperature monitoring outweigh the need for high-resolution optical detail.

Before You Buy

Quick Fit Check

• Good match if: You need to monitor electrical equipment, battery banks, or industrial plant for thermal anomalies and want alarm triggers based on configurable temperature thresholds rather than motion.
• Good match if: Your perimeter or outdoor area experiences conditions - darkness, fog, rain, or dust - where optical cameras lose detection capability and you need a sensor that operates by heat contrast alone.
• You may need a different model if: Your primary requirement is high-resolution identification at distance, licence plate capture, or wide-area coverage beyond the 2.8mm thermal lens range - in those cases, a PTZ thermal with optical zoom or a multi-sensor camera system may be a better fit for your site.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your site requires detection in zero-light or heavily obscured conditions, or you need temperature threshold monitoring of equipment as a safety or compliance function - neither of which a standard optical camera can provide.
• You may need a different model if: Your detection range extends significantly beyond 40-50 metres, or you need optical zoom capability to inspect a specific point in the thermal scene - a thermal PTZ with motorised optical zoom would be more suitable for those requirements.
• Pairs well with: A compatible Hikvision NVR or VMS with thermal alarm input support, which allows temperature threshold events to be logged, time-stamped, and actioned separately from standard motion detections.

Common Questions

1. Will this camera detect an intruder in complete darkness?

   Yes. The thermal sensor on the HM-TD1228T-2/G1-T3A detects infrared radiation emitted by warm bodies, so it does not require any visible light to function. A person or animal crossing the camera's field of view will produce a detectable heat contrast against the background regardless of ambient light levels, making it suitable for unlit perimeters, dark yards, or internal spaces with no illumination.

2. What does NETD ≤40mK mean in practice?

   NETD (Noise Equivalent Temperature Difference) is the smallest temperature difference the thermal sensor can reliably distinguish from background noise. At ≤40mK, this camera can detect very small thermal contrasts - meaning a person in clothing similar in temperature to the surroundings, or a piece of equipment with a modest heat rise, will still register as a discernible target rather than being lost in sensor noise. Lower NETD values represent better thermal sensitivity.

3. How accurate is the temperature measurement, and can it be used for safety compliance?

   The temperature measurement accuracy is ±2°C or ±2% of the reading, whichever is greater. This is appropriate for detection and early warning applications - identifying that a switchboard panel has risen significantly above its normal operating temperature, for example. For applications requiring calibrated measurement to a traceable standard for formal compliance reporting, a dedicated thermal measurement instrument should supplement the camera data. The camera's threshold alarm function is well suited to operational safety monitoring rather than precision metrology.

4. Does the 2.8mm thermal lens give me enough coverage for a standard doorway or gate entry?

   Yes, for close to medium-range coverage at typical access point distances. The 2.8mm focal length on a 256x192 thermal sensor produces a relatively wide thermal field of view, making it well matched to monitoring a single doorway, gate entry, or room interior at ranges up to approximately 15-30 metres for person-sized targets. If your installation point is further back from the monitored zone, verify the target will occupy a sufficient number of pixels at that distance before committing to this lens length.

5. Does this camera work with standard PoE switches, or does it need PoE+?

   Standard PoE (IEEE 802.3af) is sufficient for this camera. It does not require the higher power budget of PoE+ (802.3at), which means it can be connected to most commercial PoE switches and PoE-capable NVRs without requiring an upgraded power source. A single Cat5e or Cat6 cable carries both data and power to the camera from the switch or NVR.

6. Can the thermal and optical channels be recorded simultaneously, and do I need a special NVR?

   Both channels stream simultaneously as part of the camera's network output. To record them and receive temperature alarm data, your NVR or VMS needs to support Hikvision thermal camera integration - not all standard NVRs handle thermal alarm inputs or log temperature threshold events separately from video motion detection. Confirm your recording platform's compatibility with Hikvision HeatPro cameras before finalising your system design. The team at Security Australia can assist with confirming NVR compatibility for this model.

7. Will rain, fog, or dust affect the thermal detection performance?

   No, not significantly under most site conditions. Thermal sensors detect emitted infrared radiation rather than reflected visible light, so fog, rain, and airborne dust that block optical cameras do not prevent thermal detection. Heavy smoke or very dense steam can attenuate thermal performance in extreme industrial conditions, but for standard outdoor environments including coastal fog, rain, and dust, the thermal channel continues to detect heat sources reliably where optical cameras would produce a degraded or unusable image.

8. Can I set different temperature alarm thresholds for different parts of the scene?

   Yes. The camera supports configurable alarm zones within the thermal field of view. Each zone can be assigned its own temperature threshold, allowing a single camera to monitor multiple pieces of equipment or multiple areas within a room with independent alarm triggers per zone. This is particularly useful in electrical rooms or equipment bays where different assets have different normal operating temperatures and different acceptable rise limits.
