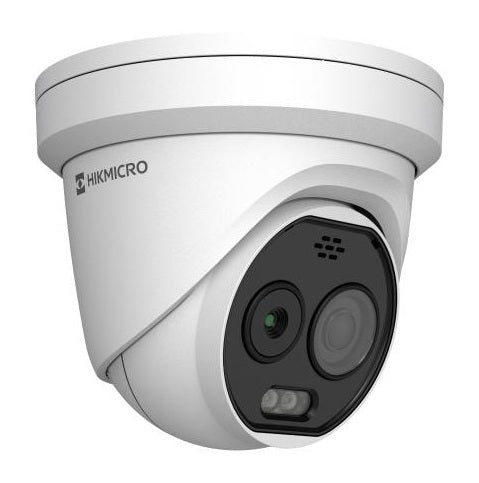

Hikvision HeatPro HM-TD1228-2/G1-T3A Bi-Spectrum Thermal Turret Camera with Human & Vehicle Detection

Model: HM-TD1228-2/G1-T3A

Who This Is For

For security managers and installers who need perimeter detection that works when optical cameras cannot - through darkness, smoke haze, dust, and camouflaged backgrounds. The Hikvision HeatPro HM-TD1228-2/G1-T3A is a bi-spectrum thermal turret camera that pairs a thermal imaging sensor with an optical channel, giving operators both heat-based detection and a visual reference image from a single fixed unit. The turret housing suits eave, soffit, and wall mounting on mid-size commercial sites, rural properties, and light industrial perimeters where conventional IR cameras generate false alarms or miss threats entirely in low-contrast conditions. Built-in human and vehicle classification means the camera filters movement by target type before an alarm is raised, which is the key reason this model is specified over standard thermal units on sites where alert fatigue from swaying vegetation or animals is a recurring problem.

What This Camera Actually Does

Who Buys This Model

• Rural and remote property owners: Monitoring fence lines, gate approaches, and paddock entries where there is no ambient lighting and IR cameras are impractical over long unlit approaches.
• Light industrial and warehouse sites: Perimeter coverage of yard areas and loading zones where mixed traffic - forklifts, trucks, and personnel - needs to be classified separately to trigger appropriate alarm responses.
• Security integrators working on false-alarm reduction briefs: Sites where existing motion-detection cameras are generating excessive alerts from vegetation, animals, or environmental noise and the client needs event-specific detection tied to human or vehicle targets.
• Commercial property managers with after-hours monitoring requirements: Premises that need verified intrusion detection outside business hours, where the combination of thermal detection and optical confirmation supports faster guard dispatch decisions.

Honest Assessment

The HM-TD1228-2/G1-T3A genuinely earns its place on sites where optical cameras have failed. The thermal channel detects heat signatures regardless of lighting conditions, and the human and vehicle classification layer means alerts carry more operational weight than standard motion events. Having both channels in one turret housing simplifies cabling and bracket requirements compared to running separate thermal and optical cameras to the same position. The fixed 2.8mm thermal lens suits wide-zone perimeter monitoring without mechanical complexity. What this camera will not do is provide the detailed visual identification needed for evidence or facial recognition - thermal imaging shows presence and movement, not identity. For sites that need high-resolution optical footage as the primary record rather than a secondary reference, a full-colour optical turret or bullet camera is the more suitable starting point. The HM-TD1228-2/G1-T3A is stocked by Security Australia and suits detection-first perimeter briefs where verifying that a person or vehicle is present matters more than capturing fine detail.

Before You Buy

Quick Fit Check

• Good match if: Your site has unlit perimeter zones where optical IR cameras fail to detect intruders reliably and you need human and vehicle classification to reduce false alarm rates.
• Good match if: You are mounting to eaves or soffits on a commercial or rural building and need both a thermal detection channel and an optical reference image from a single bracket position without a second camera run.
• You may need a different model if: Your primary requirement is high-resolution visual evidence capture for identification or evidentiary purposes - a full-colour optical turret or 4K bullet camera will provide far more usable detail than any thermal sensor at equivalent price points.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your detection priority is perimeter intrusion in unlit or visually challenging conditions and you need human and vehicle classification to generate actionable alerts - not general motion events.
• You may need a different model if: Your primary requirement is high-resolution visual evidence - a 4K or full-colour optical turret or bullet camera will capture identifiable detail that a thermal sensor cannot provide at any resolution.
• Pairs well with: A compatible Hikvision NVR that supports dual-stream bi-spectrum recording, or a central monitoring platform capable of handling thermal event-triggered alerts with optical image verification.

Common Questions

1. Will this camera detect people in total darkness with no IR illuminator?

   Yes. The thermal channel on the HM-TD1228-2/G1-T3A detects heat emitted by the human body and does not rely on reflected light of any kind. There is no IR LED in this camera and none is required - complete darkness, overcast nights, and absence of any ambient light source have no effect on the thermal sensor's ability to detect a person entering the monitored zone.

2. Does this camera work for detecting people near machinery or in areas with heat sources?

   Partially. The thermal sensor detects temperature differential between a target and its background - when background heat sources such as warm machinery, engine bays, or sun-heated surfaces are close in temperature to a human body, detection reliability can reduce. This is a fundamental characteristic of thermal imaging, not a product defect. For environments with significant background heat, review the camera's NETD rating and consult with your integrator about detection zone placement to maximise contrast between target and background.

3. What does the optical channel actually show and how is it used alongside the thermal?

   The optical channel provides a standard 2MP visible-light image from the same camera body. In practice, the thermal channel handles detection and classification - when an alert is triggered, the operator or monitoring centre switches to or references the optical image to visually confirm the situation before responding. This dual-channel workflow is the core operational advantage of bi-spectrum over single-sensor thermal cameras, and it is why Security Australia recommends this model for sites where verified alarm response is part of the monitoring brief.

4. How does the human and vehicle classification work and what false alarm rate should I expect?

   The onboard AI analyses thermal silhouette shape and movement pattern to classify a detected heat signature as human, vehicle, or neither before an alarm event is generated. Unclassified movement - animals, swaying trees, environmental thermal variation - does not trigger a classified alert. This is materially different from standard thermal motion detection, which triggers on any temperature-differential change in the scene. In practical deployments with correctly configured detection zones, classified alarm events are significantly fewer and more operationally relevant than raw motion events from an equivalent non-AI thermal unit.

5. What are the DORI distances for this thermal camera - how far away can it actually detect a person?

   DORI distances for thermal cameras differ from optical - detection (confirming a target is present) occurs at significantly longer range than recognition or identification. With the 2.8mm fixed thermal lens on this model, the detection distance for a human target is suited to wide-zone perimeter coverage at short-to-mid range. The 2.8mm focal length prioritises field of view width over long-distance narrow detection. For coverage of long, narrow approaches exceeding the detection range of this lens, a longer focal length thermal camera should be evaluated. Always verify the manufacturer's published DORI distances for the specific thermal sensor resolution before finalising mounting position.

6. Does the NETD rating matter and what does it mean in practice?

   Yes. NETD (Noise Equivalent Temperature Difference) measures how small a temperature difference the thermal sensor can reliably detect - expressed in millikelvin (mK). A lower NETD value means the sensor can distinguish a human body from a background with very slight temperature difference, which matters most in mild-weather conditions where the contrast between a person and the surrounding environment is smaller than in cold weather. In hot Australian summers, ambient temperature approaches body temperature, making a low NETD rating directly relevant to detection reliability on sites where the camera operates year-round.

7. Will my existing NVR record both the thermal and optical streams from this camera?

   Not necessarily. Bi-spectrum cameras present 2 independent video streams - thermal and optical - and not all NVRs handle dual-stream bi-spectrum input correctly. Hikvision NVRs from compatible series are designed to record and display both channels from HeatPro cameras. Third-party NVRs may only record one channel or may not correctly parse the thermal stream at all. Confirm your NVR's compatibility with bi-spectrum Hikvision cameras before purchasing, particularly if you intend to use thermal-triggered recording rules or event overlays across both channels.
