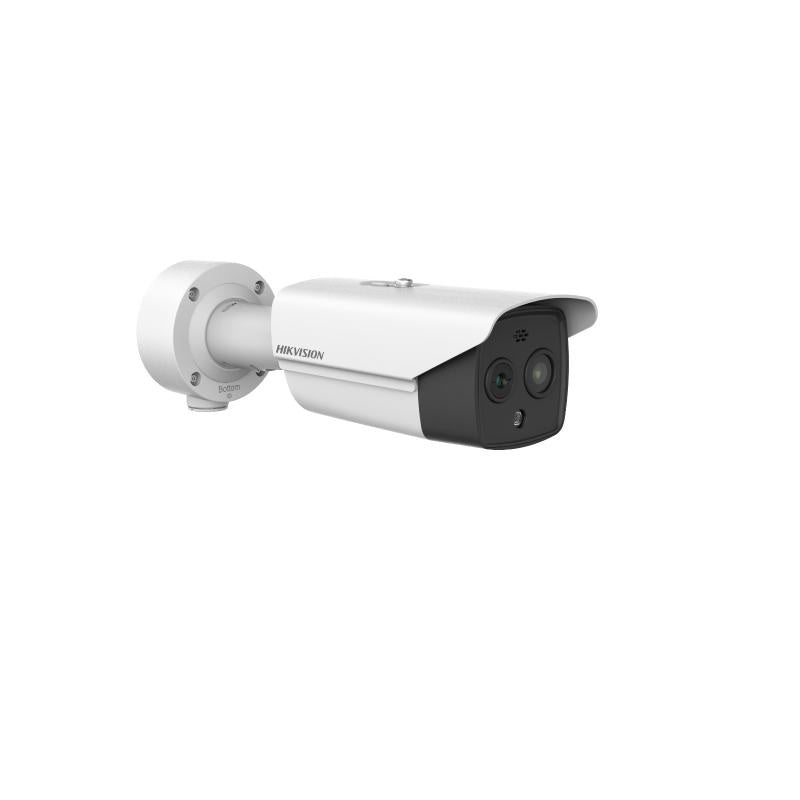

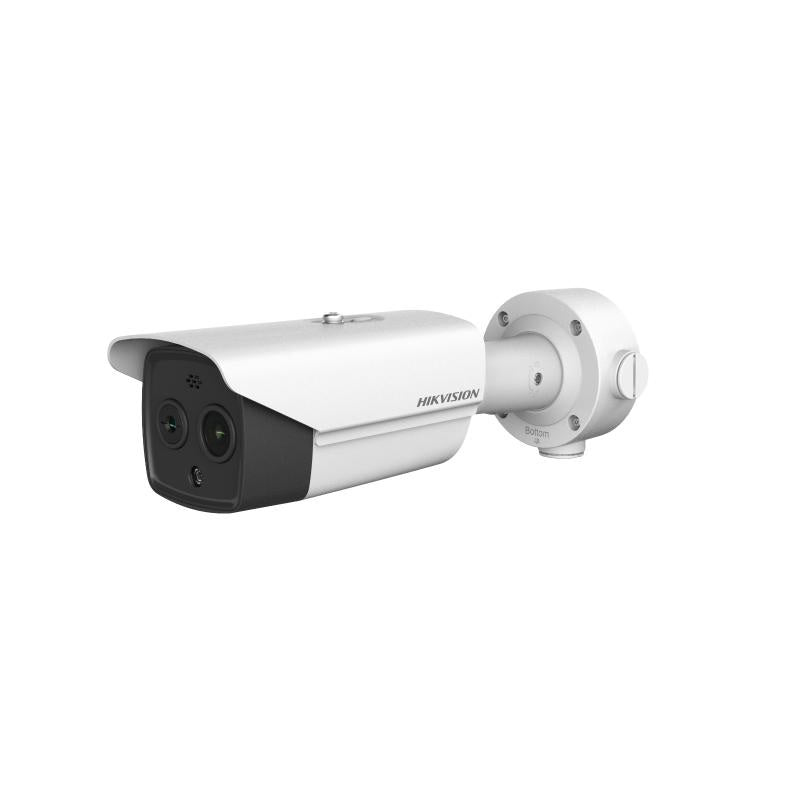

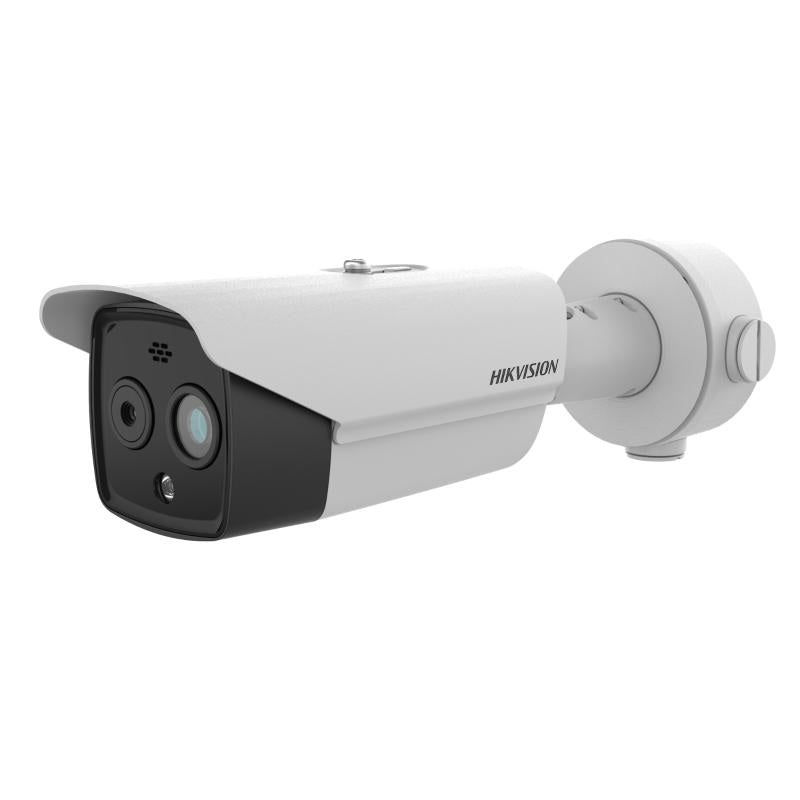

Hikvision Heat Pro DS-2TD2628T-7-QA 4mp BI-SPECTRUM Fire&smoke, Bullet Camera, 6.9mm, 6.4mm, Ir 30m

Model: DS-2TD2628T-7-QA

Who This Is For

When early fire and smoke detection across an outdoor industrial site is the priority, a standard CCTV camera cannot do the job - you need a bi-spectrum thermal unit that sees heat signatures before flames are visible to the eye. The Hikvision Heat Pro DS-2TD2628T-7-QA combines a thermal imaging channel with a 4MP optical channel in a single bullet housing, fitted with a 6.9mm thermal lens and a 6.4mm optical lens, plus 30m IR for night-time optical coverage. This makes it a direct fit for installers and safety managers protecting warehouses, recycling yards, fuel storage facilities, timber yards, and solar farms where a smouldering heat source must be flagged in seconds rather than minutes. The bullet form factor suits open-sky or eave-mounted positions with long sightlines, and the dual-channel output means operators see both a thermal heat map and a conventional video feed from a single device.

What This Camera Actually Does

Who Buys This Model

• Waste and Recycling Facility Operators: Spontaneous combustion in compacted materials is a known hazard. The thermal channel detects heat build-up inside stockpiles before a visible fire starts, giving staff time to intervene before emergency services are required.
• Timber Yard and Sawmill Managers: Dry timber and sawdust create persistent fire risk. A single DS-2TD2628T-7-QA unit covering a lumber bay provides continuous thermal monitoring that a smoke detector alone cannot deliver outdoors.
• Solar Farm and Utility Site Managers: Remote sites with minimal staffing benefit from automated thermal alarm triggering. The camera's fire and smoke detection can push alerts to monitoring centres without requiring on-site personnel to identify the threat.
• Industrial Safety and Compliance Officers: Sites requiring documented fire detection coverage as part of an insurance or WorkSafe compliance program need a camera that generates verifiable thermal alarm events with optical confirmation footage.
• Security System Integrators Handling High-Risk Sites: Installers specifying camera systems for fuel storage, chemical handling, or heavy manufacturing environments where a standard IP camera cannot meet the site's fire detection brief.

Honest Assessment

The DS-2TD2628T-7-QA does something a conventional 4MP bullet camera cannot: it detects heat anomalies and developing smoke conditions before they become visible to an optical sensor. The bi-spectrum design means you are not choosing between a thermal unit and a security camera - you get both from a single mounting point, with 30m IR optical coverage after dark. The 6.9mm thermal lens is well-suited to defined detection zones at moderate range, such as a storage bay or machinery area, and the bullet housing locks the aim reliably once positioned. Where this camera is not the right fit: if you need a wide-area thermal panorama across a large open site, a PTZ thermal or multi-sensor thermal unit will cover more ground from fewer positions. It is also not a replacement for certified fire suppression or alarm systems. The DS-2TD2628T-7-QA is available through Security Australia and is intended as a detection and alerting layer within a broader site safety plan.

Before You Buy

Quick Fit Check

• Good match if: You are monitoring a fixed outdoor zone - a timber stockpile, fuel bay, or waste compactor - where a thermal heat anomaly or smoke event must trigger an alarm before a visible fire develops, and you also need 4MP optical coverage from the same position.
• Good match if: You are specifying a single-point fire detection and security camera solution for a remote or unstaffed industrial site where automated thermal alarm push to a monitoring centre replaces on-site patrol.
• You may need a different model if: Your site requires wide-area thermal coverage across a large open perimeter or multiple zones from a single position - a PTZ thermal camera or a multi-sensor thermal panoramic unit will serve that requirement better. Browse the thermal camera range at securityaustralia.com.au to compare coverage options.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need fire and smoke detection from a fixed outdoor position combined with 4MP optical security coverage and 30m IR, and you want both functions from a single bullet camera housing rather than two separate devices.
• You may need a different model if: Your detection requirement covers a large open area or multiple zones from one position - a thermal PTZ or panoramic thermal camera will give you broader angular coverage and the ability to adjust the detection zone remotely. Browse thermal PTZ options at securityaustralia.com.au.
• Pairs well with: A compatible Hikvision NVR or VMS platform that supports bi-spectrum thermal camera integration and can receive, log, and action thermal alarm events from a dedicated channel.

Common Questions

1. Does this camera actually detect fire, or does it just record video of a fire?

   Yes, it actively detects fire. The thermal channel continuously analyses heat data and triggers an alarm when it identifies a thermal signature consistent with fire or elevated combustion heat within a configured detection zone. This is fundamentally different from a standard optical camera, which can only record visible flames after a fire is already established.

2. Will this camera detect smoke as well as fire?

   Yes. The DS-2TD2628T-7-QA includes smoke detection in addition to fire detection. Smoke detection allows the camera to flag a developing fire condition at an earlier stage than heat detection alone, which is particularly useful in applications such as timber yards or chemical stores where smoke precedes significant thermal build-up.

3. What does bi-spectrum mean and why does it matter for my site?

   Bi-spectrum means the camera has two separate imaging sensors operating simultaneously - one thermal, one optical. The thermal channel handles heat-based fire and smoke detection regardless of lighting conditions, while the 4MP optical channel with 30m IR provides conventional video for security monitoring and alarm verification. This eliminates the need to install a separate CCTV camera alongside a thermal detector at the same location.

4. What NVR or VMS do I need to receive thermal alarms from this camera?

   You need an NVR or video management system that explicitly supports Hikvision bi-spectrum thermal cameras and can process thermal alarm events independently from the optical video stream. Not all standard NVRs handle this without specific firmware support or channel licensing. Check compatibility with your recording platform before purchase - the Hikvision DeepinView platform and compatible Hikvision NVRs are the most straightforward pairing for this camera's alarm functions.

5. How does the thermal detection hold up in rain, fog, or dust compared to a standard camera?

   Significantly better than an optical-only camera. Thermal imaging detects heat energy rather than reflected light, so rain, fog, dust, and smoke do not block the thermal channel the way they would degrade an optical sensor. In a recycling yard or industrial site where dust is constant, the thermal channel continues to operate at full sensitivity while an optical camera would struggle to detect a heat anomaly through visual obscuration.

6. What is the effective detection range of the 6.9mm thermal lens, and how does lens focal length affect detection distance?

   A longer focal length provides a narrower field of view and extends the effective detection range for a given thermal sensor resolution - a 6.9mm lens on this sensor format is suited to monitoring distances of approximately 20-60 metres depending on the target size and the alarm threshold configured. For targets at shorter range across a wide area, a shorter focal length would be appropriate. The 6.9mm thermal lens on the DS-2TD2628T-7-QA is designed for focused zone monitoring rather than panoramic coverage, making it best suited to defined bays, stockpiles, or equipment areas rather than open-field surveillance. If your application requires detection across a larger angular area, Security Australia stocks thermal cameras with wider-angle lenses and PTZ thermal units that cover more ground from a single position.

7. Can I use this camera as a replacement for a certified fire alarm system?

   No. The DS-2TD2628T-7-QA is a detection and alerting camera, not a certified fire alarm system under Australian Standards. It is designed to work as an early-warning layer integrated into a security and monitoring system. Sites with mandatory fire detection compliance obligations under building codes or WorkSafe requirements will still need a certified fire detection system - this camera functions as a supplementary detection tool that extends visibility to outdoor areas or high-risk zones not typically covered by internal smoke detectors.

Downloads & Resources

No downloads available for this product.
