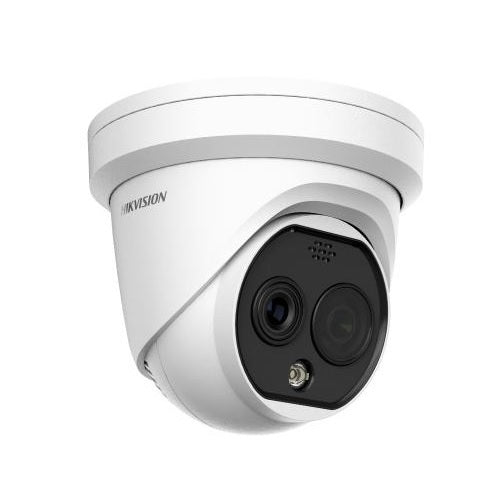

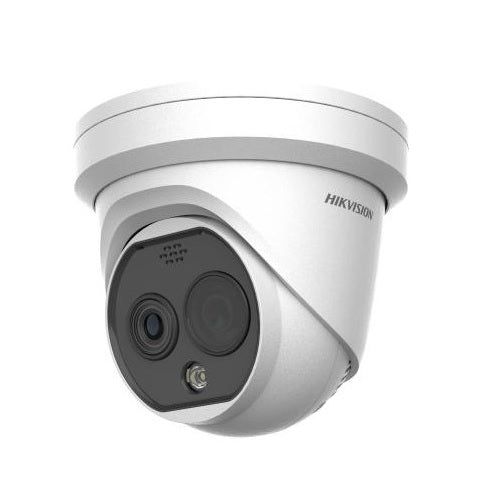

Hikvision Heat Pro DS-2TD1228T-2-QA 4mp BI-SPECTRUM Fire & Smoke, Turret Camera, 2.1mm, 2.2mm, IR 15m

Model: DS-2TD1228T-2-QA

Who This Is For

Property managers specifying fire and smoke detection for warehouses, recycling facilities, solar farms, or industrial yards will find the Hikvision Heat Pro DS-2TD1228T-2-QA addresses a gap that standard CCTV cameras cannot fill. This bi-spectrum turret combines a thermal imaging sensor with a 4MP optical camera in a single housing, allowing it to detect heat anomalies and early-stage fires before visible flames or smoke develop to a point that triggers conventional detectors. With a 2.1mm thermal lens paired to a 2.2mm optical lens and 15m IR illumination, it suits medium-range monitoring of indoor and outdoor environments where heat buildup, smouldering materials, or spontaneous combustion are genuine operational risks. The turret form factor makes it practical for eave, soffit, and wall mounting without the visual bulk of a traditional thermal camera housing.

What This Camera Actually Does

Who Buys This Model

• Waste and Recycling Facility Operators: Stockpiles of compacted materials are prone to spontaneous combustion and smouldering fires that are invisible to standard cameras. The thermal sensor detects heat buildup in these materials before smoke becomes visible.
• Solar Farm and Battery Storage Managers: Thermal runaway in battery storage and hot-spot formation on solar arrays are early-stage thermal events. This camera positions as a monitoring layer for installations where heat anomalies precede significant damage or fire spread.
• Industrial Warehouse Installers: Warehouses storing combustible stock require early-warning detection across large floor areas. The bi-spectrum design means the same camera delivers fire detection and perimeter security video on a single network drop.
• Critical Infrastructure and Utilities Contractors: Sites such as substations, fuel storage areas, and processing plants where thermal anomalies are operational indicators as much as fire risks benefit from continuous thermal monitoring that the 2.1mm lens provides across a wide field of view.

Honest Assessment

The DS-2TD1228T-2-QA does something standard surveillance cameras cannot: it monitors for heat and fire in conditions of complete darkness, smoke, or obscured sightlines where the optical channel alone would provide no warning. The bi-spectrum design is genuinely useful because it pairs the thermal alarm with a 4MP visual record in a single housing, reducing both device count and system complexity for sites that need both capabilities. The turret form factor also makes installation more straightforward than bulkier dedicated thermal housings. Where this camera has clear limits: the 2.1mm thermal lens produces a wide field of view suited to medium-range area monitoring, not long-range perimeter inspection or precise temperature measurement at distance. It is also not a substitute for a certified fire detection system where one is required by Australian building codes or insurance conditions. For facilities that need integration with fire panels or compliance-grade detection, a licensed fire systems contractor should assess requirements alongside this camera's role. The DS-2TD1228T-2-QA is supplied by Security Australia and is part of the Hikvision Heat Pro series.

Before You Buy

Quick Fit Check

• Good match if: You need to monitor a warehouse bay, recycling stockpile, or battery storage area for heat anomalies and want a single device that also provides 4MP optical video and 15m IR night coverage from the same mounting point.
• Good match if: Your site has areas where smoke or low-light conditions would blind a standard camera but heat detection is still required - the thermal channel operates independently of visible light and is not affected by smoke in the same way an optical sensor is.
• You may need a different model if: You require long-range thermal detection across a large outdoor perimeter or precise temperature spot measurement - a higher-resolution thermal camera with a longer focal length thermal lens would deliver better detection performance at distance.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need fire and smoke detection combined with standard 4MP optical surveillance in a single compact turret housing, particularly for enclosed industrial spaces, battery storage, or material stockpile areas where thermal early-warning is the primary requirement.
• You may need a different model if: Your priority is long-range perimeter thermal detection or precise radiometric temperature measurement across large outdoor distances - a dedicated thermal camera with a longer focal length and higher-resolution thermal sensor will perform significantly better in those scenarios.
• Pairs well with: A compatible Hikvision NVR with thermal camera support and alarm output capability, allowing fire detection events from the thermal channel to trigger external sirens, strobe lights, or monitoring centre notifications.

Common Questions

1. Will this camera detect a fire before smoke becomes visible?

   Yes. The thermal sensor detects heat anomalies - including smouldering materials and rising surface temperatures - before combustion reaches a stage that produces visible smoke. This is the core operational purpose of the Heat Pro series. Conventional optical cameras, including those with high resolution, cannot detect thermal signatures and will only record a visible event after it has already developed significantly.

2. Does this camera replace a certified fire alarm system?

   No. The DS-2TD1228T-2-QA is a thermal detection and surveillance camera, not a fire alarm system component certified under Australian Standard AS 1670. It functions as an early-warning and monitoring tool. Sites that require compliant fire detection for building approval, insurance, or regulatory purposes must still install a certified fire detection system. This camera operates best as a supplementary layer alongside that infrastructure.

3. How does the bi-spectrum design work in practice?

   Both sensors operate simultaneously and independently. The 2.1mm thermal lens produces a continuous heat-map of the monitored area, and the 2.2mm optical lens records standard 4MP video. When the thermal channel detects a heat anomaly or fire signature, the alarm is generated while the optical channel provides the corresponding visual record of the same scene at the same time. Operators viewing footage see both streams, allowing immediate visual confirmation of what the thermal channel has flagged.

4. What is the thermal detection range with the 2.1mm lens?

   The 2.1mm thermal lens produces a wide field of view suited to area monitoring at close to medium range rather than long-distance spot detection. It is designed for monitoring defined zones - bays, equipment areas, stockpile sections - rather than covering large open perimeters from a single point. For applications requiring thermal detection at longer distances, a camera with a longer focal length thermal lens should be specified instead.

5. Does the thermal sensor work in complete darkness and through smoke?

   Yes on both counts. The thermal sensor detects emitted heat radiation and does not require any light source to function. It operates in complete darkness at the same performance level as in daylight. In early-stage smoke conditions, thermal sensors maintain detection capability at a stage when an optical camera's image has already become obscured, which is one of the primary reasons bi-spectrum cameras are specified for fire-risk environments.

6. What NVR is needed to support both the thermal and optical channels from this camera?

   A Hikvision NVR that supports thermal camera integration is required to make use of both channels and the fire/smoke detection alarm functionality. Not all standard NVRs handle thermal camera event outputs. Confirm with Security Australia that your chosen NVR model supports DS-2TD series thermal cameras and can receive alarm triggers from the thermal channel before purchasing.

7. Does this camera do temperature spot measurement or radiometric analysis?

   The DS-2TD1228T-2-QA is specified for fire and smoke detection rather than precision radiometric temperature measurement. It is designed to identify thermal events and anomalies indicative of fire risk. If your application requires accurate surface temperature readings at specific points - for example, equipment condition monitoring or compliance temperature logging - a radiometric thermal camera with temperature measurement accuracy specifications should be assessed instead.
