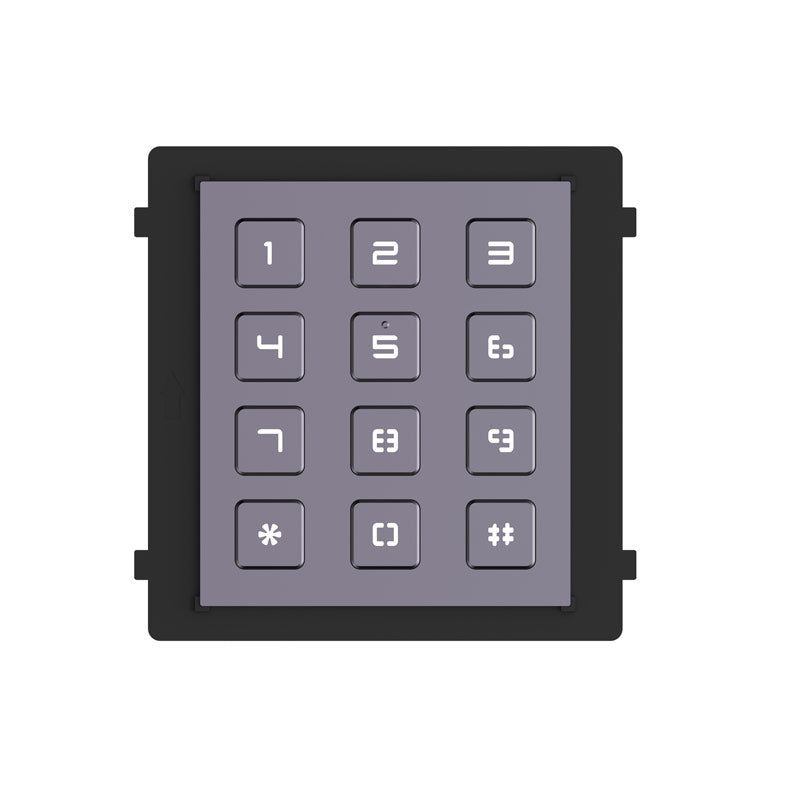

Hikvision Gen2 DS-KD-KP Video Intercom Keypad Module

Model: DS-KD-KP

Who This Is For

For installers and building managers who need PIN-based entry and apartment calling at a modular Hikvision door station, the DS-KD-KP Keypad Module slots directly into the DS-KD8003-IME1 door station assembly via RS485 connection. It gives residents and authorised visitors a physical 12-button keypad to enter a code that either calls a specific apartment or triggers door release directly - without relying on a touchscreen or a companion app. IP65 weatherproofing and an IK07 impact rating make it suited to exposed building entrances where the keypad will face daily handling and variable Australian weather conditions. The module draws power from the connected door station unit, keeping wiring tidy, and supports both flush and surface mounting to suit new-build and retrofit entry points. It is the right add-on when a code-based access layer is needed alongside the video intercom functions already built into the door station.

What This Module Actually Does

Who Buys This Module

• Apartment and unit complex installers: Adding a PIN calling function to a DS-KD8003-IME1 door station so individual tenants can be called by code rather than navigating a touchscreen directory.
• Body corporates and strata managers: Specifying a vandal-resistant, weatherproof keypad entry point at a shared building entrance where residents need code access after hours without requiring a key or fob.
• Commercial property owners: Expanding an existing Hikvision modular door station with a physical keypad to give delivery staff or contractors time-limited PIN access to a gate or entry lobby without issuing physical credentials.
• Security integrators: Completing a modular Hikvision intercom build that requires both video calling and independent PIN access at the same entrance pillar, using the RS485 daisy-chain connection to keep wiring simple.

Honest Assessment

The DS-KD-KP does one job well: it adds a physical, weatherproof PIN entry and apartment calling function to the Hikvision modular door station without complicating the wiring. The RS485 bus connection, module-powered operation, and compact housing mean integration into an existing DS-KD8003-IME1 build is clean and straightforward. The IP65 and IK07 ratings are legitimate for an outdoor entry point that will see daily use. The -40°C to +60°C operating range is genuinely broad enough to cover most Australian installation conditions without concern.

What it will not do: the DS-KD-KP is not a standalone access control device - it only functions as part of the Hikvision modular door station system and is not compatible with third-party intercom platforms. It does not include a card reader or Bluetooth credential function; if proximity or mobile credentials are a requirement, a different module type would be more appropriate. Available through Security Australia, this module suits builds where a reliable physical keypad is the access method of choice.

Before You Buy

Quick Fit Check

• Good match if: You are building or expanding a DS-KD8003-IME1 door station installation and need a physical PIN keypad for apartment calling and door release at an outdoor entrance.
• Good match if: The entry point is exposed to weather or public contact and requires IP65 ingress protection and IK07 impact resistance in a compact flush or surface-mount form.
• You may need a different model if: Your access control specification calls for card, fob, or mobile credential entry - a Hikvision modular card reader module would be the more suitable addition to the door station build.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your access requirement is PIN-based apartment calling and door release on a Hikvision DS-KD8003-IME1 door station, and a physical keypad is the preferred interface at the entry point.
• You may need a different model if: Your site requires card, fob, or mobile credential access - a Hikvision modular card reader or proximity reader module fitted to the same door station platform would be more appropriate.
• Pairs well with: Hikvision modular door station units, indoor monitor stations, and a compatible door release controller or electric strike at the same entrance.

Common Questions

1. Will the DS-KD-KP work with any intercom or door station brand?

   No. The DS-KD-KP is designed exclusively for the Hikvision Gen2 modular door station platform, specifically the DS-KD8003-IME1. It uses an RS485 bus connection and draws 12VDC power from the door station module chain. It will not function as a standalone unit or connect to third-party intercom systems.

2. Does the keypad module need its own power supply?

   No. The DS-KD-KP draws 12VDC directly from the connected door station module via the module-connecting interface, consuming a maximum of 2W. No separate power supply or additional power cable run is required, which simplifies installation particularly in retrofit or surface-mount scenarios.

3. Can multiple keypad modules be connected to a single door station?

   This depends on the number of available module-connecting ports on the door station unit. The DS-KD-KP has 1 input and 1 output module-connecting interface, allowing it to sit in a daisy-chain of modules. Each module in the chain also requires a unique DIP switch address configuration to avoid conflicts. Confirm the door station's maximum module count before planning a multi-module build.

4. Is the DS-KD-KP weatherproof enough for an outdoor entry point?

   Yes. The module is rated IP65 for dust and water ingress protection and IK07 for impact resistance, making it suitable for exposed outdoor entry points including those subject to direct rain, humidity between 10% and 95%, and temperatures from -40°C to +60°C. This covers the full range of outdoor conditions typical across Australian climates. The module is stocked by Security Australia for this type of installation.

5. What is the DIP switch used for on this module?

   The 8-position DIP switch sets the module's address within the door station module chain. Each module connected to the same door station must have a unique DIP address to function correctly. The switch should be configured before the module is mounted, as accessing it post-install on a flush-mounted unit may require removing the module from the wall.

6. Does this module support card or fob access?

   No. The DS-KD-KP is a physical keypad module only, with 12 physical buttons for PIN entry and apartment calling. It does not include a card reader, NFC, or proximity reader function. If card or fob credentials are needed at the same entrance, a separate Hikvision modular card reader module would need to be added to the door station build alongside the keypad.

7. Can the DS-KD-KP be flush mounted in a standard wall box?

   Yes. The module supports both flush mounting and surface mounting. At 98.5 x 100 x 33.7mm, the housing is compact enough for standard modular intercom rough-in boxes used in new-build multi-residential construction. For surface mounting on a post or pillar, the same housing mounts directly without an additional back box.

Cabling Considerations

• Connection Type: RS485 via the supplied module-connecting leads between the DS-KD-KP and the DS-KD8003-IME1 door station or adjacent module in the chain.
• Power Cabling: No separate power cable required - the module draws 12VDC from the door station module chain through the module-connecting interface.
• DIP Switch Configuration: Set the 8-position DIP switch to a unique address before mounting. If multiple modules share the same address, communication errors will occur on the RS485 bus.
• Module Chain Planning: The DS-KD-KP has 1 input and 1 output module-connecting port. Plan the full module chain layout before installation to confirm port availability on the door station and to determine DIP switch address assignments for each module in the build.
