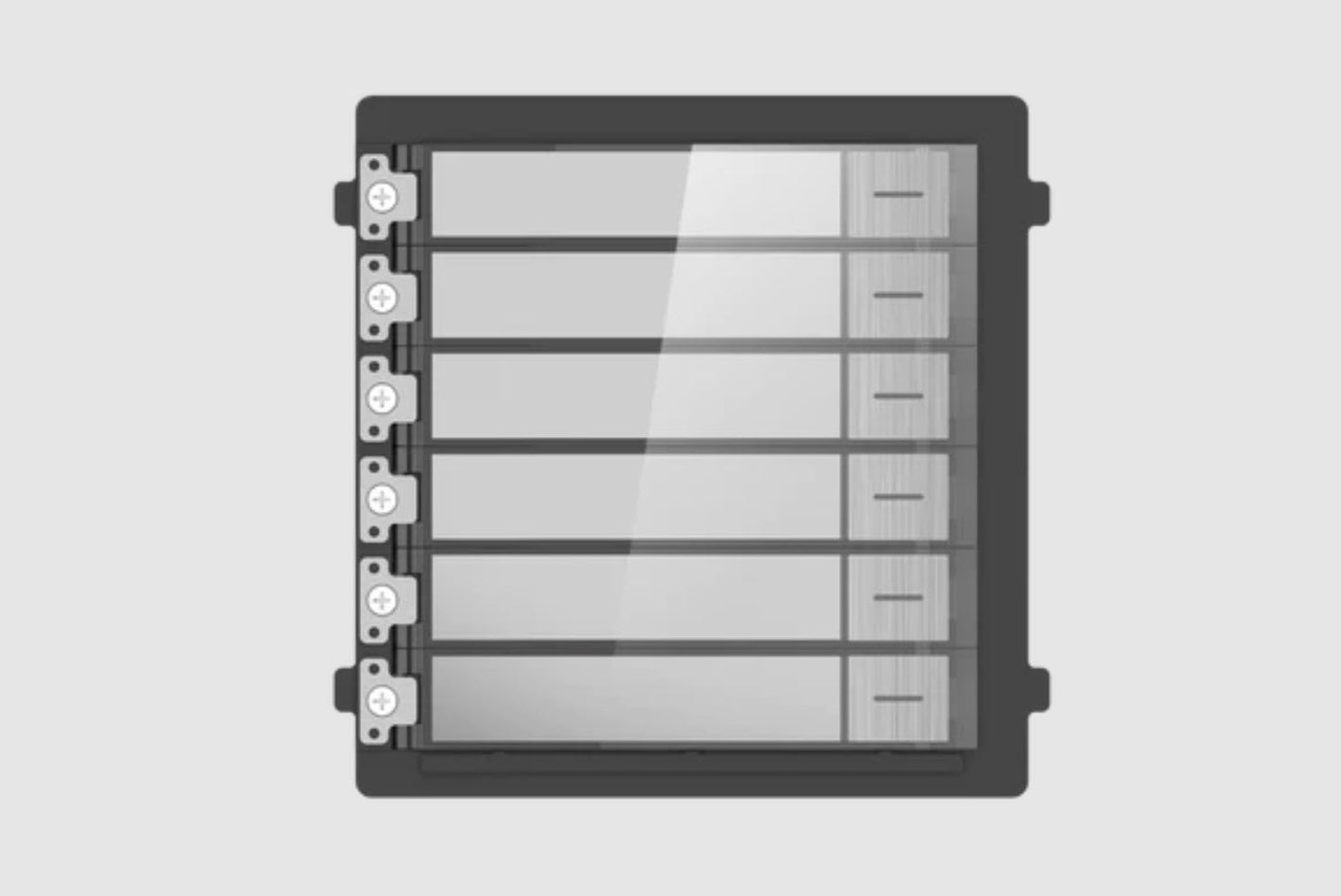

Hikvision Gen2 DS-KD-KK/S Video Intercom Nametag Module (Stainless Steel)
KD8 Series Pro Modular Door Station
The KD8 Series Pro Modular Door Station DS-KD-KK/S from Hikvision is a nametag module designed with six buttons for easier calling functionality. It features an IP65 protection rating, making it resistant to dust and water. The backlit buttons allow clear visibility in low-light environments. Made from high-quality stainless steel, it offers durability and ease of use. This modular design also makes it simple to extend or integrate with other systems.
Key Features
- Nametag module of modular door station
- Six nametag buttons calling Design For easier calls
- IP65 protection level
- Backlight compensation behind the nametag buttons
- Easy to use and extend
- Stainless Steel high quality material
Code/SKU: DS-KD-KK/S
Quick Specs:
- Protective Level: IP65, IK07
- Working Temperature: -40 °C to 55 °C (-40 °F to 131 °F)
- Working Humidity: 10% to 95%
Need help choosing?
Click to ask a question - same day response (~2 hours during business hours)
Product Overview
The Hikvision KD8 Series Pro Modular Door Station DS-KD-KK/S is a versatile and durable outdoor module designed for entry systems. It features six backlit nametag buttons, making it easy to call specific locations, and it’s IP65-rated for weather resistance, making it suitable for various environments. Built with high-quality stainless steel, it supports modular expansion and is simple to install with both flush and surface mounting options. This device operates in a wide temperature range and consumes minimal power at just 0.8W.
Features
- Six nametag buttons for easy calling.
- IP65 weatherproof rating.
- IK07 vandal-resistant protection.
- Stainless steel material for durability.
- Backlight compensation for better visibility.
- Operates in temperatures from -40°C to 55°C.
- Supports TCP/IP and RTSP network protocols.
- Flush or surface mounting options.
- 12 VDC power supply for modular connection.
- Designed for outdoor environments with 10% to 95% humidity range
Technical Specifications
| General | |
|---|---|
| Button | 6 |
| Installation | Flush mounting, surface mounting |
| Indicator | / |
| Weight | Net weight: 265 g Gross weight: 529 g |
| Protective Level | IP65, IK07 |
| Working Temperature | -40 °C to 55 °C (-40 °F to 131 °F) |
| Working Humidity | 10% to 95% |
| Dimension (W × H × D) | 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33") |
| Battery | / |
| Power Supply | 12 VDC, powered for other module |
| Application Environment | Outdoor |
| Power Consumption | 0.8W |
Key Features
Trusted Brand Partner & Security Equipment Wholesaler
- Authorised Brand Partner with Responsive & Fast Aussie Sales Support Team ★★★★★
- Best After-Sales Support and Troubleshooting Team with Years of Installation Experience.
What This Product Does
KD8 Series Pro Modular Door Station
The KD8 Series Pro Modular Door Station DS-KD-KK/S from Hikvision is a nametag module designed with six buttons for easier calling functionality. It features an IP65 protection rating, making it resistant to dust and water. The backlit buttons allow clear visibility in low-light environments. Made from high-quality stainless steel, it offers durability and ease of use. This modular design also makes it simple to extend or integrate with other systems.
Key Features
- Nametag module of modular door station
- Six nametag buttons calling Design For easier calls
- IP65 protection level
- Backlight compensation behind the nametag buttons
- Easy to use and extend
- Stainless Steel high quality material
Code/SKU: DS-KD-KK/S
Quick Specs:
- Protective Level: IP65, IK07
- Working Temperature: -40 °C to 55 °C (-40 °F to 131 °F)
- Working Humidity: 10% to 95%
Not sure if this suits your site?
Ask our team before ordering. We can help confirm lens choice, recorder compatibility, mounting accessories and project quantities.
Specifications
Specifications
| System Parameters | |
|---|---|
| Operation System | Linux |
| ROM | / |
| RAM | / |
| Processor | Embedded high performance processor |
| Display Parameters | |
| Screen Size | / |
| Operation Method | / |
| Type | / |
| Resolution | / |
| Video Parameters | |
| Lens | / |
| Resolution | / |
| FOV | / |
| Wide Dynamic Range (WDR) | / |
| Supplement Light | / |
| Video Compression Standard | / |
| Audio Parameters | |
| Audio Input | / |
| Audio Compression Standard | / |
| Audio Output | / |
| Audio Compression Bitrate | / |
| Audio Quality | / |
| Volume Adjustment | / |
| Capacity | |
| User Capacity | / |
| Face Capacity | / |
| Card Capacity | / |
| Linked Network Camera Capacity | / |
| Network Parameters | |
| Network Protocol | TCP/IP, RTSP |
| Wi-Fi | / |
| Bluetooth | / |
| 3G/4G | / |
| Device Interfaces | |
| Alarm Input | / |
| Network Interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | / |
| Exit Button | / |
| RS-485 | 2 |
| USB | / |
| Wiegand | / |
| TF Card | / |
| Alarm Output | / |
| Lock Control | / |
| Door Contact Input | / |
| General | |
| Button | 6 |
| Installation | Flush mounting, surface mounting |
| Indicator | / |
| Weight | Net weight: 265 g Gross weight: 529 g |
| Protective Level | IP65, IK07 |
| Working Temperature | -40 °C to 55 °C (-40 °F to 131 °F) |
| Working Humidity | 10% to 95% |
| Dimension (W × H × D) | 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33") |
| Battery | / |
| Power Supply | 12 VDC, powered for other module |
| Application Environment | Outdoor |
| Power Consumption | 0.8W |
