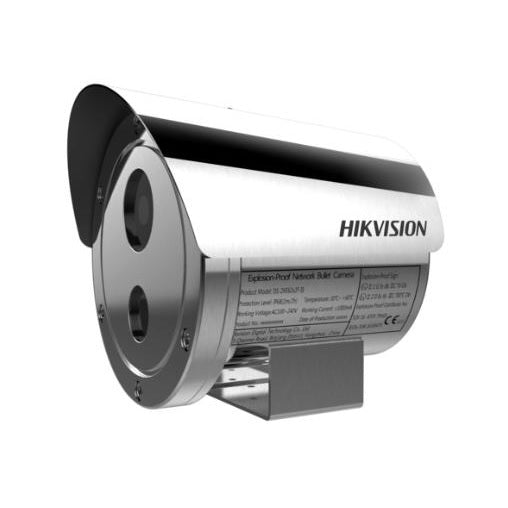

Hikvision EXPLOSION Proof SERIES DS-2XE6242F-IS 4mp 316l STAINLESS Steel Camera, 6mm Lens, 30m I

Model: DS-2XE6242F-IS

Who This Is For

When hazardous area compliance is the non-negotiable first requirement, standard CCTV cameras are not an option. The Hikvision DS-2XE6242F-IS is built specifically for classified explosive atmospheres - oil and gas facilities, petrochemical plants, solvent storage areas, grain handling operations, and mining sites where ignitable vapours, gases, or dusts may be present. The 316L stainless steel housing resists aggressive chemical environments and coastal corrosion, making it practical for offshore and coastal industrial installations where standard housings would fail within months. Electrical engineers and hazardous area specialists specifying camera positions within Zone 1, Zone 2, Zone 21, or Zone 22 classified locations will recognise the DS-2XE6242F-IS as a purpose-built solution rather than a camera retrofitted into an aftermarket enclosure. At 4MP with a 6mm fixed lens and 30m IR, it delivers usable image detail while meeting the certification obligations that govern these environments.

What This Camera Actually Does

Who Buys This Model

• Hazardous Area Electrical Engineers: Specifying camera positions within ATEX or IECEx classified zones on oil, gas, petrochemical, or mining sites where certification documentation is required for regulatory approval and site safety cases.
• Offshore and Coastal Facility Operators: Requiring 316L stainless steel construction to resist salt spray and chloride corrosion in marine environments where standard aluminium-housing cameras degrade rapidly.
• Grain Handling and Flour Mill Operators: Monitoring Zone 21 and Zone 22 combustible dust environments - storage silos, conveyor areas, and loading bays - where dust explosion risk requires certified equipment.
• Security Integrators Servicing Heavy Industry: Installing surveillance on behalf of clients who must demonstrate compliant camera placement as part of their Hazardous Area Management Plan or insurance requirements.
• Chemical and Solvent Processing Plants: Covering internal process areas, drum storage zones, and chemical transfer bays where vapour release events create classified atmosphere conditions during normal operations.

Honest Assessment

The DS-2XE6242F-IS does what almost no other camera in its class does - it combines a factory-certified explosion-proof housing, 316L stainless steel construction, IP68 sealing, and a functional 4MP imaging system with 30m IR and two-way audio into a single deployable unit. For facilities that genuinely require hazardous area certification, this camera removes the compliance complexity of adapting standard cameras to the task. The 6mm fixed lens suits controlled corridors, equipment bays, and defined approach paths well. Where it has clear limits: it is a fixed focal length camera, so coverage planning matters - areas requiring wide-angle overview or long-range identification beyond 30m will need a different lens option or additional camera positions. It is not a substitute for a PTZ where operator-directed tracking is needed. Pricing reflects the specialist manufacturing and certification involved. Available through Security Australia for integrators and facility operators working in classified hazardous locations.

Before You Buy

Quick Fit Check

• Good match if: Your camera position falls within a Zone 1, Zone 2, Zone 21, or Zone 22 classified area and your site requires factory-certified explosion-proof equipment - not an adapted housing solution - for regulatory and insurance compliance.
• Good match if: The installation environment involves aggressive chemical exposure, salt air, or regular washdown, and the 316L stainless steel construction and IP68 sealing are specified requirements for long-term housing integrity.
• You may need a different model if: Your monitoring requirement is in a non-classified industrial area where a standard IP66/IP67 rated heavy-duty bullet or turret camera would meet the environmental spec without the cost and installation requirements of explosion-proof certified equipment - browse the industrial camera range at securityaustralia.com.au for suitable alternatives.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your camera position carries a formal hazardous area zone classification and you need factory-certified explosion-proof equipment with 316L stainless steel construction and IP68 sealing to satisfy site safety, regulatory, and insurance requirements.
• You may need a different model if: Your site is a heavy industrial environment without a formal hazardous area classification - a standard heavy-duty outdoor bullet or turret camera with IP67 or IP66 rating and a robust aluminium housing will perform equally well at significantly lower cost and with simpler installation requirements.
• Pairs well with: An industrial-rated PoE switch or PoE injector mounted outside the classified zone, fed back to a compatible NVR with sufficient channels for your hazardous area camera count - explosion-proof rated network infrastructure may also be required depending on where the cabling runs.

Common Questions

1. Is this camera actually certified for Zone 1 classified hazardous areas, or does it just have a rugged housing?

   Yes, the DS-2XE6242F-IS carries explosion-proof certification covering Zone 1 and Zone 2 gas/vapour atmospheres and Zone 21 and Zone 22 combustible dust environments. This is a purpose-built explosion-proof product, not a standard camera placed inside an aftermarket protective enclosure. The certification is integral to the unit and should be accompanied by the manufacturer's declaration of conformity, which is required when submitting installation documentation for hazardous area compliance sign-off.

2. Why does the housing material matter - why specify 316L stainless steel specifically?

   316L stainless steel offers significantly higher resistance to chloride-induced corrosion than standard 304 stainless or aluminium alloys. In coastal, offshore, or chemical plant environments where salt spray, acidic vapours, or industrial cleaning agents are present, standard housings oxidise and degrade over 12 to 24 months. The 316L specification extends the service life of the housing in these aggressive conditions and is a common materials requirement in offshore and chemical industry procurement specifications.

3. Will this camera work with a standard PoE switch, or does it need specialised power infrastructure?

   Yes, it operates on standard IEEE 802.3af PoE, so a standard PoE switch or PoE injector located outside the classified zone can power the camera via a single Cat5e or Cat6 cable. The critical compliance point is that the cable entry into the explosion-proof housing must use correctly rated explosion-proof cable glands - the PoE switch itself does not need to be explosion-proof provided it is positioned outside the classified area boundary and the cable route into the zone is correctly gland-sealed and documented.

4. Does this camera work with standard Hikvision NVRs, or does it require specialist recording hardware?

   Yes, the DS-2XE6242F-IS is an ONVIF-compliant Hikvision IP camera that connects to any compatible Hikvision NVR or third-party ONVIF-compliant recorder. There is no requirement for specialist recording hardware specific to explosion-proof cameras. The NVR simply needs sufficient channels and storage for the 4MP stream - H.265+ compression keeps bitrates manageable, which helps with storage planning across multi-camera hazardous area installations. Security Australia stocks compatible Hikvision NVRs that are confirmed to work with this camera series.

5. What does the explosion-proof certification actually prevent - does the housing stop the camera from igniting surrounding gases?

   Yes, that is precisely the function of the certification. An explosion-proof housing is engineered to contain any internal ignition event - such as an electrical arc or spark within the camera's circuitry - so that hot gases cannot escape the enclosure at temperatures or pressures capable of igniting the surrounding classified atmosphere. The housing is not simply a sealed enclosure; it is designed and tested to specific flame path tolerances and surface temperature limits that prevent it from becoming an ignition source in the event of an internal fault. This is distinct from the camera's IP68 sealing, which addresses ingress protection separately.

6. Does this camera's explosion-proof certification remain valid if I modify the housing or cable entry during installation?

   No. Any modification to the housing, unauthorised cable entry point, or use of non-rated cable glands invalidates the explosion-proof certification of the installed unit. The certification applies to the camera as manufactured, and the integrity of the cable gland seals at every entry point is considered part of the certified installation. Australian Standard AS/NZS 60079.14 governs the installation of electrical equipment in explosive atmospheres and sets the requirements for who can perform and certify this type of installation work - this should be reviewed with your hazardous area competent person before the installation commences.

Downloads & Resources

No downloads available for this product.
