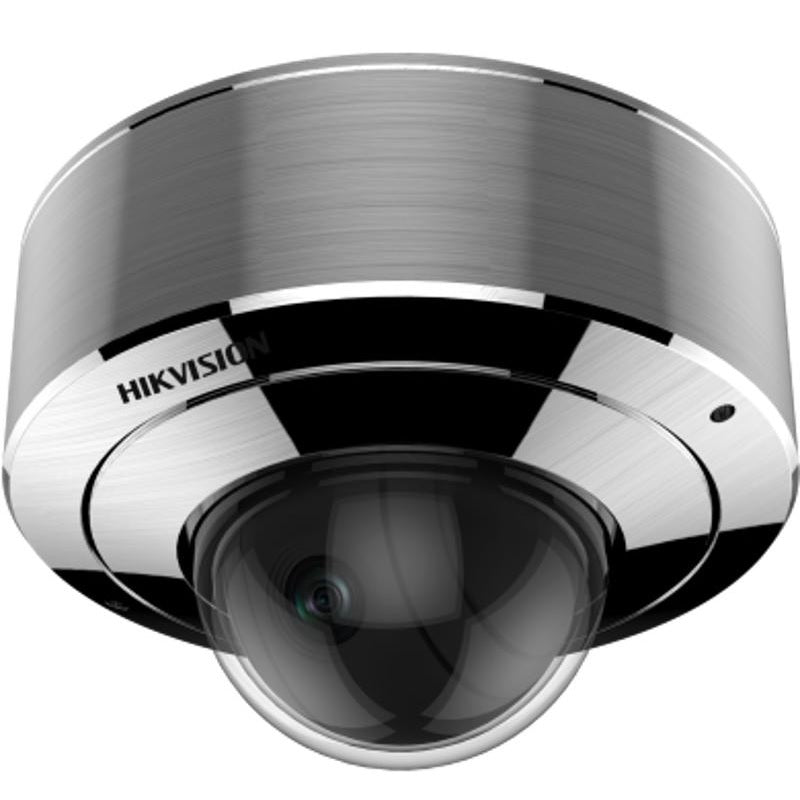

Hikvision EXPLOSION-PROOF DS-2XE6146F-HS Dome Camera Fixed 4mm

Model: DS-2XE6146F-HS

Who This Is For

When a hazardous-area classification makes standard CCTV hardware a non-starter, the Hikvision DS-2XE6146F-HS is the product that fills the gap. Built for Zone 1 and Zone 21 environments where flammable gases, vapours, or combustible dusts may be present, this explosion-proof dome is specified by engineers and safety managers across oil and gas facilities, chemical processing plants, grain handling operations, paint spray booths, and similar sites where ignition risk dictates every piece of electrical equipment installed. The fixed 4mm lens suits close-to-medium monitoring of access points, valve stations, loading bays, and process areas where a consistent field of view is all that is needed. Installers working in ATEX or IECEx-governed environments will recognise the certification discipline this housing demands, and the dome form factor keeps the camera profile manageable on conduit-entry enclosures where bulk is a practical concern.

What This Camera Actually Does

Who Buys This Model

• Oil and Gas Facilities: Engineers specifying cameras for wellhead areas, pump stations, and processing modules where Zone 1 gas classifications apply and standard IP cameras cannot legally be installed.
• Chemical and Petrochemical Plants: Safety and security managers who need verified ATEX/IECEx documentation to satisfy both insurance requirements and site safety audits in solvent storage and reaction areas.
• Grain Handling and Milling Operations: Facility managers covering conveyor transfer points, elevator legs, and grain storage areas where combustible dust creates Zone 21 classification requirements.
• Paint Spray Booths and Coating Lines: Industrial integrators fitting out automotive and manufacturing facilities where solvent vapour concentrations make explosion-proof ratings mandatory for any electrical equipment in the spray zone.
• Hazardous Area Electrical Contractors: Certified installers completing CCTV scope-of-works on classified-area projects who need a camera that arrives with traceable certification documentation, not just a weatherproof housing.

Honest Assessment

The DS-2XE6146F-HS does one thing that no standard IP camera can do: it carries the explosion-proof certification to be legally installed inside a classified hazardous area. The fixed 4mm lens, IR illumination, IP66/67 rating, and H.265+ compression are well-matched to process monitoring, perimeter access points, and low-movement industrial scenes where a consistent wide field of view is the priority. The dome format is practical where ceiling or wall conduit entries are already planned into the zone design. What this camera will not do is cover long-distance approaches or track moving subjects - if wide-area surveillance or optical zoom is needed in the classified zone, a PTZ explosion-proof model is a better fit. It is also not a thermal camera despite tag classifications, so heat-detection or fog-penetration requirements call for a dedicated explosion-proof thermal unit. Available through Security Australia, this model suits projects where the certification chain matters as much as the image quality.

Before You Buy

Quick Fit Check

• Good match if: Your site has a confirmed ATEX or IECEx Zone 1 or Zone 21 classification and you need a network dome camera with certified explosion-proof housing and traceable documentation for audit compliance.
• Good match if: The monitored area is a close-to-medium range process point, access gate, or valve station where the 4mm fixed lens field of view covers the scene without needing optical zoom or pan-tilt adjustment.
• You may need a different model if: Your application requires active subject tracking, long-range optical zoom, or wide-area perimeter sweep - an explosion-proof PTZ camera is a more suitable product type for those scenarios.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your installation site carries a confirmed ATEX or IECEx hazardous area classification and you need a fixed-lens dome network camera with full certification documentation - no standard IP camera, regardless of its IP rating, can substitute in a classified Zone 1 or Zone 21 area.
• You may need a different model if: Your application requires active pan-tilt coverage, optical zoom to track distant subjects, or wide-area sweep capability inside the classified zone - an explosion-proof PTZ camera type is the appropriate product category for those requirements.
• Pairs well with: A Hikvision NVR located in the safe area control room, connected via a conduit and cable run through the zone boundary with appropriate cable glands and barriers at the division point.

Common Questions

1. Is the DS-2XE6146F-HS legal to install in a Zone 1 gas or Zone 21 dust environment?

   Yes, provided installation is carried out by a competent hazardous-area qualified person and the completed installation is certified per local requirements. The camera holds ATEX and IECEx certification for Zone 1 (flammable gas and vapour) and Zone 21 (combustible dust) classified areas. In Australia, the relevant standard is AS/NZS 60079, and completed installations in classified areas require inspection by the relevant state electrical authority or an approved certifying body before commissioning.

2. Can I use a standard IP camera with a high IP rating instead of this model in a classified area?

   No. An IP66 or IP67 standard camera is rated for environmental ingress only - it carries no explosion-proof certification and cannot legally be installed in a Zone 1 or Zone 21 area. The IP rating addresses dust and water, not ignition containment. Only cameras with verified ATEX or IECEx explosion-proof certification meet the legal and insurance requirements for classified hazardous area installation.

3. Does this camera work with standard Hikvision NVRs in the control room?

   Yes. The DS-2XE6146F-HS is a standard network IP camera from a protocol perspective and integrates with Hikvision NVRs and IVMS-4200 VMS software in the normal way. The explosion-proof requirement applies to the camera hardware installed inside the classified zone - the NVR, switch, and recording infrastructure are located in the safe area outside the zone boundary and do not require explosion-proof ratings.

4. Will this camera work at night without adding lights inside the hazardous area?

   Yes. The DS-2XE6146F-HS includes built-in IR illumination, so it can produce usable monochrome imagery in darkness without requiring separate lighting infrastructure inside the classified zone. This is a practical benefit on hazardous-area projects where introducing any additional electrical fitting into the zone requires its own zone-rated certification, conduit entries, and approval process.

5. What certification documents should I request for a site audit or insurance inspection?

   You should request the ATEX certificate, IECEx certificate, and the product's Declaration of Conformity from the supplier at the time of purchase. These documents confirm the specific gas groups, temperature classes, and zone ratings the camera is certified for. Stocked by Security Australia, the DS-2XE6146F-HS is part of Hikvision's dedicated explosion-proof range, and certification documentation should be retained with the site's hazardous-area equipment register as required by AS/NZS 60079.40.

6. Does the explosion-proof housing limit how the cable enters the camera?

   Yes. The enclosure uses specific threaded conduit entry points, and all cable entries must use explosion-proof certified cable glands or conduit fittings rated to match the camera's zone classification. The thread type and entry size must be confirmed before ordering glands. Using an uncertified gland or leaving an entry unsealed will void the explosion-proof certification and create a non-compliant installation regardless of the camera's own rating.

7. Does this camera support PoE, and how does that interact with zone barrier requirements?

   Yes, the DS-2XE6146F-HS supports PoE (IEEE 802.3af) as a power option, which allows a single Cat cable to carry both data and power from the safe-area switch to the camera. However, on many classified-area installations the cable run passes through a zone boundary, and Zener barriers or galvanic isolators are used at that boundary to limit the electrical energy that can enter the zone. If barriers are used, confirm that the barrier's output power budget is sufficient to power the camera at full load before finalising the infrastructure design.
