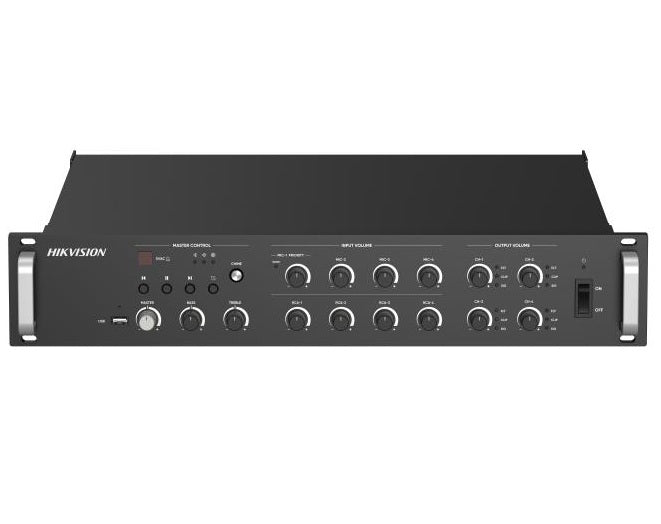

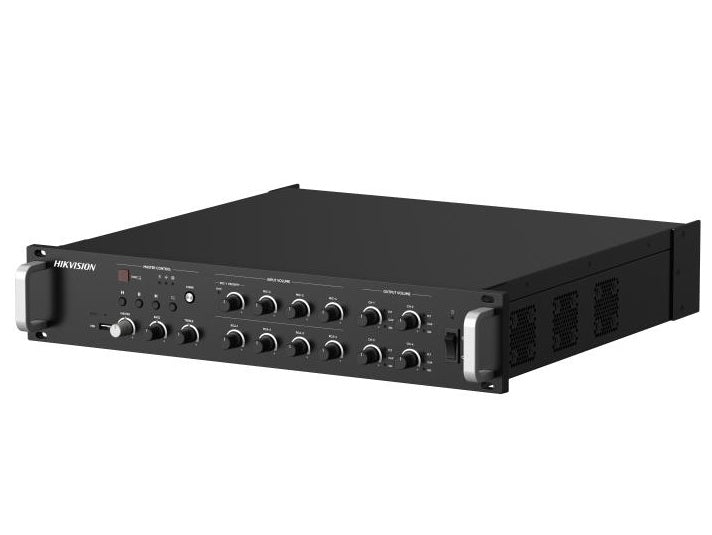

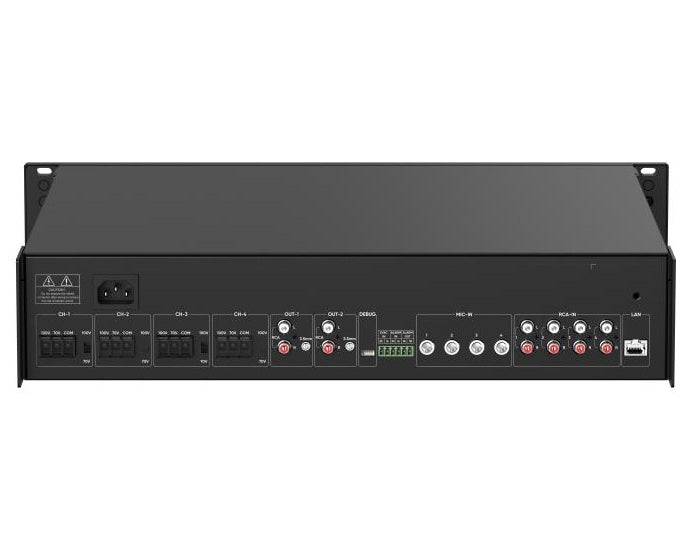

Hikvision DS-QAZ1A1000G1-VB4 1000W 4-Zone Network Amplifier with USB, Bluetooth, MIC & RCA Audio Input

Model: DS-QAZ1A1000G1-VB4-EU

Who This Is For

When a centrally managed public address and background music system across multiple zones is the priority, the Hikvision DS-QAZ1A1000G1-VB4 sits at the core of that install. This 1000W 4-zone network amplifier is built for integrators and audio-visual contractors commissioning IP-based audio systems in commercial and institutional environments - think warehouses, retail centres, school campuses, aged care facilities, and large hospitality venues. The unit accepts audio from USB, Bluetooth, microphone, and RCA inputs, giving installers and operators genuine flexibility in how content is sourced and distributed across each independently controlled zone. Network management means the amplifier can be monitored, configured, and controlled without a technician physically at the rack. For any site where zoned paging, background music, and emergency announcements need to run from a single managed unit, this amplifier is the logical starting point for the system design.

What This Unit Actually Does

Who Buys This Model

• AV and Security Integrators: Contractors specifying a managed IP audio backbone for multi-zone commercial sites, taking advantage of network control and the 4 independent zone outputs to keep the system scalable and centrally monitored.
• School and Campus Facilities Teams: Institutions that need live PA capability via MIC input for assembly calls or emergency announcements, with separate zones covering classrooms, corridors, and outdoor areas independently.
• Retail and Hospitality Operators: Venues requiring background music via Bluetooth or USB across different sections of the site, with the ability to override with a live page when needed - all managed from a single rack-mounted unit.
• Warehouse and Industrial Facility Managers: Sites where high-output coverage is needed across large open spaces and loading areas, and where paging capability for staff safety announcements is a core operational requirement.
• Aged Care and Health Facility Operators: Facilities requiring compliant, zoned audio distribution for background content and emergency paging, with IP-based management reducing the need for on-site technician attendance for routine adjustments.

Honest Assessment

The DS-QAZ1A1000G1-VB4 does several things well for a managed commercial audio install. The combination of 4 independently controlled zones and 1000W output in a single network-connected unit removes the need for a separate zone controller and a standalone amplifier on smaller-to-mid commercial projects. The range of input types - USB, Bluetooth, MIC, and RCA - means the system works out of the box for most audio source scenarios without additional hardware. Network management is the genuine differentiator here: scheduling, remote volume adjustment, and system monitoring without physical access to the rack are meaningful operational advantages on large sites. Where this unit is not the right tool is in small single-room or residential installs where 1000W is far more than required and the IP management overhead adds unnecessary complexity. For those applications, a smaller zone amplifier would be more appropriate. The DS-QAZ1A1000G1-VB4 is part of the Security Australia range and is suited to professional integration projects where the full feature set will be utilised.

Before You Buy

Quick Fit Check

• Good match if: You are installing a managed multi-zone audio system across a commercial or institutional site where 4 independently controlled zones, live MIC paging, and IP-based remote management are all required from a single unit.
• Good match if: Your site needs flexible audio source options - including Bluetooth streaming for daily background music and USB playback for scheduled content - without adding separate source devices to the rack.
• You may need a different model if: Your project is a single-room or small-area install where a lower-wattage, single-zone amplifier would be a better fit - a smaller unit in the Hikvision audio range would suit that application more appropriately.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your project requires 4 independently controlled audio zones, live MIC paging capability, and network-based management from a single 1000W unit - particularly on commercial or institutional sites where remote configuration and zone scheduling matter.
• You may need a different model if: Your application is a small single-zone install or a low-power background music setup - a lower-wattage single or dual-zone amplifier from the Hikvision audio range would be a better fit without the overhead of a 4-zone network unit.
• Pairs well with: IP ceiling speakers, a dedicated network paging microphone station, and a structured Cat6 network infrastructure for full IP audio management across the site.

Common Questions

1. Can all 4 audio inputs be used at the same time?

   No - while the DS-QAZ1A1000G1-VB4 accepts USB, Bluetooth, MIC, and RCA inputs, only one source is active as the primary output at a time per zone, with input priority determining which source takes precedence. The MIC input is typically assigned the highest priority so live paging overrides background music sources automatically. Confirm the priority configuration during commissioning.

2. Does this amplifier require a separate software platform to use the network management features?

   Yes. Network management for the DS-QAZ1A1000G1-VB4 is accessed via Hikvision's IP audio management software, which integrates with the broader Hikvision ecosystem. The amplifier connects to your IP network and is discovered and managed through that platform. Standalone operation using the front-panel controls and direct input connections is also possible without the software active.

3. Will this amplifier work with non-Hikvision speakers?

   Yes, in most cases. The amplifier outputs to standard speaker line connections, so any compatible 100V line or low-impedance speakers with appropriate load matching can be connected. The 1000W total output needs to be distributed across zones with speaker loads calculated to match the amplifier's specifications - standard audio engineering practice applies regardless of speaker brand.

4. How is the 1000W split across the 4 zones?

   The total 1000W output is distributed across the 4 zones - the per-zone power allocation will depend on the unit's configuration and speaker load presented on each zone. Installers should refer to the datasheet and confirm per-zone wattage figures during system design to ensure each zone's speaker run is correctly rated for the expected output.

5. Does the Bluetooth input have a range limit that would affect how it is used on a large site?

   Yes. Bluetooth range on amplifiers of this type is typically limited to the equipment room or immediate vicinity - generally 10 metres depending on environment and Bluetooth version. This means Bluetooth is practical for a staff member or manager in or near the equipment room streaming to the amplifier, not for long-range wireless audio across a building. For source audio from remote locations, RCA or network audio streaming via the IP input is more appropriate.

6. Is the DS-QAZ1A1000G1-VB4 suitable for emergency evacuation PA systems in Australia?

   Not as a standalone certified emergency warning system. While the MIC paging and zone distribution functions are operationally useful for safety announcements, emergency warning and intercom systems (EWIS) in Australia are required to meet AS 7240.16 and must use compliant certified equipment. If your project has a mandatory EWIS compliance requirement, this amplifier should be discussed with your licensed fire protection engineer separately. For general-purpose paging and background music, it is well suited to the role - and Security Australia can advise on the appropriate product category for your specific site compliance requirements.

Downloads & Resources

No downloads available for this product.
