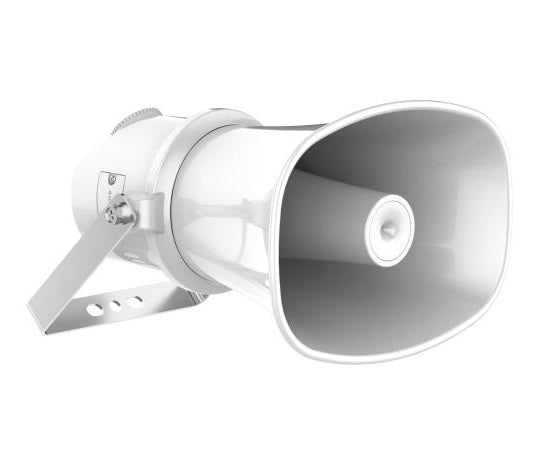

Hikvision DS-QAZ1307G1-E 7W PoE Network Horn Speaker with Two-Way Audio & IP67 Weather Protection

Model: DS-QAZ1307G1-E

Who This Is For

For security integrators and site managers who need network-controlled audio at outdoor locations without running a separate power cable, the Hikvision DS-QAZ1307G1-E is a 7W PoE horn speaker built for exactly that job. A single Cat5e or Cat6 cable delivers both power and data, making it practical for car parks, loading docks, perimeter fencing, building entrances, and industrial yards where a PA announcement or a live verbal challenge from a control room can stop an incident before it escalates. The IP67 weather rating means it handles rain, dust, and the kind of outdoor exposure that would kill a standard indoor speaker. Two-way audio lets operators not only broadcast to a location but also listen back, which is useful for access points, intercom extensions, and remote guard-tour verification. Suitable for standalone deployment or integration into a broader Hikvision IP audio or VMS system.

What This Device Actually Does

Who Buys This Model

• Security Integrators: Adding network-controlled verbal deterrence or PA capability to Hikvision camera and NVR installations without introducing a separate analogue audio system.
• Industrial Facility Managers: Deploying outdoor audio at loading docks, yard gates, and perimeter checkpoints where IP67 durability and PoE simplicity make installation practical without a dedicated power circuit.
• Warehouse and Logistics Operators: Using two-way audio to communicate with delivery drivers or contractors at unmanned entry points, linked to an IP camera or intercom system at the same location.
• Education and Healthcare Facilities: Extending PA announcement capability to external areas - courtyards, car parks, bus zones - using the existing network infrastructure rather than a legacy analogue PA backbone.

Honest Assessment

The DS-QAZ1307G1-E does a specific job well: it puts network-controlled, weatherproof, two-way audio at an outdoor location over a single Ethernet cable. The IP67 rating is genuine outdoor-grade protection, and PoE delivery makes installation clean and auditable. The horn form factor is directional by design, which focuses projected audio where it is needed rather than wasting output on areas behind the mount. Where this device will not serve you is in applications needing wide-area omni-directional coverage across a large open space - a higher-wattage array or multiple units would be required for that. It is also not a standalone intercom solution; it needs a compatible management platform or VMS to route two-way calls. Available through Security Australia, this speaker is best evaluated as part of a planned Hikvision IP audio or integrated security system rather than an isolated standalone unit.

Before You Buy

Quick Fit Check

• Good match if: You need outdoor-rated, network-addressable audio at a location already covered by a PoE switch run - IP67 protection and single-cable PoE installation make this a clean fit for gates, yard entries, and external PA points.
• Good match if: Your security platform supports camera-triggered audio events and you want a verbal alarm or pre-recorded message to activate automatically when a camera detects intrusion at a specific zone.
• You may need a different model if: Your requirement is a complete intercom station with a call button, keypad, or video - a dedicated IP video intercom would better suit access control scenarios where two-way communication needs to be initiated from the field rather than the control room.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need outdoor-rated, PoE-powered, network-controlled audio with two-way capability and you are already running Cat5e or Cat6 to the location - IP67 and single-cable installation are the key differentiators over standard indoor or analogue PA speakers.
• You may need a different model if: Your application requires a self-contained intercom solution with a field-side call button, keypad entry, or video panel - a dedicated IP video intercom or access control terminal would better serve that scenario.
• Pairs well with: A PoE-capable IP camera covering the same zone, a Hikvision NVR or VMS platform that supports audio event triggers, and a managed PoE switch with sufficient per-port power delivery.

Common Questions

1. Does this speaker need a separate power supply or power point?

   No. The DS-QAZ1307G1-E is powered entirely by PoE - Power over Ethernet - through the same Cat5e or Cat6 cable that carries the network connection. You need a PoE-capable switch port or a standalone PoE injector at the cabinet end, but no 240V power point is required at the speaker location itself.

2. Will this speaker work for two-way conversations, or is it broadcast only?

   Yes, it supports genuine two-way audio. The DS-QAZ1307G1-E has both a built-in speaker and a built-in microphone, so an operator at a control room or compatible platform can broadcast to the location and simultaneously listen to what is occurring there. This distinguishes it from broadcast-only PA horn speakers that lack a microphone.

3. How weather-resistant is the IP67 rating in practice?

   IP67 is fully dust-tight (the 6 in IP67) and rated for temporary immersion in water up to 1 metre for 30 minutes (the 7). For an outdoor speaker, this means it handles heavy rain, direct water spray, and washdown environments without issue. It is a higher level of protection than the IP65 or IP66 rating found on many standard outdoor security devices, making it suitable for food processing, industrial, and coastal installations.

4. Can this speaker be triggered automatically by a camera AI event?

   Yes, provided your management platform supports camera-to-audio event linkage. When integrated into a compatible Hikvision VMS or NVR system, a camera's AI detection event - such as an intrusion or line-crossing alert - can be configured to automatically trigger a pre-recorded message through the DS-QAZ1307G1-E. The specific trigger options depend on the software platform version and configuration.

5. What PoE standard does the DS-QAZ1307G1-E require?

   The speaker draws a maximum of 7W, which falls within the IEEE 802.3af standard (which delivers up to 15.4W per port). Most standard PoE network switches will power this device without any issue. You do not require PoE+ (IEEE 802.3at, 30W) for this unit, which keeps switchgear costs down when deploying multiple speakers across a site. Confirm per-port power availability on any shared-budget PoE injector before installing. The DS-QAZ1307G1-E is part of the Security Australia range and is compatible with standard Ethernet cabling practices used across Hikvision IP security deployments.

6. Is this speaker suitable for indoor use as well as outdoor?

   Yes. The IP67 rating is an outdoor weather protection standard, but there is no restriction on using the DS-QAZ1307G1-E indoors. The horn form factor and 7W output are better suited to larger indoor spaces - warehouses, factory floors, or large retail areas - rather than small rooms where a horn speaker would produce excessive volume in an enclosed environment.

Downloads & Resources

No downloads available for this product.
