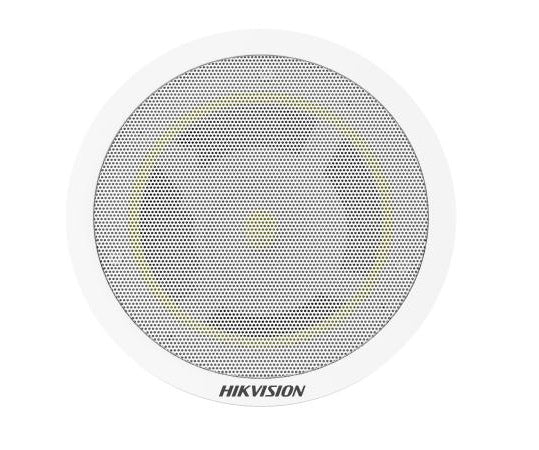

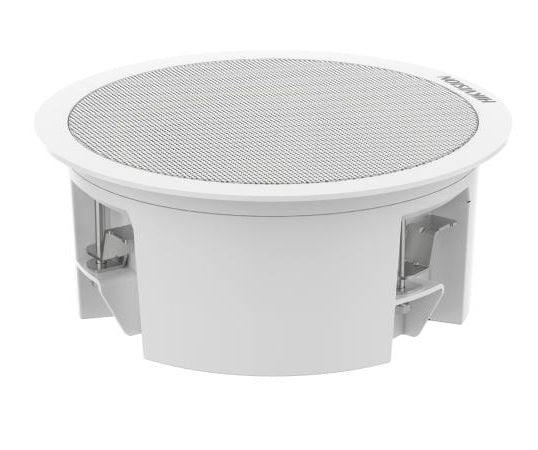

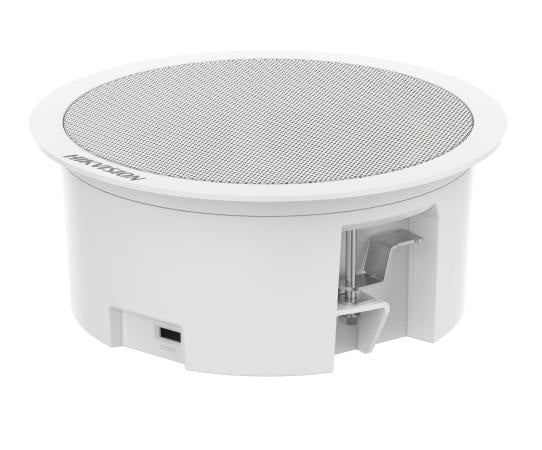

Hikvision DS-QAZ1206G1-BE Network Ceiling Speaker with 6W Rated Power, 5″ Full-Range Driver, 100dB Max SPL

Model: DS-QAZ1206G1-BE

Who This Is For

When integrating networked audio into a security or access control installation is the priority, the Hikvision DS-QAZ1206G1-BE delivers a ceiling-flush speaker solution built for professional deployment. Designed for installers specifying IP-based public address, intercom broadcast, or background audio zones in commercial buildings, retail spaces, schools, and care facilities, this unit combines a 5-inch full-range driver with 6W rated power and a 100dB maximum SPL rating. The ceiling form factor keeps the speaker unobtrusive and consistent with standard ceiling tile grids, while the network connection integrates cleanly with Hikvision IP audio and intercom infrastructure. Integrators building out a multi-zone announcement system or expanding an existing Hikvision access control or security platform will find this speaker a practical, purpose-built addition that avoids the compromises of retrofitted analogue hardware in modern networked environments.

What This Device Actually Does

Who Buys This Model

• Security and AV integrators: Building out Hikvision IP audio zones in commercial premises where a single-vendor platform reduces support complexity and speeds commissioning.
• School and education facilities managers: Specifying networked PA speakers for classroom corridors, assembly areas, and administration zones where timed announcements and emergency broadcast are required.
• Retail fitout contractors: Installing background music and paging systems in shop environments where ceiling-flush hardware keeps the aesthetic clean and the 100dB SPL handles ambient retail noise.
• Healthcare and aged care operators: Deploying IP-based intercom broadcast and nurse call audio relay in facilities where cabling simplicity and Hikvision access control integration are already on the specification.

Honest Assessment

The DS-QAZ1206G1-BE does its best work in structured commercial environments where Hikvision IP audio infrastructure is already in place or being installed alongside it. The 5-inch full-range driver and 100dB SPL rating give it genuine output capability for spaces with background noise, and the ceiling form factor suits most commercial interiors without modification. Network delivery over IP eliminates the separate amplifier runs that analogue ceiling speaker systems require, which is a meaningful saving on larger deployments. Where this speaker is not the right fit: it is not a standalone product and requires a compatible Hikvision network audio controller or management platform to function. Buyers looking for a simple self-contained Bluetooth or analogue ceiling speaker will find it over-specified for that use case. For those building within the Hikvision ecosystem, the DS-QAZ1206G1-BE is available through Security Australia alongside compatible audio controllers and intercom hardware.

Before You Buy

Quick Fit Check

• Good match if: You are expanding a Hikvision IP audio or intercom network and need ceiling speakers that integrate without a separate analogue amplifier infrastructure.
• Good match if: Your installation requires speakers capable of 100dB SPL in a busy commercial interior - retail, education, or healthcare - where voice intelligibility over ambient noise is a requirement.
• You may need a different model if: Your project requires a standalone analogue ceiling speaker or a self-amplified Bluetooth unit without a Hikvision network audio controller - a traditional 100V line ceiling speaker system would be more appropriate for that application.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your project is built on Hikvision IP audio or intercom infrastructure and you need a ceiling speaker that integrates natively without cross-brand configuration or a separate analogue amplifier.
• You may need a different model if: Your installation uses a 100V line analogue PA system - a standard 100V line ceiling speaker will be a more compatible and cost-effective choice for that infrastructure type.
• Pairs well with: Hikvision network audio controllers, Hikvision PoE switches, and Hikvision IP intercom master stations for a fully integrated IP audio and access control platform.

Common Questions

1. Does this speaker require a separate amplifier?

   No. As a network speaker, the DS-QAZ1206G1-BE receives audio digitally over IP and has its own internal amplification. It connects directly to a compatible Hikvision network audio controller or PoE switch without a traditional analogue amplifier in the signal path. This is the primary practical advantage over conventional 100V line ceiling speaker systems on larger installations.

2. Will this speaker work with a non-Hikvision audio system?

   Not reliably. The DS-QAZ1206G1-BE is designed to operate within the Hikvision IP audio ecosystem. While it communicates over a standard network, its management, zone configuration, and audio routing are dependent on a compatible Hikvision audio controller or platform. Buyers with a third-party audio system should verify compatibility before purchasing rather than assuming standard SIP or generic IP audio protocol support.

3. Is 100dB SPL enough for a noisy commercial environment?

   Yes, in most commercial applications. 100dB maximum SPL places this speaker well above the typical ambient noise levels found in retail (65-75dB), open offices (60-70dB), and school corridors (70-80dB). For environments with extreme industrial noise levels above 90dB continuous, additional acoustic modelling should be done to confirm speaker spacing and output will deliver the required intelligibility at listener positions.

4. What cable is needed to install this speaker?

   Cat5e or Cat6 is the appropriate cable for a network ceiling speaker of this type. A single cable run carries both the network audio data and PoE power from a compatible switch or audio controller to the speaker. Cable runs should remain within standard PoE distance limits (up to 100m per run including patch leads) and should be factored into the ceiling void routing plan during the rough-in stage.

5. How many of these speakers can run off a single PoE switch?

   That depends on the switch's total PoE power budget rather than just port count. At 6W rated power per speaker, a switch with a 120W PoE budget could theoretically support up to 20 speakers before reaching capacity - though real-world deployments should factor in derating and other PoE devices on the same switch. Always calculate total PoE draw across all connected devices when planning a multi-speaker deployment. The team at Security Australia can assist with switch and controller sizing for larger audio zone projects.

6. Does the 5-inch driver make a difference compared to smaller ceiling speakers?

   Yes, notably for voice intelligibility. Smaller 3-inch or 4-inch drivers found in budget ceiling speakers typically have a narrower frequency response that can compress the clarity of spoken announcements. The 5-inch full-range driver in the DS-QAZ1206G1-BE reproduces a wider frequency band, which matters most in PA applications where intelligibility of announcements - not just background music volume - is the functional requirement.
