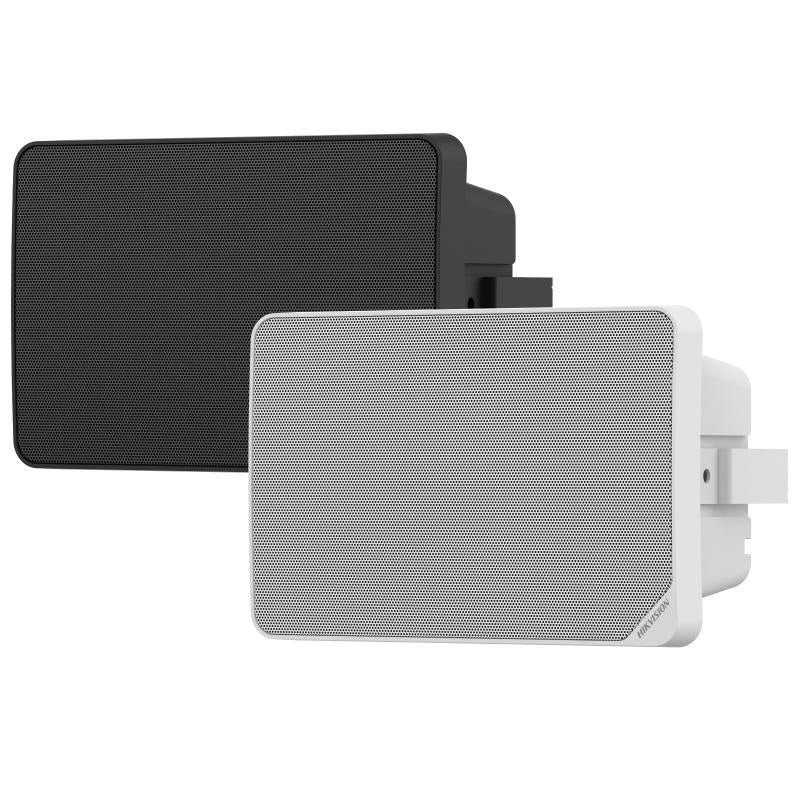

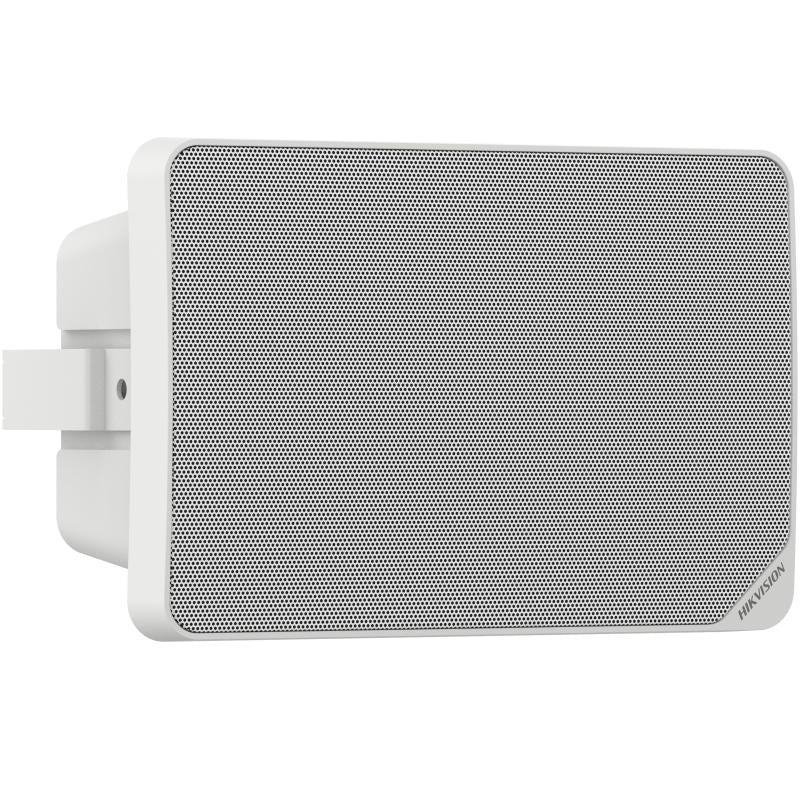

Hikvision DS-QAZ1110G1R-BE Network Cabinet PoE Speaker with 10W Rated Power, 5.25″ Speaker Unit, 100dB Max SPL

Model: DS-QAZ1110G1R-BE

Who This Is For

For security integrators and facility managers who need a clean, cable-efficient audio solution as part of a networked surveillance or access control system, the Hikvision DS-QAZ1110G1R-BE delivers 10W of amplified audio from a single PoE connection - no separate power run required. With a 5.25-inch speaker unit and a maximum SPL of 100dB, it suits applications where audible alerts, PA announcements, or deterrent messaging need to reach a defined space reliably. Cabinet-format housing makes it a natural fit for server rooms, control rooms, or rack-integrated deployments where tidy installation and centralised management matter. Installers specifying Hikvision IP audio ecosystems will find this speaker slots in without additional amplifiers or dedicated power circuits, simplifying both the cable schedule and ongoing maintenance.

What This Speaker Actually Does

Who Buys This Model

• Security Integrators: Building out Hikvision IP audio systems alongside NVRs and access control, where a PoE speaker avoids the cost and complexity of a separate audio amplifier and power circuit at each speaker point.
• Facility Managers at Commercial Sites: Specifying audible alert output tied to intrusion detection or access control events, needing 100dB SPL to be heard clearly across open floor areas or loading zones.
• Control Room and Server Room Operators: Installing audio capability in a rack environment where cabinet-format hardware keeps the installation tidy and maintainable without additional wall-mounted enclosures.
• IT and Low-Voltage Contractors: Managing structured cabling projects where adding audio to a PoE network switch port - rather than running separate speaker cable from an amplifier - significantly reduces installation labour and materials cost.

Honest Assessment

The DS-QAZ1110G1R-BE does one thing well: it delivers network-addressable audio from a single PoE cable, with enough output - 100dB SPL from a 10W, 5.25-inch driver - to be genuinely useful for PA announcements and alert audio in small-to-medium commercial spaces. For integrators building Hikvision-centric systems, the cabinet form factor and PoE operation reduce install time and infrastructure cost per point. What it will not do is serve as a high-fidelity music or background audio source - it is a voice and alert speaker, and should be specified accordingly. For large open areas requiring multiple coverage zones, a distributed audio system with a dedicated amplifier and conventional speaker runs will provide more flexible zone control. Buyers building out systems available through Security Australia should verify PoE switch port availability and confirm Hikvision audio platform compatibility before ordering.

Before You Buy

Quick Fit Check

• Good match if: You are building a Hikvision IP audio or surveillance system and need audible alert or PA output from a PoE switch port without running separate speaker cable or installing a standalone amplifier.
• Good match if: Your installation is rack or cabinet-based and you need a 100dB-capable speaker that sits cleanly within that form factor rather than requiring wall or ceiling mounting.
• You may need a different model if: Your site requires multi-zone distributed audio with independent volume control per zone, or coverage of very large open areas - a traditional 100V line distributed speaker system with a dedicated amplifier will serve that application more effectively.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are specifying a Hikvision IP audio system and need a PoE-powered speaker with 100dB output in a cabinet or rack-integrated form factor, removing the need for a separate power circuit or amplifier at the speaker point.
• You may need a different model if: Your project requires multi-zone distributed audio with independent level control per zone, or coverage of very large open areas - a 100V line distributed audio system with a dedicated rack amplifier and ceiling or wall speakers is better suited to that application.
• Pairs well with: A Hikvision PoE network switch with sufficient per-port power budget, a compatible Hikvision NVR or audio management controller, and Hikvision IP intercom or access control panels for integrated system audio output.

Common Questions

1. Does this speaker need a separate power supply?

   No. The DS-QAZ1110G1R-BE is powered over Ethernet via a PoE switch port - a single Cat5e or Cat6 cable delivers both network connectivity and power to the speaker. No 240V power outlet is required at the installation point, which reduces installation cost and simplifies cable scheduling, particularly in rack or cabinet environments.

2. Will this speaker work with a standard IEEE 802.3af PoE switch?

   Yes, provided your switch port delivers sufficient wattage. The speaker is rated at 10W output power, and standard 802.3af PoE provides up to 15.4W at the port - enough to operate the unit. However, confirm your switch's total power budget accommodates all connected PoE devices simultaneously, as a fully loaded switch may throttle individual ports.

3. How loud is 100dB SPL in practical terms?

   100dB SPL is comparable to a chainsaw or heavy machinery at close range - it is loud enough to cut through significant ambient noise. In practice, for a security speaker used for PA announcements or deterrent audio, 100dB provides audible coverage in noisy environments like loading docks, warehouses, and busy common areas without requiring secondary speakers or additional amplification.

4. Does this speaker have a built-in microphone for two-way audio?

   This cannot be confirmed from the available specification data for the DS-QAZ1110G1R-BE. The confirmed specifications cover the 10W rated power output, 5.25-inch driver, 100dB maximum SPL, and PoE connectivity. If two-way audio is a requirement for your deployment, contact Security Australia to confirm microphone capability before ordering.

5. Will this work with third-party NVRs or non-Hikvision access control systems?

   Compatibility with third-party systems is not confirmed in the available specification data. The DS-QAZ1110G1R-BE is a Hikvision product designed for integration within the Hikvision IP audio ecosystem. If you are integrating with a third-party VMS or access control platform, verify protocol compatibility - typically SIP or Hikvision SDK - with your VMS vendor before specifying this speaker.

6. Is the cabinet form factor rack-mountable in a standard 19-inch rack?

   The product name designates a network cabinet format, but specific rack unit dimensions and mounting configuration are not confirmed in the available specification data. Installers should request the physical datasheet to confirm rack unit height and mounting hardware requirements before committing to a rack layout.

7. Does the 5.25-inch driver make a meaningful difference over smaller IP speakers?

   Yes, for voice intelligibility it does. Larger driver diameter generally improves low-mid frequency response, which is the frequency range most critical for voice clarity and intelligibility. Compared to 3-inch or 4-inch drivers common in compact IP speaker products, the 5.25-inch unit in the DS-QAZ1110G1R-BE produces more natural voice reproduction - important when the primary use case is PA announcements, operator audio, or access control voice prompts rather than background music.

Downloads & Resources

No downloads available for this product.
