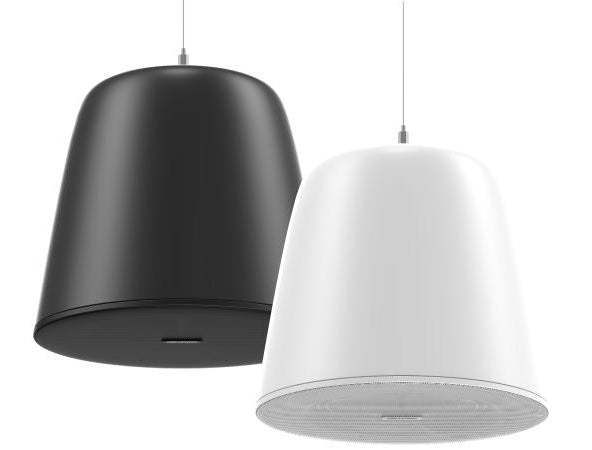

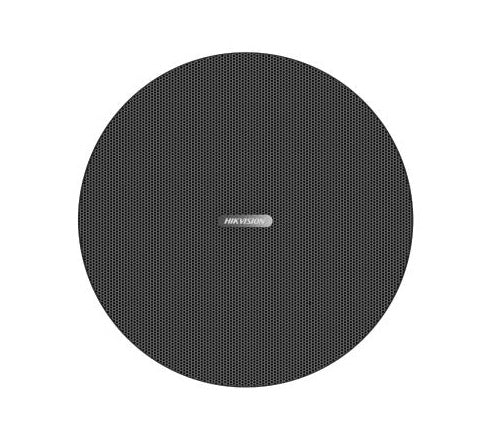

Hikvision DS-QAZ0530G1 Black Analog Pendant Speaker with 30W Rated Power, 6.5″ Woofer & 1″ Tweeter, 104dB Max SPL

Model: DS-QAZ0530G1-BLK

Who This Is For

Property managers specifying public address or background audio for commercial and retail environments will find the Hikvision DS-QAZ0530G1 a practical fit. This black analog pendant speaker delivers 30W of rated power through a 6.5-inch woofer and 1-inch tweeter combination, reaching a maximum SPL of 104dB - enough output for large open-plan retail floors, warehouse zones, shopping centre corridors, car parks, and food and beverage venues. The pendant mounting format makes it well suited to high-ceiling installations where wall-mounted or ceiling-recessed options are impractical. Integrators working on 100V line PA systems will recognise this form factor immediately. The all-black housing keeps it visually unobtrusive against dark ceiling structures or exposed industrial fit-outs. If your project needs consistent, audible audio coverage across a wide commercial space without running multiple lower-powered units, this speaker is worth specifying.

What This Speaker Actually Does

Who Buys This Model

• Retail and Shopping Centre Fit-Out Contractors: Specifying PA speakers for large open-plan retail floors where 30W output and 104dB SPL provide coverage without stacking multiple lower-powered units.
• Industrial Facility Managers: Installing PA or emergency announcement systems in warehouses and manufacturing floors where pendant mounting clears high-bay structures and ambient noise demands high SPL capability.
• Hospitality and Venue Integrators: Deploying background music systems in venues with exposed ceiling structures where the black finish blends with dark architectural elements and pendant form suits the aesthetic.
• AV System Integrators on 100V Line Systems: Adding pendant speaker positions to existing distributed audio infrastructure in commercial buildings where analog line-level audio is already deployed throughout the site.

Honest Assessment

The DS-QAZ0530G1-BLK does two things well: it delivers genuine output capacity at 30W with a 104dB SPL ceiling, and its 2-way driver configuration produces more balanced audio than single-cone PA speakers at this price point. The pendant format solves a real installation problem in high-ceiling spaces where wall mounting is too distant and ceiling recessing is structurally impractical. The black housing is a straightforward but useful specification detail that prevents a mismatch in dark industrial or modern commercial fit-outs. Where this speaker will not serve well: applications requiring IP-rated outdoor weatherproofing, installations needing integrated amplification, or projects where self-powered active speakers are required. This is a passive analog speaker - it requires a compatible external amplifier and a correctly designed 100V line or low-impedance system to operate. Buyers comparing options will find this model available through Security Australia alongside compatible Hikvision audio amplification and PA system components.

Before You Buy

Quick Fit Check

• Good match if: You are installing a PA or background music system in a high-ceiling commercial or industrial space where pendant mounting suits the structure and 30W output provides the coverage area you need.
• Good match if: Your project has an exposed or dark-painted ceiling fit-out and you need a black-housed speaker that integrates visually without modification, backed by 104dB SPL capacity for high-ambient-noise environments.
• You may need a different model if: Your installation is outdoors or in a wet area requiring an IP-rated weatherproof speaker enclosure - a weather-resistant outdoor PA speaker type would be more appropriate for those conditions.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: Your project needs a high-output 30W pendant speaker with a 2-way driver configuration for large-area commercial or industrial coverage from a high ceiling, and the black housing suits your fit-out.
• You may need a different model if: The installation environment is outdoors or subject to moisture, dust, or temperature extremes - a weatherproof IP-rated outdoor PA speaker type is more appropriate for those conditions.
• Pairs well with: A compatible analog PA amplifier sized to match the 30W rated power of this speaker, and a PA zone controller or mixer for multi-zone commercial installations.

Common Questions

1. Does this speaker include a built-in amplifier?

   No. The DS-QAZ0530G1-BLK is a passive speaker and requires a separate external amplifier to operate. You will need to match an amplifier to the speaker's 30W rated power rating. Running the speaker from an amplifier rated significantly higher than 30W without appropriate attenuation risks damage to the driver components.

2. Will this speaker work on a 100V constant-voltage PA line system?

   This depends on whether the specific unit includes an internal 100V line transformer with wattage taps. Confirm with the product datasheet before specifying into a 100V line system. If the unit is configured for direct low-impedance connection only, a matching external 100V line transformer would be required for integration into a distributed constant-voltage system.

3. Is 104dB SPL enough for a noisy warehouse or industrial environment?

   Yes, for most commercial industrial environments. Typical warehouse ambient noise levels sit in the 70-85dB range. A 104dB maximum SPL provides meaningful headroom above ambient noise for clear PA announcements without running the speaker at its limit. For extremely high-noise industrial environments above 90dB ambient, speaker placement height and spacing become equally important to overall SPL specification.

4. What does the 2-way driver configuration mean for audio quality compared to a single-cone PA speaker?

   It means better frequency distribution. The 6.5-inch woofer handles mid and low-frequency content while the 1-inch tweeter extends high-frequency detail. Single-cone PA speakers use one driver to reproduce the full frequency range, which typically results in limited high-frequency clarity. The 2-way arrangement in the DS-QAZ0530G1-BLK produces more natural-sounding audio, which is relevant when the system handles both background music and voice announcements regularly.

5. Can this speaker be used outdoors?

   No, not without additional weatherproofing. There is no confirmed IP weather rating for this model, and the black pendant housing is not specified for outdoor or wet-area use. For outdoor PA applications - car parks with open sections, loading docks exposed to weather, or outdoor entertainment areas - an IP-rated weatherproof speaker type is the correct specification. The range of compatible options is available through Security Australia.

6. What cable is used to connect a pendant speaker like this?

   Passive PA speakers typically use 2-core speaker cable, with gauge selected based on run length and amplifier output impedance. For runs over 20 metres on low-impedance systems, a heavier gauge (1.5mm2 or 2.5mm2) reduces resistance losses. On 100V line systems, thinner cable is acceptable over longer runs because the high-voltage, low-current signal loses less energy over distance - this is one of the primary advantages of 100V line distribution in large commercial buildings.
