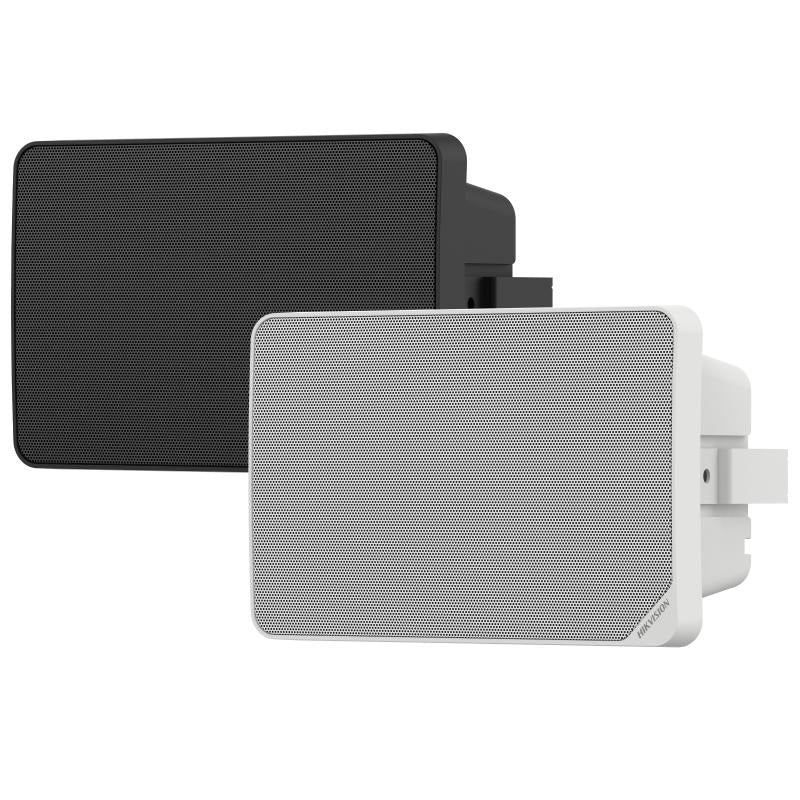

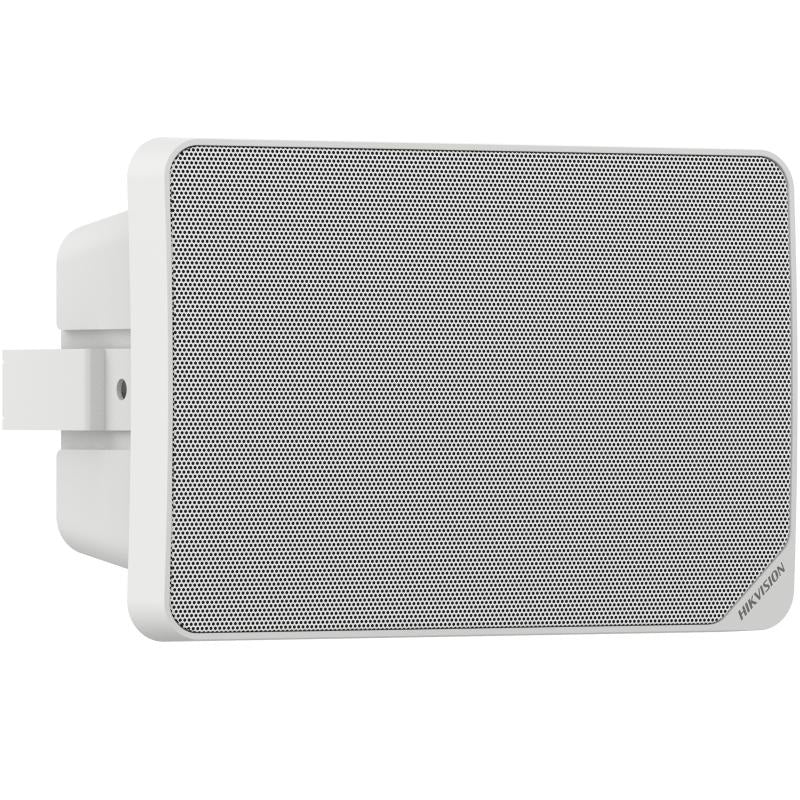

Hikvision DS-QAZ0120G1R-S IP Network Cabinet Speaker with 20W Audio Output, 5.25″ Driver, 103dB Maximum SPL

Model: DS-QAZ0120G1R-S

Who This Is For

When clear, high-volume voice paging or background audio is a project requirement, the Hikvision DS-QAZ0120G1R-S delivers 20W of output through a 5.25-inch driver in a cabinet-format enclosure designed for IP audio networks. This speaker suits commercial and institutional installers specifying network-based public address systems across schools, retail environments, offices, warehouses, and healthcare facilities. With a maximum SPL of 103dB, it handles large open areas where voice intelligibility must cut through ambient noise. Because it connects over IP, integration into Hikvision's network audio platform allows centralised scheduling, zoning, and live paging without dedicated audio cable runs to each speaker location. Installers already deploying Hikvision IP camera or intercom infrastructure will find this speaker a logical addition to a unified security and communication system.

What This Speaker Actually Does

Who Buys This Model

• School and Campus Installers: Deploying zoned IP paging systems where different areas require independent scheduling - morning bells, emergency alerts, or after-hours lockdown announcements managed from one platform.
• Retail and Shopping Centre Contractors: Specifying background music with live paging capability across tenancies, where 20W output handles a trading floor without requiring a separate amplifier rack per zone.
• Warehouse and Logistics Fitouts: Sites with high ambient noise where the 103dB maximum SPL is the deciding specification for ensuring evacuation or operational announcements are audible above equipment noise.
• Healthcare Facility Integrators: Adding network audio to existing Hikvision IP infrastructure, using the cabinet format for directional coverage in corridors without ceiling tile disruption.

Honest Assessment

The DS-QAZ0120G1R-S performs well where volume and intelligibility in medium-to-large indoor spaces are the primary requirements. The 20W output and 103dB maximum SPL give it genuine headroom for noisy environments, and the IP network connection makes multi-zone deployments manageable without bespoke audio cabling. The cabinet format is a practical choice for wall mounting where directional sound projection is preferred over a ceiling speaker's wide dispersion pattern. Available through Security Australia as part of the Hikvision network audio range, it suits projects already running Hikvision infrastructure. Where it will not serve is in outdoor or weatherproof applications - this is an indoor cabinet speaker and the enclosure is not rated for exposure to the elements. For outdoor public address requirements or large-venue line-array audio, a different product category is appropriate. It is also not a standalone device - it requires a compatible Hikvision IP audio controller or server to function within a managed system.

Before You Buy

Quick Fit Check

• Good match if: You are building a multi-zone IP paging system on Hikvision infrastructure and need a wall-mountable speaker with enough output (20W, 103dB max SPL) to handle a warehouse bay, school hall, or large retail floor.
• Good match if: Your project requires directional audio coverage - such as a corridor, loading dock entry, or reception area - where the cabinet enclosure's forward projection is more appropriate than a wide-dispersion ceiling speaker.
• You may need a different model if: The installation is outdoors or in a wet area - this cabinet speaker is designed for indoor use and a weatherproof IP horn or outdoor network speaker would be a more appropriate product type for exposed locations.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a wall-mount cabinet speaker with 20W output and 103dB SPL for a large indoor space on a Hikvision IP audio network, where directional projection and high-volume paging capability are the primary requirements.
• You may need a different model if: The installation location is outdoors or in an exposed environment - a weatherproof IP horn speaker or an outdoor-rated network audio product would be the appropriate product type for those conditions.
• Pairs well with: A Hikvision IP audio server or network audio controller, and PoE-capable network switching infrastructure for simplified single-cable deployment per speaker position.

Common Questions

1. Does this speaker work as a standalone unit or does it require a Hikvision controller?

   It requires a compatible Hikvision IP audio management device to operate. The DS-QAZ0120G1R-S is a network endpoint in a Hikvision IP audio system - it will not function independently without an audio server or controller to push audio streams, configure zones, and manage scheduling. Confirm your existing or planned infrastructure includes a compatible Hikvision audio management platform before ordering.

2. Will this speaker handle a noisy warehouse or industrial environment?

   Yes, for most industrial indoor scenarios. The 103dB maximum SPL gives significant headroom above typical industrial ambient noise levels, and the 20W output means the speaker is not running near its limit to achieve effective coverage in a large bay. Placement height and speaker quantity should still be calculated against the specific area dimensions and ambient noise floor of the site.

3. What does the 103dB maximum SPL specification mean in practice?

   103dB SPL is the maximum sound pressure level the speaker can produce at its rated output. In practical terms, this is loud enough to be clearly heard over most commercial and light industrial ambient noise. It exceeds the output of typical 6-inch ceiling speakers used in standard office PA systems, making it appropriate for larger or noisier spaces where those units are insufficient.

4. Can this speaker be used outdoors?

   No. The DS-QAZ0120G1R-S is a cabinet speaker designed for indoor installation. The enclosure is not specified as weatherproof or IP-rated for outdoor exposure. For outdoor public address applications, an IP-rated horn speaker or outdoor network audio speaker would be the correct product category to specify.

5. Does the 5.25-inch driver size affect voice intelligibility compared to smaller speakers?

   Yes, in a practical sense. Larger drivers generally produce better midrange definition at equivalent volume levels compared to smaller drivers. Voice-frequency content - the range most critical for spoken announcements and paging - benefits from the increased cone area of a 5.25-inch driver, particularly in reverberant spaces where smaller drivers can sound thin or lack presence when driven at higher output levels.

6. How many of these speakers would I need for a large open-plan area?

   Coverage quantity depends on room dimensions, ceiling height, ambient noise levels, and the audio dispersion pattern of the cabinet. The DS-QAZ0120G1R-S is stocked by Security Australia and the team can assist with system planning, but for formal acoustic design in large or complex spaces, a site-specific audio layout calculation is recommended before finalising quantities.

7. Does this speaker support PoE for single-cable installation?

   This depends on the specific power input requirements of the DS-QAZ0120G1R-S. A 20W audio output speaker requires consideration of power consumption at load - standard IEEE 802.3af PoE provides up to 15.4W at the device, which may be insufficient for peak output. Verify the speaker's actual power draw specification and confirm whether PoE+ (IEEE 802.3at, up to 30W) is required before selecting your network switch or PoE injector.
