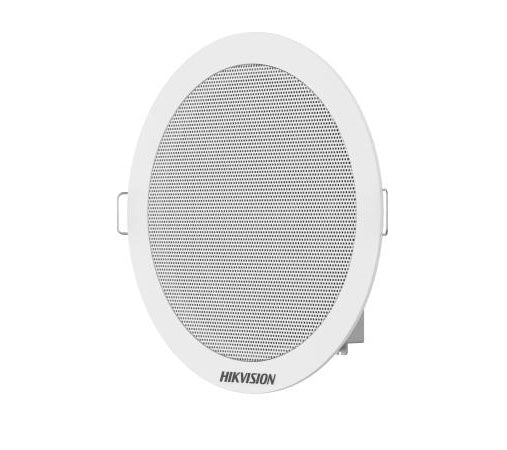

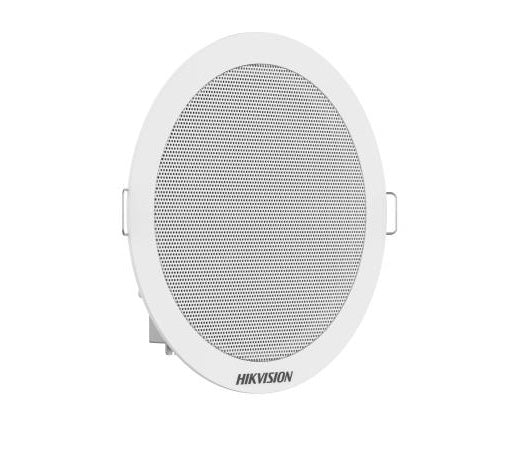

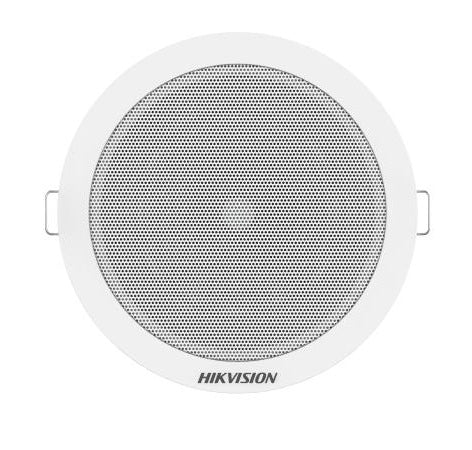

Hikvision DS-QAE0206G1-V White Analog Ceiling Speaker with 6W Rated Power, 5.25″ Speaker Unit, 98dB Max SPL

Model: DS-QAE0206G1-V

Who This Is For

For integrators and facility managers who need a clean, unobtrusive ceiling audio solution within a Hikvision analog intercom or public address setup, the DS-QAE0206G1-V delivers 6W of rated power through a 5.25-inch speaker unit with a maximum SPL of 98dB. It suits applications where ceiling-flush audio coverage is required without visible wall-mounted hardware - think retail floors, office reception areas, aged care corridors, and apartment building common areas. The white finish blends with standard ceiling tile and plasterboard environments, and the analog signal path keeps integration straightforward on sites already running compatible Hikvision analog audio infrastructure. This is a focused, single-purpose product: ceiling-mounted audio output that sits neatly within an existing system rather than operating as a standalone solution.

What This Speaker Actually Does

Who Buys This Model

• Security and AV Integrators: Installing Hikvision analog intercom systems in apartment buildings or commercial premises who need a matching ceiling speaker endpoint for audio output zones.
• Aged Care and Healthcare Facility Managers: Specifying discreet ceiling-mounted audio for nurse call announcements or PA coverage in resident corridors where wall-mounted hardware is not suitable.
• Retail and Hospitality Fit-Out Contractors: Adding background announcement capability to small retail zones or hospitality reception areas where a clean ceiling profile is required and 6W output is sufficient for the floor area.
• Office and Commercial Building Managers: Expanding PA coverage into meeting rooms, lobbies, or open-plan office spaces on an existing Hikvision analog audio system without introducing IP network audio complexity.

Honest Assessment

The DS-QAE0206G1-V does its job well within a defined scope. The 6W rated output and 98dB maximum SPL are well-matched to small and medium indoor rooms - reception areas, corridors, and consultation rooms - where speech intelligibility matters more than volume. The analog signal path is a genuine advantage on sites where adding network audio endpoints would require additional switching infrastructure or IT involvement. The white ceiling-flush form factor suits most commercial interior fitouts without modification. Where this unit falls short is in larger open spaces: a warehouse, gymnasium, or outdoor undercover area would typically require higher-wattage speakers or horn-type units better suited to those conditions. It also will not function as a standalone audio device - it requires a compatible analog amplifier or intercom host to drive it. Available through Security Australia, it is best evaluated as a system component rather than a standalone product.

Before You Buy

Quick Fit Check

• Good match if: You are deploying a Hikvision analog intercom or PA system and need a ceiling-mounted speaker endpoint that integrates without IP network configuration.
• Good match if: Your install environment is a small to medium indoor space - corridor, reception, or office room - where 6W output and 98dB maximum SPL will provide adequate coverage at ceiling height.
• You may need a different model if: Your application requires higher-wattage output for large open-plan or outdoor areas - a horn speaker or higher-rated commercial PA speaker type would be more appropriate for those environments.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You are working within an existing Hikvision analog audio or intercom system and need a ceiling-mounted speaker endpoint that integrates without network infrastructure or IP configuration.
• You may need a different model if: Your space requires significantly higher output - large open-plan floors, atriums, or outdoor undercover areas are better served by higher-wattage commercial PA speaker types or horn speaker units designed for those environments.
• Pairs well with: A compatible Hikvision analog intercom host unit or a standard 100V line analog PA amplifier sized to match the speaker's 6W rated input.

Common Questions

1. Does this speaker work as a standalone unit without a Hikvision system?

   No. The DS-QAE0206G1-V is a passive analog ceiling speaker that requires an external amplifier or compatible Hikvision intercom host to drive it. It has no onboard amplification and cannot produce audio output without a signal source and amplifier providing the correct power and line-level input.

2. Will 6W be loud enough for my room?

   For most small to medium indoor rooms, yes. 6W rated power is appropriate for spaces such as corridors, reception areas, meeting rooms, and small retail zones at standard commercial ceiling heights. For larger open-plan areas or rooms with high ambient noise above typical office or retail levels, a higher-wattage speaker would be more appropriate.

3. What does the 98dB maximum SPL mean in practice?

   It means the speaker can reach 98 decibels at its maximum rated output before distortion. In practice, this provides a comfortable buffer above typical background noise levels in retail, office, or healthcare environments - roughly 60-70dB ambient - so speech announcements remain intelligible without the amplifier being pushed to its limit.

4. What size ceiling cutout does the 5.25-inch driver require?

   The 5.25-inch speaker unit refers to the driver cone size. The actual ceiling cutout diameter will be specified in Hikvision's installation guide for this model - confirm the cutout dimensions from the product datasheet before cutting ceiling tiles or plasterboard, as the cutout is typically slightly smaller than the outer grille diameter. Contact Security Australia if you require the installation guide prior to purchase.

5. Does this speaker require PoE or any network connection?

   No. This is an analog speaker with no network interface and no PoE requirement. It connects via standard speaker cable to an analog amplifier output. There is no IP address, no network switch port, and no configuration software involved in the installation.

6. Is a backcan or enclosure required for installation?

   It depends on your ceiling construction type and local fire rating requirements. In open ceiling voids above plasterboard, a backcan may be required to meet acoustic performance standards and fire compartment compliance under the National Construction Code. In suspended tile ceilings, requirements vary by project specification - confirm with your project's acoustic or fire consultant before installation.

Downloads & Resources

No downloads available for this product.
