Hikvision DS-PWA96-Kit-WB-COMPLETE AX PRO Complete Alarm Security Kit

Model: DS-PWA96-Kit-Complete

Who This Is For

For property owners and security installers who need a fully wireless alarm system that can scale from a small residential installation to a large commercial site without running additional cable. The Hikvision AX PRO Complete Kit ships with an alarm panel, wireless keypad, 2 PIR sensors, a magnetic reed switch, and a wireless outdoor sounder - covering the core detection zones from day one. The panel supports up to 96 wireless zones, so the starter kit grows as the site demands increase, making it a practical choice for staged rollouts across offices, retail tenancies, warehouses, and larger homes. Remote management through Hik-Connect and Hik-ProConnect means installers and monitoring companies can configure, diagnose, and respond without a site visit, and the 4520 mAh lithium battery keeps the system operational for up to 12 hours during a power outage.

What This System Actually Does

Who Buys This Model

• Security Installers: Professionals commissioning alarm systems across residential and light commercial sites who need a scalable panel they can expand zone-by-zone without hardware replacement.
• Retail and Office Tenants: Businesses in leased premises who need a fully wireless system that causes minimal wall penetration and can be relocated or reconfigured when tenancy changes.
• Monitoring Station Partners: Installers working with professional monitoring companies who require dual or triple-path communication and AES-128 encrypted reporting from the panel.
• Large Homeowners: Residential buyers with 4 or more zones to cover who want app-based control, scheduled arming, and a system that supports additional detectors as they add outbuildings or sheds.
• Multi-Site Property Managers: Facilities teams using Hik-ProConnect to remotely manage and diagnose alarm systems across multiple tenancies or buildings from a single platform.

Honest Assessment

The AX PRO Complete Kit does two things well: it ships as a genuinely usable starter system out of the box, and it grows without requiring a panel upgrade. The 96-zone capacity, triple-path communication, and AES-128 encryption put it well above entry-level wireless alarm panels commonly found in DIY retail channels. The Hik-ProConnect integration is a genuine advantage for installing companies managing multiple sites - remote diagnostics and zone configuration reduce call-out costs over the life of the contract. The 12-hour battery backup is adequate for most scenarios and aligns with common monitoring-station requirements. Where this kit has limits: the starter bundle covers 4 detection points, so larger sites will need additional detectors purchased separately before installation. It also relies on the Hikvision app ecosystem - buyers already committed to a different platform should confirm compatibility before committing. This kit is supplied by Security Australia and suits staged installations where the panel is specified once and zones are added progressively.

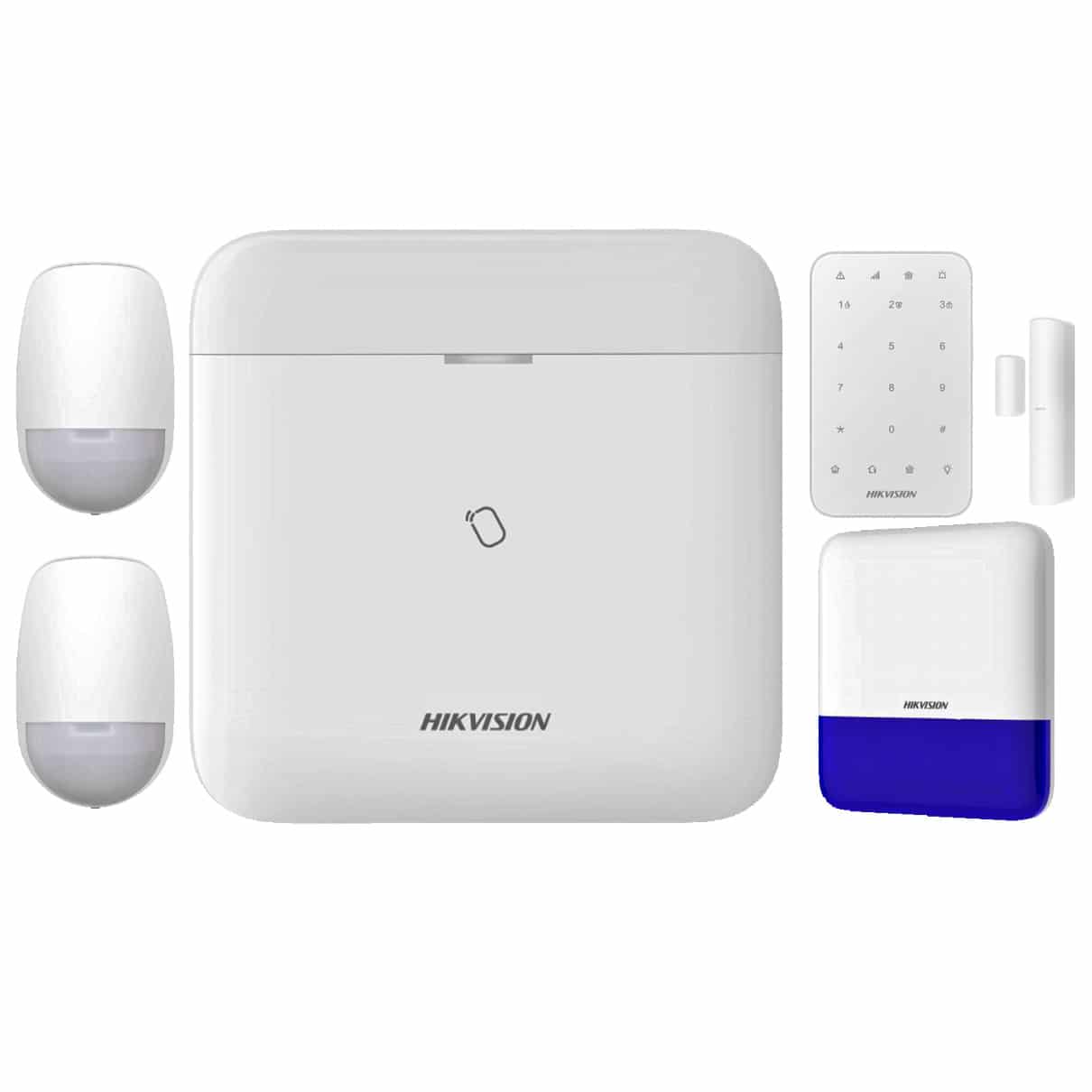

Complete Package Contents

• 2 x DS-PDP15P-EG2-WB Wireless PIR Sensor - passive infrared motion detection, wireless 433 MHz
• 1 x DS-PDMC-EG2-WB Wireless Magnetic Reed Switch - door/window contact detector, wireless 433 MHz
• 1 x DS-PS1-E-WB Wireless Outdoor Sounder - blue LED, outdoor-rated audible alarm
• 1 x DS-PK1-E-WB Wireless Keypad - arm/disarm, voice prompts, LED status indicators
• 1 x DS-PWA96-M-WB AX PRO Alarm Panel - 96-zone wireless, TCP/IP + Wi-Fi + 3/4G, AES-128, 4520 mAh battery backup

Before You Buy

Quick Fit Check

• Good match if: You are specifying a wireless alarm for a leased commercial premises or heritage building where cable runs are restricted - the fully wireless 433 MHz architecture requires no wall penetrations between the panel and its detectors.
• Good match if: You need a single panel that can grow from a 5-zone starter install to a 96-zone site over time - the DS-PWA96-M-WB supports progressive zone expansion without replacing the control panel or rewiring.
• You may need a different model if: Your site requires a Grade 3 certified alarm panel for high-security or insurance-mandated applications - a hardwired Grade 3 alarm system would be the more appropriate product type for those compliance requirements.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a wireless alarm panel that scales from a small starter install to 96 zones without replacing the hub, with triple-path communication and AES-128 encryption as standard.
• You may need a different model if: Your application requires a hardwired Grade 3 certified alarm system for high-security insurance compliance - a wired Grade 3 alarm panel would be the appropriate product type for those mandated specifications.
• Pairs well with: Additional AX PRO-compatible wireless PIR sensors, door/window contacts, and wireless outdoor sounders to expand coverage as the site grows - all within the 96-zone capacity of this panel.

Common Questions

1. Can I add more detectors to this kit later?

   Yes. The DS-PWA96-M-WB panel supports up to 96 wireless zones, so the 5 points covered by the starter kit are just the beginning. Additional AX PRO-compatible wireless PIR sensors, magnetic reed switches, and other peripherals pair directly with the existing panel without any hardware upgrades.

2. Does this system work without an internet connection?

   Partially. The panel will still detect and trigger alarms locally - the built-in siren and outdoor sounder will activate. However, remote app access via Hik-Connect and push notifications to mobile devices require an active internet or cellular connection. The 3/4G path requires a separate SIM card and data plan to function as a cellular backup.

3. Will this system work with a professional monitoring station?

   Yes, in most cases. The triple-path communication (TCP/IP, Wi-Fi, 3/4G) and AES-128 encrypted reporting are compatible with monitoring station requirements. Confirm with your monitoring provider that they support Hikvision AX PRO protocol before commissioning, as station software compatibility varies.

4. How long does the battery last if mains power fails?

   Up to 12 hours. The built-in 4520 mAh lithium battery maintains full panel operation during a mains power outage. Battery runtime will vary depending on the number of active zones and how frequently they trigger during the outage period.

5. How many users can access and control this system?

   Up to 48 network users can be configured with access to the system. User roles and permissions are defined during setup, so different staff members or family members can be given arm/disarm access without granting full administrative control.

6. Does the AX PRO kit include a SIM card for the 3/4G backup path?

   No. The panel supports 3/4G cellular communication but requires a separately purchased SIM card and an active data plan from a mobile carrier. If cellular backup is part of your alarm design, confirm mobile coverage at the installation address before commissioning and budget for an ongoing SIM plan.

7. Can the system be armed and disarmed automatically on a schedule?

   Yes. The AX PRO panel supports automatic arm and disarm scheduling, which is configurable through the app or web portal. This is useful for retail and office sites with fixed trading hours where manual arming at close of business is unreliable. The Security Australia team can advise on configuration if needed during setup.
