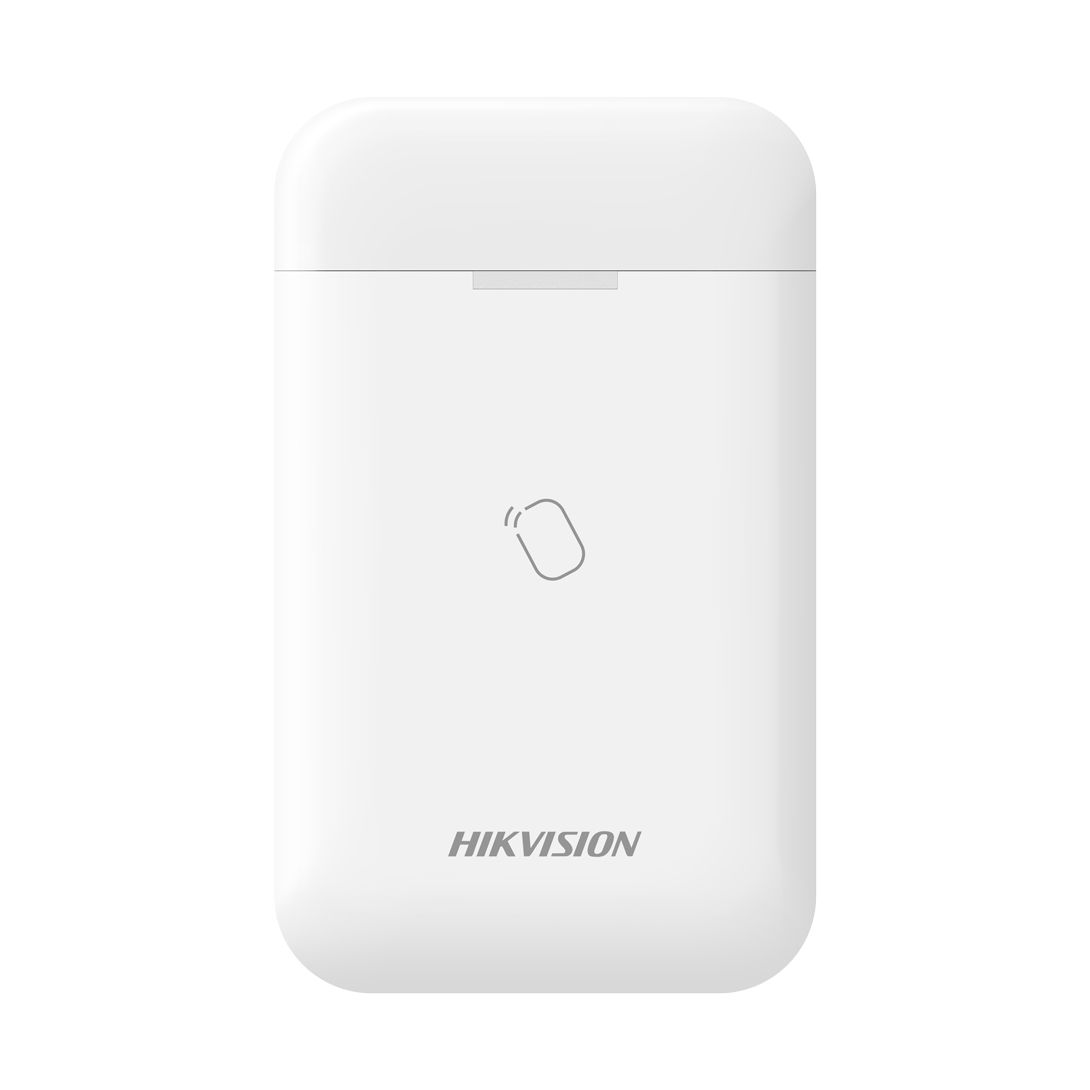

Hikvision DS-PT1 Wireless Mifare Tag Reader

Model: DS-PT1

Who This Is For

For security integrators and facility managers who need a wireless Mifare tag reader that drops cleanly into an existing Hikvision alarm or access control system without running additional cable. The DS-PT1 operates on a dedicated 868MHz frequency, making it a practical choice for retrofitting access points in buildings where cutting into walls or running conduit is not viable. Wall-mounted and battery powered with a rated life of up to 2 years, it suits managed entry points in offices, storerooms, and controlled zones where a wired reader is either impractical or cost-prohibitive. The IP65 rating means it can also be deployed at sheltered outdoor entry points, not just internal corridors. With AES-128 encrypted communication, dual tamper detection, and support for stay arm, away arm, and disarm modes, the DS-PT1 suits environments where zone-level arming control and patrol check-in accountability are part of the operational brief.

What This Device Actually Does

Who Buys This Model

• Security integrators retrofitting existing buildings: The wireless 868MHz operation means no new cable runs to existing entry points - the DS-PT1 registers to the panel over RF, which significantly reduces installation labour on retrofit projects in occupied commercial premises.
• Facilities managers in multi-zone office environments: The stay arm and away arm modes allow staff to arm specific zones independently - server rooms, reception, and storage areas can be managed separately using Mifare credentials already issued to staff.
• Guarding companies managing patrol accountability: The patrol check-in function logs each guard's passage through DS-PT1 points during rounds, producing a verifiable timestamp record at each location without requiring separate patrol hardware.
• Site managers specifying graded alarm installations: Dual tamper detection on both the front panel and rear mount meets supervision requirements for graded systems where physical attack on the reader itself must be detected and reported.

Honest Assessment

The DS-PT1 does its core job well: it puts a supervised, encrypted Mifare reader at an entry point without needing a cable. The 868MHz two-way wireless, AES-128 encryption, dual tamper detection, and up to 2-year battery life are a strong combination for retrofitting controlled access or zone arming into buildings where running cable is the main cost driver. IP65 extends usefulness to sheltered external mounting positions. Where it will not serve you is in standalone access control deployments - the DS-PT1 is a reader peripheral that requires a compatible Hikvision wireless alarm or access panel to function; it is not an independent controller. It also reads Mifare cards only, so if your site uses HID, EM4100, or other credential types, this is not the right reader. For multi-format or long-range read requirements, a wired multi-technology reader is the more appropriate product type. Available through Security Australia as part of the Hikvision wireless security range.

Before You Buy

Quick Fit Check

• Good match if: You are adding Mifare card arming control to an existing compatible Hikvision wireless panel and cannot run a cable to the new read point - the 868MHz wireless link and up to 2-year battery life solve both constraints in one unit.
• Good match if: Your site uses security patrols and you need timestamped check-in records at specific locations - the patrol tag check-in function logs each card presentation at each reader point without requiring separate patrol hardware.
• You may need a different model if: Your site uses HID, EM4100, DESFire, or any credential format other than Mifare - a wired multi-technology reader would be the appropriate product type to review instead.

Key Features & Technical Specifications

Real-World Scenarios

How It Compares

• Choose this if: You need a battery-powered wireless Mifare reader that can arm and disarm specific zones independently, and your installation is on a compatible Hikvision wireless panel where running cable to the read point is not practical.
• You may need a different model if: Your site uses credential formats other than Mifare, requires read distances beyond 5cm, or needs a standalone access controller - a wired multi-technology reader or integrated door controller would be the more appropriate product type to consider.
• Pairs well with: A compatible Hikvision wireless alarm panel or access control hub, and Mifare card credentials for staff access management.

Common Questions

1. Will the DS-PT1 work as a standalone access controller without a panel?

   No. The DS-PT1 is a wireless reader peripheral, not a standalone controller. It requires enrollment into a compatible Hikvision wireless alarm or access control panel to function. The panel handles credential validation and access decisions - the DS-PT1 reads the Mifare card and transmits the credential data to the panel over the 868MHz wireless link.

2. Does this reader work with HID, EM4100, or DESFire cards?

   No. The DS-PT1 supports Mifare card format only. If your site uses HID Prox, EM4100 125kHz, DESFire EV1/EV2, or any other credential type, this reader will not recognise those cards. You would need to specify a reader that explicitly lists support for those formats in its confirmed specification.

3. How far away can I hold my card and still get a read?

   Up to 5cm. The DS-PT1 is a tap reader - the card needs to be presented close to the reader face. This is intentional for Mifare technology at this frequency range. Users need to be instructed to tap rather than wave, and mounting height should be set to suit the typical user presenting a wallet or card holder to the unit.

4. What does the fault confirmation feature actually do before arming?

   It checks system integrity before completing the arm command. When a user initiates arming via a Mifare card swipe, the DS-PT1 triggers a fault check through the connected panel - if any zone is open, tampered, or reporting a fault, the arming sequence stops and the LED display provides feedback rather than silently arming with an active fault condition present.

5. Can the DS-PT1 be used outdoors?

   Yes, at sheltered outdoor positions. The IP65 rating means the unit is dust-tight and handles direct water jets, which covers most covered external entry applications such as undercover carparks, building facades with eave overhang, and external stairwell entries. It is not rated for direct rain exposure or submerged conditions.

6. How does the 868MHz frequency benefit this installation compared to a Wi-Fi-based reader?

   868MHz is a dedicated, low-interference frequency band. Unlike 2.4GHz Wi-Fi, it is not shared with routers, smart devices, microwave ovens, or other consumer electronics common in commercial and mixed-use buildings. This means the wireless link between the DS-PT1 and the panel is less susceptible to signal congestion, which is a practical advantage on dense sites where RF reliability matters. The two-way communication also confirms each transaction, rather than a one-way transmit-only approach. The DS-PT1 is stocked by Security Australia as part of the Hikvision wireless security peripheral range.

7. Does the patrol check-in function require additional software?

   No, not at the hardware level. The DS-PT1 logs check-in events when a guard's Mifare tag is presented at the reader during rounds. How that data is stored, reported, and viewed depends on the connected panel and any associated software or monitoring platform in use - confirm with your panel's management software what patrol reporting tools are available in your specific system configuration.
